CC1000PP Plug and Play Module
SWRU060
Page 1 of 11

Advertisement

Table of Contents
loading

Summary of Contents for Texas Instruments CC1000PP

  • Page 1: User Manual

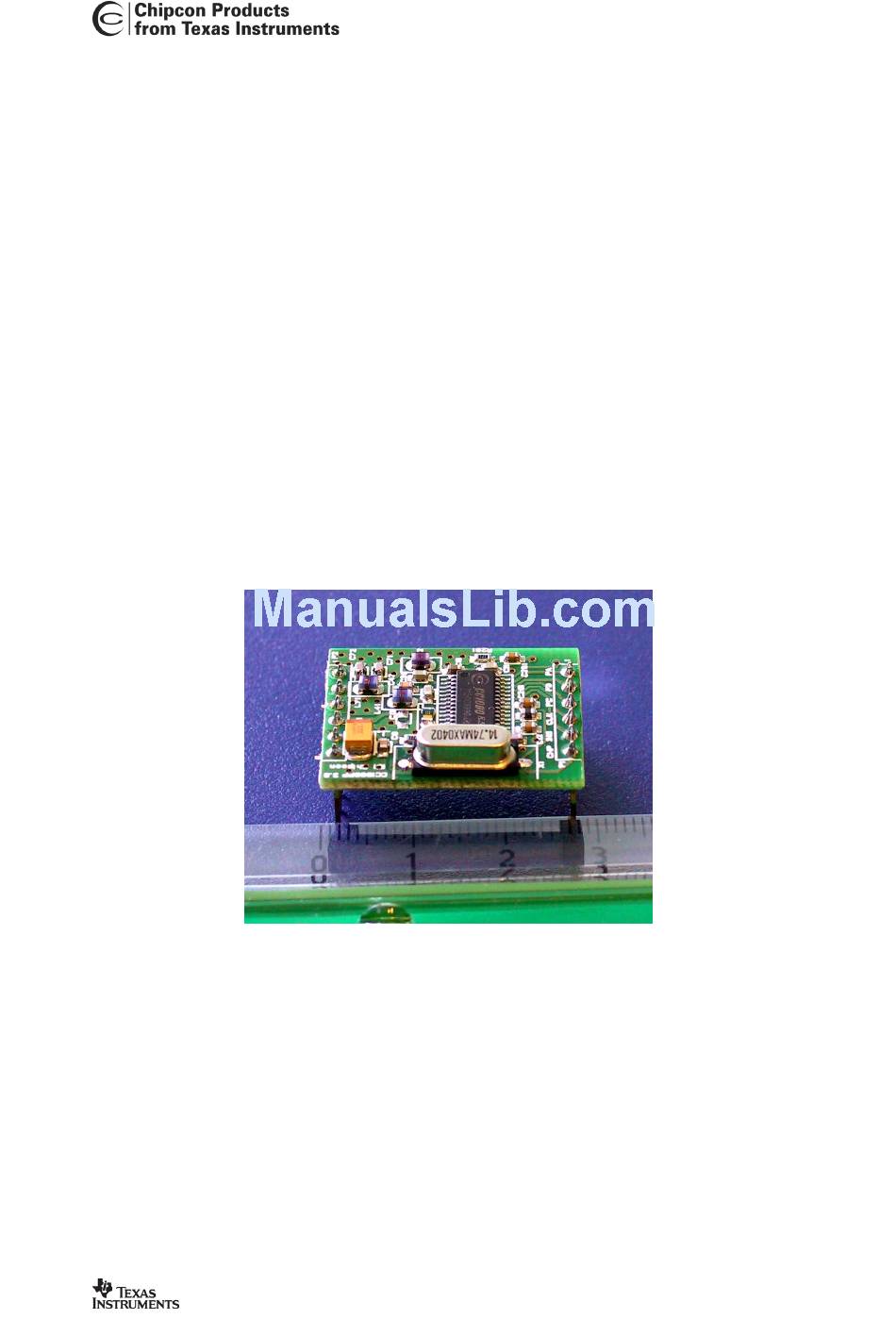

    User Manual Rev. 1.22 CC1000PP Plug and Play Module SWRU060 Page 1 of 11...
  • Page 2: Table Of Contents

    TYPICAL PERFORMANCE ... 3 MECHANICAL DIMENSIONS AND COMPONENT PLACEMENT ... 4 CIRCUIT DIAGRAM... 4 LAYOUT ... 8 ANTENNAS... 8 BILL OF MATERIALS... 8 , CC1000PP-433... 9 ILL OF MATERIALS , CC1000PP-868... 10 ILL OF MATERIALS SWRU060 Page 2 of 11...
  • Page 3: Introduction

    “solder” (reverse) side is used for a ground plane. The CC1000PP layout can easily be used as a reference layout by importing it into a PCB CAD program. Chipcon provides the layout in the industry-standard Gerber format. To download the files, please visit the Chipcon web site.
  • Page 4: Mechanical Dimensions And Component Placement

    Chipcon application note AN003. Circuit diagram The circuit diagram of the CC1000PP is shown below. There are two versions of the CC1000PP module, the CC1000PP-433 for 433 MHz operation, and the CC1000PP-868 for operation in the 868 MHz and 902-928 MHz bands. Since the 868 version covers both the European 868 MHz band and the US 902-928 MHz band, one system can be used in both Europe and the US using the same hardware, changing the frequency by software control.
  • Page 5 The value of the matching components, the VCO inductor and the LC filter will depend on the operating frequency. Bills of materials are supplied for both versions. For operating frequencies other than those listed here, please use the latest version of SmartRF calculate the component values.
  • Page 6 Figure 2. Schematic for 433 MHz version SWRU060 Page 6 of 11...
  • Page 7 Figure 3. Schematic for 868/915 MHz version SWRU060 Page 7 of 11...
  • Page 8: Layout

    The CC1000 is designed to be used together with low cost passive components. The components specified for the CC1000PP are the same as those listed in the data sheet. The only critical component is the VCO inductor, which must be the exact type listed in order for LO leakage to meet specifications.
  • Page 9: Bill Of Materials , Cc1000Pp-433

    Bill of materials, CC1000PP-433 Reference Description Capacitor, tantal Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603, general Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 C171 Capacitor 0603 C181 Capacitor 0603 C210 Capacitor 0603...
  • Page 10: Bill Of Materials , Cc1000Pp-868

    Bill of materials, CC1000PP-868 Reference Description Capacitor, tantal Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 Capacitor 0603 C171 Capacitor 0603 C181 Capacitor 0603 C210 Capacitor 0603 C281...
  • Page 11: General Information

    Disclaimer Chipcon AS believes the furnished information is correct and accurate at the time of this printing. However, Chipcon AS reserves the right to make changes to this product without notice. Chipcon AS does not assume any responsibility for the use of the described information. Please refer to Chipcon’s web site for the latest update. General Information Chipcon AS believes the furnished information is correct and accurate at the time of this printing.
