O
WNER'S
I
M
NSTRUCTION
ANUAL
B
T
ASIC
ELEPHONE
2201

Advertisement

Table of Contents
loading

Related Manuals for Cortelco Colleague 2201

Summary of Contents for Cortelco Colleague 2201

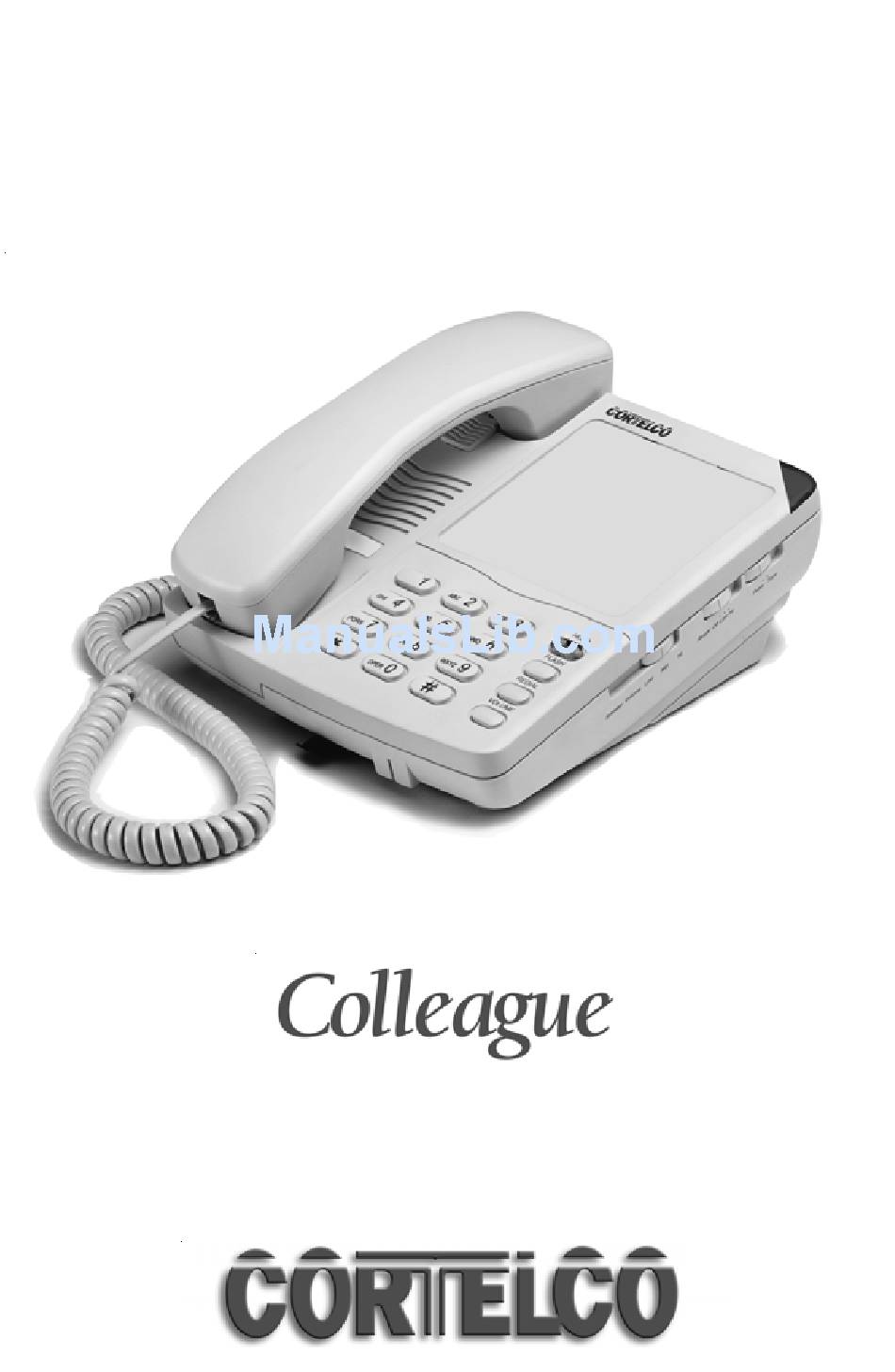

  • Page 1 WNER’S NSTRUCTION ANUAL ASIC ELEPHONE 2201...

  • Page 2: Basic Telephone

    URCHASING OLLEAGUE BASIC TELEPHONE We want you to know all about your new Colleague Telephone, how to install it, the features it provides, and the services you can expect from its use. We have included this information in your Owner’s Instruction Manual.

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ... 2 TELEPHONE USAGE ... 4 SETUP/INSTALLATION ... 4 WALL MOUNT INSTRUCTIONS ... 5 TELEPHONE PART IDENTIFICATION ... 6 TELEPHONE FEATURES ... 7 PULSE AND TONE DIALING ... 7 RECEIVING A PHONE CALL ... 7 PLACING A PHONE CALL ... 7 VOLUME BUTTON ...

  • Page 4: Important Safety Instructions

    Unplug this product from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Do not use the telephone near water. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement.
  • Page 5 Avoid using a telephone during a local thunderstorm. There may be a remote risk of electrical shock from lightning. Do not use a telephone to report a gas leak in the vicinity of the leak. Unplug the telephone from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...

  • Page 6: Telephone Usage

    Use the existing line cord supplied to connect the LINE jack of your answering machine to the wall modular line jack. • Use the new line cord supplied to connect the telephone’s jack of your new phone to the PHONE jack of your answering machine. •...

  • Page 7: Wall Mount Instructions

    WALL MOUNT INSTRUCTIONS 1. Install wall mount bracket in wall mount position and route cords as shown in diagram below. 2. Connect the line cord. See Step 1 on preceding page for specific instructions. 3. Push out the handset hook and reattach in opposite direction for the wall mount position, plug the coiled cord into the handset, and then plug the other end of the cord into the case.

  • Page 8: Telephone Part Identification

    ELEPHONE Flash Switch Data Port Telephone Line Cord Jack Message Waiting Indicator Hold Button DENTIFICATION Flash Button Redial Button Volume Button Pulse/Tone Switch Ringer Off/Low/Hi Switch...

  • Page 9: Telephone Features

    If you are unsure which system you have, set the switch to the TONE position. Lift the handset. When you get a dial tone, dial a telephone number. If the dial tone continues, move the switch to PULSE, and then dial the telephone number again.

  • Page 10: Hold Button

    90V message waiting on T/R (tip/ring, the red/green wires). The lamp also serves as a visual ring indicator. DATA PORT This is a connection which is in parallel with the telephone line. It allows the connection of a device such as a modem, caller ID, or an answering machine. POSITIVE LINE DISCONNECT Positive line disconnect ensures that the hookswitch disconnects the call, therefore;...

  • Page 11: Telephone Service Problems

    NO DIAL TONE Wire is disconnected at telephone jack or at wall jack. Test the telephone in a different wall jack. If it works, the first jack may be defective. HAVE DIAL TONE BUT CANNOT DIAL OUT Check if the PULSE/TONE switch is at the correct position.

  • Page 12: Telephone Repair

    DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Telephones manufac- tured by CORTELCO must be returned to us for repair. You can return your telephone to CORTELCO for repair or replacement in accordance with our LIMITED WARRANTY. CORTELCO warrants THIS PRODUCT against defects in material and workmanship in accordance with our LIMITED WARRANTY.

  • Page 13: Fcc Information

    FCC prior to its connection to the network. This equipment complies with Part 68 of FCC rules. On the bottom of the telephone is a label that contains, among other information, the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment.

  • Page 14: Index

    A, B, C Adjusting volume Data Port Dialing Mode E, F FCC Information Flash Flash Switch G, H, I, J Hold K, L, M Maintenance Making calls Message light N, O, P Part Identification Positive Line Disconnect NDEX Q, R Receiving calls Redial Repair...
  • Page 15 CORTELCO with the product and loss of parts. The warranty is voided in the event any unauthorized person alters or repairs the unit.
  • Page 16 ELEPHONE UMBERS ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
