DO GUIDE

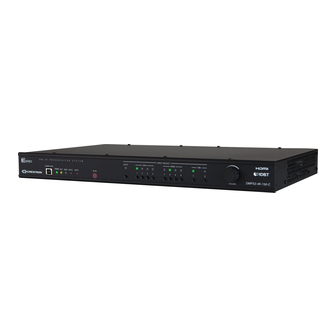

DMPS3-4K-150-C
3-Series 4K DigitalMedia Presentation System 150
® TM

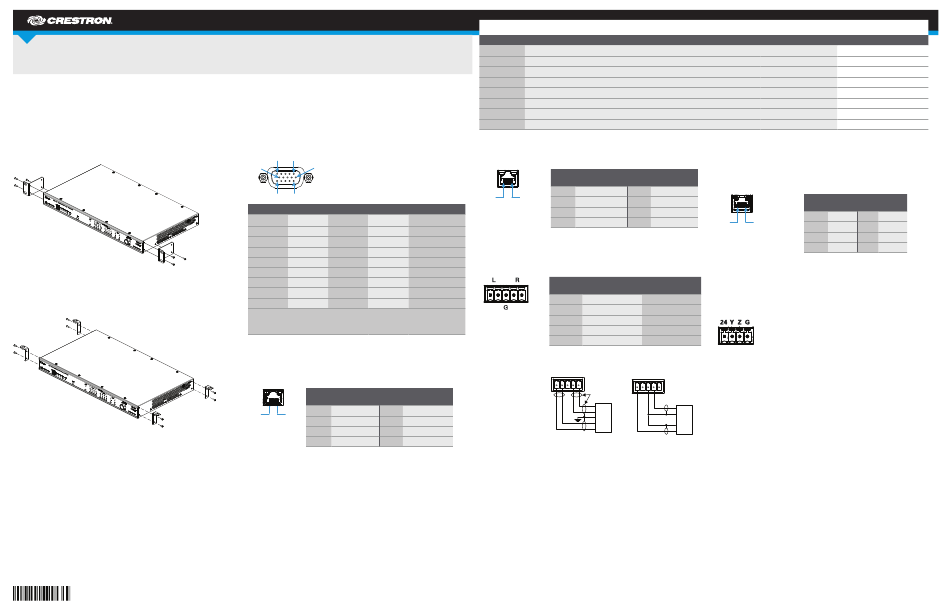

DO Install the Device
The DMPS3-4K-150-C can be mounted into a rack, attached to the
underside of a table, or placed onto a flat surface.
Mount into a Rack
The DMPS3-4K-150-C occupies 1U of rack space. Using a #1 or #2 Phillips
screwdriver, attach the two included rack ears to the device. Then, mount
the device into the rack using four mounting screws (not included).
Attach to the Underside of a Table
Using a #1 or #2 Phillips screwdriver, attach the four included table mount
brackets to the device. Then, attach the four table mount brackets to the
underside of the table using four mounting screws (not included).
Place onto a Flat Surface
When placing the device onto a flat surface or stacking it with other
equipment, attach the included feet near the corners on the underside of the
device.
DO Connect the Device
Make connections to the rear panel of the DMPS3-4K-150-C as follows
(refer to the illustration on the following page for a sample application
diagram):
VGA IN 1–4: Connect to RGB (VGA), component, S-video, or composite
video sources.
Pin 5 Pin 1
Pin 10 Pin 6
5 1
15 11
Pin 15 Pin 11
PIN NUM. RGB YPbPr S-VIDEO COMPOSITE
1 R Pr C
2 G Y Y
3 B Pb COMP
5 GND GND GND GND
6 RED_GND Pr_GND C_GND
7 GRN_GND Y_GND Y_GND
8 BLU_GND Pb_GND
13 H
14 V
NOTE: For best video performance, ground connections should be
kept separate. Do not connect ground wires to the connector shell. The
connector shell is reserved for the cable shield.
AUDIO IN 1–4: Connect to unbalanced audio sources.
HDMI IN 1–4: Connect to HDMI ® audio/video sources.
DM IN 1–2: Connect to the DM 8G+ output of DigitalMedia™ transmitters
®
or other DigitalMedia devices or to third-party HDBaseT devices.*
®
PIN PIN
WIRE COLOR WIRE COLOR
NUM. NUM.
1 Orange/White 5 Blue/White
Pin 8 Pin 1
2 Orange 6 Green
3 Green/White 7 Brown/White
4 Blue 8 Brown
DO Check the Box
QUANTITY PRODUCT
2 Bracket, Rack Ear, 1U
4 Bracket, Under Table Mount
2 Connector, 3-Pin
2 Connector, 4-Pin
2 Connector, 5-Pin
1 Emitter Probe, IR, Crestron STIRP
4 Foot, 0.5" x 0.5" x 0.23", Rubber
1 Power Cord, 6' 7" (2 m)
HDMI OUT: Connect to the display.
DM OUT: Connect to the DM 8G+ input of a DigitalMedia receiver or other
DigitalMedia device or to a third-party HDBaseT device.*
PIN PIN
WIRE COLOR WIRE COLOR
NUM. NUM.
1 Orange/White 5 Blue/White
Pin 8 Pin 1
2 Orange 6 Green
3 Green/White 7 Brown/White
4 Blue 8 Brown
RELAY 1–2: Connect to controllable devices.
INPUT: Connect to a digital or analog output device.
AUDIO OUT: Connect to the receiving device using the supplied 5-pin
interface connector.
SIGNAL BALANCED UNBALANCED
NAME AUDIO OUTPUT AUDIO OUTPUT
+ L+ L+ Out
– + –
+
- L- Open
G Shield/Ground Common Ground
+ R+ R+ Out
- R- Open
Balanced Output Unbalanced Output
L R
L R
- -
+ G + - -
+ G +
Shield
Right
+
AMP
Left
+
PART NUMBER
2032122
2041951
2003575
2003576
2003577
2001137
2002389
2001134
IR OUT: Connect to the included Crestron STIRP IR emitter probe.
MIC IN: Connect to a microphone.
COM: Connect to the device to be controlled using the included 5-pin
interface connector.
LAN: Connect to the local area network.
PIN
SIGNAL
NUM.
1 TX+
Pin 8 Pin 1
2 TX-
3 RX+
4 N/C
USB 1–4 (Type A): Connect to the USB port of Crestron TT-100 Series
presentation interfaces.
G: Connect to earth ground (building steel).
NET: Connect to the 4-pin NET port of a Cresnet
4-pin interface connector.
24: Power, 24 Vdc (Red Wire)
Y: Data (White Wire)
Z: Data (Blue Wire)
G: Ground (Black Wire)
100–240V~1.4A 50/60 Hz: Connect to a 120 V power outlet using the
included power cord.
+
Right
AMP
Left
+
PIN
SIGNAL
NUM.
5 N/C
6 RX-
7 N/C
8 N/C
® device using the included
