Summary of Contents for Dukane 446

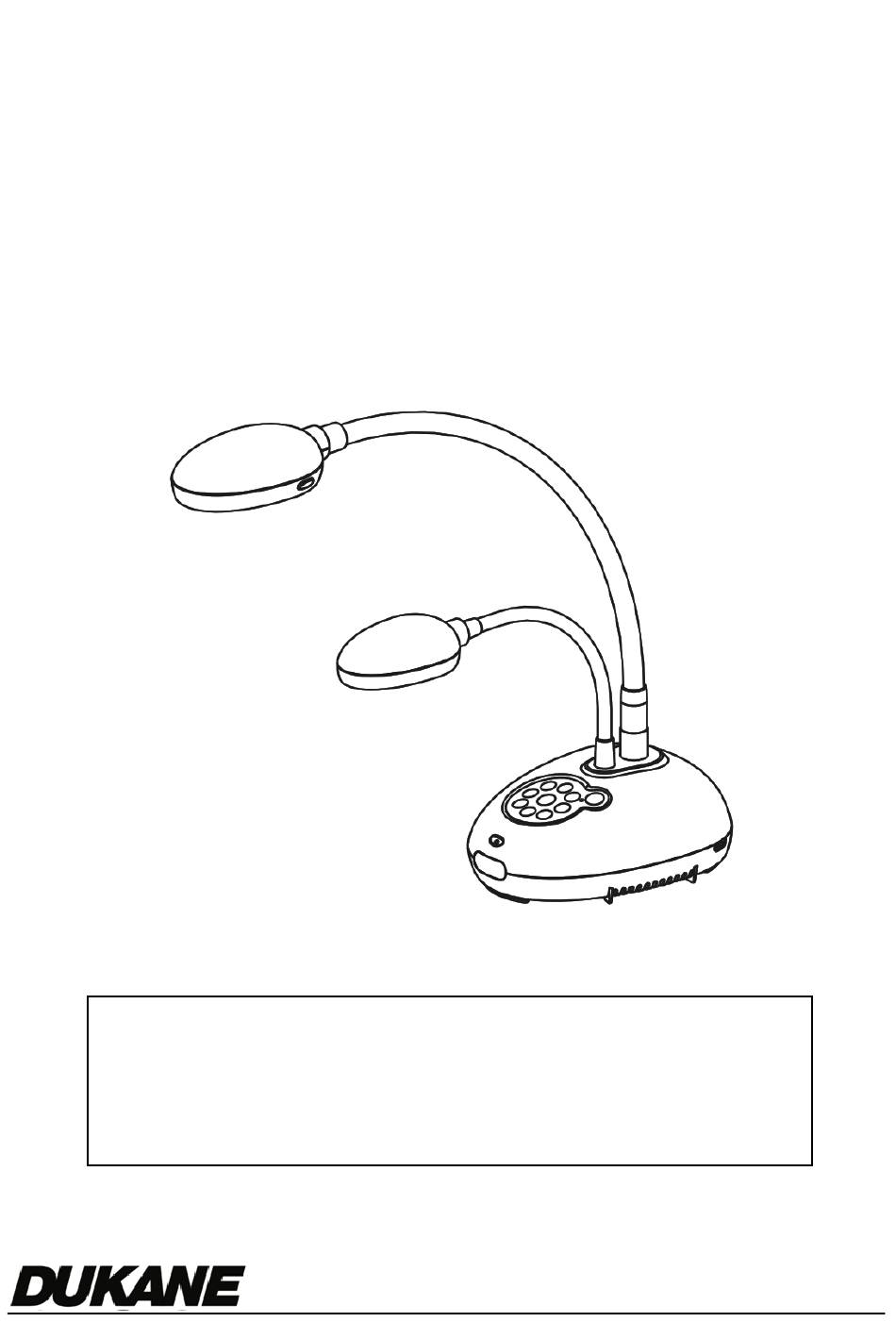

- Page 1 CAMERA 446 and 446A Document Camera User Manual SEE THE LATEST DOCUMENTS AND MANUALS AT WWW.DUKANEAV.COM English...
-
Page 2: Table Of Contents
Connecting to a projector or monitor ..........10 Connecting to an HDTV ..............11 Connecting to a computer and use Dukane AV software ....11 Connecting to a computer and projector or monitor simultaneously 12 Connecting to a computer and USB disk simultaneously ....12 Connecting to an Interactive Whiteboard (IWB) ....... - Page 3 I would like to use the auto focus ............. 26 I would like to adjust the brightness ..........26 I would like to turn on/off the lamp ............ 26 I would like to freeze images ............26 7.10 I would like to rotate the image ............27 7.11 I would like to capture images ............
-
Page 4: Copyright Information
Copyright Information Dukane is a trademark that is currently being registered by Dukane Corp . Copying, reproducing or transmitting this file is not allowed if a license is not provided by DUKANE CORP . unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: Do not place Document Camera in tilted position. Do not place the Document Camera on an unstable trolley, stand or table. Do not use the Document Camera near water or source of heat. Use attachments only as recommended. -
Page 6: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature. If the Document Camera will not be used for an extended time, unplug it from the power socket. -
Page 7: Chapter 2 Package Contents
Dukane website) VGA cable USB cable Power cord Appearance may vary depending on country/region Remote Control Remote control Microscope Adapter Holder Note ; In this manual the 446 refers to both the Camera 446 and the 446A versions. English... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview 1. Gooseneck 2. Auto focus 3. Lamp 4. Control panel 5. LED indicator 6. Built-in microphone 7. Remote sensor 8. Lens 9. LED lamp 10. DIP switch setting (Bottom) English... -
Page 9: Relative Position Of The Presenter And Document
3.1 Relative position of the presenter and document English... -
Page 10: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Earphone or Computer, projector or monitor speaker USB disk Computer Computer or TV English... -
Page 11: Installation And Setup
Monitor Computer 4.2 Installation and setup Please set up the DIP switch setting first. Refer to Chapter 9 DIP Switch Setting. 4.3 Connecting to a projector or monitor VGA cable Power cord Monitor or projector AC outlet English... -
Page 12: Connecting To An Hdtv
4.4 Connecting to an HDTV Power cord HDMI cable AC outlet HDTV 4.5 Connecting to a computer and use Dukane software USB cable Projector Power cord VGA cable AC outlet Computer The software can be downloaded from Dukane website... -
Page 13: Connecting To A Computer And Projector Or Monitor Simultaneously
4.6 Connecting to a computer and projector or monitor simultaneously VGA cable VGA cable Power cord Monitor or projector AC outlet Computer Press [SOURCE] button to switch the image source. 4.7 Connecting to a computer and USB disk simultaneously USB disk USB cable Power cord... -
Page 14: Connecting To An Interactive Whiteboard (Iwb)
4.8 Connecting to an Interactive Whiteboard (IWB) Projector USB cable VGA cable Power cord USB cable AC outlet Computer 4.9 Connecting to a speaker Power cord Earphone or speaker AC outlet English... -
Page 15: Connecting To A Computer With Rs232
EXTENDER cable Power cord RS232 cable AC outlet Computer After connecting to the RS232 cable, you can use RS232 commands to control Camera 446. 4.11 Connecting to a TV DIP switch setting EXTENDER cable Power cord C-Video Cable AC outlet ... -
Page 16: Installing Application Software
<Note> Only the live image can be displayed in C-Video output mode. 4.12 Installing application software The application software installed on the computer enables you to: Control the 446. Capture and record images. Annotate the image, highlight important details and save it. -
Page 17: Chapter 5 Start Using
When using the remote control, aim at the remote sensor on the 446, and press the power button. Once 446 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED does not light up. -
Page 18: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <Remark> The below functions are listed alphabetically Name Function Descriptions Operation Turn on and off the Document Camera. Remote control/ *Press and hold for 5 ~ 10 seconds to turn Control panel ,,,... - Page 19 Freeze the current image to remain FREEZE temporarily on the screen. Press again to Remote control defreeze. LAMP Lamp mode toggle switch. Remote control/ Control panel MASK Activate Mask/Spotlight mode. Remote control MENU Activate the setting menu/exit the menu. Remote control/ Control panel Enable/Disable the partial enlarged mode.
-
Page 20: Setting Menu
6.2 Setting menu 6.2.1 Main menu <Remark> Press [MENU] on the remote control or control panel to display the setting menu. Auto Tune Slide Show Automatically adjust the image to Show the photos or videos stored have the best brightness and in the USB disk (priority) or focusing performance. - Page 21 6.2.2 Setting menu Level Level Level Major Function Descriptions Minor Items Adjustment Values Items Single Capture/ Use the left and right arrow keys to Capture Mode Time Lapse/ select capture mode. Record/Off 1 hr 2 hr Use the left and right arrow keys to 4 hr select the capture time.
- Page 22 Regardless of outside environment, the machine will adjust the Auto Exposure On/Off brightness to the optimal condition. Use the left and right arrow keys to select. Regardless of outside light or color, Auto White the machine will adjust the color to ENTER Balance the optimal condition;...
- Page 23 Use the left and right arrow keys to turn on/off the auto erase function. Auto Erase On/Off When [On] is selected, the stored images will automatically be deleted when the system is turned off. Read the value of the current image mode.
- Page 24 6.2.4 Spotlight mode setting menu Level Level Level Major Function Descriptions Minor Items Adjustment Values Items Press [ENTER] to return to live Live ENTER image. Use the left and right arrow keys to Shape Ellipse/Rectangle select the shape of the spotlight zone.
- Page 25 6.2.6 Annotation After the mouse is connected, right click or left click and hold the mouse to start the tools. <Note> When the setting menu is activated, the tools cannot be used. Icon Description Custom tool 1 Custom tool 2 Eraser Clear all Open setting menu of the annotation tool...
-
Page 26: Chapter 7 Descriptions Of Major Functions
I would like to switch image sources Live image is the default image source. Press [SOURCE] on the remote control or control panel to have 446 switch among the following images sources: 1. Live images (default). 2. VGA IN / HDMI IN. -
Page 27: I Would Like To Zoom In/Out Images
1. Press [MENU] to activate the setting menu. 2. Press [], [], [] or [] to select [Photo/Text]. (Please refer to 7.4.1 Photo/Text mode descriptions to make the best choice.) 3. Press [ENTER] to activate. 4. Press [] or [] to select the [Photo/Text/Gray]. I would like to zoom in/out images 1. -
Page 28: I Would Like To Rotate The Image
7.10 I would like to rotate the image Remote control: 1. Press [ROTATE] key to rotate the screen. (The sequence of switching is: 0°/180°/Flip/Mirror) Control panel: 1. Press [MENU] to activate the setting menu. 2. Press [], [], [], or [] to select [Rotate]. 3. -
Page 29: I Would Like To Record Images
9. Press [MENU] to exit. 7.12 I would like to record images <Note> Connect USB disk to 446 to start recording images. 7.12.1 Recording motion images <Remark> You may not be able to capture or record images when [Capture Image] mode is set to [Disable]. -
Page 30: I Would Like To View Captured/Recorded Images
6. Press [] or [] to select among [High/Medium/Low]. 7. Press [MENU] to exit. 7.12.3 Recording setup 1. Press [MENU] on the remote control or control panel to activate the setting menu. 2. Press [], [], [], or [] to select [Setting]. 3. -
Page 31: I Would Like To Delete The Captured/Recorded Images
7.14 I would like to delete the captured/recorded images Remote control: 1. Press [PLAYBACK] to show the thumbnails of all stored files. 2. Press [], [], [], or [] to select the file you want to delete. 3. Press [DELETE] to display a [Delete File] window. 4. -
Page 32: I Would Like To Use The Mask And Spotlight Function
7.17 I would like to use the MASK and Spotlight function 7.17.1 I would like to use the mask or spotlight mode Use remote control: 1. Press [MASK] to activate the mask/spotlight mode menu. 2. Press [] or [] to select the mode and press [ENTER] to activate. 3. -
Page 33: I Would Like To Play The Slides (Slide Show)
7.18 I would like to play the slides (Slide Show) 7.18.1 Setting delay time 1. Press [MENU] on the remote control or control panel to activate the setting menu. 2. Press [], [], [], or [] to select [Setting]. 3. Press [ENTER] to activate. 4. -
Page 34: I Would Like To Reduce The Image Noise (Projector Type)
Remote control: 1. Press [Playback] to activate the Playback image thumbnails. 2. Press [], [], [], or [] to select the file to be compared. 3. Press [PIP] to execute image comparison. 4. Press [], [], [], or [] to move the live image. 5. -
Page 35: I Would Like To Resume The Factory Default Setting (Factory Reset)
7.21 I would like to resume the factory default setting (Factory Reset) Press [MENU] on the remote control or control panel to activate the setting menu. Press [], [], [], or [] to select [Setting]. Press [ENTER] to activate. Press [] or [] to select [Advanced] menu. Press [] to select [Factory Reset]. - Page 36 7.23.1 I would like to insert a photo in MS-Paint 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Complete by clicking [Get Picture] as shown in the top right figure. <Remark> Support Windows XP Operation System only. 7.23.2 I would like to insert photos in Photoshop 1.
-
Page 37: Chapter 8 Connecting To Microscope
3.1.4. Press [MENU] to exit. 4 If the image is not clear 4.1. Please adjust the focus of microscope. Please press the [FOCUS] button on either side of the 446 lens to 4.2. execute the auto focus. 5 Digital zoom 5.1. -
Page 38: Chapter 9 Dip Switch Setting
Chapter 9 DIP switch setting <Note> You should unplug and reconnect the power cord, and then restart the 446 for all DIP switch settings to take effect. 9.1 Connecting to a projector or monitor 9.1.1 XGA output (default values): 9.1.2 SXGA output 9.1.3 WXGA output... -
Page 39: Connecting To A Tv
9.1.4 1080P output 9.2 Connecting to a TV 9.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico 9.2.2 PAL: Countries/regions not listed above <Remark> Once C-VIDEO is enabled, VGA OUT is not supported. English... -
Page 40: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using 446. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. - Page 41 Firmware version of your machine is machine up-to-date. Please go to Dukane official website to check whether the latest version is available for update. The steps to check the FW version are as below: 2.1 Press [MENU] on the remote control or control panel to activate the setting menu.
