Summary of Contents for VTech Analog Classic Series

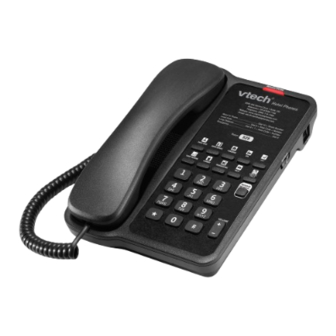

- Page 1 Analog Classic Series CL-A1110 Analog Corded 1-line Hotel Phone User’s Guide...
-
Page 2: Important Safety Instructions
Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. This product should be installed by a of the type of power supply on the qualified technician. - Page 3 Adjust only those controls that are covered designed to hold the plug in place if it by the operation instructions. Improper is plugged into a ceiling, under-the-table adjustment of other controls may result or cabinet outlet. in damage and often requires extensive 19.
-
Page 4: Table Of Contents
Parts check list Telephone layout Installation Set up Operation Appendix Troubleshooting VTech Hospitality Limited Warranty Program 15 FCC, ACTA and IC regulations The RBRC® seal Maintenance Disclaimer and Limitation of Liability Technical specification Analog Corded 1-line - CL-A1110 EN - 4... -
Page 5: Parts Check List
Parts check list Items contained in the respective corded telephone package: Parts included Model Model name number Telephone base Corded Telephone Mounting with faceplate handset line cord bracket and overlay Analog corded 1-line CL-A1110 EN - 5... -
Page 6: Telephone Layout
Telephone layout Telephone line jack MESSAGE WAITING LED DATA port Switch hook Wall mount clip RINGER VOL Speed dial keys PAUSE (recessed key) PROGRAM (recessed key) Speed dial key +/- VOLUME EN - 6... -
Page 7: Installation
Installation Telephone base installation Installation option - desktop position 1. Turn the telephone base over with the bottom side facing up. Insert the tabs of the mounting bracket into the upper grooves on the telephone base as shown below. Then press the tabs and push the mounting bracket into the lower grooves on the telephone base until they lock securely. - Page 8 Installation option - converting from desktop to wall mount position To mount the telephone base on the wall 1. Put the corded handset aside. On the telephone base, place a coin in the slit of Protruding the wall mount clip and rotate a half turn edge (180°).
-
Page 9: Set Up
Set up Default settings are indicated by asterisks (*). Setting Options Adjustable by Handset earpiece volume 1, 2*, 3, 4 User and administrator Ringer volume Low, Medium*, High User and administrator Ringer tone Tone 1*, Tone 2, Tone 3 Adminstrator only Voicemail voltage detection Disable voicemail voltage detection, Adminstrator only... - Page 10 Voicemail voltage detection Speed Dial keys There are 3 options to set the voicemail voltage There are 11 programmable guest-service detection on the telephone base. (Speed Dial) keys. Program these keys to automatically dial telephone numbers or to activate telephone system features. When you To disable the voicemail voltage detection program a Speed Dial key which is already prorgammed, the new number will override...
-
Page 11: Operation
Operation 1. When you hear a call waiting tone during a call, press switch hook rapidly to put your current call on hold and take the new Receive a call incoming call. The telephone rings and the MESSAGE WAITING 2. Press the switch hook rapidly at any time to LED flashes when there is an incoming call. -
Page 12: Appendix
Appendix Troubleshooting If you have difficulty with the telephones, please try the suggestions below. For customer service, visit our website at www.vtechhotelphones.com or call 1-888-907-2007. For corded telephone Question Suggestion • Make sure the telephone line cord is plugged firmly into the telephone wall jack. •... - Page 13 Question Suggestion • Make sure the telephone line cord is plugged in properly. • If other telephones in your hotel are having the same problem, the problem is in the wiring or telephone service. Contact your telephone service provider (charges may apply).
- Page 14 Question Suggestion • Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If you still hear other calls, 6. I hear other calls when using the telephone. the problem is probably in the wiring or telephone service.
-
Page 15: Vtech Hospitality Limited Warranty Program
During the limited warranty period, VTech’s authorized service representative will repair or replace, at VTech’s option, without charge, a Product that is not free from defects in materials and workmanship. If VTech’s authorized service representative repairs the Product, new or refurbished replacement parts may be used. - Page 16 If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair and return shipping costs for the repair of Products that not covered by this limited warranty.
-
Page 17: Fcc, Acta And Ic Regulations
FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 18 If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under VTech Hospitality limited warranty program in the user’s manual.
-
Page 19: The Rbrc® Seal
Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the VTech’s participation in RBRC® makes it easy telephone base near a sink, bathtub or shower. for you to drop off the spent battery at local retailers participating in the RBRC®... -
Page 20: Disclaimer And Limitation Of Liability
Disclaimer and Limitation of Liability VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss resulting from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this product. -
Page 21: Technical Specification
Technical specification Analog Corded 1-line - CL-A1110 Power requirement Line powered 24V or 48V Message waiting signal Steady/periodic high voltage pulse or periodic low voltage pulse Speed Dial memory Telephone base: 11 memory locations; up to 16 digits Size Telephone base: 8.66 x 6.02 x 2.56 in (220 x 153 x 65 mm) Corded handset: 2.23 x 2.15 (0.99) x 8.24 in (56.74 x 54.56 (25.26) x 209.40 mm) EN - 21... - Page 22 Specifications are subject to change without notice. VTech Telecommunications, Inc. All rights reserved. 08/23. CL-A1110_UG_V1_CEC_US_16AUG2023 Copyright © 2023...
