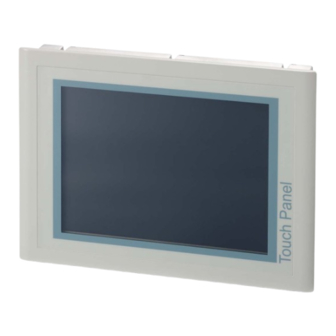

- Page 1 VIPA HMI TP | 62G-FID0 | Manual HB160 | TP | 62G-FID0 | GB | 15-36 Touch Panel - TP 606C...
- Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 62G-FID0_000_TP606C,1,GB - © 2015...
-
Page 3: Table Of Contents
VIPA HMI Table of contents Table of contents General..................4 1.1 Copyright © VIPA GmbH ........... 4 1.2 About this manual.............. 5 1.3 Safety information.............. 6 Hardware description.............. 8 2.1 Safety information for users..........8 2.2 Properties................9 2.3 Structure................10 2.3.1 Overview............... -
Page 4: General
General VIPA HMI Copyright © VIPA GmbH General 1.1 Copyright © VIPA GmbH All Rights Reserved This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agree- ments. This material is protected by the copyright laws. It may not be repro- duced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written con-... -
Page 5: About This Manual
VIPA HMI General About this manual Trademarks VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V, System 500S and Commander Compact are registered trademarks of VIPA Gesellschaft für Visualisierung und Prozessautomatisierung mbH. SPEED7 is a registered trademark of profichip GmbH. SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are regis- tered trademarks of Siemens AG. -
Page 6: Safety Information
General VIPA HMI Safety information Guide to the document The following guides are available in the manual: An overall table of contents at the beginning of the manual References with page numbers Availability The manual is available in: printed form, on paper in electronic form as PDF-file (Adobe Acrobat Reader) Icons Headings Important passages in the text are highlighted by following icons and... - Page 7 VIPA HMI General Safety information CAUTION! The following conditions must be met before using or commissioning the components described in this manual: – Hardware modifications to the process control system should only be carried out when the system has been disconnected from power! –...
-
Page 8: Hardware Description
Hardware description VIPA HMI Safety information for users Hardware description 2.1 Safety information for users Handling of electro- VIPA modules make use of highly integrated components in MOS- static sensitive modules Technology. These components are extremely sensitive to over-vol- tages that can occur during electrostatic discharges. The following symbol is attached to modules that can be destroyed by electrostatic discharges. -
Page 9: Properties
VIPA HMI Hardware description Properties 2.2 Properties General The VIPA Touch Panel allows you to visualize and alter operating states and recent process values of a connected PLC. The Touch Ò Panel is a compact and modular embedded PC based on Windows Ò... -
Page 10: Structure
Hardware description VIPA HMI Structure > Overview 2.3 Structure 2.3.1 Overview Front view 1 Slot for storage medium (CF, SD/MMC) 2 Connection for interfaces and power supply 3 Display with touch sensitive area (touch screen) Side view 1 Compact Flash 2 MMC / SD Bottom view (Inter- faces) -
Page 11: Interfaces
VIPA HMI Hardware description Structure > Interfaces Please make sure that the Touch Panel always has to be supplied with external voltage! 2.3.2 Interfaces RS422/485 interface 9 pin SubD jack Logical states represented by voltage differences between the 4 cores Serial bus connection in 4-wire technology using full duplex mode Data communications up to a max. - Page 12 Hardware description VIPA HMI Structure > Interfaces RS232 interface 9 pin SubD plug Interface is compatible to the COM interface of a PC Logical signals as voltage levels Point-to-point links with serial full-duplex transfer in two-wire tech- nology up to 15m distance Data transfer rate up to 115.2kbit/s MPI/PROFIBUS DP 9 pin SubD jack...
-
Page 13: Memory Management
VIPA HMI Hardware description Structure > Memory management Power supply The Touch Panel has got an integrated power supply. The power supply has to be provided with DC 24V (20.4 ... 28.8V). For this you find an according DC 24V slot on the bottom side. The power supply is protected against inverse polarity and overcur- rent. -
Page 14: Dimensions
Hardware description VIPA HMI Dimensions Security flap for memory cards On the left side of the Touch Panel are the card slots for memory cards. The cards are visibly covered by a security flap and are thus secured from slipping out. Please take care to pull the security flap back before plugging or pulling a memory card like shown in the illustration and put it back again afterwards. - Page 15 VIPA HMI Hardware description Dimensions The degrees of protection are only guaranteed when the following is observed: – Material thickness at the mounting cut-out: 2.5 ... 6mm £ – The deviation from the plane for the panel cut-out is 0.5mm. This condition must be fulfilled for the mounted HMI device.
-
Page 16: General Data
Hardware description VIPA HMI General data 2.5 General data Conformity and approval Conformity 2006/95/EG Low-voltage directive 2004/108/EG EMC directive Approval UL 508 Approval for USA and Canada others RoHS 2011/65/EU Product is lead-free; Restriction of the use of certain hazardous substances in electrical and electronic equipment Protection of persons and device protection Type of protection... -
Page 17: Technical Data
VIPA HMI Hardware description Technical data > 62G-FID0-CB Mounting conditions Mounting place In the control cabinet Mounting position Horizontal and vertical Standard Comment Emitted interfer- EN 61000-6-4 Class A (Industrial area) ence Noise immunity EN 61000-6-2 Industrial area zone B EN 61000-4-2 8kV at air discharge (degree of severity 3), 4kV at contact discharge (degree of severity... - Page 18 Hardware description VIPA HMI Technical data > 62G-FID0-CB Order no. 62G-FID0-CB Operating system Windows CE 6.0 Prof. User software Movicon 11 CE Standard Work memory 256 MB User memory 512 MB Available memory (user data) 380 MB SD/MMC Slot ü CF Card Slot Typ II ü...
- Page 19 VIPA HMI Hardware description Technical data > 62G-FID0-CB Order no. 62G-FID0-CB Audio connections Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection ü Current consumption (no-load operation) 0.34 A Current consumption (rated value) 0.5 A Inrush current...
-
Page 20: Fid0-Cx
Hardware description VIPA HMI Technical data > 62G-FID0-CX 2.6.2 62G-FID0-CX Order no. 62G-FID0-CX Type Touch Panel TP 606C Display Display size (diagonal) 6.5 " Display size (width) 132.5 mm Display size (height) 99.4 mm Resolution 480 x 640 / 640 x 480 Aspect ratio Type of display TFT color (16.7M colors) - Page 21 VIPA HMI Hardware description Technical data > 62G-FID0-CX Order no. 62G-FID0-CX COM1 connector Sub-D, 9-pin, male Serial, COM2 RS422/485 isolated COM2 connector Sub-D, 9-pin, female Number of USB-A interfaces USB-A connector USB-A (host) Number of USB-B interfaces USB-B connector USB-B (device) Number of ethernet interfaces Ethernet Ethernet 10/100 MBit...
- Page 22 Hardware description VIPA HMI Technical data > 62G-FID0-CX Order no. 62G-FID0-CX Minimum 2.5 mm Maximum front panel thickness 6 mm Weight 1614 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification in preparation HB160 | TP | 62G-FID0 | GB | 15-36...
-
Page 23: Deployment Touch Panel
VIPA HMI Deployment Touch Panel Installation Deployment Touch Panel 3.1 Installation Overview The Touch Panel is suitable for the installation in operating tables and control cabinet fronts. The installation happens via the back. The Touch Panel is provided with a patented integrated fixing technique that allows an easy connection with a simple screwdriver. - Page 24 Deployment Touch Panel VIPA HMI Installation Connect power supply For the cabling of the DC 24V power supply green plugs with Cage- Clamp technology are deployed. The spring-clip connector tech- nology simplifies the wiring requirements for signaling and power cables. In contrast to screw terminal connections, spring-clip wiring is vibration proof.
-
Page 25: Commissioning
VIPA HMI Deployment Touch Panel Commissioning > VIPA Startup-Manager 3.2 Commissioning CAUTION! – Before commissioning the device must be brought to room temperature. – At condensation the device must be absolutely dry before connected to power. – To avoid overheat during operation the device must not be laid open to direct sun light. - Page 26 Deployment Touch Panel VIPA HMI Commissioning > VIPA Startup-Manager Backup Exit Back Settings In [Settings] under Change Settings you can set a password for the Startup-Manager. The password will be requested when interrupting the start countdown or before closing the Startup-Managers by "Exit". By default, no password is defined.
- Page 27 VIPA HMI Deployment Touch Panel Commissioning > VIPA Startup-Manager With [...] under "Runtime path" res. "Project path" all existing runtimes res. projects on the panel and the storage media are listed. If the panel should start with a project of the web visualization of the VIPA SPEED7 Studio, you have to select a batch file with [...] under "Runtime path"...
- Page 28 Deployment Touch Panel VIPA HMI Commissioning > VIPA Startup-Manager Upload your program with [...]. You can optionally set parameters. Exit with [Finish]. Ò With "Copy" [...] you can copy Windows CE files on the panel from a source path to a destination path. With "Autostart"...
-
Page 29: Connection To A Plc System
VIPA HMI Deployment Touch Panel Operating system WindowsÒ Embedded CE 6.0 Prof. > General 3.3 Connection to a PLC system Overview For the inclusion into your PLC system several HMI/SCADA project- engineering platforms are at your disposal that has to be installed at an external PC. - Page 30 Deployment Touch Panel VIPA HMI Operating system WindowsÒ Embedded CE 6.0 Prof. > General Ò Ò Windows Embedded Windows Embedded CE 6.0 supports some file viewer and an CE 6.0 Internet browser. Properties ftp, http, Telnet and VNC server RAS server ActiveSync file transfer (USB, RS232) RDP (Remote Desktop Protocol) Internet Explorer 6...
-
Page 31: Structure
VIPA HMI Deployment Touch Panel Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure 3.4.2 Structure Icon Via icons on the desktop you gain direct access to the application related to the icon. Desktop Ò The desktop is the screen that is shown after login to Windows CE. - Page 32 Deployment Touch Panel VIPA HMI Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure Show desktop All windows are minimized and the desktop is shown. Software keyboard This button displays a keyboard on the screen. "Hide Input Panel" hides the keyboard again. Software keyboard The button allows you to select one of the available software key-...
- Page 33 VIPA HMI Deployment Touch Panel Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure Large KB At pushed Shift key: Meaning Home Position 1 End End BS Backspace up ã dn ä lt á rt â pgup Page ã pgdn Page ä ins Insert del Delete Tab Tabulator...
- Page 34 Deployment Touch Panel VIPA HMI Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure System setting (Control As many components of the Control Panel conform with the system Panel) Ò control of Windows , most of the description is not necessary. The description of the control panel components relevant for operating the Touch Panel can be found in the following: Set display...
-
Page 35: Communication Via Activesync
VIPA HMI Deployment Touch Panel Communication via ActiveSync Baud Rate Enter here the transfer velocity of your MPI net. The baud rate has to be identical for every MPI participant within the network. According to the Baud Rate the network parameters are set. Default Net Parameters It is recommended not to alter the Default Net Parameters that are set by the baud rate. - Page 36 Deployment Touch Panel VIPA HMI Communication via ActiveSync Establish connection After the installation the dialog window "establish connection" is opened. Start the search run with [Next]: Install partnership for Now you can install a "partnership" via an USB connection with the USB communication following approach: Connect your Touch Panel via the "Device"-USB-B jack to your...
-
Page 37: Integrated Server
VIPA HMI Deployment Touch Panel Integrated Server > General In the opening window de-activate all synchronization settings and click on [Next]. [Finish] establishes the partnership. Now you can access the Touch Panel with ActiveSync via USB. To keep the settings also after power on, you have to store them to the registry with ‘START è... -
Page 38: Ftp Server
Deployment Touch Panel VIPA HMI Integrated Server > ftp server Client A client is an application that uses the service of a server within a net- work. For example, a web browser is a client because at every call of a website it sends a request to a web server and receives an answer. -
Page 39: Http Server
VIPA HMI Deployment Touch Panel Integrated Server > http server As soon as your Touch Panel is connected via Ethernet, you may monitor the IP address data via in the taskbar. After you’ve confirmed the pre-settings, start your ftp client (e.g. Windows Explorer) and enter the following text into the "address bar": ftp://wince:vipatp@IP-Adresse... -
Page 40: Telnet Server
Deployment Touch Panel VIPA HMI Integrated Server > Telnet server 3.6.4 Telnet server Telnet is a text based client-server protocol on TCP level. Using of a Ò Telnet client like e.g. the "MS-DOS console" in your Windows oper- ating system you may execute text based all file remote functions at your Panel PC like copy, delete and create files and directories. -
Page 41: Vnc Server
VIPA HMI Deployment Touch Panel Integrated Server > VNC server 3.6.5 VNC server The Touch Panel has an integrated VNC server (virtual network con- trol) that allows the total control of the Touch Panel with a PC via net- work. For this, a window displays the current Touch Panel content for remote control. -
Page 42: Access To The Network Resources
Deployment Touch Panel VIPA HMI Access to the network resources Click on [Options] and deactivate the field "Emulate 3 Buttons..." like shown at Mouse. Enter the IP address of the Touch Panel at VNC server. Click on [OK] and enter the password vipatp. You can change the pass- word over the configuration file, for this execute vncconfig.exe. - Page 43 VIPA HMI Deployment Touch Panel Access to the network resources For example net view testserver lists all shared resources of the network PC "test server". To test the physical connection a PING to the IP address of the network PC can be executed if there are problems while contacting the network PC.
- Page 44 Deployment Touch Panel VIPA HMI Access to the network resources List network connec- The listing command for all network connections of your Touch Panel tions is \> net use Terminate network con- You can terminate already assigned network resources via nections \>...
-
Page 45: Installation Guidelines
VIPA HMI Installation Guidelines Basic rules for the EMC-equitable assembly of installations Installation Guidelines 4.1 Basic rules for the EMC-equitable assembly of installations General The installation guidelines contain information about the interference free deployment of a PLC system. There is the description of the ways, interference may occur in your PLC, how you can make sure the electromagnetic compatibility (EMC), and how you manage the isolation. - Page 46 Installation Guidelines VIPA HMI Basic rules for the EMC-equitable assembly of installations Coupling mechanisms The following table shows the four different coupling mechanisms, and interference their causes and possible interference sources. sources Coupling mechanism Cause Typical source Galvanic coupling Galvanic or metallic coupling Pulsed devices (Net influ- always occurs, when two cur- ence from transducers and...
-
Page 47: Emc-Equitable Assembly
VIPA HMI Installation Guidelines EMC-equitable assembly Basic rules for EMC In the most times it is enough to take care of some elementary rules to guarantee the EMC. Please regard the following basic rules when installing your PLC. Take care of a correct area-wide grounding of the inactive metal parts when installing your components. -
Page 48: Emc-Equitable Cabling
Installation Guidelines VIPA HMI EMC-equitable cabling Grounding means the conducting connection of all inactive metal parts. The sum of all interconnected inactive parts is called ground. Inactive parts are all conductive parts electrically separated from all active parts by means of a basic isolation and that may only get voltage in case of an error. - Page 49 VIPA HMI Installation Guidelines EMC-equitable cabling Group A Group B Group C Group D Group A Group B Group C Group D The lines may be installed in common bundles or cable trusses. The lines have to be installed in different bundles or cable trusses (without min.
- Page 50 Installation Guidelines VIPA HMI EMC-equitable cabling Equipotential bonding Potential differences can occur between different sections when con- trollers and peripheral equipment are connected by means of non-iso- lated connections or the screens of screened cables are connected at both ends and grounded on different sections of the plant. One reason for a potential difference can be that different sections of the plant are powered from different power sources.
-
Page 51: Special Precautions Providing High Noise Immunity
VIPA HMI Installation Guidelines Special precautions providing high noise immunity You should always use metallic or metallised covers for serial data lines. Connect the screen of the data line to the cover. Do not con- nect the screen to PIN 1 of the connector! In case of stationary opera- tions it is recommended that the remove the insulation from the screened cable without cutting the screen and to attach this point to the screening/neutral rail. - Page 52 Installation Guidelines VIPA HMI Special precautions providing high noise immunity Connections of DC-activated Connections of AC-activated inductors inductors using a diode using a Z-diode using a varistor using RC-net- work Power outlet for PGs Every cubicle must be provided with a power outlet for the PU. These outlets must be wired to the distribution system, which is also used to connect the neutral conductor for the cubicle.
-
Page 53: Checklist For The Emc-Compliant Installation Of Controllers
VIPA HMI Installation Guidelines Checklist for the EMC-compliant installation of controllers 4.5 Checklist for the EMC-compliant installation of controllers EMV-measures Space for Notes Connection of the inactive parts You should take special care to check the connections of: Module racks Frames Screen and protected earth conductor Are all the inactive metal parts interconnected by means of large-sur-...
