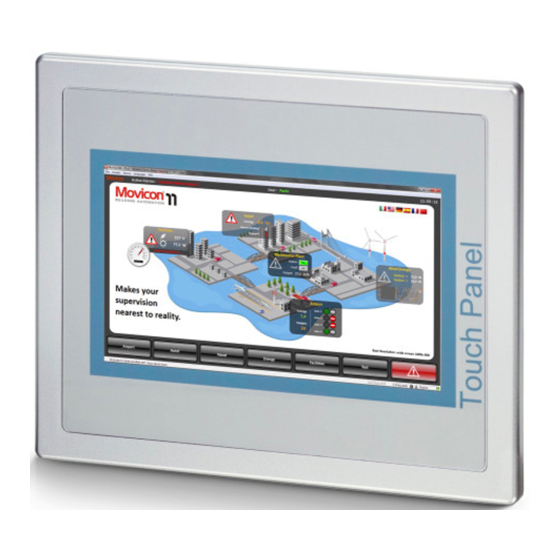

- Page 1 VIPA HMI TP-ECO | 62E-MHC0 | Manual HB160 | TP-ECO | 62E-MHC0 | en | 17-01 Touch Panel - TP604LC/+ www.vipa.com/en/service-support/manual...
- Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 62E-MHC0_000_TP604LC/+,1,GB - © 2017...
-
Page 3: Table Of Contents
Embedded CE 6.0 Prof........57 4.6.1 General ....................... 57 4.6.2 Structure...................... 58 4.7 Integrated Server.................... 62 4.7.1 General......................62 4.7.2 ftp server...................... 63 4.7.3 http server....................64 4.7.4 Telnet server....................64 4.7.5 VNC server....................65 HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 4 5.1 Basic rules for the EMC-equitable assembly of installations......69 5.2 EMC-equitable assembly................72 5.3 EMC-equitable cabling................... 73 5.4 Special precautions providing high noise immunity........76 5.5 Checklist for the EMC-compliant installation of controllers......77 HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 5: General
Contact your local VIPA Customer Service Organization representative if you wish to port report errors or questions regarding the contents of this document. If you are unable to locate a customer service centre, contact VIPA as follows: HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 6: About This Manual
PDF-file (Adobe Acrobat Reader) Icons Headings Important passages in the text are highlighted by following icons and headings: DANGER! Immediate or likely danger. Personal injury is possible. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 7: Safety Information
Installation and hardware modifications only by properly trained per- sonnel. – The national rules and regulations of the respective country must be satisfied (installation, safety, EMC ...) Disposal National rules and regulations apply to the disposal of the unit! HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 8: Hardware Description
Instruments must be grounded. Modifying electrostatic sensitive modules you should only use soldering irons with grounded tips. CAUTION! Personnel and instruments should be grounded when working on electro- static sensitive modules. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 9: Properties
MPI/PROFIBUS DP interface (optional) Robust plastic case Display resolution 272 x 480 / 480 x 272 Battery backed clock Resistive analog touch screen Easy mounting via 4 mounting clips Protection class IP65 (frontal) HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 10: Structure
MPI/PROFIBUS DP interface COM 3 (optional) RS232 interface COM 1 RS232/RS422/RS485 interface COM 2 Display with touch sensitive area (touch screen) Side view MPI/PROFIBUS DP interface COM 3 (optional) RS232 interface COM 1 HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 11 Slot for SD storage medium RJ45 jack for Ethernet communication "Host"-USB-A interface Slot for DC 24V voltage supply Please make sure that the Touch Panel always has to be supplied with external voltage! HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 12: Interfaces
VIPA HMI Hardware description Structure > Interfaces 2.3.2 Interfaces HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 13 VIPA HMI Hardware description Structure > Interfaces RS232/RS422/RS485 inter- 25 pin SubD female face HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 14 The Touch Panel has got an integrated power supply. The power supply has to be pro- vided with DC 24V (20.4 ... 28.8V). For this you find an according DC 24V slot at the back. The power supply is protected against inverse polarity and overcurrent. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 15: Memory Management
At the back of the Touch Panel there are the card slots for memory cards. At this slot you may plug storage modules of the type SD. The card may be plugged and removed during runtime and is immediately listed as SDMMC Card at My Device. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 16: Dimensions
The deviation from the plane for the panel cut-out is condition must be fulfilled for the mounted HMI device. £ 120µm (fric- – Permissible surface roughness in the area of the seal: tion coefficient 120) HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 17: General Data
EN 61131-2 Degree of pollution 2 Mechanical Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz Shock EN 60068-2-27 15g, 11ms Mounting conditions Mounting place In the control cabinet Mounting position Horizontal and vertical HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 18 Surge, degree of severity 3 * *) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors for lightning and overvoltage is necessary. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 19: Technical Data
Load time for 100% buffering period 24 h Accuracy (max. deviation per day) Operating controls Touchscreen resistive Touch function Single Touch Keyboard external via USB Mouse external via USB Interfaces MPI, PROFIBUS-DP optional MPI, PROFIBUS-DP connector HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 20 Protect type back side IP 20 Dimensions Front panel 140 mm x 116 mm x 6 mm Rear panel 122 mm x 98 mm x 51 mm Installation cut-out Width 123 mm HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 21 Maximum front panel thickness 6 mm Net weight 500 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification KC certification HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 22: Mhc0-Cb
Accuracy (max. deviation per day) Operating controls Touchscreen resistive Touch function Single Touch Keyboard external via USB Mouse external via USB Interfaces MPI, PROFIBUS-DP optional MPI, PROFIBUS-DP connector Serial, COM1 RS232 HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 23 IP 20 Dimensions Front panel 140 mm x 116 mm x 6 mm Rear panel 122 mm x 98 mm x 51 mm Installation cut-out Width 123 mm Height 99 mm HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 24 Maximum front panel thickness 6 mm Net weight 500 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification KC certification HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 25: Deployment Under Windows Ce 6.0 Core
For the cabling of the DC 24V power supply a green plug is used. The connector is a plug with screw contacts. The plug has the following assignment: DC 24V DC 0V HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 26: Installation Of The Optional Mpi/Profibus Dp Interface
Store respectively send the interface module always in the corresponding ESD packaging! Installation Remove the cover plate of the COM3 port by removing the screws and pulling the plate. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 27 For installation insert the interface module into the opening. Push the interface module in the device until the holding plate fits to the housing. Here the interface module is put into the right position by 2 inner guide rails. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 28 Please make sure that the holding plate always snaps to the lugs, otherwise the holding plate can not be screwed! Mount the screws again. After installation the interface module is automatically recognized and can be configured. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 29: Commissioning
After opening the control cabinet or desk, there are parts with pos- sible dangerous voltage available. – For all signal connections only screened cables are permitted. – Signal cables must not be let within the same cable shaft as high voltage cables. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 30: Vipa Startup-Manager
Update] the current image is displayed under "Panel Information" with panel name, crea- tion date and version number. With [Create Screenshot] you can make a screen shot of the panel information and select a destination for its storage. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 31 With [...] under "Runtime path" res. "Project path" all existing runtimes res. projects on the panel and the storage media are listed. Under "Delay Time" you can adjust a delay time > 0 by using the buttons [+] and [-]. 5 seconds are default. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 32 The VIPA Startup-Manager will be closed by [Exit] and the system returns to the Win- Ò dows screen. Back With [Back] you get back to the start screen of the VIPA Startup-Manager. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 33: Installation Movicon And Startup-Manager
Switch-on the panel, install the SD card and select via ‘Start è Settings’ Control Panel. Start in the Control Panel the program "AutoRunMaker" via double-click on the fol- lowing symbol ð After start-up the following window appears. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 34 ð After successful execution the following completion screen appears. Confirm this window with [OK], remove the SD card and re-start the panel. ð The panel should start with the Startup-Manager after the restart. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 35: Connection To A Plc System
During operation your operating device communicates with the according PLC and reacts to the application courses in the PLC according to the configured processes. Via dia- logues configured before, process values may be monitored graphically, altered and eval- uated. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 36: Operating System Windows Embedded Ce 6.0 Core
Please note that changes are stored automatically after 30 seconds. For manual storage, please use the "suspend" function, to be found in the start menu. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 37: Structure
This area shows the time that you may change via double click. Show desktop All windows are minimized and the desktop is shown. Software keyboard This button displays a keyboard at the screen. "Hide Input Panel" hides the key- board again. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 38 Keyboard At pushed Shift key: At pushed [a´ü] key: Please note that äöü can exclusively be entered via the software key- board "Keyboard". Large KB At pushed Shift key: HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 39 Click [OK] to accept the value. The calibration of the touch screen is completed via the register Calibration by fol- lowing the instructions. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 40 è Control Panel’ or via "Settings" in the VIPA Startup-Manager the tool "MPI/DP Slave Configuration". Default: MPI - Address 1 The following settings are only required if not communicate via Movicon. Via mode the interface could be set up on "DP slave". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 41: Integrated Server
Depending on the ftp client your PC must have the following conditions for a ftp connec- tion. If there are still problems with the ftp access please ask your system administrator. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 42: Vnc Server
Condition for the VNC communication is, that the VNC server is started on the Touch Panel and a VNC client on the PC. You may download a VNC client as free- ware from internet. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 43 You can change the password over the configuration file, for this execute vncconfig.exe. Now a VNC connection is established and the screen con- tent of the Touch Panel is monitored within a window. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 44: Access To The Network Resources
My Device at Network. Example: Local_Name: data, network drive: testserver\archive, Username:guest Input: \> net use data \\testserver\archiv /user:guest The connected network drive is then available via \network\data at the Touch Panel. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 45 You may terminate already assigned network resources via nections \> net use local_name /d Example: \> net use data /d deletes the network connection to the drive "archive" of "test server". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 46: Deployment Under Windows Ce 6.0 Prof
For the cabling of the DC 24V power supply a green plug is used. The connector is a plug with screw contacts. The plug has the following assignment: DC 24V DC 0V HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 47: Installation Of The Optional Mpi/Profibus Dp Interface
Store respectively send the interface module always in the corresponding ESD packaging! Installation Remove the cover plate of the COM3 port by removing the screws and pulling the plate. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 48 For installation insert the interface module into the opening. Push the interface module in the device until the holding plate fits to the housing. Here the interface module is put into the right position by 2 inner guide rails. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 49 Please make sure that the holding plate always snaps to the lugs, otherwise the holding plate can not be screwed! Mount the screws again. After installation the interface module is automatically recognized and can be configured. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 50: Commissioning
There is a button on the initial screen with a counter, which counts backwards. If you click on this button within this time, you can return to the selection menu. If the time expires, the project will start automatically. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 51 Via ‘Start è Settings è Control Panel’ start the program AutoRunMaker. Ä Chapter 4.4 ‘Installation Movicon and Startup-Manager’ on page 53 Autostart With [Autostart] you define which runtime and which project will be started automatically together with the panel startup. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 52 Via "Rotation" the orientation of the panel can be changed. Via "Program start" with [+] you can add programmes, which have to start automatically. Select "start" and assign a name for the program. Upload your program with [...]. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 53: Installation Movicon And Startup-Manager
Via ‘HMI è TP è ECO(+) Panels’ navigate to your Panel and download the zip file to your PC. Unzip the zip file and copy the file to the root directory of your SD card. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 54 ð After start-up the following window appears. Click [Make]. ð All the necessary files are copied and the registry is accordingly adjusted. The progress is displayed in a new window. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 55 ð After successful execution the following completion screen appears. Confirm this window with [OK], remove the SD card and re-start the panel. ð The panel should start with the Startup-Manager after the restart. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 56: Connection To A Plc System
During operation your operating device communicates with the according PLC and reacts to the application courses in the PLC according to the configured processes. Via dia- logues configured before, process values may be monitored graphically, altered and eval- uated. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 57: Operating System Windows Embedded Ce 6.0 Prof
Please note that changes are stored automatically after 30 seconds. For manual storage, please use the "suspend" function, to be found in the start menu. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 58: Structure
Keyboard layout If you’ve connected a keyboard you may choose the requested language layout via this button. Time This area shows the time that you may change via double click. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 59 At the moment the following standard keyboards are implemented: Keyboard At pushed Shift key: At pushed [a´ü] key: Please note that äöü can exclusively be entered via the software key- board "Keyboard". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 60 The software keyboard allows you to enter key entries without connecting an external keyboard. As soon as an entry is required the software keyboard is automatically shown. Hide Input Panel hides the keyboard again. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 61 è Control Panel’ or via "Settings" in the VIPA Startup-Manager the tool "MPI/DP Slave Configuration". Default: MPI - Address 1 The following settings are only required if not communicate via Movicon. Via mode the interface could be set up on "DP slave". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 62: Integrated Server
This communication type is called Client- Server communication. Host Computer within a network where at least one server is running. Data transfer Server ® Client Download Data transfer Client ® Server Upload HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 63: Ftp Server
After you’ve confirmed the pre-settings, start your ftp client (e.g. Windows Explorer) and enter the following text into the "address bar": ftp://wince:vipatp@IP-Adresse ð In the appearing explorer window you can execute the requested file opera- tions. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 64: Http Server
ð When the connection is established, the Panel PC asks for the user name and the password. Enter the following: Login: wince Password: vipatp (entry is hidden) ð After entering valid user data a command line for entries appears: HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 65: Vnc Server
Due to software reasons VIPA does not support the VNC server function! Establishing a VNC con- With "Autostart" you can select the automatic startup of the VNC server, via the Startup- nection Manager. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 66: Access To The Network Resources
The Touch Panel allows you to access shared resources in a Microsoft network like drives and printer. Here you may assign existing public directories or printer in the network to local directories or printer in the Touch Panel. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 67 Entry: \> net use printer \\testserver\printer Enter user name, password and if necessary user group. After the successful login the following message appears Successfully mapped to network printer The printer may now be accessed as "network\printer". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 68 You may terminate already assigned network resources via nections \> net use local_name /d Example: \> net use data /d deletes the network connection to the drive "archive" of "test server". HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 69: Installation Guidelines
There are: galvanic coupling capacitive coupling inductive coupling radiant coupling Coupling mechanisms and The following table shows the four different coupling mechanisms, their causes and pos- interference sources sible interference sources. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 70 Sender in the neighbourhood (e.g. when an electromagnetic wave meets walkie-talkie) a line circuit. The hit of the wave Sparking lines (sparking plugs, inducts currents and voltages. collector of electric motors, welding devices) HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 71 Connect installation parts and cabinets with your PLC in star topology with the isolation/protected earth conductor system. So you avoid ground loops. – If there are potential differences between installation parts and cabinets, lay suffi- ciently dimensioned potential compensation lines. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 72: Emc-Equitable Assembly
Moveable grounding parts (e.g. cubicle doors) have to be connected via flexible ground strips. The ground strips should be short and have a large surface, because the surface is decisive for the diversion of high frequency interferences. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 73: Emc-Equitable Cabling
Wherever possible, exterior cabling should be installed on metallic cable trays. A galvanic buildings connection must be provided for joints between cable trays. You must abide by the appli- cable lightning protection and grounding regulations when installing exterior cables. HB160 | TP-ECO | 62E-MHC0 | en | 17-01... - Page 74 You should only use cables that are provided with a braided screen. The degree of screening should be more than 80%. HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
- Page 75 Attach the screens to the screening rail directly at the point where the cables enter the enclosure. The screening conductor must be continued to the module without interruption, however, it must not be connected to the module! HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
-
Page 76: Special Precautions Providing High Noise Immunity
Suppression of fluores- cent lamps in cubicles Fluorescent lamp Screen above the lamp Screened cable Switch with metallic cover Line filter or screened power cable HB160 | TP-ECO | 62E-MHC0 | en | 17-01... -
Page 77: Checklist For The Emc-Compliant Installation Of Controllers
Have the screens been connected by means of large-surface and low-impedance cable clamps? Cable screens grounded both-sided where possible? Inductors Have the coils of contactors controlled by means of contacts been connected to snubber networks? HB160 | TP-ECO | 62E-MHC0 | en | 17-01...
