- Page 1 VIPA HMI TP | 62K-JID0 | Manual HB160 | TP | 62K-JID0 | en | 20-20 Touch Panel - TP 610C...
- Page 2 YASKAWA Europe GmbH Ohmstraße 4 91074 Herzogenaurach Tel.: +49 9132 744 0 Fax: +49 9132 744 186 Email: info@yaskawa.eu.com Internet: www.yaskawa.eu.com 62K-JID0_000_TP610C,3,EN - © 2020...
-
Page 3: Table Of Contents
4.1 Basic rules for the EMC-equitable assembly of installations......43 4.2 EMC-equitable assembly................46 4.3 EMC-equitable cabling................... 47 4.4 Special precautions providing high noise immunity........50 4.5 Checklist for the EMC-compliant installation of controllers......51 HB160 | TP | 62K-JID0 | en | 20-20... -
Page 4: General
This material is protected by copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to YASKAWA) except in accordance with applicable agreements, contracts or licensing, without the express written consent of YASKAWA and the business management owner of the material. -
Page 5: About This Manual

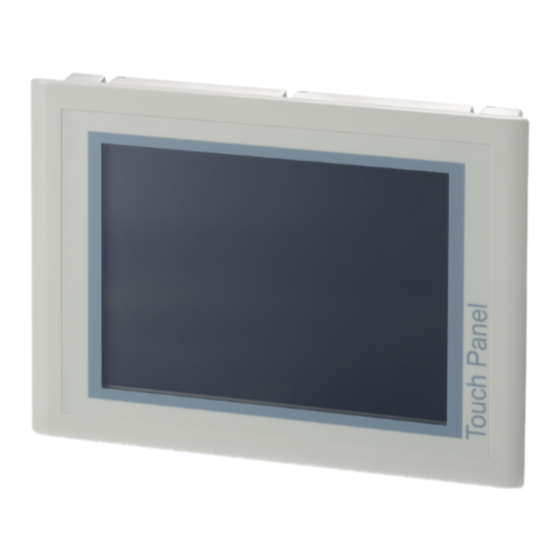

Tel.: +49 6196 569 500 (hotline) Email: support@yaskawa.eu.com 1.2 About this manual Objective and contents This manual describes the VIPA Touch Panel 62K-JID0-..It contains a description of the structure, project engineering and deployment. Product Order number as of state: TP 610C 62K-JID0-... -
Page 6: Safety Information
Installation and hardware modifications only by properly trained per- sonnel. – The national rules and regulations of the respective country must be satisfied (installation, safety, EMC ...) Disposal National rules and regulations apply to the disposal of the unit! HB160 | TP | 62K-JID0 | en | 20-20... -
Page 7: Hardware Description
Instruments must be grounded. Modifying electrostatic sensitive modules you should only use soldering irons with grounded tips. CAUTION! Personnel and instruments should be grounded when working on electro- static sensitive modules. HB160 | TP | 62K-JID0 | en | 20-20... -
Page 8: Properties
Robust aluminium die casting case Display SVGA 800 x 600 / 600 x 800 (16M colors) Battery backed clock Resistive touch screen Easy mounting via integrated pivoted lever Protection class IP65 (frontal) HB160 | TP | 62K-JID0 | en | 20-20... -
Page 9: Structure
2.3 Structure 2.3.1 Overview Front view Slot for storage medium (CF, SD/MMC) Connection for interfaces and power supply Display with touch sensitive area (touch screen) Side view Compact Flash MMC / SD HB160 | TP | 62K-JID0 | en | 20-20... -
Page 10: Interfaces
RJ45 jack for Ethernet communication Slot for DC 24V voltage supply Slot for CF/SD/MMC storage medium Please make sure that the Touch Panel always has to be supplied with external voltage! 2.3.2 Interfaces HB160 | TP | 62K-JID0 | en | 20-20... - Page 11 Interface is compatible to the COM interface of a PC Logical signals as voltage levels Point-to-point links with serial full-duplex transfer in two-wire technology up to 15m distance Data transfer rate up to 115.2kbit/s HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 12: Memory Management
The USB-A interface of your PC can be connected to the "Slave"-USB-B interface of your Touch Panel deploying the USB programming cable. The USB programming cable is delivered by YASKAWA with order No. 670-0KB10. Power supply The Touch Panel has got an integrated power supply. The power supply has to be pro- vided with DC 24V (20.4 ... - Page 13 Please take care to pull the security flap back before plugging or pulling a memory card like shown in the illustration and put it back again afterwards. When plugging, the security flap additionally snaps into position above the plugged memory card. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 14: Dimensions
The deviation from the plane for the panel cut-out is condition must be fulfilled for the mounted HMI device. £ 120µm (fric- – Permissible surface roughness in the area of the seal: tion coefficient 120) HB160 | TP | 62K-JID0 | en | 20-20... -
Page 15: General Data
EN 61131-2 Degree of pollution 2 Mechanical Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz Shock EN 60068-2-27 15g, 11ms Mounting conditions Mounting place In the control cabinet Mounting position Horizontal and vertical HB160 | TP | 62K-JID0 | en | 20-20... -
Page 16: Technical Data
Xscale 1.1 GHz Operating system Windows CE 6.0 Prof. User software Movicon 11 CE Standard Work memory 256 MB User memory 512 MB Available memory (user data) 380 MB SD/MMC Slot ü HB160 | TP | 62K-JID0 | en | 20-20... - Page 17 Video connectors Audio connections Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection ü Current consumption (no-load operation) 0.51 A HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 18: Jid0-Cx
Certifications UL certification KC certification 2.6.2 62K-JID0-CX Order no. 62K-JID0-CX Type Touch Panel TP 610C Display Display size (diagonal) 10.4 " Display size (width) 211.2 mm Display size (height) 158.4 mm HB160 | TP | 62K-JID0 | en | 20-20... - Page 19 Sub-D, 9-pin, female Serial, COM1 RS232 COM1 connector Sub-D, 9-pin, male Serial, COM2 RS422/485 isolated COM2 connector Sub-D, 9-pin, female Number of USB-A interfaces USB-A connector USB-A (host) Number of USB-B interfaces HB160 | TP | 62K-JID0 | en | 20-20...
- Page 20 217 mm Minimum 1.5 mm Maximum front panel thickness 6 mm Net weight 3251 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C HB160 | TP | 62K-JID0 | en | 20-20...
- Page 21 VIPA HMI Hardware description Technical data > 62K-JID0-CX Order no. 62K-JID0-CX Certifications UL certification KC certification HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 22: Deployment Touch Panel
Now bolt the lever [5] clockwise with the screwdriver [4] until it rotates to the out- side. Further screwing bolts the lever to the front panel until it holds this to the control cabinet front. HB160 | TP | 62K-JID0 | en | 20-20... - Page 23 Insert the insulation-stripped wire into the round opening. You can use wires with a cross-section from 0.08mm to 2.5mm By removing the screwdriver the wire is connected safely with the plug connector via a spring. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 24: Commissioning
A delay time of 5 seconds is default. In the selection menu under "Autostart" you can adjust this time. Selection menu There are following buttons in the selection menu: Settings Info/Update Autostart Backup Exit Back HB160 | TP | 62K-JID0 | en | 20-20... - Page 25 To permanently retain the settings, you have to store them under‘Start è Programs è KuK_Tools è KuK Tools’ [Store]. Autostart With [Autostart] you define which runtime and which project will be started automatically together with the panel startup. HB160 | TP | 62K-JID0 | en | 20-20...
- Page 26 Via "Rotation" the orientation of the panel can be changed. Via "Program start" with [+] you can add programmes, which have to start automatically. Select "start" and assign a name for the program. Upload your program with [...]. HB160 | TP | 62K-JID0 | en | 20-20...
- Page 27 è VipaStartup’. These can be adjusted accordingly. Exit Ò The Startup-Manager will be closed by [Exit] and the system returns to the Windows screen. Back With [Back] you get back to the start screen of the Startup-Manager. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 28: Connection To A Plc System
The functions like multi- tasking and multi-threading are supported by this operating system. Ò Ò Windows Embedded CE Windows Embedded CE 6.0 supports some file viewer and an Internet browser. HB160 | TP | 62K-JID0 | en | 20-20... - Page 29 . Before a reboot you should always save your data res. close all run- ning applications to avoid data loss. Please note that changes made are set back after PowerOFF-PowerON and are only stored via ‘Start è Programs è KuK_Tools è KuK Tools’ [Store]. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 30: Structure
Keyboard layout If you’ve connected a keyboard you can choose the requested language layout via this button. Time This area shows the time that you can change via double click. HB160 | TP | 62K-JID0 | en | 20-20... - Page 31 At the moment the following standard keyboards are implemented: Keyboard At pushed Shift key: At pushed [a´ü] key: Please note that äöü can exclusively be entered via the software key- board "Keyboard". HB160 | TP | 62K-JID0 | en | 20-20...
- Page 32 The software keyboard allows you to enter key entries without connecting an external keyboard. As soon as an entry is required the software keyboard is automatically shown. Hide Input Panel hides the keyboard again. HB160 | TP | 62K-JID0 | en | 20-20...
- Page 33 Enter here the transfer velocity of your MPI net. The baud rate has to be identical for every MPI participant within the network. According to the Baud Rate the network parameters are set. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 34: Communication Via Activesync
Start the installation with [Next]. Choose an installation directory and click on [Next]. ð ActiveSync is installed. Establish connection After the installation the dialog window "establish connection" is opened. Start the search run with [Next]: HB160 | TP | 62K-JID0 | en | 20-20... - Page 35 ð The USB device (Touch Panel) is recognized and the dialog window "new part- nership" opens. Choose "yes" for fixing a partnership and push [Next]. In the opening window de-activate all synchronization settings and click on [Next]. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 36: Integrated Server
Data transfer Client ® Server Upload 3.6.2 ftp server By means of a ftp server data between client and server can be exchanged. Here you can copy, delete or create files and directories. HB160 | TP | 62K-JID0 | en | 20-20... -
Page 37: Http Server
IP address of the Touch Panel with attached "Admin" type. Using the websites you may e.g. publish online documentations for a connected PC or go online with applications on the PC. HB160 | TP | 62K-JID0 | en | 20-20... -
Page 38: Telnet Server
After establishment of a Telnet connection the Panel PC provides you with commands. A list of possible commands with a short description is available via the command help. By beginning with "help" before a command you receive help to this command. HB160 | TP | 62K-JID0 | en | 20-20... -
Page 39: Vnc Server
Because you can deactivate all safety attitudes with the VNC server, you should use these exclusively for start-up! Per default the VNC server is on delivery deactivated. Due to software reasons YASKAWA does not support the VNC server function! Establishing a VNC con- With "Autostart"... -
Page 40: Access To The Network Resources
The access to the network resource is performed with the commands Net view and Net use. List released resources Shared resources of a network PC can be listed by the command: \> net view PC- Name HB160 | TP | 62K-JID0 | en | 20-20... - Page 41 For example you can print the content of the current directory using \> dir > network \printer. List network connections The listing command for all network connections of your Touch Panel is \> net use HB160 | TP | 62K-JID0 | en | 20-20...
- Page 42 Example: \> net use data /d deletes the network connection to the drive "archive" of "test server". To save the settings also after power on, you have to store them to the registry with ‘START è Programs è KuK_Tools è KuK Tools’ [Store]. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 43: Installation Guidelines
Pulsed devices (Net influence from occurs, when two current circuits have transducers and foreign net a common line. devices) Starting motors Different potential of component cubicles with common current supply Static discharges HB160 | TP | 62K-JID0 | en | 20-20... - Page 44 Always lay your high voltage lines and signal respectively data lines in separate channels or bundles. – Route the signal and data lines as near as possible beside ground areas (e.g. suspension bars, metal rails, tin cabinet). HB160 | TP | 62K-JID0 | en | 20-20...
- Page 45 Connect installation parts and cabinets with your PLC in star topology with the isolation/protected earth conductor system. So you avoid ground loops. – If there are potential differences between installation parts and cabinets, lay suffi- ciently dimensioned potential compensation lines. HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 46: Emc-Equitable Assembly
Moveable grounding parts (e.g. cubicle doors) have to be connected via flexible ground strips. The ground strips should be short and have a large surface, because the surface is decisive for the diversion of high frequency interferences. HB160 | TP | 62K-JID0 | en | 20-20... -
Page 47: Emc-Equitable Cabling
Wherever possible, exterior cabling should be installed on metallic cable trays. A galvanic buildings connection must be provided for joints between cable trays. You must abide by the appli- cable lightning protection and grounding regulations when installing exterior cables. HB160 | TP | 62K-JID0 | en | 20-20... - Page 48 Install these protective elements at the location where the cables enter the building. Any lightning protection system must be based on an individual assess- ment of the entire plant. For questions please contact YASKAWA Europe GmbH. Equipotential bonding Potential differences can occur between different sections when controllers and periph-...
- Page 49 Attach the screens to the screening rail directly at the point where the cables enter the enclosure. The screening conductor must be continued to the module without interruption, however, it must not be connected to the module! HB160 | TP | 62K-JID0 | en | 20-20...
-
Page 50: Special Precautions Providing High Noise Immunity
Suppression of fluores- cent lamps in cubicles Fluorescent lamp Screen above the lamp Screened cable Switch with metallic cover Line filter or screened power cable HB160 | TP | 62K-JID0 | en | 20-20... -
Page 51: Checklist For The Emc-Compliant Installation Of Controllers
Have the screens been connected by means of large-surface and low-impedance cable clamps? Cable screens grounded both-sided where possible? Inductors Have the coils of contactors controlled by means of contacts been connected to snubber networks? HB160 | TP | 62K-JID0 | en | 20-20...
