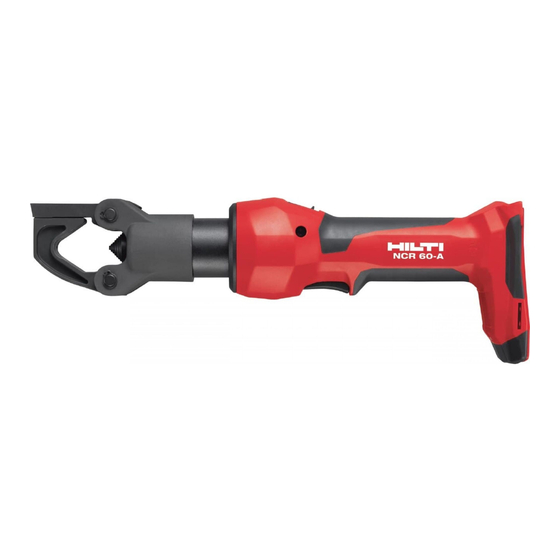

- Page 1 NCR 060 II-A22 English Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 2 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 3 NCR 060 II-A22 Original operating instructions Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 4 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
-
Page 5: Table Of Contents
Assemble Hilti retaining leash (optional) ........ -
Page 6: Explanation Of Symbols Used
The following symbols are used on the product: Risk of crushing injury! Wireless data transfer Hilti Li-ion battery type series used. Observe the information given in the section headed In- tended use. English Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01... -
Page 7: Product Information
The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information... - Page 8 ▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ▶...
-
Page 9: Additional Safety Instructions For Crimping Tools
▶ Do not use or charge batteries that have suffered mechanical impact, have been dropped from a height or show signs of damage. In this case, always contact your Hilti Service. ▶ If the battery is too hot to touch it may be defective. In this case, place the product in a non-flammable location, well away from flammable materials, where it can be kept under observation and allowed to cool down. -
Page 10: Description
▶ Use only Hilti lithiumion batteries of the B 22 series with this product. ▶ Use only Hilti battery chargers of the C4/36 series for charging these batteries. -
Page 11: Items Supplied
'Troubleshooting' section. Items supplied Crimping / pressing tool, operating instructions. Other system products approved for use with this product can be found at your local HILTI STORE or online at: www.hilti.group Selection of the connecting material A table to assist with selecting the type of cable and cable terminal to be used can be found at the end of these operating instructions. -
Page 12: Battery
▶ Do not use a metal chain as a retaining leash. Do not use retaining leashes longer than 6 ft (2 m). To avoid damage and injury, when working at a height it is advisable to use the Hilti retaining strap. -
Page 13: Dismantle The Hilti Retaining Leash (Optional)
2. Insert the two tabs on the retaining leash into the slots on each side of the base. 3. Secure the retaining leash with the screws supplied. 4. Refit the battery. Dismantle the Hilti retaining leash (optional) 1. Remove the battery. 2. Remove the two retaining strap securing screws. -
Page 14: Crimping
Crimping WARNING Danger! Risk of fire due to faulty crimping. ▶ Use only cable terminals of the correct type and size for the cable. Failure to observe this point can result in faulty crimping. ▶ Listen for the signal tone and check that the piston has retracted. If no signal tone is heard or if the piston does not retract then the crimping is faulty. -
Page 15: Care And Maintenance
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group. -
Page 16: Troubleshooting
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. -
Page 17: Rohs (Restriction Of Hazardous Substances)
There is a link to the RoHS table, in the form of a QR code, at the end of this document. Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. English Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01... - Page 18 English Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 19 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 20 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 21 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 22 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 23 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
- Page 24 Hilti = registered trademark of Hilti Corp., Schaan 20181010 Printed: 26.10.2018 | Doc-Nr: PUB / 5436071 / 000 / 01...
