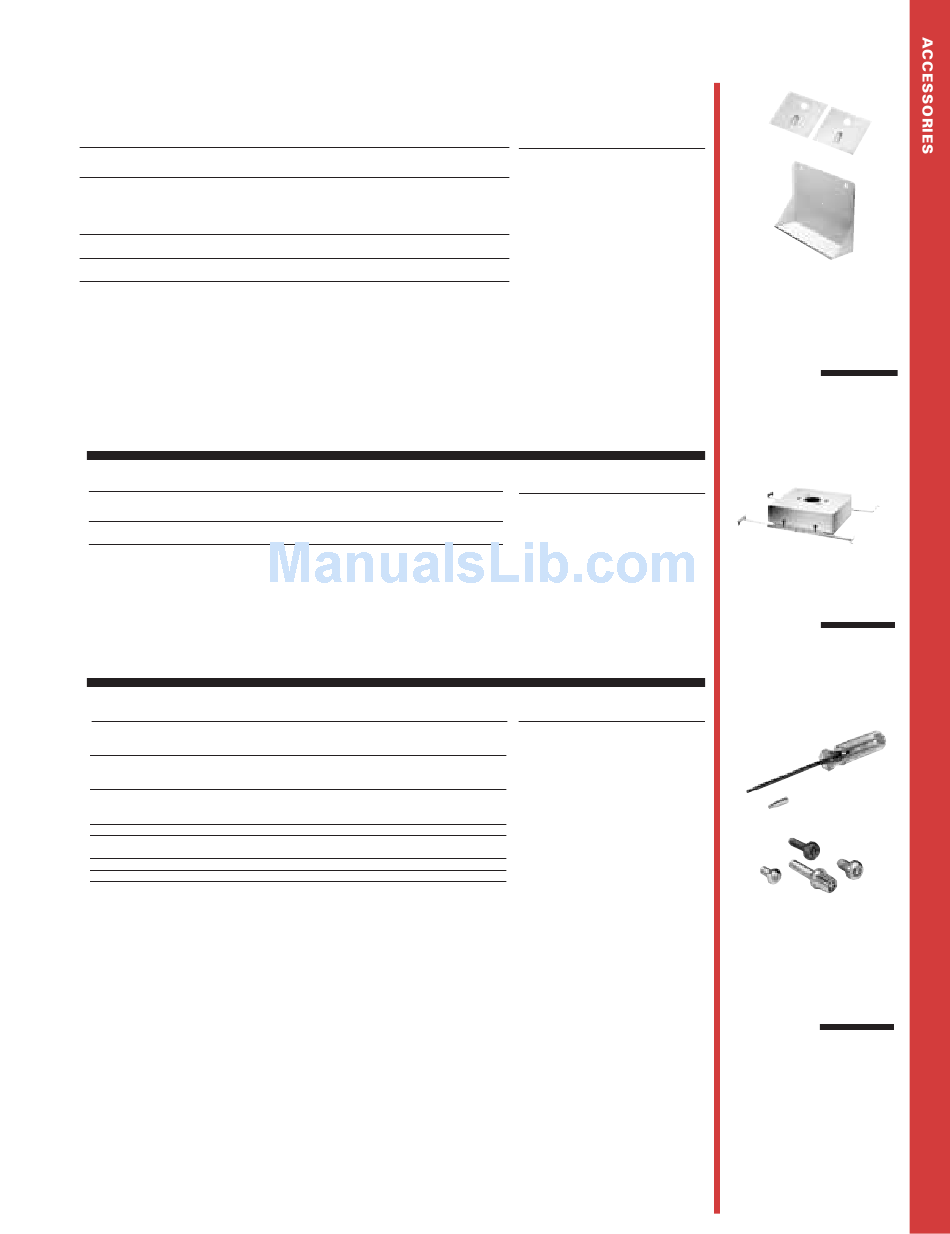

O R D E R I N G I N F O R M AT I O N
Mounting Brackets
Catalog No. Description
1BR_ _* Mounting Brackets (set of 2)
3BR_ _* Mounting Brackets (set of 3)
Mounting Shelves
Catalog No. Description Length
1MS_ _* Mounting 14"
Shelf (356mm)
2MS_ _* Mounting 15 3/4"
Shelf (400mm)
3MS_ _* Mounting 17 3/4"
Shelf (451mm)
*Finish Codes: GY–Grey, BK–Black, WH–White – Add suffix to catalog number when ordering
(eg. 1MSGY)
O R D E R I N G I N F O R M AT I O N
Recessing Kits for P4C Series
Catalog Number Description
FRK1 Fully Recessing Kit
USF1 Semi-Recessing Kit
O R D E R I N G I N F O R M AT I O N
Tamperproof Screws & Screwdriver Bits
Catalog No. Description
TPK1CP Four #6 Centerpin Torx Zinc Plated
Pan Head Sheet Metal Screws
0590A638SP One #6 Centerpin Torx Screwdriver Bit
059012SP One #8 Centerpin Torx Screwdriver Bit
0590A639SP One #8 Heavy Duty Centerpin Torx
VRSD One #8 Centerpin Torx Screwdriver
VRSPD One #6 Spanner Screwdriver
COOPER LIGHTING - SURE-LITES
For use with
CC, LM1, AA Series, ST1, and XR Series
HR Series and NCB Series
Height Depth
10" 4"
(254mm) (102mm)
12" 7 1/4"
(305mm) (184mm)
13 1/2" 8 3/4"
(343mm) (222mm)
For use with
P4C Series Emergency Unit, R4C
Series Remote
P4C Series Emergency Unit, R4C
Series Remote
For use with
R/G/CX/OF/EP/EPH/UN/UNH/PLX
Series Steel Exits, XR, AA, HR
and NCB Series
R/G/CX/OF/EP/EPH/UN/UNH/PLX
Series Steel Exits, XR, AA, HR
and NCB Series
VP Series Exits
TPX Series Exits
Screwdriver Bit
CAR, CAX, CCX, UX, UEL Series
"STL" StairLite
D E S C R I P T I O N
• Mounting Brackets and
Shelves simplify installation
of Emergency Lighting Units
• 18 gauge steel brackets, 20
Gauge steel Shelves
• Available in Grey, Black and
White finishes – specify color
when ordering
D E S C R I P T I O N
• Recessing Kits allow fully
recessed or semi-recessed
installation of P4C Series
Emergency Unit and R4C
Series Remote. No electrical
components
• 20 gauge steel mounting box
• Two piece adjustable bar
hangers span up to 24"
D E S C R I P T I O N
• Tamperproof Screws and
Screwdriver Bit for use in
Steel Exits
• Restricts access to internal
exit or emergency lighting
unit compartments
• Ideally suited for use in
schools, hotels, public places
of assembly, etc
• Increases the likelihood that
the product will be functional
in an emergency situation
®
MOUNTING
BRACKETS,
MOUNTING
SHELVES
RECESSING
KITS
TAMPER PROOF
SCREWS &
SCREWDRIVER
BITS
COOPER LIGHTING
677
