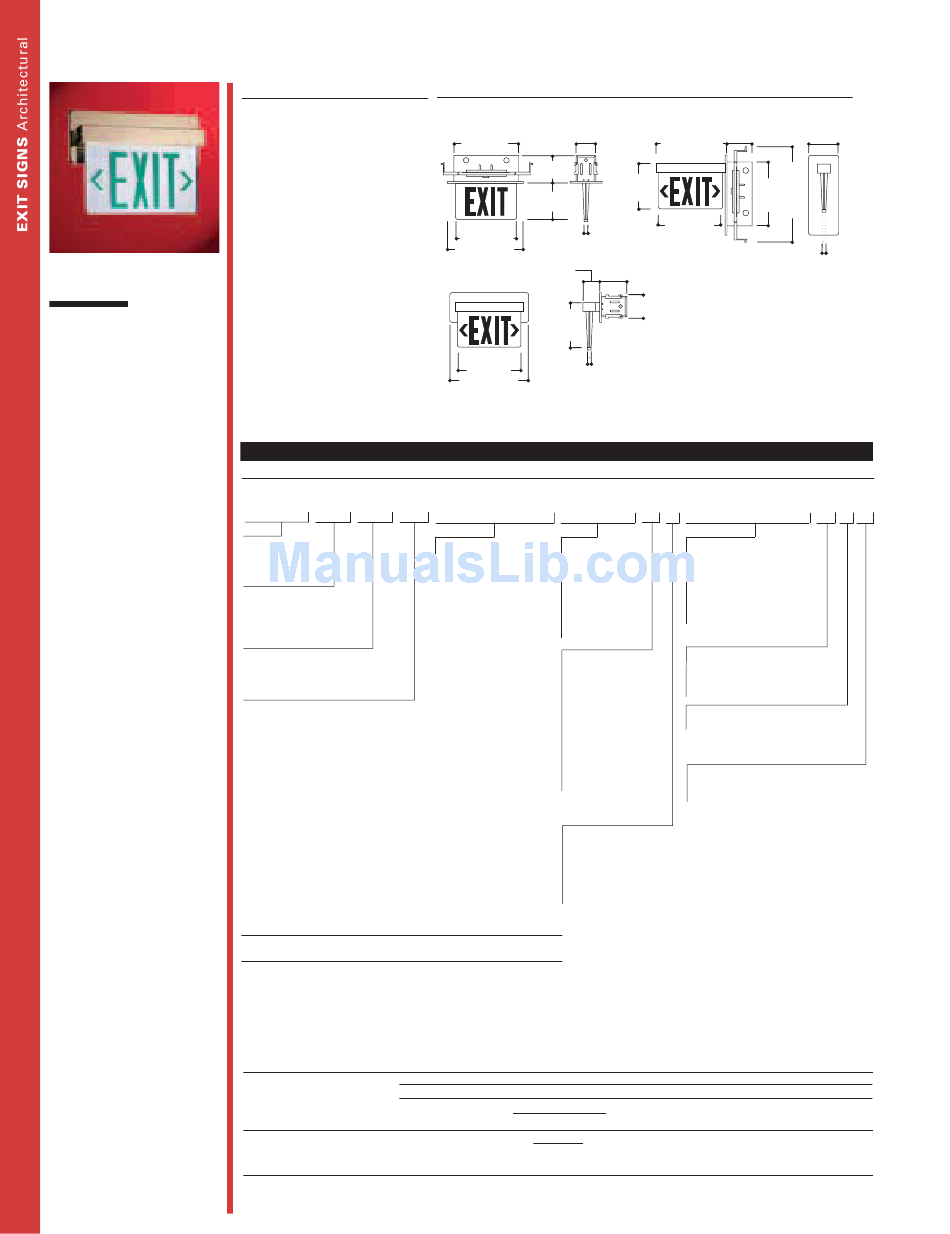

COOPER LIGHTING - SURE-LITES
ELX SERIES
E d g e - L i t
A C O n l y
R e c e s s e d
E X I T L I G H T I N G
• Dual Voltage Input
120/277 VAC or 120/347 VAC
60 Hz
• 20 gauge recessed steel
housing with nine conduit
knockouts
• Injection molded high-
impact acrylic panel
• LED or Fluorescent
Lamping
• AC fluorescent: two energy
saving, long life F8T5
fluorescent lamps
• Fluorescent lamps wired for
separate circuits
• Mirror background
standard on double face
exits
• Molded letters and
chevrons improve aesthetic
appearance and increase
visibility
• Torsion springs secure trim
plate to housing
• Easily removable
electronics tray
• Damp Location Listed
• UL 924 Listed, Life Safety
NFPA 101, NEC/OSHA,
most state and local codes
UL FTBR Listed - Standard
Fluorescent, LED with 2C
Option
630
COOPER LIGHTING
D E S C R I P T I O N
The Sure-Lites ELX Series
Recessed Exits are designed
for architectural excellence and
minimal presence. The crystal
clear wedge shaped panel
allows architectural details to
shine through while providing
excellent light distribution
and exit visibility. Long life,
energy-efficient LED lamps
reduce energy costs and
eliminate routine lamp
maintenance.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : E L X 4 1 0 0 R M A R E
ELX
Family
ELX=Edgelit
Exit Series
Series
4=AC Only,
Fluorescent
6=LED Lamps, AC Only
Face Options
1=Single Face
2=Double Face
Battery
00=No Battery
C H E V R O N C O N F I G U R AT I O N
FRONT
AR . . . . . . . . . . . . . . . . . . . EXIT>
AL . . . . . . . . . . . . . . . . . . . <EXIT
DA . . . . . . . . . . . . . . . . . . <EXIT>
DA . . . . . . . . . . . . . . . . . . <EXIT>
ARL . . . . . . . . . . . . . . . . . EXIT>
E n e r g y D a t a
120V 277V 347V
Fluorescent Exits -8W Lamps 20W 26W —
LED Exits -Red Letters
1.5W 2.1W 2.0W
LED Exits - Green Letters
3.0W 3.1W 3.2W
(1)
Consult your Cooper Lighting Representative.
®
D I M E N S I O N S
C e i l i n g
4 3/4"
(121mm)
14"
(356mm)
*5 3/8"
(136mm)
7 1/4"
(184mm)
12 3/4"
(324mm)
1/2" (13mm)
15" (381mm)
2 3/4"
W a l l
(70mm)
9"
(229mm)
12 3/4"
(324mm)
1/2" (13mm)
15" (381mm)
*Fluorescent Only (LED=3 3/4")
Factory Options
Trim Finish
Blank=None
Blank=Brushed
Aluminum
95=AC Only Fire
WH=White
Alarm Interface
(LED ONLY)
BL=Black
BZ=Bronze
BS=Brass
CR=Chrome
Letter
Background
R=Red/Clear
G=Green/Clear
RM=Red/Mirror
GM=Green/Mirror
RW=Red on White
GW=Green on White
WR=White on Red
(fluorescent only)
WG=White on Green
(fluorescent only)
Chevron Direction
Blank=No Chevron
AR=Right Chevron
AL=Left Chevron
DA=Double Chevron
ARL=Chevrons Right/Left
BACK
FACE
Blank
Single
Blank
Single
Blank
Single
<EXIT>
Double
<EXIT
Double
Input Power:
Input Current (Max.):
120V 277V 347V
Fluorescent Exits
.30A .31A
LED Exits
.04A .04A
.03A .03A
E n d
3 3/4"
(92mm)
14" (356mm)
(381mm)
9"
(229mm)
14"
(356mm)
12 3/4"
[324mm]
3 3/4"
(92mm)
4 3/4"
(121mm)
Voltage
Blank=120V (fluorescent
only)
7=277V (fluorescent only)
Blank=Dual-voltage
120/277V (LED Only)
47=120/347V (LED Only)
Mounting Options
C=Ceiling
W=Wall
E=End
Options
2C=Two Circuit Option-FTBR
(LED Only)
Accessories (Order Separately)
277V Conversion Kit
CAN277ELX=277V
Transformers,
Mounting Hardware
(fluorescent only)
(Double Face Only)
Power Factor:
120V 277V 347V
120V 277V 347V
>.56
>.30 —
>10% >11% —
—
.04A
>.34
>.19 >.15
<35% <19% <17%
.03A
>.73
>.34 >.28
<50% <30% <26%
5 3/4"
(146mm)
15"
1/2" (13mm)
T.H.D.:
