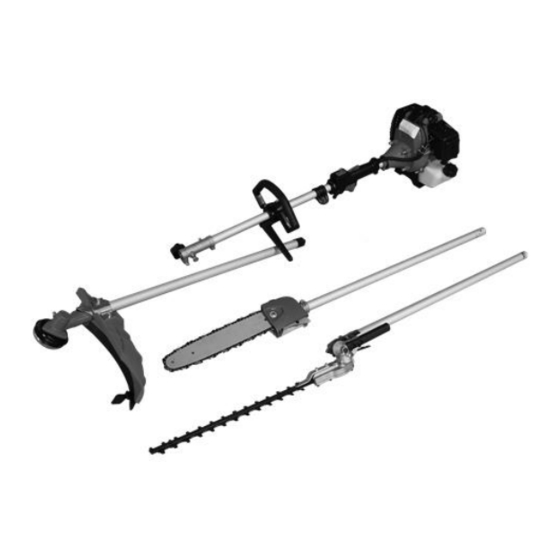

GASOLINE MULTI TOOL KIT
HCOMBI45
1

Advertisement

loading

Related Manuals for Hyundai HCOMBI45

Summary of Contents for Hyundai HCOMBI45

  • Page 1 GASOLINE MULTI TOOL KIT HCOMBI45...

  • Page 2: Table Of Contents

    CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. THE TOOL 3. ASSEMBLY 4. FUEL TANK 5. UTILISATION 6. CARE AND MAINTENANCE 7. TRANSPORT AND STORAGE 8. TROUBLESHOOTING 9. EC DECLARATION OF CONFORMITY...
  • Page 3 1. SAFETY INSTRUCTIONS Safety instructions for brushcutter and grass trimmer Proper safety precautions must be observed. This unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation.
  • Page 4  Do not use this type of machine for sweeping away debris.  Do not use the unit when you are tired, ill or under the influence of medication, drugs or alcohol.  Use nylon cutting head which is free of damage. If a stone or any other obstacle is hit, stop the engine and check the nylon cutting head.
  • Page 5  Keep the machine away from fire or sparks.  It is believed that a condition called Raynaud’s phenomenon, which affects the fingers of certain individuals, may be brought about by exposure to vibration and cold. Loss of colour and numbness in the fingers. The following precautions are strongly recommended because the minimum exposure which might trigger the ailment is unknown.
  • Page 6 in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
  • Page 7 Safe operating practices Training Become familiar with the owner’s manual before attempting to operate the equipment. Preparation a) THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the hedge trimmer.
  • Page 8 Maintenance and storage a) When the hedge trimmer is stopped for servicing, inspection or storage, shut off the power source, disconnect the spark plug wire from the spark plug and make sure all moving parts have come to a stop. Allow the hedge trimmer to cool before making any inspections, adjustments, etc.
  • Page 9 and/or risks might occur.  Never use hedge trimmer inside a building. Your hedge trimmer produces toxic exhaust fumes as soon as the engine is started. The use of this product can generate dust, vapours and smoke containing chemicals known for their harmful effects on health. So be careful during the use of your machine and protect yourself correctly.
  • Page 10 When the chain is moving, it must not touch objects, materials or persons. Start cutting only with a chain at full speed. Do not attempt to insert the saw into a pre-existing notch. Always make a new notch. Pay attention to moving branches or other forces that could close a notch and pinch or hinder the chain.
  • Page 11 There is risk of injury and property damage due to attachments or broken the sudden impact of hidden objects when using cutting. Risk of injury to persons and property caused by flying objects. Prolonged use of this product exposes the operator to vibration and can produce so-called "white finger"...
  • Page 12 Wear an equipment of protection including an helmet, protective glasses, hearing protection Wear protective gloves Wear protective and non-skid shoes Read the instruction manual Danger of kickback Keep bystanders away from the working area, at least 15m Maximal rotation of speed of the spindle Maximum height of use: 10 meters.
  • Page 13 Wear protective gloves wear protective clothes Wear a mask of protection Read the instructions handbook Wear helmet, hearing protection and protection glasses. Wear anti-skid shoes Guarantee noise level Warning! Cutting elements Exhausting gas is dangerous. Do not inhale them...

  • Page 14: The Tool

    Do not smoke Caution: the accessible surface maybe hot when using the tool 2. The tool Main unit...

  • Page 15: Fuel Tank

    ON/OFF switch 11. Shoulder strap Throttle lever 12. Cutting head for grass trimmer Hanger 13. Handle Mounting tube 14. Hedge trimmer Carter of protection (brushcutter and 15. Air filter trimmer) 16. Choke lever Bottle for the oil mixture 17. Starter Cover protection of the blade (pruner) 18.
  • Page 16 Grass trimmer 1- Nylon wire 2- Device of cutting the nylon wire 3- Carter of protection...
  • Page 17 3. ASSEMBLY Main unit Install the front handle as shown in the picture below. Be sure to orient the stem toward the hole. Do not fasten the screws until you have set the most comfortable working position with the straps. The front handle must be oriented as shown in the picture for "the motor and drive unit".
  • Page 18 Carter of protection (Brush cutter and grass trimmer) Remove the two screws from the carter of protection. On the tube of the brushcutter/grass trimmer, place the carter of protection on its support. Screw the carter of protection with the two screws. 3-theethes blade for brushcutter On the tube of the brushcutter/grass trimmer, insert a metal locking tool into the hole on the side of the drive gear and on the tool drive.
  • Page 19 Hedge trimmer Install the bar of the main unit. Be sure that the locking pin is inserted in the hole of the bar Fix the bar by turning the nut anticlockwise. Press the release / safety plate to loosen and turn the unit to the desired position according to the type of work to be performed.
  • Page 20 Fix the bar by turning the nut anticlockwise. Assembly of the chain guide and the cutting chain: Remove the safety screw and remove the guard. Place the chain guide so that the safety pin on the chain engages in the chain's teeth. Make sure that the direction of movement of the cutting chain is correct.
  • Page 21  Loosen the fixing screw.  Slightly lift the end of the chain guide  Check the cutting chain for ease of operation by turning it manually.  Adjust the tension of the chain by means of the screw for adjusting the tension of the chain (4) so that the chain can be lifted a few millimeters from the center of the guide rail.
  • Page 22 4. FILLING TANK Warning: Gasoline is highly flammable. Keep the fuel in specially designed cans.  Only fill the tank outside and do not smoke during the operation.  Fill the tank before starting the engine. Never remove the fuel tank cap, add fuel while the engine is still running, or while the engine is still warm.
  • Page 23 difficulty because of the substances they contain. Sufficient agitation of the mixture is essential to ensure proper operation over the life and power of the engine. If your fuel mixture is not stirred sufficiently, the poor and inadequate mixture may increase the risk of seizure.

  • Page 24: Utilisation

    5. UTILISATION a) Starting the 4-in-1 multifunction tool Do not start the appropriate module of the machine until all components have been connected correctly! Attach the cutting blade of the brush cutter with a torque of 20 Nm and the cutting head of the mower with a tightening torque of 15Nm. WARNING Fill the fuel tank before tightening the fuel tank cover.
  • Page 25 c. Using the grass trimmer Be sure that you have installed the correct accessory. Trimming Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier.
  • Page 26 Use the shoulder harness at all times adjust both harness and harness clamp on the unit so that the unit hangs a few inches above ground level .The cutting head and the debris shield should be level in all directions. Harness the unit on the right side of your body.

  • Page 27: Care And Maintenance

    thickness of the branch. This prevents the branch from breaking when you cut it from the top a little further away from the trunk. To finish, saw the stump by making a straight cut. If you wish, you can seal the cut using a suitable product. CARE AND MAINTENANCE Regularly maintain your tool.
  • Page 28 Maintenance plan To carry out the regular maintenance operations, please refer to the following table Stop the engine systematically before performing any maintenance on the machine. When all parts have stopped rotating, remove the cable from the spark plug so that maintenance can begin.
  • Page 29 ● ● Replacement of the spark plug Remove the cover of the spark plug, unscrew the spark plug and then replace it. a) Air filter Accumulated dust in the air filter will reduce engine efficiency. Increase fuel consumption and allow abrasive particles to pass into the engine. Remove the air filter as often as necessary to maintain in a clean condition.

  • Page 30: Transport And Storage

    When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with gasoline. TRANSPORT AND STORAGE When the 4-in-1 multifunction machine is not used for an extended period of time (1 month), the following measures should be taken: Empty the oil and fuel tank.
  • Page 31 Unit without cutting attachment, 7,3 kg empty tank 255 mm Cutting diameter 1.4 mm Cutting thickness Single piece (three teeth metal Number of cutting teeth blade) Blade hole centre diameter 25.4 Maximum rotational frequency of 7500 min the spindle Gear ratio Engine speed with...

  • Page 32: Troubleshooting

    Noise Emission Sound pressure: LpA, av = 91,3dB (A) Sound power: LwA, av = 110.9dB (A) Pole pruner Unit without cutting 7.5 kg attachment, empty tank Volume of oil tank 140 cm³ Cutting length 300 mm Chain pitch 9,525 mm Chain gauge 1,27 mm Sprocket...
  • Page 33 DECLARATION OF CONFORMITY UE HYUNDAI ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declare that the tool: Gasoline multi tool kit Ref：HCOMBI45 Serial number: 20181232559-20181232758 Is in conformity with the Directive Machine 2006/42/EC and the national regulation transposing it...
