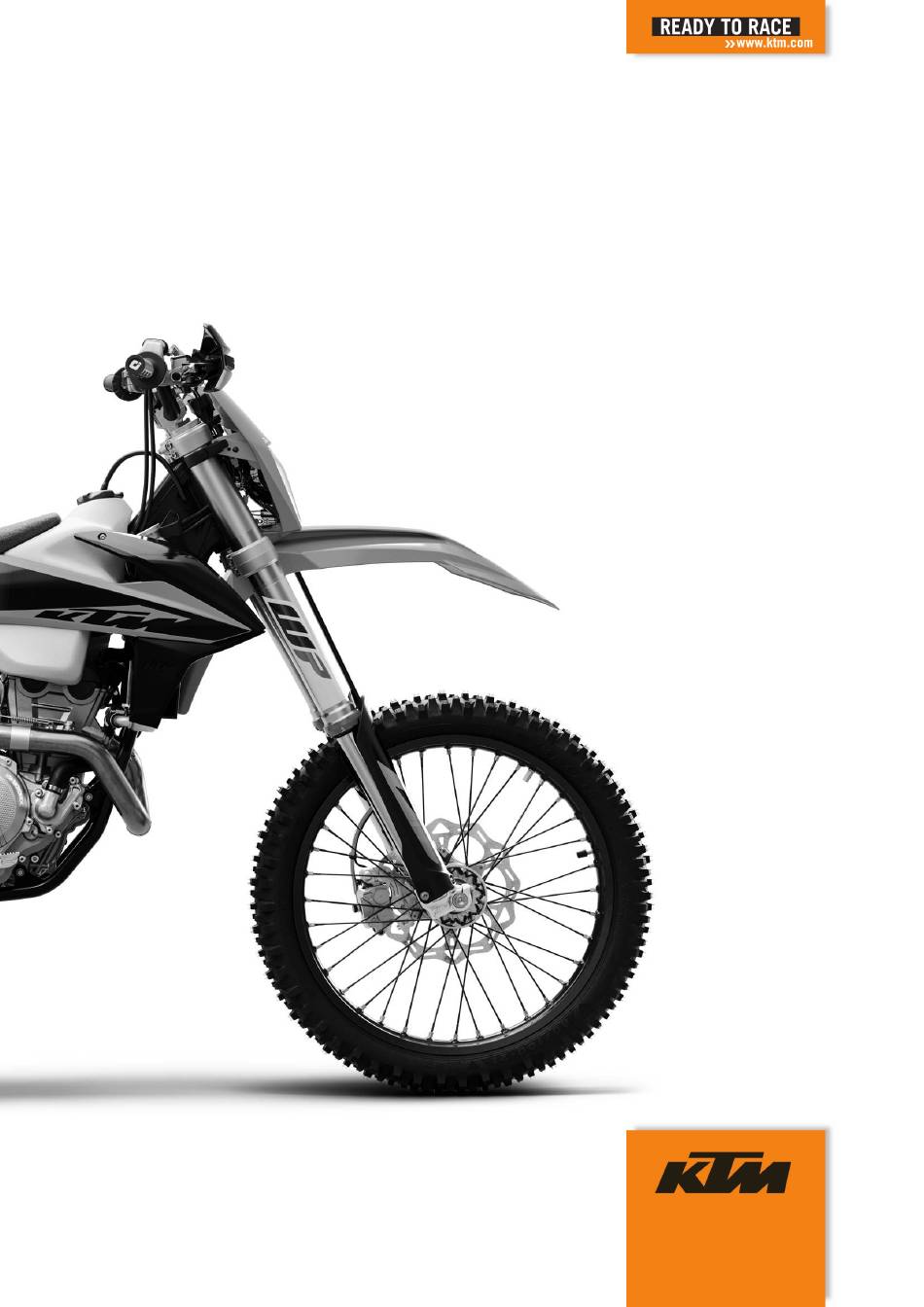

OWNER'S MANUAL
2020
250 EXC‑F
250 EXC‑F Six Days
Art. no. 3214009en

Advertisement

Table of Contents
loading

Related Manuals for KTM 250 EXC-F EU 2020

Summary of Contents for KTM 250 EXC-F EU 2020

  • Page 1 OWNER'S MANUAL 2020 250 EXC‑F 250 EXC‑F Six Days Art. no. 3214009en...
  • Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 6.16 Shift lever ........21 TABLE OF CONTENTS MEANS OF REPRESENTATION ...... 6 6.17 Foot brake lever ....... 21 Symbols used ........6 6.18 Side stand........21 Formats used........6 6.19 Steering lock ........22 SAFETY ADVICE..........7 6.20 Locking the steering ......
  • Page 5 TABLE OF CONTENTS Preparing the vehicle for riding on 11.16 Adjusting the handlebar position ..59 wet and muddy circuits ....40 12 SERVICE WORK ON THE CHASSIS....62 Preparing vehicle for high temperatures or slow riding ....40 12.1 Raising the motorcycle with the lift Preparing the vehicle for low stand ..........
  • Page 6 TABLE OF CONTENTS 12.38 Checking the chain, rear sprocket, 15.7 Installing the headlight mask with engine sprocket, and chain guide ..88 the headlight ......... 123 12.39 Checking the frame ...... 91 15.8 Changing the headlight bulb ... 123 12.40 Checking the link fork ....
  • Page 7 TABLE OF CONTENTS 23.3 Capacities ........154 23.3.1 Engine oil ......... 154 23.3.2 Coolant ........154 23.3.3 Fuel ......... 154 23.4 Chassis ......... 154 23.5 Electrical system......155 23.6 Tires ..........156 23.7 Fork..........156 23.7.1 EXC‑F EU/BR ......156 23.7.2 EXC‑F Six Days ......

  • Page 8: Means Of Representation

    All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of your own safety, have these jobs performed by an authorized KTM workshop! Your motorcycle will be optimally cared for there by specially trained experts using the auxiliary tools required.

  • Page 9: Safety Advice 2

    SAFETY ADVICE 2 Use definition – intended use This vehicle has been designed and built to withstand the normal stresses and strains of racing. This vehicle com- plies with the currently valid regulations and categories of the top international motorsports organizations. Info This vehicle is only authorized for operation on public roads in the homologated (restricted) version.

  • Page 10: Tampering Warning

    An appropriate driver's license is needed to ride the vehicle on public roads. Have malfunctions that impair safety promptly eliminated by an authorized KTM workshop. Adhere to the information and warning labels on the vehicle.

  • Page 11: Protective Clothing

    – Always wear protective clothing that is in good condition and meets the legal regulations. In the interest of your own safety, KTM recommends that you only operate the vehicle while wearing protective clothing. Work rules Special tools are necessary for certain tasks.

  • Page 12: Important Notes

    Manufacturer and implied warranty The work specified in the service schedule may only be performed in an authorized KTM workshop and must be recorded in both the Service & Warranty Booklet and in the KTM Dealer.net, otherwise any warranty coverage will become void.

  • Page 13: Customer Service

    IMPORTANT NOTES 3 Customer service Your authorized KTM dealer will be happy to answer any questions you may have on your vehicle and KTM. A list of authorized KTM dealers can be found on the KTM website. International KTM Website: http://www.ktm.com...

  • Page 14: View Of Vehicle

    4 VIEW OF VEHICLE View of vehicle, front left (example) V01831-10 Clutch lever ( p. 16) Fuel tank filler cap Air filter box cover Side stand ( p. 21) Engine number ( p. 14) Shift lever ( p. 21)

  • Page 15: View Of Vehicle, Rear Right (Example)

    VIEW OF VEHICLE 4 View of vehicle, rear right (example) V01832-10 Switch-off button ( p. 16) Horn button ( p. 17) Light switch ( p. 17) Turn signal switch ( p. 17) Start button ( p. 18) Emergency OFF switch ( p.

  • Page 16: Serial Numbers

    5 SERIAL NUMBERS Vehicle identification number The vehicle identification number is stamped on the right side of the steering head. 401945-10 Type label (All EU models) The Europe type label is fixed to the front of the steering head. The Canada type label is fixed to the front of the chest tube.

  • Page 17: Fork Part Number

    SERIAL NUMBERS 5 Fork part number The fork part number is stamped on the inner side of the fork stub. 401947-10 Shock absorber article number Shock absorber article number is stamped on the top of the shock absorber above the adjusting ring towards the engine side. H02222-10...

  • Page 18: Controls

    6 CONTROLS Clutch lever Clutch lever is fitted on the handlebar on the left. The clutch is activated hydraulically and adjusts itself automati- cally. A00345-10 Hand brake lever The hand brake lever is fitted on the right side of the handle- bar.

  • Page 19: Horn Button

    CONTROLS 6 Horn button Horn button is fitted on the left side of the handlebar. Possible states • The horn button is in the basic position is pressed – The horn is operated in this • The horn button position. S01303-10 Light switch The light switch...

  • Page 20: Start Button

    – The OBD has detected an error in the vehicle elec- tronics. Come safely to a halt, and contact an autho- rized KTM workshop. The fuel level warning lamp lights up yellow – The fuel level has reached the reserve mark.

  • Page 21: Opening Fuel Tank Filler Cap

    CONTROLS 6 6.12 Opening fuel tank filler cap Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not refuel the vehicle in the vicinity of open flames or lit cigarettes. –...

  • Page 22: Cold Start Button

    6 CONTROLS 6.14 Cold start button The cold start button is fitted to the bottom of the throttle valve body. The electronic fuel injection system extends the injection time if the engine is cold and the ambient temperature is low. To help the engine burn the increased fuel quantity, it must be supplied with additional oxygen by pushing the cold start button.

  • Page 23: Shift Lever

    CONTROLS 6 6.16 Shift lever Shift lever is mounted on the left of the engine. 401950-10 The gear positions can be seen in the figure. The neutral or idle position is between the first and second gears. 401950-11 6.17 Foot brake lever Foot brake lever is located in front of the right footrest.

  • Page 24: Steering Lock

    6 CONTROLS The side stand is used for parking the motorcycle. Info When you are riding, side stand must be folded up and secured with rubber strap 401944-10 6.19 Steering lock Steering lock is fitted on the left side of the steering head. The steering lock is used to lock the steering.

  • Page 25: Unlocking The Steering

    CONTROLS 6 6.21 Unlocking the steering – Insert the key for the steering lock into the steering lock p. 22), turn it to the left, pull it out, and turn it to the right. Pull out the key for the steering lock. The handlebar can now be moved again.

  • Page 26: Combination Instrument

    7 COMBINATION INSTRUMENT Combination instrument overview – Press the button to control different functions. – Press the button to control different functions. Info When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated. V00799-01 Activation and test Activating combination instrument The combination instrument is activated when one of the buttons is pressed or an impulse comes from the wheel speed sensor.

  • Page 27: Setting The Combination Instrument

    COMBINATION INSTRUMENT 7 – Wait 3 - 5 seconds. The settings are stored. Info If no button is pressed for 10–12 seconds, or if an impulse comes from the wheel speed sensor, the settings are automatically saved and the setup menu is closed.

  • Page 28: Setting The Clock

    7 COMBINATION INSTRUMENT Setting the clock Condition The motorcycle is stationary. – Repeatedly press the button briefly until CLK appears at the bottom right of the display. – Press the button for 2–3 seconds. The hour display flashes. – Adjust the hour display with the button and/or button –...

  • Page 29: Display Mode Speed (Speed)

    COMBINATION INSTRUMENT 7 Display mode SPEED (speed) – Repeatedly press the button briefly until SPEED appears on the left side of the display. The current speed is displayed in the SPEED display mode. The current speed can be displayed in Km/h or Mph. Info Make the setting according to the country.

  • Page 30: Setting The Unit Of Measurement

    7 COMBINATION INSTRUMENT Info Repeatedly press the button briefly until the desired function is reached. If no button is pressed for 20 seconds, the settings are automatically saved. Briefly press Activates the flashing display and changes to the button the next display Press the but- No function for 2–3...

  • Page 31: Display Mode Speed/Clk (Time)

    COMBINATION INSTRUMENT 7 7.11 Display mode SPEED/CLK (time) – Repeatedly press the button briefly until CLK appears at the bottom right of the display. The time is shown in display mode CLK. Press the but- The display changes to the Setup menu of the for 2–3 clock.

  • Page 32: Viewing The Lap Time

    7 COMBINATION INSTRUMENT Press the but- The stop watch and the lap time are reset. for 2–3 seconds. Briefly press Next display mode the button Press the but- Stops the clock. for 2–3 seconds. Briefly press Starts the stop watch or stop the current lap the button time measurement, stores it and the stop watch starts the next lap.

  • Page 33: Display Mode Speed/Tr1 (Trip Master 1)

    COMBINATION INSTRUMENT 7 7.16 Display mode SPEED/TR1 (trip master 1) – Repeatedly press the button briefly until TR1 appears at the top right of the display. TR1 (trip master 1) runs constantly and counts up to 999.9. You can use it to measure trips or the distance between refueling stops.

  • Page 34: Display Mode Speed/A1 (Average Speed 1)

    7 COMBINATION INSTRUMENT Info The TR2 value can also be corrected manually during the journey with the button and the button If 999.9 is exceeded, the value of TR2 is automatically reset to 0.0. Press the but- Increases value of TR2. for 2–3 seconds.

  • Page 35: Display Mode Speed/S1 (Stop Watch 1)

    COMBINATION INSTRUMENT 7 Press the but- No function for 2–3 seconds. Press the but- No function for 2–3 seconds. Briefly press No function the button 7.21 Display mode SPEED/S1 (stop watch 1) – Repeatedly press the button briefly until S1 appears at the top right of the display.

  • Page 36: Table Of Functions

    7 COMBINATION INSTRUMENT 7.23 Table of functions Display Press the but- Briefly press Press the but- Briefly press Wait 3 - 5 Wait 10 - 12 for 2–3 the button for 2–3 the button seconds. seconds. seconds. seconds. Display mode The display Next display No function...

  • Page 37: Table Of Conditions And Menu Activation

    COMBINATION INSTRUMENT 7 Display Press the but- Briefly press Press the but- Briefly press Wait 3 - 5 Wait 10 - 12 for 2–3 the button for 2–3 the button seconds. seconds. seconds. seconds. Setting TR2 Increases Increases Reduces Reduces Stores and (trip master 2) value of TR2.

  • Page 38: Preparing For Use

    When using your motorcycle, remember that others may feel disturbed by excessive noise. – Make sure that the pre-sales inspection work has been carried out by an authorized KTM workshop. You will receive a delivery certificate when the vehicle is handed over.

  • Page 39: Running-In The Engine

    PREPARING FOR USE 8 – Adjust the basic position of the foot brake lever. p. 102) – Adjust the basic position of the shift lever. p. 136) – Get used to the handling characteristics of the motorcycle on a suitable surface before undertaking more chal- lenging trips.

  • Page 40: Starting Power Of Lithium-Ion Batteries At Low Temperatures (All Eu Models)

    – Riding at low temperatures and in snow. ( p. 40) Preparing the vehicle for riding on dry sand – Mount the air filter dust cover. Air filter dust cover (79006920000) Info Observe the fitting instructions for KTM PowerParts. 102136-01...

  • Page 41: Preparing The Vehicle For Riding On Wet Sand

    PREPARING FOR USE 8 – Mount the air filter sand cover. Air filter sand cover (79006922000) Info Observe the fitting instructions for KTM PowerParts. 102138-01 – Clean the chain. Chain cleaner ( p. 162) – Mount the steel sprocket. –...

  • Page 42: Preparing The Vehicle For Riding On Wet And Muddy Circuits

    Preparing the vehicle for riding on wet and muddy circuits – Mount the air filter rain cover. Air filter rain cover (79006921000) Info Observe the fitting instructions for KTM PowerParts. 102137-01 – Mount the steel sprocket. – Clean motorcycle. ( p.

  • Page 43: Riding Instructions 9

    RIDING INSTRUCTIONS 9 Checks and maintenance measures when preparing for use Info Before every trip, check the condition of the vehicle and ensure that it is safe to operate. The vehicle must be in perfect technical condition when it is being operated. –...

  • Page 44: Activating Traction Control (Exc-F Six Days)

    9 RIDING INSTRUCTIONS – Take the motorcycle off side stand and secure the side stand with rubber strap – Shift the transmission into neutral. – Turn the emergency OFF switch to the position Condition Ambient temperature: < 20 °C (< 68 °F) –...

  • Page 45: Starting Off

    Do not change into a low gear at high engine speed. Info If unusual noises occur while riding, stop immediately, switch off the engine and contact an authorized KTM workshop. First-gear is used for starting off and for steep inclines. –...

  • Page 46: Braking

    Danger of accidents A spongy pressure point on the front or rear brake reduces braking efficiency. – Check the brake system and do not continue riding until the problem is eliminated. (Your authorized KTM workshop will be glad to help.) Warning Danger of accidents Moisture and dirt impair the brake system.

  • Page 47: Transporting

    In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system. – Refuel only with clean fuel that meets the specified standards. (Your authorized KTM workshop will be glad to help.)
  • Page 48 9 RIDING INSTRUCTIONS Note Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to enter the groundwater, the soil, or the sewage system. – Switch off the engine. – Open fuel tank filler cap. ( p.

  • Page 49: Service Schedule 10

    Different service intervals may apply in your country, depending on the local operating conditions. Individual service intervals and scopes may change in the course of technical developments. The most up-to-date service schedule can always be found on KTM Dealer.net. Your authorized KTM dealer will be happy to advise you.

  • Page 50: Recommended Work

    Final check: Check the vehicle is roadworthy and take a test ride. ○ ● ● ● ● Read out the error memory after the test ride using the KTM diagnostics tool. ○ ● ● ● ● Make a service entry in KTM Dealer.net.
  • Page 51 SERVICE SCHEDULE 10 Every 135 operating hours Every 70 operating hours when used for motorsports After 20 operating hours After 10 operating hours every 12 months ● ● Perform engine service including removing and installing the engine. (Change the spark plug and spark plug connector.

  • Page 52: 11 Tuning The Chassis

    The shock absorber is filled with highly compressed nitrogen. – Please follow the description provided. (Your authorized KTM workshop will be glad to help.) Info The effect of the low-speed compression adjuster can be seen in slow to normal compression of the shock...

  • Page 53: Adjusting The High-Speed Compression Damping Of The Shock Absorber

    The shock absorber is filled with highly compressed nitrogen. – Please follow the description provided. (Your authorized KTM workshop will be glad to help.) Info The effect of the high-speed compression adjuster can be seen in fast compression of the shock absorber.

  • Page 54: Adjusting The Rebound Damping Of The Shock Absorber

    Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly. The shock absorber is filled with highly compressed nitrogen. – Please follow the description provided. (Your authorized KTM workshop will be glad to help.) – Turn adjusting screw clockwise up to the last perceptible click.

  • Page 55: Checking The Static Sag Of The Shock Absorber

    TUNING THE CHASSIS 11 11.7 Checking the static sag of the shock absorber – Measure dimension of rear wheel unloaded. ( p. 52) – Hold the motorcycle upright with aid of an assistant. – Measure the distance again between the rear axle and mark- ing SAG on the rear fender using the sag gage.

  • Page 56: Adjusting The Spring Preload Of The Shock Absorber

    The shock absorber is filled with highly compressed nitrogen. – Please follow the description provided. (Your authorized KTM workshop will be glad to help.) Info Before changing the spring preload, make a note of the present setting, e.g., by measuring the spring length.

  • Page 57: Adjusting The Riding Sag

    TUNING THE CHASSIS 11 11.10 Adjusting the riding sag Preparatory work – Raise the motorcycle with the lift stand. ( p. 62) – Remove the shock absorber. p. 76) – After removing the shock absorber, clean it thoroughly. Main work –...

  • Page 58: Adjusting The Compression Damping Of The Fork

    11 TUNING THE CHASSIS 11.12 Adjusting the compression damping of the fork Info The hydraulic compression damping determines the fork suspension behavior. (EXC‑F EU/BR) – Turn white adjusting screw clockwise as far as it will Info Adjusting screw is located at the upper end of the left fork leg.

  • Page 59: Adjusting The Rebound Damping Of The Fork

    TUNING THE CHASSIS 11 11.13 Adjusting the rebound damping of the fork Info The hydraulic rebound damping determines the fork suspension behavior. (EXC‑F EU/BR) – Turn red adjusting screw clockwise as far as it will go. Info Adjusting screw is located at the upper end of the right fork leg.

  • Page 60: Adjusting The Spring Preload Of The Fork (Exc-F Six Days)

    11 TUNING THE CHASSIS 11.14 Adjusting the spring preload of the fork (EXC‑F Six Days) Preparatory work – Raise the motorcycle with the lift stand. ( p. 62) Main work – Turn T-grips counterclockwise all the way. The marking +0 aligns with the right wing. Info Make the adjustment by hand only.

  • Page 61: Handlebar Position

    TUNING THE CHASSIS 11 11.15 Handlebar position (EXC‑F EU/BR) On the upper triple clamp, there are 2 holes at a distance to each other. 15 mm (0.59 in) Hole distance The holes on the handlebar supports are placed at a distance from the center.
  • Page 62 11 TUNING THE CHASSIS (EXC‑F EU/BR) – Remove screws . Take off the handlebar clamps. Remove the handlebar and lay it to one side. Info Cover the components to protect them against dam- age. Do not kink the cables and lines. –...
  • Page 63 TUNING THE CHASSIS 11 (EXC‑F Six Days) – Remove screws . Take off the handlebar clamps. Remove the handlebar and lay it to one side. Info Cover the components to protect them against dam- age. Do not kink the cables and lines. –...

  • Page 64: 12 Service Work On The Chassis

    12 SERVICE WORK ON THE CHASSIS 12.1 Raising the motorcycle with the lift stand Note Danger of damage The parked vehicle can roll away or fall over. – Park the vehicle on a firm and level surface. – Raise the motorcycle at the frame underneath the engine. Lift stand (78129955100) Neither wheel is in contact with the ground.

  • Page 65: Cleaning The Dust Boots Of The Fork Legs

    SERVICE WORK ON THE CHASSIS 12 12.4 Cleaning the dust boots of the fork legs Preparatory work – Raise the motorcycle with the lift stand. ( p. 62) – Remove the fork protector. ( p. 63) Main work – Push dust boots of both fork legs downward.

  • Page 66: Installing The Fork Protector

    12 SERVICE WORK ON THE CHASSIS 12.6 Installing the fork protector – Position the fork protector on the left fork leg. Mount and tighten screws Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis – Position the brake line, wiring harness, and clamp. Mount and tighten screws –...

  • Page 67: Installing The Fork Legs

    SERVICE WORK ON THE CHASSIS 12 (EXC‑F Six Days) – Loosen screws . Remove the left fork leg. – Loosen screws . Remove the right fork leg. V01784-10 12.8 Installing the fork legs Main work – Position the fork legs. Bleeder screws are positioned toward the front.

  • Page 68: (Exc-F Eu/Br)

    12 SERVICE WORK ON THE CHASSIS – Position the brake caliper, and mount and tighten screws Guideline Screw, front 25 Nm (18.4 lbf ft) Loctite ® 243™ brake caliper – Mount the cable ties. – Position the brake line, the wiring harness, and the clamp. Mount and tighten screws K00546-10 Finishing work...

  • Page 69: Removing The Lower Triple Clamp (Exc-F Six Days)

    SERVICE WORK ON THE CHASSIS 12 12.10 Removing the lower triple clamp (EXC‑F Six Days) Preparatory work – Press and hold the switch-off button while the engine is idling until the engine stops. – Remove the headlight mask with the headlight. ( p.

  • Page 70: Installing The Lower Triple Clamp (Exc-F Eu/Br)

    12 SERVICE WORK ON THE CHASSIS 12.11 Installing the lower triple clamp (EXC‑F EU/BR) Main work – Clean the bearing and sealing elements, check for damage, and grease. High viscosity grease ( p. 162) – Insert the lower triple clamp with the steering stem. Mount upper steering head bearing.
  • Page 71 SERVICE WORK ON THE CHASSIS 12 – Tighten screw Guideline Screw, top steering M20x1.5 12 Nm (8.9 lbf ft) head – Tighten screw Guideline Screw, top steering 20 Nm (14.8 lbf ft) stem V01789-10 – Tighten screws Guideline Screw, top triple 20 Nm (14.8 lbf ft) clamp V01790-11...

  • Page 72: Installing The Lower Triple Clamp (Exc-F Six Days)

    12 SERVICE WORK ON THE CHASSIS 12.12 Installing the lower triple clamp (EXC‑F Six Days) Main work – Clean the bearing and sealing elements, check for damage, and grease. High viscosity grease ( p. 162) – Position the lower triple clamp with the steering stem. Mount upper steering head bearing.

  • Page 73: Checking The Steering Head Bearing Play

    12.13 Checking the steering head bearing play Warning Danger of accidents Incorrect steering head bearing play impairs the handling characteristic and dam- ages components. – Correct incorrect steering head bearing play immediately. (Your authorized KTM workshop will be glad to help.)

  • Page 74: Adjusting The Steering Head Bearing Play (Exc-F Eu/Br)

    12 SERVICE WORK ON THE CHASSIS Info If the vehicle is operated for a lengthy period with play in the steering head bearing, the bearings and the bearing seats in the frame can become damaged over time. Preparatory work – Raise the motorcycle with the lift stand.

  • Page 75: Adjusting The Steering Head Bearing Play (Exc-F Six Days)

    SERVICE WORK ON THE CHASSIS 12 Guideline Screw, top steering 20 Nm (14.8 lbf ft) stem Finishing work – Check the steering head bearing play. ( p. 71) – Remove the motorcycle from the lift stand. ( p. 62) 12.15 Adjusting the steering head bearing play (EXC‑F Six Days) Preparatory work...

  • Page 76: Removing Front Fender

    12 SERVICE WORK ON THE CHASSIS 12.17 Removing front fender Preparatory work – Press and hold the switch-off button while the engine is idling until the engine stops. – Remove the headlight mask with the headlight. ( p. 122) Main work (EXC‑F EU/BR) –...

  • Page 77: Installing Front Fender

    SERVICE WORK ON THE CHASSIS 12 12.18 Installing front fender Main work (EXC‑F EU/BR) – Position front fender. Mount and tighten screws Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis V00340-10 – Mount and tighten screws Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis V00341-10...

  • Page 78: Removing The Shock Absorber

    12 SERVICE WORK ON THE CHASSIS 12.19 Removing the shock absorber Preparatory work – Raise the motorcycle with the lift stand. ( p. 62) Main work – Remove screw and lower the rear wheel with the link fork as far as possible without blocking the rear wheel. Secure the rear wheel in this position.

  • Page 79: Mounting The Seat

    SERVICE WORK ON THE CHASSIS 12 – Raise the rear of the seat, pull the seat back, and lift it off. H02218-10 12.22 Mounting the seat – Mount the front of the seat on the collar bushings of the fuel tank, lower the seat at the rear, and push the seat forward.

  • Page 80: Installing The Air Filter Box Cover

    12 SERVICE WORK ON THE CHASSIS – Pull off the air filter box cover in area laterally and take it off at the front. V01815-11 Condition The air filter box cover is not secured. – Pull off the air filter box cover in area laterally and take it off at the front.

  • Page 81: Removing The Air Filter

    SERVICE WORK ON THE CHASSIS 12 12.25 Removing the air filter Note Engine damage Unfiltered intake air has a negative effect on the service life of the engine. Dust and dirt will enter the engine without an air filter. – Never start to use the vehicle without an air filter. Note Environmental hazard Hazardous substances cause environmental damage.

  • Page 82: Cleaning The Air Filter And Air Filter Box

    12 SERVICE WORK ON THE CHASSIS 12.27 Cleaning the air filter and air filter box Note Environmental hazard Hazardous substances cause environmental damage. – Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations. Info Do not clean the air filter with fuel or petroleum since these substances attack the foam.

  • Page 83: Removing The Main Silencer

    SERVICE WORK ON THE CHASSIS 12 12.29 Removing the main silencer Warning Danger of burns The exhaust system gets very hot when the vehicle is driven. – Allow the exhaust system to cool down before performing any work on the vehicle. (All EU models) –...

  • Page 84: Removing The Fuel Tank

    12 SERVICE WORK ON THE CHASSIS Info Over time, the fibers of the glass fiber yarn escape and the damper “burns” out. Not only is the noise level higher, but the performance characteristics change. Preparatory work – Remove main silencer. ( p.
  • Page 85 SERVICE WORK ON THE CHASSIS 12 Preparatory work – Remove the seat. ( p. 76) Main work – Unplug connector of the fuel pump. – Clean plug-in connection of the fuel line thoroughly with compressed air. Info Under no circumstances should dirt enter into the fuel line.

  • Page 86: Installing The Fuel Tank

    12 SERVICE WORK ON THE CHASSIS 12.33 Installing the fuel tank Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not refuel the vehicle in the vicinity of open flames or lit cigarettes. –...

  • Page 87: Checking For Chain Dirt Accumulation

    SERVICE WORK ON THE CHASSIS 12 – Position the horn with the horn bracket. – Mount and tighten screws with the collar bushings. Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis V01764-11 – Plug in connector for the fuel pump. –...

  • Page 88: Checking The Chain Tension

    12 SERVICE WORK ON THE CHASSIS Note Environmental hazard Hazardous substances cause environmental damage. – Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations. Info The service life of the chain depends largely on its maintenance. Preparatory work –...

  • Page 89: Adjusting The Chain Tension

    SERVICE WORK ON THE CHASSIS 12 Main work – Pull the chain at the end of the chain sliding piece upward to measure chain tension Info Lower chain section must be taut. When the chain guard is mounted, it must be possible to pull up the chain at least to the point where it makes contact with chain guard Chain wear is not always even, so you should repeat...

  • Page 90: Checking The Chain, Rear Sprocket, Engine Sprocket, And Chain Guide

    12 SERVICE WORK ON THE CHASSIS Main work – Loosen nut – Loosen nuts – Adjust the chain tension by turning adjusting screws left and right. Guideline Chain tension 55 … 58 mm (2.17 … 2.28 in) Turn adjusting screws on the left and right so that the markings on the left and right chain adjusters are in the same position relative to reference marks...
  • Page 91 SERVICE WORK ON THE CHASSIS 12 – Pull on the top section of the chain with the specified weight Guideline Weight of chain wear mea- 10 … 15 kg (22 … 33 lb.) surement – Measure distance of 18 chain rollers in the lower chain section.
  • Page 92 12 SERVICE WORK ON THE CHASSIS – Check chain sliding piece for wear. » If the lower edge of the chain pins is in line with or below the chain sliding piece: – Change the chain sliding piece. – Check that the chain sliding piece is firmly seated. »...

  • Page 93: Checking The Frame

    » If the link fork exhibits damage, cracking, or deformation: – Change the link fork. Info Always replace a damaged link fork. Repairing the link fork is not authorized by KTM. S01317-10 12.41 Checking throttle cable routing Preparatory work –...

  • Page 94: Checking The Rubber Grip

    12 SERVICE WORK ON THE CHASSIS – Mount the seat. ( p. 77) 12.42 Checking the rubber grip – Check the rubber grips on the handlebar for damage, wear, and looseness. Info The rubber grips are vulcanized onto a sleeve on the left and onto the handle tube of the throttle grip on the right.

  • Page 95: Checking/Correcting The Fluid Level Of The Hydraulic Clutch

    SERVICE WORK ON THE CHASSIS 12 12.44 Checking/correcting the fluid level of the hydraulic clutch Warning Skin irritation Brake fluid causes skin irritation. – Keep brake fluid out of the reach of children. – Wear suitable protective clothing and safety glasses. –...

  • Page 96: Changing The Hydraulic Clutch Fluid

    12 SERVICE WORK ON THE CHASSIS 12.45 Changing the hydraulic clutch fluid Warning Skin irritation Brake fluid causes skin irritation. – Keep brake fluid out of the reach of children. – Wear suitable protective clothing and safety glasses. – Do not allow brake fluid to come into contact with the skin, the eyes or clothing. –...

  • Page 97: Removing The Engine Guard (Exc-F Six Days)

    SERVICE WORK ON THE CHASSIS 12 – Inject the liquid into the system until it escapes from open- ings of the master cylinder without bubbles. – Now and then, extract fluid from the master cylinder reservoir to prevent overflow. – Remove the bleeding syringe.

  • Page 98: 13 Brake System

    Do not make any adjustments while riding. 13.3 Checking the brake discs Warning Danger of accidents Worn-out brake discs reduce the braking effect. – Make sure that worn-out brake discs are replaced immediately. (Your authorized KTM workshop will be glad to help.)

  • Page 99: Checking The Front Brake Fluid Level

    – Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized KTM workshop will be glad to help.) – Move the brake fluid reservoir mounted on the handlebar to a horizontal position.

  • Page 100: Adding The Front Brake Fluid

    Danger of accidents Old brake fluid reduces the braking effect. – Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized KTM workshop will be glad to help.) Note Environmental hazard Hazardous substances cause environmental damage.

  • Page 101: Checking The Front Brake Linings

    Checking the front brake linings Warning Danger of accidents Worn-out brake linings reduce the braking effect. – Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be glad to help.) – Check the brake linings for minimum thickness ≥...
  • Page 102 Danger of accidents Brake linings which have not been approved alter the braking efficiency. Not all brake linings are tested and approved for KTM motorcycles. The structure and friction coefficient of the brake linings, and thus their brake power, may vary greatly from that of original brake linings.
  • Page 103 BRAKE SYSTEM 13 Info Make sure that you do not press the brake caliper against the spokes when pushing back the brake pistons. – Remove cotter pin , pull out pin , and remove the brake linings. – Clean the brake caliper and the brake caliper bracket. E00344-10 –...

  • Page 104: Checking The Free Travel Of Foot Brake Lever

    13 BRAKE SYSTEM – Correct the brake fluid to level Guideline 5 mm (0.2 in) Level (brake fluid level below reservoir rim) Brake fluid DOT 4 / DOT 5.1 ( p. 160) – Position cover with membrane . Mount and tighten screws Info Immediately clean up any brake fluid that has over-...

  • Page 105: Checking The Rear Brake Fluid Level

    Danger of accidents Old brake fluid reduces the braking effect. – Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized KTM workshop will be glad to help.) – Stand the vehicle upright.

  • Page 106: Adding Rear Brake Fluid

    Danger of accidents Old brake fluid reduces the braking effect. – Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized KTM workshop will be glad to help.) Note Environmental hazard Hazardous substances cause environmental damage.

  • Page 107: Checking The Rear Brake Linings

    Checking the rear brake linings Warning Danger of accidents Worn-out brake linings reduce the braking effect. – Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be glad to help.) – Check the brake linings for minimum thickness ≥...
  • Page 108 Danger of accidents Brake linings which have not been approved alter the braking efficiency. Not all brake linings are tested and approved for KTM motorcycles. The structure and friction coefficient of the brake linings, and thus their brake power, may vary greatly from that of original brake linings.
  • Page 109 BRAKE SYSTEM 13 – Remove cotter pin , pull out pin , and remove the brake linings. – Clean the brake caliper and brake caliper bracket. E00351-10 – Check that spring plate in the brake caliper and sliding plate in the brake caliper bracket are seated properly. E00352-10 –...

  • Page 110: 14 Wheels, Tires

    14 WHEELS, TIRES 14.1 Removing the front wheel Preparatory work – Raise the motorcycle with the lift stand. ( p. 62) Main work – Manually press the brake caliper toward the brake disc to push back the brake pistons. Info Make sure that you do not press the brake caliper against the spokes when pushing back the brake pistons.

  • Page 111: Installing The Front Wheel

    WHEELS, TIRES 14 14.2 Installing the front wheel Warning Danger of accidents Oil or grease on the brake discs reduces the braking effect. – Always keep the brake discs free of oil and grease. – Clean the brake discs with brake cleaner when necessary. –...

  • Page 112: Installing The Rear Wheel

    14 WHEELS, TIRES Main work – Manually press the brake caliper toward the brake disc to push back the brake piston. Info Make sure that you do not press the brake caliper against the spokes when pushing back the brake piston. –...
  • Page 113 WHEELS, TIRES 14 Main work – Check the wheel bearing for damage and wear. » If the wheel bearing is damaged or worn: – Change the rear wheel bearing. – Clean and grease shaft seal rings and contact surface of the spacers. Long-life grease ( p.

  • Page 114: Checking The Tire Condition

    DOT number. The first two digits indicate the week of manufacture and the last two digits the year of manu- facture. KTM recommends that the tires be changed after 5 H01144-01 years at the latest, regardless of the actual state of wear.

  • Page 115: Checking Spoke Tension

    Other spokes will become looser as a result. – Check spoke tension regularly, and in particular on a new vehicle. (Your authorized KTM workshop will be glad to help.) –...

  • Page 116: 15 Electrical System

    15 ELECTRICAL SYSTEM 15.1 Removing the 12-V battery Note Environmental hazard 12 V batteries contain environmentally hazardous materials. – Do not dispose of 12 V batteries as household waste. – Dispose of 12 V batteries at a collection point for used batteries. Note Environmental hazard Hazardous substances cause environmental damage.
  • Page 117 ELECTRICAL SYSTEM 15 (EXC‑F BR) Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of chil- dren. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases.

  • Page 118: Installing The 12-V Battery

    15 ELECTRICAL SYSTEM – Remove screw and detach the battery compartment. – Lift out the 12-V battery. V01779-10 15.2 Installing the 12-V battery Main work – Insert the 12-V battery into the battery compartment with the terminals facing forward and secure with holding bracket (All EU models) 12 V battery (HJTZ5S-FP-C) ( p.

  • Page 119: Charging The 12-V Battery

    ELECTRICAL SYSTEM 15 – Connect the positive cable to the 12-V battery. Guideline Screw, battery termi- 2.5 Nm (1.84 lbf ft) Info Contact disk must be mounted under screw cable lug with the claws toward the battery termi- nal. – Slide positive terminal cover over the positive terminal.
  • Page 120 15 ELECTRICAL SYSTEM Main work (All EU models) Warning Risk of injury 12 V batteries contain harmful sub- stances. – Keep 12 V batteries out of the reach of chil- dren. – Keep sparks and open flames away from 12 V F01568-10 batteries.
  • Page 121 The charging time may be longer at low tempera- tures. This battery charger is only suitable for lithium iron phosphate batteries. Read the accompanying KTM PowerParts instructions. Info If the charging current, charging voltage, or charging time is exceeded, the 12 V battery will be destroyed.

  • Page 122: Changing The Main Fuse

    15 ELECTRICAL SYSTEM You can also use the battery charger to test the open-circuit voltage and starting ability of the 12-V battery, and to test the alternator. In addition, you cannot overcharge the 12-V battery with this device. Info If the charging current, charging voltage and charg- ing time are exceeded, electrolyte escapes through the safety valves.

  • Page 123: Changing The Fuses Of Individual Power Consumers

    ELECTRICAL SYSTEM 15 Main work – Pull starter relay from the holder. V01776-11 – Take off protection caps – Remove faulty main fuse Info A faulty fuse has a burned-out fuse wire A spare fuse is located in the starter relay. –...

  • Page 124: Removing The Headlight Mask With The Headlight

    15 ELECTRICAL SYSTEM (EXC‑F BR) Fuse 1 ‑ 10 A - EFI control unit, combination instru- ment, combination switch (optional), electronic fuel injection, diagnostics connector, fuse 4 Fuse 2 - 10 A - high beam, low beam, position light, tail light, license plate lamp Fuse 3 - 10 A - radiator fan (optional), horn, brake light, turn signal...

  • Page 125: Installing The Headlight Mask With The Headlight

    ELECTRICAL SYSTEM 15 – Detach plug-in connectors and take off the headlight mask with the headlight. S01328-10 15.7 Installing the headlight mask with the headlight Main work – Join plug-in connectors S01328-11 – Position the headlight mask and secure it with rubber straps The holding lugs engage in the fender.

  • Page 126: Checking The Headlight Setting

    15 ELECTRICAL SYSTEM Main work – Turn protection cap together with the underlying bulb socket counterclockwise all the way and remove it. – Pull bulb socket of the position light out of the reflector. V01783-10 – Pull out headlight bulb –...

  • Page 127: Adjusting The Headlight Range

    ELECTRICAL SYSTEM 15 15.10 Adjusting the headlight range Preparatory work – Check the headlight setting. ( p. 124) Main work – Loosen screw – Adjust the headlight range by pivoting the headlight. Guideline The boundary between light and dark must be exactly on the lower mark for a motorcycle with rider (instructions on how to apply the mark: Checking the headlight setting).

  • Page 128: Changing The Combination Instrument Battery

    15 ELECTRICAL SYSTEM 15.12 Changing the combination instrument battery Preparatory work – Press and hold the switch-off button while the engine is idling until the engine stops. – Remove the headlight mask with the headlight. ( p. 122) Main work –...

  • Page 129: Diagnostics Connector

    ELECTRICAL SYSTEM 15 15.13 Diagnostics connector Diagnostics connector is located under the seat. H00933-12...

  • Page 130: 16 Cooling System

    16 COOLING SYSTEM 16.1 Cooling system Water pump in the engine ensures forced circulation of the coolant. The pressure resulting from the warming of the cooling system is regulated by a valve in radiator cap . This ensures that operat- ing the vehicle at the specified coolant temperature will not result in a risk of malfunctions.

  • Page 131: Checking The Coolant Level

    COOLING SYSTEM 16 Coolant ( p. 160) – Mount the radiator cap. 16.3 Checking the coolant level Warning Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure. – Do not open the radiator, the radiator hoses or other cooling system components if the engine or the cooling system are at operating temperature.

  • Page 132: Refilling Coolant

    16 COOLING SYSTEM Warning Danger of poisoning Coolant is toxic and a health hazard. – Keep coolant out of the reach of children. – Do not allow coolant to come into contact with the skin, the eyes and clothing. – Consult a doctor immediately if coolant is swallowed. –...

  • Page 133: Tuning The Engine 17

    TUNING THE ENGINE 17 17.1 Checking the throttle cable play – Check the throttle grip for smooth operation. – Move the handlebar to the straight-ahead position. Turn the throttle grip back and forth slightly and determine the play in throttle cable Throttle cable play 3 …...

  • Page 134: Adjusting The Characteristic Map Of The Throttle Response

    17 TUNING THE ENGINE Main work – Move the handlebar to the straight-ahead position. – Push back sleeve – Loosen nut – Turn adjusting screw in as far as possible. – Loosen nut – Push cold start button all the way to the stop. –...

  • Page 135: Changing The Mapping (Exc-F Six Days)

    TUNING THE ENGINE 17 – Remove guide plate from handle tube – Position the required guide plate on the grip tube. Guideline The label OUTSIDE must be visible. Marking must be positioned at marking Grey guide plate (79002014000) Alternative 1 Black guide plate (79002014100) Info The gray guide plate opens the throttle valve more...

  • Page 136: Adjusting The Idle Speed

    Danger of accidents The engine may go out spontaneously if the idle speed is set too low. – Set the idle speed to the specified value. (Your authorized KTM workshop will be glad to help.) – Run the engine until warm.

  • Page 137: Teaching The Throttle Valve Position

    TUNING THE ENGINE 17 17.6 Teaching the throttle valve position Info If the control unit detects that the throttle valve position at idle speed needs to be retaught, then the mal- function indicator lamp flashes 2x per second. Danger Danger of poisoning Exhaust gases are toxic and inhal- ing them may result in unconsciousness and death.

  • Page 138: Adjusting The Basic Position Of The Shift Lever

    17 TUNING THE ENGINE 17.8 Adjusting the basic position of the shift lever – Remove screw with the washers and take off shift lever 401950-12 – Clean gear teeth of the shift lever and shift shaft. – Mount the shift lever on the shift shaft in the required position and engage gearing.

  • Page 139: Service Work On The Engine 18

    SERVICE WORK ON THE ENGINE 18 18.1 Changing the fuel screen Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not refuel the vehicle in the vicinity of open flames or lit cigarettes. –...

  • Page 140: Checking The Engine Oil Level

    18 SERVICE WORK ON THE ENGINE 18.2 Checking the engine oil level Preparatory work – Stand the motorcycle upright on a horizontal surface. Condition The engine is at operating temperature. – Check the engine oil level. Info After switching off the engine, wait one minute before checking the level.
  • Page 141 SERVICE WORK ON THE ENGINE 18 – Remove screw plug with oil screen and the O-rings. – Allow the engine oil to drain completely. – Thoroughly clean the parts and the sealing surfaces. K00568-10 – Position oil screen with the O-rings on a pin wrench. –...

  • Page 142: Adding Engine Oil

    18 SERVICE WORK ON THE ENGINE – Lay the motorcycle on its right side and fill the oil filter hous- ing approx. ⅓ full with engine oil. – Place the oil filter into the oil filter housing. – Oil the O-ring of the oil filter cover and mount it together with oil filter cover –...
  • Page 143 SERVICE WORK ON THE ENGINE 18 Main work – Remove oil filler plug with the O-ring from the clutch cover. – Fill engine oil to the middle of the level viewer. Engine oil (SAE 10W/50) ( p. 160) Info In order to achieve optimal engine performance, it is not advisable to mix different engine oils.

  • Page 144: 19 Cleaning, Care

    19 CLEANING, CARE 19.1 Cleaning the motorcycle Note Material damage Components become damaged or destroyed if a pressure cleaner is used incorrectly. The high pressure forces water into the electrical components, connectors, throttle cables, and bearings, etc. Pressure which is too high causes malfunctions and destroys components. –...

  • Page 145: Checks And Maintenance Steps For Winter Operation

    CLEANING, CARE 19 – Treat bare metal (except for brake discs and the exhaust sys- tem) with a corrosion inhibitor. Preserving materials for paints, metal and rubber p. 162) – Treat all plastic parts and powder-coated parts with a mild cleaning and care product.

  • Page 146: 20 Storage

    – Store the vehicle in a dry location that is not subject to large fluctuations in temperature. Info KTM recommends jacking up the motorcycle. – Raise the motorcycle with the lift stand. ( p. 62) – Preferably cover the motorcycle with a tarp or similar cover that is permeable to air.

  • Page 147: Preparing For Use After Storage

    STORAGE 20 Info Avoid running the engine for a short time only. Since the engine cannot warm up properly, the water vapor produced during combustion condenses and causes valves and the exhaust system to rust. 20.2 Preparing for use after storage –...

  • Page 148: 21 Troubleshooting

    Check the electrical system. faulty – Error in the electronic fuel Read out the fault memory using the injection KTM diagnostics tool. – Engine does not speed up Error in the electronic fuel Read out the fault memory using the injection KTM diagnostics tool.
  • Page 149 – Read out the fault memory using the KTM diagnostics tool. – High oil consumption Engine vent hose bent Route the vent hose without bends or replace it if necessary.
  • Page 150 21 TROUBLESHOOTING Faults Possible cause Action – The horn, brake light, turn sig- Fuse 3 blown Change the fuses of individual power nal, and radiator fan (optional) consumers. ( p. 121) are not working...

  • Page 151: Blink Code 22

    BLINK CODE 22 Info The blink codes are only displayed by the derestricted version of the vehicle. Blink code for malfunction indicator lamp 02a Malfunction indicator lamp flashes 2x per second Error level condition Teaching of throttle valve position required Blink code for malfunction indicator lamp 02 Malfunction indicator lamp flashes 2x short...
  • Page 152 22 BLINK CODE Blink code for malfunction indicator lamp 22 Malfunction indicator lamp flashes 2x long, 2x short Error level condition Gear position sensor - input voltage too high Gear position sensor - input voltage too low Blink code for malfunction indicator lamp 33 Malfunction indicator lamp flashes 3x long, 3x short Error level condition...

  • Page 153: Technical Data 23

    TECHNICAL DATA 23 23.1 Engine Design 1-cylinder 4-stroke engine, water-cooled Displacement 249.91 cm³ (15.2505 cu in) Stroke 52.3 mm (2.059 in) Bore 78 mm (3.07 in) Compression ratio 13.8:1 Idle speed 2,050 … 2,150 rpm Control DOHC, four valves controlled via cam lever, drive via timing chain Valve diameter, intake 32.5 mm (1.28 in)

  • Page 154: Engine Tightening Torques

    23 TECHNICAL DATA 23.2 Engine tightening torques Nozzle, crank chamber ventilation 2 Nm (1.5 lbf ft) Loctite ® 243™ Oil nozzle for alternator cooling 2 Nm (1.5 lbf ft) Loctite ® 243™ Oil nozzle for balancer shaft lubri- 2 Nm (1.5 lbf ft) Loctite ®...
  • Page 155 TECHNICAL DATA 23 Screw, shift drum locating 10 Nm (7.4 lbf ft) Loctite ® 243™ Screw, shift lever 14 Nm (10.3 lbf ft) Loctite ® 243™ Screw, starter motor 10 Nm (7.4 lbf ft) Screw, timing chain failure protec- 10 Nm (7.4 lbf ft) Loctite ®...

  • Page 156: Capacities

    23 TECHNICAL DATA Plug, timing chain tensioner M24x1.5 40 Nm (29.5 lbf ft) Screw, alternator cover M24x1.5 18 Nm (13.3 lbf ft) 23.3 Capacities 23.3.1 Engine oil Engine oil 1.0 l (1.1 qt.) Engine oil (SAE 10W/50) p. 160) 23.3.2 Coolant Coolant 1.2 l (1.3 qt.)

  • Page 157: Electrical System

    TECHNICAL DATA 23 front 2.0 bar (29 psi) rear 2.0 bar (29 psi) Final drive (All EU models) 14:52 (13:52) Final drive (EXC‑F BR) 14:52 (13:52) Chain 5/8 x 1/4" Rear sprockets available 48, 50, 52 Steering head angle 63.5° Wheelbase 1,482 ±...

  • Page 158: Tires

    140/80 - 18 M/C 70M M+S TT Metzeler MCE 6 Days Extreme Metzeler MCE 6 Days Extreme The tires specified represent one of the possible series production tires. Additional information is available in the Service section under: http://www.ktm.com 23.7 Fork 23.7.1 EXC‑F EU/BR Fork article number 14.18.8T.63...

  • Page 159: Shock Absorber

    TECHNICAL DATA 23 Standard Sport Spring length with preload spacer(s) 474 mm (18.66 in) Spring rate Weight of rider: 65 … 75 kg (143 … 165 lb.) 3.8 N/mm (21.7 lb/in) Weight of rider: 75 … 85 kg (165 … 187 lb.) 4.0 N/mm (22.8 lb/in) Weight of rider: 85 …...

  • Page 160: Chassis Tightening Torques

    23 TECHNICAL DATA 23.9 Chassis tightening torques EJOT PT Remaining screws, chassis ® K60x25‑Z 2 Nm (1.5 lbf ft) EJOT PT Screw, combination switch ® K50x18 T20 2 Nm (1.5 lbf ft) (EXC‑F Six Days) EJOT DELTA PT Screw, intake air temperature sen- ®...
  • Page 161 TECHNICAL DATA 23 Screw, front brake caliper 25 Nm (18.4 lbf ft) Loctite ® 243™ Screw, handlebar clamp 20 Nm (14.8 lbf ft) Screw, manifold on cylinder head 15 Nm (11.1 lbf ft) brace Screw, side stand attachment 33 Nm (24.3 lbf ft) Loctite ®...

  • Page 162: 24 Substances

    24 SUBSTANCES Brake fluid DOT 4 / DOT 5.1 Standard/classification – Guideline – Use only brake fluid that complies with the specified standard (see specifications on the container) and that exhibits the corresponding properties. Recommended supplier Castrol – REACT PERFORMANCE DOT 4 MOTOREX ®...
  • Page 163 SUBSTANCES 24 Fork oil (SAE 4) (48601166S1) Standard/classification – SAE ( p. 164) (SAE 4) Guideline – Use only oils that comply with the specified standards (see specifications on the container) and that exhibit the corresponding properties. Shock absorber fluid (SAE 2.5) (50180751S1) Standard/classification –...

  • Page 164: 25 Auxiliary Substances

    25 AUXILIARY SUBSTANCES Air filter cleaner Recommended supplier MOTOREX ® – Racing Bio Dirt Remover Chain cleaner Recommended supplier MOTOREX ® – Chain Clean Fuel additive Recommended supplier MOTOREX ® – Fuel Stabilizer High viscosity grease Recommended supplier ® – LGHB 2 Long-life grease Recommended supplier...
  • Page 165 AUXILIARY SUBSTANCES 25 Special cleaner for glossy and matte paint finishes, metal and plastic surfaces Recommended supplier MOTOREX ® – Quick Cleaner Universal oil spray Recommended supplier MOTOREX ® – Joker 440 Synthetic...

  • Page 166: 26 Standards

    26 STANDARDS JASO T903 MA2 Different technical development directions required a separate specification for motorcycles – the JASO T903 MA2 standard. Earlier, engine oils from the automobile industry were used for motorcycles because there was no separate motor- cycle specification. Whereas long service intervals are demanded for automobile engines, the focus for motorcycle engines is on high performance at high engine speeds.

  • Page 167: Index Of Special Terms 27

    INDEX OF SPECIAL TERMS 27 On-board diagnosis Vehicle system, which monitors the specified parame- ters of the vehicle electronics...

  • Page 168: 28 List Of Abbreviations

    28 LIST OF ABBREVIATIONS Art. no. Article number circa compare e.g. for example etc. et cetera i.a. inter alia number poss. possibly...

  • Page 169: List Of Symbols 29

    Malfunction indicator lamp lights up/flashes yellow – The OBD has detected an error in the vehicle electronics. Come safely to a halt, and contact an authorized KTM workshop. The fuel level warning lamp lights up yellow – The fuel level has reached the reserve mark.

  • Page 170: Index

    INDEX Chain guide INDEX checking ......88 12-V battery Chain tension charging ......117 adjusting .
  • Page 171 INDEX Engine oil Headlight adding ......140 range, adjusting ....125 changing .
  • Page 172 INDEX Oil screen Starting power of lithium-ion batteries at low tempera- tures ....... 38 cleaning .
  • Page 173 INDEX View of vehicle front left ......12 rear right ......13 Winter operation checks and maintenance steps .
  • Page 174 *3214009en* 3214009en 06/2019 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM http://www.ktm.com...

This manual is also suitable for:

250 exc-f br 2020250 exc-f six days eu 2020F8103t9F8140t9F8103t2

Table of Contents
