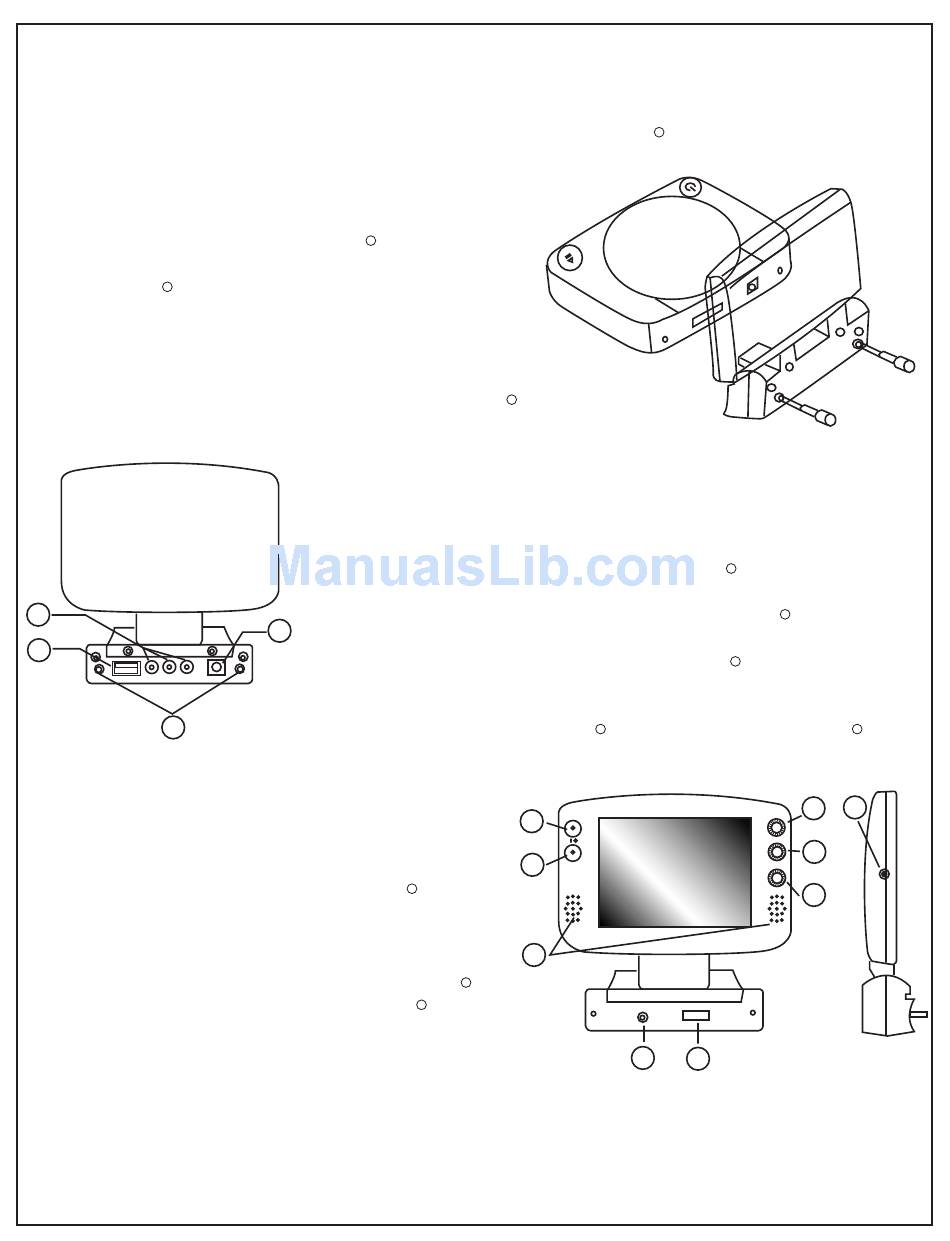

Installing your 5.6" Game Vue:
Step 1: Remove GameVue from packaging and locate
mounting screws provided.
Step 2: Place GameVue to rear of PSOne being sure to
align the power plug and signal plug with ports on
PSOne .
R
Step 3: Place mounting screws in locations designated.
Push mounting screws in gently until they come to a stop.
Step 4: Tighten mounting screws down by hand by turning them
to the right.
Step 5: Connect 7.5 VDC power plug provided with PSOne to
plug location on rear of GameVue. (See Figure 2)
1
2
7.5 VDC POWER
A/V MULTI OUT
AUX. INPUT
3
Front Panel functions and adjustments:
1. Power Button-Turns GameVue 5.6"(only) on
2. Mode Button-Switches between PSOne and
Auxiliary input (when used).
3. Speakers-For listening to either Game or Auxiliary
input (when used).
4. Power Plug-Connects to power port on PSOne .
5. Signal Plug-Provides signal from PSOne to
GameVue 5.6".
6. VOL-Allows user to adjust volume of speakers built
into GameVue 5.6".
7. BRIGHT-Allows user to adjust picture brightness.
8. COLOR-Allows user to adjust color of picture.
9. Headphone-Allows user to plug-in optional headphones for
private listening.
GameVue 5.6" monitor GV3000
Installation and Operation Manual
(GameVue 5.6" will only work with Sony PSOne )
R
Figure 2
4
and off.
R
Connections on GameVue 5.6":
1. Auxiliary Input-Ability to add another source unit i.e.
VCP, DVD, etc.
2. A/V Multi Out-Ability to use PSOne on another TV i.e.
Home Television, Car Television, etc. with
cable included with PSOne.
3. Mounting Holes-Locations designated for fastening
GameVue to PSOne with mounting
screws provided.
4. Power plug-Using 7.5 VDC power plug included with
PSOne provides power to both PSOne and
Game Vue 5.6".
1
/
2
MODE
R
3
R
R
R
Figure 1
R
R
R
COLOR
BRIGHT
VOL
4
5
Document Number 9100-0000-805
R
R
9
8
7
6
