NCR SelfServ 90 Kit Instructions

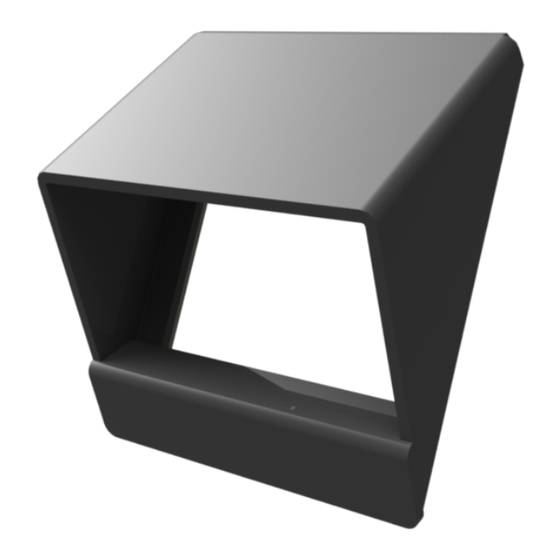

Kiosk scanner shroud
Hide thumbs
Also See for SelfServ 90:
- Instructions manual (14 pages) ,
- Kit instructions (8 pages) ,
- Kit instructions (8 pages)
Related Manuals for NCR SelfServ 90
Summary of Contents for NCR SelfServ 90
- Page 1 Kit Instructions NCR SelfServ™ 90 (7709) Kiosk Scanner Shroud R1.0 and R1.1 7709-K530 Issue A...
-
Page 2: Revision Record
NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current. -
Page 3: Kit Contents
Scanner Shroud Introduction This kit provides a Scanner Shroud for NCR SelfServ™ 90 (7709) Kiosks using an N5680 Imaging Scanner. Kit Contents... -
Page 4: Installation Procedure
Scanner Shroud Installation Procedure 1. Peel off the back liner from the adhesive on the rear side of the Scanner Shroud. 2. Firmly mount the shroud over the scanner panel on the kiosk fascia. Align the shroud to the white border of the scanner panel as follows: Note: Make sure that the Scanner Shroud is centered when mounted over the Scanner Panel. - Page 5 Scanner Shroud b. Align the sides of the shroud to the side edges of the white border. 3. Inside the shroud, push the rear panels to make sure that the shroud is firmly attached to the fascia. Repeat this step as many times as necessary.
