Rimage Amigo II Reference Manual

Producer Family
Replace the Carousel Sensor on a Producer and AutoPrinter II™
Use this procedure to replace the carousel sensor in a Autostar II™, Protege II™, Amigo II™, AutoPrinter II™, Producer 7100™,
Producer 8100™, Producer 7100N™, and Producer 8100N™.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are
used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
The term "System" is used throughout this document to refer to the Autostar II, Protégé II, Amigo II, AutoPrinter II, Producer 7100,
Producer 8100, Producer 7100N, and Producer 8100N.
Before you begin
1. Stop or pause all jobs.
2. Power off the Producer.
3. Disconnect the power cord from the power outlet.

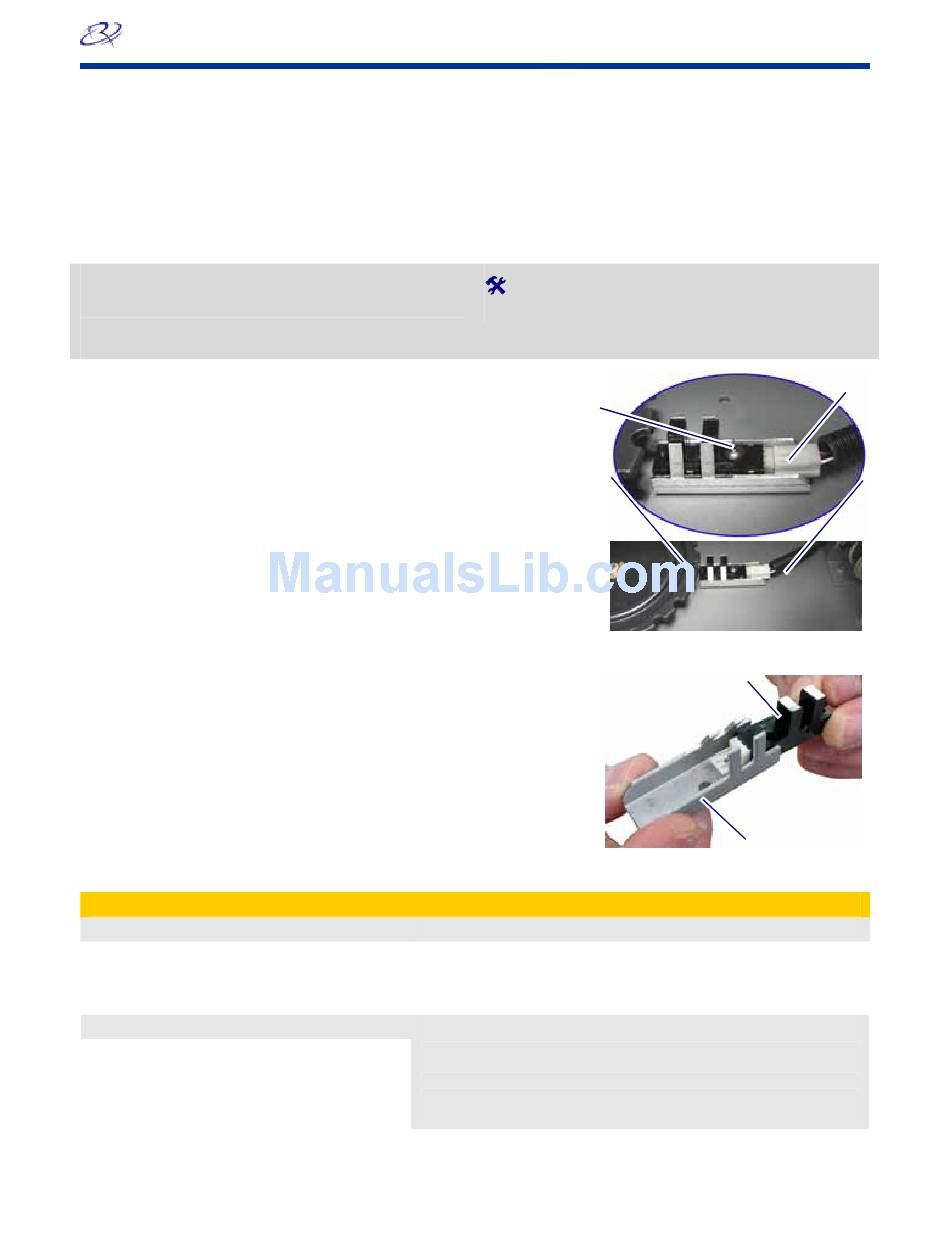

Remove the carousel sensor
Open the door.
1.
Remove the carousel.
2.
Disconnect the cable from the sensor.
3.
Remove the Torx T10 screw (Qty. 1) securing
4.
the carousel sensor and bracket.
Remove the carousel sensor and bracket
5.
from the system.
Slide the carousel sensor out of the bracket.
6.
Install the carousel sensor
1. Slide the new carousel sensor into the bracket.
2. Insert the Torx T10 screw (Qty. 1).
3. Position the carousel sensor and bracket in the system.
4. Tighten the Torx T10 screw (Qty. 1) to secure the carousel sensor
and bracket.
5. Connect the cable to the carousel sensor.
6. Reinstall the carousel.
7. Close the door.
8. Connect the power cord. The system is ready for use.
Support information
Europe
Contact Rimage Services Europe:
www.rimage.com/support.html
Email: support@rimage.de
Tel: +49-(0) 6074-8521-0
US, Asia/Pacific, Mexico/Latin America
Contact Rimage Services:
www.rimage.com/support.html
Email: http://www.rimage.com/support_form.cfm
Tel: North America: 800-553-8312
Asia/Pacific, Mexico/ Latin America: 952-946-0004
2000155_B
Required tools:
•
Torx T10 screwdriver
Screw
When you contact Rimage Services, please provide:
•
Unit serial number and software version.
•
Functional and technical description of the problem.
•
Exact error message received.
Rimage Corporation reserves the right to make improvements to the
equipment and software described in this document at any time without
any prior notice. Rimage Corporation reserves the right to revise this
publication and to make changes from time to time in the content hereof
without obligation of Rimage Corporation to notify any person or
organization of such revisions or changes.
© 2007, Rimage Corporation
Operator
Carousel Sensor
Bracket
Cable
1
