Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the TV/VCR combination.
Introduction Table of Contents Important Information Warning ______________________________ i Cautions ______________________________ i Note to Cable TV Installer _______________ i Product Registration ____________________ i Setting Up the TV/VCR Startup Check Accessories With TV/VCR ____ 2 Insert Batteries in Remote ___________ 2...
Setting Up the TV/VCR Startup 1. Check accessories with TV/VCR combination. Contact your dealer if any items are missing. 2. Insert batteries in remote. Remote 2 “AA” Batteries...
Setting Up the TV/VCR Startup CAUTION: If you choose to use a stand with your TV/VCR, take precautions that the stand or other furniture the TV/VCR is placed on is properly located and of adequate size and strength to prevent the TV/VCR from accidentally being tipped over or pulled off.

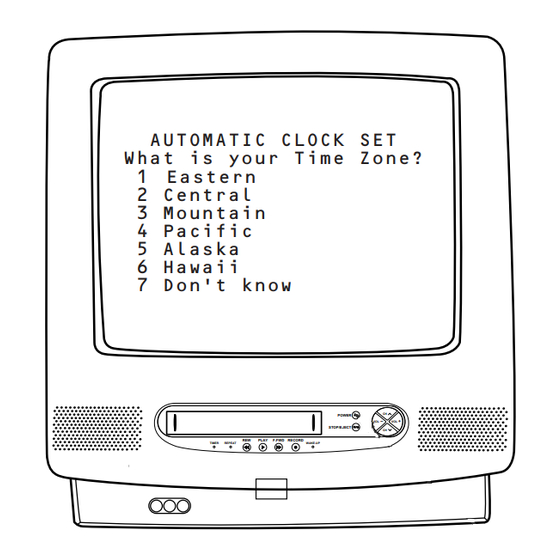

Setting Up the TV/VCR Startup Place the TV/VCR in a location where it is safe to operate. 5. Turn on the TV/VCR. Press POWER on the TV/VCR or remote. The indicator in the POWER button on the front of the TV/VCR will light.
A channel that has been removed can still be selected by pressing number buttons. A. Press MENU on the remote to display the TV/VCR MAIN MENU. B. Press 5 to display the SETUP menu.
Fast forwards the tape when the TV/VCR is stopped. Searches the picture in forward motion during playback. INPUT Selects the signal from a component connected to the AUDIO and VIDEO IN jacks. MENU Displays the TV/VCR MAIN MENU. MUTE Turns sound on or off.
SEARCH Displays INDEX, ZERO, and BLANK search screens. Advances tape during playback. SLEEP Sets TV/VCR to automatically turn off in 30, 60, 90, or 120 minutes. SLOW Used for slow-motion playback on tapes recorded in SP and SLP. SPEED (Tape Speed) Selects a recording speed (SP or SLP).
On-Screen Displays When you change channels, adjust volume, or use a VCR feature, on-screen displays appear to let you know the status of the TV/VCR. To Call Up On-Screen Displays 1. Press DISPLAY to display the channel number, function, time counter, date, time, and tape speed.
Using the TV/VCR Features Adjust the Audio Use the BASS/TREBLE menu to adjust the audio for your personal preference. The TV/VCR will remember the settings you select. To Adjust Audio Press MENU to display the TV/VCR MAIN MENU. Press 7 to display the AUDIO menu.
Using the TV/VCR Features Closed Captions Closed captioning displays the sound of a program as words on the TV screen. It is useful for the deaf, hearing impaired, or anyone who wants to watch a program without sound. If you have turned closed captioning on and it does not appear on the screen, it is not available on the channel you are watching.
TV/VCR Features Using the TV/VCR Features Wake-Up Timer The timer turns the TV/VCR on at a desired time. You can set it to wake you up in the morning or remind you that a favorite program is about to start.
TV/VCR Features Using the TV/VCR Features TV Stereo System Some TV programs are broadcast with stereo audio or a second audio language (SAP). To select Audio Mode for TV viewing 1. Press MENU to display the TV/VCR MAIN MENU. 2. Press 7 to display the AUDIO menu.
While rewinding, you can press POWER and the TV/VCR will still rewind the tape. 6. Press STOP/EJECT on the TV/VCR to eject the tape once it is completely rewound. A cassette may be ejected with the power turned off.
Selecting Audio for Tape Playback Tape Playback Feature The TV/VCR records the same audio on both the Hi-Fi and linear tracks. Hi-Fi sound is recorded on separate left and right stereo channels. Monaural sound is recorded on the linear tarck.
1. Press PAUSE on the remote during playback to pause the action. The TV/VCR will automatically switch from pause to stop after a few minutes to prevent tape wear. 2. Press PAUSE or PLAY to return to playback.
CH up or down on the TV/VCR for the best possible picture. • To turn automatic tracking back on, press and hold both of the CH buttons on the front of the TV/VCR. Time Counter The time counter helps locate the beginning or end of programs you taped.
Select ON to have a tape with its safety tab removed start playing automatically. Auto Repeat Feature This feature tells the TV/VCR to play a tape over and over. When Auto repeat ON is selected, the TV/VCR will play the tape to the end, automatically rewind the tape, and play the tape again.
Using the Playback Features Index Search The TV/VCR automatically records index marks on the tape each time you begin recording. During playback you can locate the program you want to play by the number of index marks. Your TV/VCR has two index playback features. You can select a specific index number or search by scan and play.
FF. Blank Search The TV/VCR will search for blank portions of the tape that are more than six seconds in length. 1. Insert the pre-recorded tape and press STOP.
This feature allows you to prevent recording short passages of unwanted material. • Press PAUSE during recording to stop and start recording. The TV/VCR will automatically switch from pause to stop after a few minutes to prevent tape wear. Recording Time Type T120...
Recording a Program Types of Recordings Your TV/VCR provides different types of recording. These types are explained in the following sections: Basic Recording – Operating Instructions Recording Audio Only Recording Broadcast Stereo TV or SAP Recording While You're Away VCR Plus+ Recording...
The Reception feature lets you select the type of audio you want to record. To Record Stereo Broadcast TV or SAP Turn on the TV and tune it to the TV/VCR viewing channel, either 3, 4, or TV’s video input.
Page 26
Note 1: Check your local listing for the broadcast or VCR Plus+ channel number assigned to this station Note 2: Check your local or cable listing for the channel number you receive this station on. Press MENU on the remote to display the TV/VCR MAIN MENU.
Page 27
Recording a Program VCR Plus+ Channel Worksheet Use this worksheet to create a list from which you can set up your VCR Plus+ channel list. Broadcast or Cable TV Station Name (Such as ABC, NBC, CBS, etc.) * Check your local listing for VCR Plus+ channel numbers assigned to network stations.
Page 28
10. Insert a Tape with safety tab intact before the recording is to begin. The TIMER indicator lights in the TV/VCR’s front panel. If you turn the TV/VCR off, the TIMER indicator will frash if there is no cassette in the TV/VCR or the safety tab is missing from the cassette.
Recording a Program Recording While You’re Away (Timer Recording) Timer recording lets you program the TV/VCR to record up to eight different programs within a one year period. Before setting the timer, make sure that the clock is set correctly.
Press DISPLAY to review the next program in sequence. Press CLEAR to erase a program. Stopping A VCR Plus+ or Timer Recording Press STOP/EJECT on the TV/VCR or STOP on the remote. A timer program in progress will be stopped. Only today’s recording of a daily, weekdays, or weekly program is cancelled.
Recording While You’re Away (Express Recording) Express recording lets you record up to four hours or to the end of the tape without programming the timer. You can begin recording immediately. The TV/VCR will stop automatically at the end of the recording.
Use another VCR or camcorder as the playback VCR and the TV/VCR as the recording VCR. Turn on the VCR or camcorder and the TV/VCR. Caution: The unauthorized Press INPUT or 00 on TV/VCR’s remote to select the recording of television line input (VIDEO). programs and other...
(L and R) In Jacks VIDEO IN L-AUDIO IN-R POWER Turns the TV/VCR on or off. The indicator in the button is lit when the power is on. STOP/EJECT Stops normal functions — such as record, playback, rewind, fast-forward, or pause.
VHF/UHF (Antenna) Connector Receives the signal from an antenna or cable system. AUDIO OUT (R and L) Jacks Sends audio signals from TV/VCR to another component when it is connected to these jacks, such as an amplifier. Choosing a Hookup Answer the questions to choose the hookup for your TV/VCR.
Without a Cable Box 1. Connect as shown. This connection may require additional accessories not provided. 2. Plug in TV/VCR’s power cord. 3. Turn to page 2 for “Setting Up the TV/VCR.” Match Your Type of Antenna or Cable Antenna...
Unscramble All Channels 1. Connect as shown. This connection may require additional accessories not provided. 2. Plug in power cords of TV/VCR and cable box. 3. Turn to page 2 for “Setting Up the TV/VCR.” B. Cable Box Required to...
3. Turn to page 30 for “Copying and Editing Tapes.” Press INPUT on the remote to select the line (audio/video) input on the TV/VCR to receive the signal from the VCR. If your VCR has stereo AUDIO OUT jacks, connect the audio cable to the jack labeled MONO.
References Trouble Checks Sometimes problems can be easily solved by checking a few basic things. Check below before you call for help or take your TV/VCR to an Authorized RCA VCR Servicenter. Trouble o power TV/VCR does not respond to remote...
• Time zone or daylight savings time information incorrect. See page 4. • TV/VCR is removing tape from heads. This is normal. The head cylinder inside the TV/VCR will continue to rotate for a few minutes after you put the VCR in the stop mode.
Cleaning the TV/VCR Use a soft cloth or dusting attachment of your vacuum cleaner to dust your TV/VCR. Remove dust from the ventilation holes of the cabinet. Plastic surfaces are easily scratched and can be marred by alcohol and various solvents.
• Pay any Authorized RCA VCR Servicenter the labor charges to repair your TV/VCR. • Pay any Authorized RCA VCR Servicenter for the new or, at our option, rebuilt replacement parts required to repair your TV/VCR. How you get service: •...
Page 43
Trouble Checks ......36-37 Turn on TV/VCR ......3 TV/VCR MAIN MENU .
Page 44
Your toll-free numbers are. English: 1-800-522-0338 French: 1-800-522-0445 If your TV/VCR needs service, please contact your dealer or the nearest servicenter from the yellow pages. Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.
