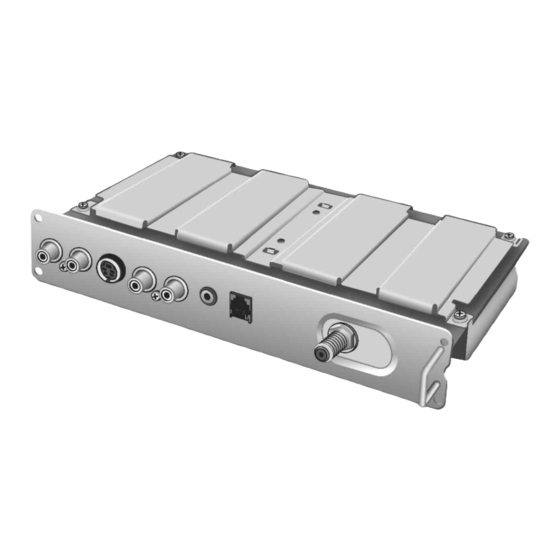

Panasonic TY-FB9TU Service Manual

Un tuner board with mate i/f board
Hide thumbs Also See for TY-FB9TU:

Advertisement

Quick Links

Download this manual
SPECIFICATIONS
Channel Capability-181
Connection Terminals
AV INPUT
AV OUTPUT
Digital interface port /
(MATE)
Remote Control Model No. N2QAFB000003
Mass (weight)
Operating range
2006 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
VHF-12: UHF-56: Cable-125
VIDEO (RCA PIN JACK TYPE) 1.0 Vp-p (75
S VIDEO (Mini DIN 4-pin) Y: 1.0 Vp-p (75
AUDIO L-R (RCA PIN JACK TYPE) 0.5 Vrms
Video (RCA PIN JACK TYPE) 1.0 Vp-p (75
*Cannot output UHF/VHF signals.
AUDIO L-R (M3 JACK TYPE) 0.5 Vrms
RJ-11C
approx. 160 g (5.6 oz) (including batteries)
approx. 7 m (23 feet) directly in front of the unit
ORDER NO.ITD0604018CE
U/V Tuner Board with MATE I/F Board
Specification
)
), C: 0.286 Vp-p (75
)
1
D10 Canada: B07
TY-FB9TU
)

Advertisement

loading

Related Manuals for Panasonic TY-FB9TU

Summary of Contents for Panasonic TY-FB9TU

  • Page 1 ORDER NO.ITD0604018CE D10 Canada: B07 U/V Tuner Board with MATE I/F Board TY-FB9TU SPECIFICATIONS Specification Channel Capability-181 VHF-12: UHF-56: Cable-125 Connection Terminals AV INPUT VIDEO (RCA PIN JACK TYPE) 1.0 Vp-p (75 S VIDEO (Mini DIN 4-pin) Y: 1.0 Vp-p (75 ), C: 0.286 Vp-p (75...

  • Page 2: Safety Precautions

    1. Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 3: Prevention Of Electrostatic Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

  • Page 4: About Lead Free Solder (Pbf)

    4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6.
  • Page 5 stamped on the back of PCB. Caution - Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ±...
  • Page 6 4. Installation 5. Antenna connection...

  • Page 7: Connection Of External Equipment

    6. Connection of external equipment...

  • Page 8: Circuit Board Layout

    7. Circuit Board Layout 7.1. HMB-Board 8. Block and Schematic Diagram 8.1. Schematic Diagram Notes...
  • Page 9 8.2. HMB-Board Block Diagram 8.3. HMB-Board (1 of 4) Schematic Diagram 8.4. HMB-Board (2 of 4) Schematic Diagram 8.5. HMB-Board (3 of 4) Schematic Diagram 8.6. HMB-Board (4 of 4) Schematic Diagram...

  • Page 10: Replacement Parts List

    9. Replacement Parts List 9.1. Replacement Parts List Notes 9.2. Electrical Replacement Parts List...
  • Page 11 Ref. No. Part No. Part Name & Description Remarks C3001,02 ECJ2XB1E104K C 0.1UF, K, 25V C3003,04 EEEHP1A100R E 10UF, 10V C3009 EEEHB1C470P C 47PF, J, 16V C3010,11 ECJ1XB1C104K C 0.1UF, Z, 16V C3012 EEEHP1A100R E 10UF, 10V C3013 ECJ2VF1C105Z C 1UF, Z, 16V C3014 EEEHB1C470P C 47PF, J, 16V...
  • Page 12 Ref. No. Part No. Part Name & Description Remarks C3141 ECJ1XB0J105K C 1UF, K, 16V C3142 ECJ1XB1C104K C 0.1UF, Z, 16V C3144 ECJ1XB1C104K C 0.1UF, Z, 16V C3146 ECJ1XB1C104K C 0.1UF, Z, 16V C3147 ECJ3XB0J106M C 10UF, M,6.3V C3148 ECJ1XB0J105K C 1UF, K, 16V C3149 ECJ1XB1C104K...
  • Page 13 Ref. No. Part No. Part Name & Description Remarks C3402 ECJ2VF1H103Z C 0.010UF, Z, 50V C3403 ECJ1XB1C104K C 0.1UF, Z, 16V C3405 ECJ1XB1C104K C 0.1UF, Z, 16V C3406 EEEHB0J101P C 100PF, J, 6.3V C3412 ECJ2XB1A105K C 1UF, K, 10V C3414 ECJ2XB1A105K C 1UF, K, 10V C3416...
  • Page 14 Ref. No. Part No. Part Name & Description Remarks C3707-15 ECJ1VF1A105Z C 1UF, Z, 10V D3001 MA729 DIODE D3002 MA3100M ZENER DIODE D3050,51 MA111 DIODE D3053-55 MA111 DIODE D3350-52 MA8075L ZENER DIODE D3354 MA8075L ZENER DIODE D3355 MA3062M ZENER DIODE D3356 MA111 DIODE...
  • Page 15 Ref. No. Part No. Part Name & Description Remarks JS3501-05 ERJ3GEY0R00 M 0 OHM, 1/16W JS3506 ERJ6GEY0R00 M 0 OHM, 1/10W JS3508-12 ERJ3GEY0R00 M 0 OHM, 1/16W JS3513 ERJ6GEY0R00 M 0 OHM, 1/10W L3001 J0HABB000003 LC FILTER L3002,03 J0HABB000004 LC FILTER L3006 J0E8004B0010 LCR FILTER...
  • Page 16 Ref. No. Part No. Part Name & Description Remarks R3009 ERJ3GEYJ101 M 100 OHM,J,1/16W R3010 ERJ6ENF75R0 M 75 OHM, 1/10W R3011 ERJ3GEYJ102 M 1KOHM,J,1/16W R3012 ERJ3GEYJ103 M 10KOHM,J,1/16W R3014 ERJ3GEYJ101 M 100 OHM,J,1/16W R3015 ERJ6ENF3300 M 330 OHM, 1/10W R3028 ERJ3GEYJ101 M 100 OHM,J,1/16W R3029...
  • Page 17 Ref. No. Part No. Part Name & Description Remarks R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W R3120 ERJ3GEY0R00 M 0 OHM, 1/16W R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W R3123 ERJ3EKF1502 M 15KOHM, 1/16W R3124 ERJ3EKF10R0 M 10 OHM, 1/16W R3127 ERJ6ENF12R0 M 12 OHM, 1/10W...
  • Page 18 Ref. No. Part No. Part Name & Description Remarks R3358,59 ERJ3GEYJ103 M 10KOHM,J,1/16W R3360 ERJ3GEY0R00 M 0 OHM, 1/16W R3362 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R3364 ERJ3GEYJ103 M 10KOHM,J,1/16W R3365 ERJ3GEYJ104 M 100KOHM,J,1/16W R3366 ERJ3GEYJ101 M 100 OHM,J,1/16W R3369 ERJ3GEYJ103 M 10KOHM,J,1/16W R3371 ERJ3GEYJ562 M 5.6KOHM,J,1/16W...
  • Page 19 Ref. No. Part No. Part Name & Description Remarks R3477 ERJ3GEYJ220 M 22 OHM,J,1/16W R3478 ERJ3GEYJ101 M 100 OHM,J,1/16W R3479 ERJ3GEYJ102 M 1KOHM,J,1/16W R3480 ERJ3GEYJ103 M 10KOHM,J,1/16W R3481,82 ERJ3GEY0R00 M 0 OHM, 1/16W R3484,85 ERJ3GEYJ241 M 240 OHM,J,1/16W R3486,87 ERJ3GEYJ103 M 10KOHM,J,1/16W R3488 ERJ3GEYJ333...
  • Page 20 Ref. No. Part No. Part Name & Description Remarks J0KF00000018 FERRITE CORE (CHAP.5) K1RGZBA00001 F TERMINAL (5C TYPE) N2QAFB000003 REMOTE CONTROL TBMU662 TERMINAL SHEET THEL0239 SCREW FOR INSTALLATION THEL027N SCREW FOR SHIELD PLATE THNA004N NUT FOR TUNER TERMINAL THW40973N WASHER FOR TUNER TERMINAL TJSD00901 F TERMINAL (4C TYPE) TPCB06812...

  • Page 22: Schematic Diagram For Printing With A4

    9.5. Parts Location (2) 10. Schematic Diagram for printing with A4...
  • Page 23 R526 R108 C026 R119 R304 R117 IC001 R308 RFAGC R309 R303 Q104 C422 R037 R485 Q353 R364 L007 Q101 C016 R356 Q006 JS505 R014 JK005 JK002 AGCADJ JK004 JK001 VIDEO IN MONITOR OUT JK006 TY-FB9TU TY-FB9TU HMB-BOARD TXNHMB1ZUTU HMB-BOARD TXNHMB1ZUTU...
  • Page 24 270p R3521 2.2k R3374 TU3501 13.7k MATE_IR_DATA C3351 ENG36A20GF STB5V Q3502 0.01u TUNER B1ABPF000010 C3350 R3372 Q3353 0.1u 2SD0601A0L R3375 REMOTE5V JK3006 R3364 K2LB106B0053 R3356 MATE TY-FB9TU TY-FB9TU HMB-Board (1 of 4) Schematic Diagram HMB-Board (1 of 4) Schematic Diagram...
  • Page 25 C3093 C3207 C3216 C3217 C3094 Q3053 220u 2SD0601A0L Q3057 R3085 2SB0709A0L Q3056 2SB0709A0L R3091 180k R3086 R3093 R3096 IC3301 D3053 D3054 MA2J11100L MA2J11100L C0CBABB00029 MEM 3.3V TY-FB9TU HMB-Board (2 of 4) Schematic Diagram TY-FB9TU HMB-Board (2 of 4) Schematic Diagram...
  • Page 26 6.3V C3158 C3156 6.3V 0.1u C3138 C3146 6.3V 0.1u C3157 6.3V C3135 C3150 0.01u 0.01u PLL2.5V R3152 R3153 C3136 C3140 R3156 R3157 100p C3151 C3153 100p TY-FB9TU HMB-Board (3 of 4) Schematic Diagram TY-FB9TU HMB-Board (3 of 4) Schematic Diagram...
  • Page 27 R3302 SCL2 POW_DOWN R3311 SDA2 PLL2.5V 3.3V R3305 C3309 C3313 CLK_SEL R3310 IC3699 C3EBGC000065 IC3303 EEPROM C3317 AN80L25RMSTX PLL 2.5V R3308 R3309 R3337 SCL2 SDA2 R3338 TY-FB9TU TY-FB9TU HMB-Board (4 of 4) Schematic Diagram HMB-Board (4 of 4) Schematic Diagram...
  • Page 28 8 Block and Schematic Diagram 8.1. Schematic Diagram Notes...
  • Page 30 SDA0 Q3352 CLONE SW JK3006 CLONE_SW(CLONE_PORT)=HIGH A=0,B=0 X=X0,Y=Y0 CLONE PORT MATE_BOX ACCESS MATE CLONE_SW(CLONE_PORT)=LOW A=1,B=0 X=X1,Y=Y1 MATE_CLK CLONE_BOX(EEPROM) ACCESS IC3351 MATE_DAT_IN MATE_CLONE_PORT STB+5V2 MATE_DAT_OUT EEPROM MATE_IR_DATA Q3551 CLONE BOX SDA 5 SDA0 SCL0 Q3353 IR BUFFER TY-FB9TU HMB-Board Block Diagram...
  • Page 31 TO SLOT2 D3404 D3403 Q3409 STB5V +9V2 SCL3 SDA0 SDA3 D3405 CLONE SW D3401 +5V2 LED(R) 10 CLONE PORT IC3403 +3.3V2 LED(G) 64 3.3V RESET 3.3V RESET BUFF Q3406 STB+5V1 FOR LOADER FACTORY BUS CONTROL BUS CONTROL TY-FB9TU HMB-Board Block Diagram...
  • Page 32 C3520 VIDEO_OUT 0.01u 0.1u MATE_CLK C3518 MATE_DAT_IN 6.3V CLONE_PORT 100u MATE_CLONE_PORT R3357 MATE_DAT_OUT R3374 TU3501 MATE_IR_DATA C3351 ENG36A20GF STB5V 0.01u TUNER C3350 R3372 Q3353 0.1u 2SD0601A0L REMOTE5V R3375 JK3006 R3364 R3356 K2LB106B0053 MATE TY-FB9TU HMB-Board (1 of 4) Schematic Diagram...
  • Page 33 0.1u U/V TUNER 30V C3064 D3502 C3068 C3059 C3512 B0JCME000037 16V 0.1u 16V 0.1u C3504 R3508 0.1u C3515 C3517 C3521 R3520 R3512 R3518 820k 4700p C3511 R3060 270p R3521 2.2k 13.7k Q3502 B1ABPF000010 TY-FB9TU HMB-Board (1 of 4) Schematic Diagram...
  • Page 34 AE_R R3058 C3057 AE_L Q3052 R3059 C3058 2SD0601A0L R3084 R3092 180k R3083 R3094 R3095 180k C3093 C3094 Q3053 2SD0601A0L Q3057 R3085 2SB0709A0L Q3056 R3091 2SB0709A0L 180k R3093 R3096 R3086 D3053 D3054 MA2J11100L MA2J11100L TY-FB9TU HMB-Board (2 of 4) Schematic Diagram...
  • Page 35 AR_CLK AE_R L3702 R3189 AO_FO4 AO_FO5 EXC3BB221H DI_4 DI_5 AE_L AO_RE AO_WE AO_RR AO_WR RSTR RSTW C3206 SRCK SWCK 10V 1u C3209 MEM3.3V L3201 ELJPA100KFB C3207 C3216 C3217 220u IC3301 C0CBABB00029 MEM 3.3V TY-FB9TU HMB-Board (2 of 4) Schematic Diagram...
  • Page 36 C3116 R3108 16V 0.1u VDDI VDDE C3117 16V 0.1u SMCK XTST VPIN1 HPIN1 R3140 C3118 16V 0.1u R3131 VDDE AR_FO9 R3109 AR_FO8 AR_FO7 R3110 AR_FI9 FIN9 AR_FI8 FIN8 AR_FI7 VDDI FIN7 AR_FI6 AR_FI5 TY-FB9TU HMB-Board (3 of 4) Schematic Diagram...
  • Page 37 0.1u R3154 R3158 1.8k C3147 C3141 6.3V C3158 C3156 6.3V 6.3V 0.1u C3138 C3146 6.3V 0.1u C3157 6.3V C3135 C3150 0.01u 0.01u PLL2.5V R3152 R3153 C3136 C3140 R3156 R3157 100p C3151 C3153 100p TY-FB9TU HMB-Board (3 of 4) Schematic Diagram...
  • Page 38 SDA 1 SCL2 SCL 1 R3304 VDAC R3302 SCL2 POW_DOWN SDA2 R3311 3.3V PLL2.5V R3305 C3309 C3313 CLK_SEL R3310 IC3699 C3EBGC000065 IC3303 EEPROM C3317 AN80L25RMSTX PLL 2.5V R3308 R3309 R3337 SCL2 SDA2 R3338 TY-FB9TU HMB-Board (4 of 4) Schematic Diagram...
  • Page 39 AH_TX2- TX2- AK_TX1+ TX1+ AK_TX1- TX1- AD_TX0+ TX0+ AD_TX0- TX0- J-BOARD (SLOT1) C3327 0.1u C3328 0.1u C3329 0.1u C3330 0.1u FACTORY STB5V R3303 SDA2 SCL2 R3304 R3302 SCL2 SDA2 R3308 R3309 SCL2 SDA2 TY-FB9TU HMB-Board (4 of 4) Schematic Diagram...
  • Page 40 RESET CLONE_BOX(EEPROM) ACCESS 3.3V IC3351 MATE_DAT_IN MATE_CLONE_PORT RESET STB+5V2 MATE_DAT_OUT EEPROM MATE_IR_DATA Q3551 CLONE BOX BUFF SDA 5 Q3406 SDA0 SCL0 STB+5V1 Q3353 IR BUFFER FOR LOADER FACTORY BUS CONTROL BUS CONTROL TY-FB9TU TY-FB9TU HMB-Board Block Diagram HMB-Board Block Diagram...
  • Page 41 C419 C003 IC3702 C024 L001 L004 C058 C509 R357 R006 R030 D353 L002 D354 R050 R004 D002 D350 R009 R056 R057 C502 R001 C508 JK005 R010 JK001 R514 JK006 L003 JK002 JS511 R387 C357 TY-FB9TU TY-FB9TU HMB-BOARD TXNHMB1ZUTU HMB-BOARD TXNHMB1ZUTU...
