- Page 1 ExtremeWireless™ AP410C Access Point Installation Guide 9036902-02 Rev AA December 2021...
- Page 2 Copyright © 2021 Extreme Networks, Inc. All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.
-
Page 3: Table Of Contents
Table of Contents Preface...........................4 Text Conventions................................4 Documentation and Training..........................5 Help and Support................................. 6 Subscribe to Product Announcements.....................6 Send Feedback................................6 AP410C Access Point Overview..................8 Update the Country Code............................8 AP410C Features................................8 AP410C hardware components........................10 Micro USB console port information......................10 Reset button details............................ -
Page 4: Preface
Preface Read the following topics to learn about: • The meanings of text formats used in this document. • Where you can find additional information and help. • How to reach us with questions and comments. Text Conventions Unless otherwise noted, information in this document applies to all supported environments for the products in question. -
Page 5: Documentation And Training
Extreme Networks products Extreme Optics Compatibility Other resources such as white papers, data sheets, and case studies Extreme Networks offers product training courses, both online and in person, as well as specialized certifications. For details, visit www.extremenetworks.com/education/. ExtremeWireless™ AP410C Access Point... -
Page 6: Help And Support
The Hub A forum for Extreme Networks customers to connect with one another, answer questions, and share ideas and feedback. This community is monitored by Extreme Networks employees, but is not intended to replace specific guidance from GTAC. - Page 7 Preface Send Feedback • Improvements that would help you find relevant information. • Broken links or usability issues. To send feedback, do either of the following: • Access the feedback form at https://www.extremenetworks.com/documentation-feedback/. • Email us at documentation@extremenetworks.com. Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as well as your suggestions for improvement.
-
Page 8: Ap410C Access Point Overview

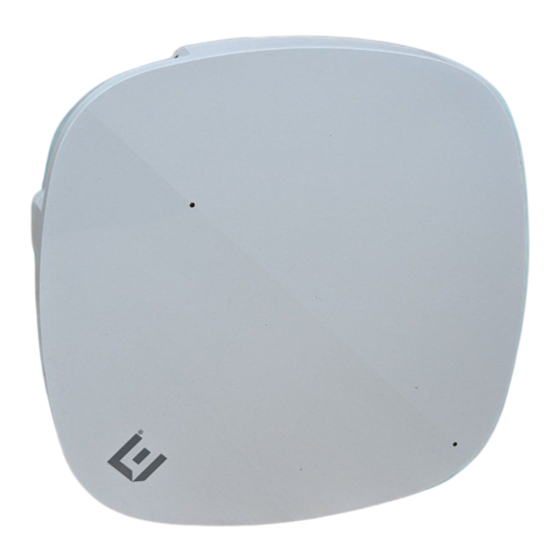

AP410C Access Point Overview Update the Country Code on page 8 AP410C Features on page 8 Power Profile on page 12 Status LED Activity Description on page 12 Details about AP410C access point. The AP410C is a high-performance 802.11ax 5G dual band access point designed for indoor high-density environments. - Page 9 AP410C Access Point Overview AP410C Features For LED activity description, see Status LED Activity Description on page 12. • One light sensor located at the top of the device • Two Ethernet ports - Eth0 and Eth1 Ethernet ports (Eth0 and Eth1) automatically negotiate half- and full-duplex connections with the connecting device.
-
Page 10: Ap410C Hardware Components
AP410C hardware components AP410C Access Point Overview AP410C hardware components Figure 1: AP410C access point hardware components Table 4: Hardware component description Callout Description Eth0 PoE+ Eth1 USB port Console port Reset button Security slot Kensington lock Micro USB console port information Use the console port to make a serial connection between your management system and the access point. -
Page 11: Reset Button Details
AP410C Access Point Overview Reset button details Figure 2: Micro-B model console port pin information Table 5: Micro-B USB pin information Pin number Pin name and description R×D (input to access point) T×D (output to terminal) Signal (GND) Signal (GND) Reset button details Use the Reset button to restore the factory default settings. -
Page 12: Power Profile
Power Profile AP410C Access Point Overview Power Profile Details about 802.af and 802.3at power profile. Table 6: AP410C power profile details AP410C 802.3af 802.3at 2.4G radio 2×2 (14 dBm) 2×2 (18 dBm) 5G radio 3×3 (17 dBm) 4×4 (18 dBm) Sensor radio 2.4G and 5G (15 dBm) 2.4G and 5G (18 dBm) -
Page 13: Install The Access Point
About This Task Install the access point on a flat surface such as a wall or to a standard dropped ceiling grid rail. For bracket and accessories information, see Extreme Networks 11.ax Access Points Accessories Guide. Procedure 1. Verify the contents. -
Page 14: Install The Access Point On A Standard Ceiling Rail
Install the Access Point on a Standard Ceiling Rail Install the Access Point Install the Access Point on a Standard Ceiling Rail Install the access point on a standard 15/16 in. dropped ceiling rail. Before You Begin Hardware requirements for standard ceiling rail install: •... - Page 15 Install the Access Point Install the Access Point on a Standard Ceiling Rail Figure 4: Bracket halves attachment procedure c. When the locking tabs click into place, the bracket ends will line up. Figure 5: AH-ACC-BKT-AC-KIT protruded ceiling tile bracket parts attached together Note When the bracket parts are put together properly, the parts are interlocked in three...
- Page 16 Install the Access Point on a Standard Ceiling Rail Install the Access Point Figure 6: AH-ACC-BKT-TB accessory Callout Description Metal hinges on the AH-ACC-BKT-AX-TB accessory Mounting holes for wall mounting White tab on the AH-ACC-BKT-AX-TB accessory 5. Attach the Ethernet port cap to the access point Ethernet port. For more information about Ethernet cap, refer to Ethernet Cap Accessory Information on the WiFi 6 802.11ax Access Points Accessories...
- Page 17 Install the Access Point Install the Access Point on a Standard Ceiling Rail 6. Align the red dot on the back of the access point against the bracket red dot. Note The accessory has a circular tip that fits into the circular depression on the back of the access point.
-
Page 18: Non-Standard Ceiling Grid Or Wall Installation
Non-Standard Ceiling Grid or Wall Installation Install the Access Point 9. Place the cable cover over the Ethernet cable. 10. Replace the ceiling tiles. Non-Standard Ceiling Grid or Wall Installation Details about non-standard ceiling grid or wall installation using optional bracket and accessory. Note For all non-standard ceiling grid installation or wall installation instructions, refer to the Wi-Fi... - Page 19 Install the Access Point Non-Standard Ceiling Grid or Wall Installation The access point can be installed on a non-standard ceiling grid using the following accessories: Order part number Description AH-ACC-BKT-AX-TB Mounting bracket for Prelude ceilings (15/16 in. ceiling grid), Suprafine ceilings (9/16 in. ceiling grid), and walls AH-ACC-BKT-AX-IL Mounting bracket for Interlude (9/16 wide T-bar...
- Page 20 Non-Standard Ceiling Grid or Wall Installation Install the Access Point Order part number Description AH-ACC-BKT-AX-SL Mounting bracket for Silhouette ceilings (ceiling grid with 1/8 in. or 1/4 in. bottom opening) ACC-BKT-AX-JB Junction box or wall mounting for indoor access points ExtremeWireless™...
- Page 21 Install the Access Point Non-Standard Ceiling Grid or Wall Installation Order part number Description ACC-BKT-AX-BEAM Beam mounting for indoor access points AH-ACC-BKT-AX-WL Mounting bracket for direct-to-wall installations Important The default bracket for wall installation is the ACC-BKT-AX-JB bracket. Note Order the -JB bracket for new wall installations. The AH-ACC-BKT-AX-WL bracket is for users who already have the -WL brackets.
-
Page 22: Lock The Access Point After Installation
Lock the Access Point after Installation Install the Access Point Lock the Access Point after Installation Learn how to lock the indoor access point using a Kensington lock. If you are using an indoor access point, you can secure it by using the Kensington lock on the side of the access point. -
Page 23: Regulatory And Compliance Information
Regulatory and Compliance Information Safety Guidelines on page 23 Japan Indoor Use Statement on page 23 Japan Voluntary Control Council for Interference (VCCI) - Class B on page 24 European Union (EU) Radiation Warning Statement on page 24 FCC Notice (Part 15 - Class B) on page 26 FCC Radiation Exposure Statement on page 26... -
Page 24: Japan Voluntary Control Council For Interference (Vcci) - Class B
Japan Voluntary Control Council for Interference (VCCI) - Class B Regulatory and Compliance Information Japan Voluntary Control Council for Interference (VCCI) - Class B European Union (EU) Radiation Warning Statement Radiation warning compliance statements in European languages. To meet radiation exposure requirements, the devices must be installed and operated at a minimum distance of 20 cm from people or animals. - Page 25 Regulatory and Compliance Information European Union (EU) Radiation Warning Statement • Estonian (Eesti): Et rahuldada kiirituse nõuetele, need seadmed tuleb paigaldada minimaalselt 7.87 in. (20 cm) inimestelt või loomadelt. Piirangud: 5150-5350 MHz sisetingimustele. • Finnish (Suomi): Säteilytysvaatimusten täyttämiseksi nämä laitteet on asennettava vähintään 7.87 in. (20 cm) etäisyydelle ihmisistä...
-
Page 26: Fcc Notice (Part 15 - Class B)
FCC Notice (Part 15 - Class B) Regulatory and Compliance Information Restricții: 5150-5350 MHz numai pentru uz intern. • Slovak (Slovensky): Ak chcete splniť požiadavky na vystavenie žiareniu, mali by byť tieto zariadenia inštalované v minimálnej vzdialenosti od ľudí alebo zvierat od minimálnej vzdialenosti 20 cm. Obmedzenia: 5150-5350 MHz iba pre vnútorné... -
Page 27: Mexico Compliance Statement
Regulatory and Compliance Information Mexico Compliance Statement Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Para maiores informações, consulte o site da Anatel – www.anatel.gov.br Mexico Compliance Statement Details about compliance conditions for device use in Mexico. La operación de este equipo está... -
Page 28: Taiwan Regulatory Statement
Taiwan Regulatory Statement Regulatory and Compliance Information Warning IC Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Warning Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour... -
Page 29: Hazardous Substances
Regulatory and Compliance Information Hazardous Substances In accordance with Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE): 1. The symbol above indicates that separate collection of electrical and electronic equipment is required. 2. When this product has reached the end of its serviceable life, it cannot be disposed of as unsorted municipal waste. -
Page 30: Index
Index Japan regulatory statements (continued) indoor use 23 Access point installation VCCI-B statement 23 box contents 13 visual inspection 13 access point lock Kensington lock 22 LED colors security bracket 22 amber 12 security torx 22 dark 12 announcements 6 white 12 AP410C features LED indicators hardware components 8, 10, 11 dark LED 12 micro USB console port 8, 10, 11 fast-blinking 12 slow-blinking 12... - Page 31 Index safety guidelines 23 standard ceiling installation 14 support, see technical support Taiwan regulatory statement 28 technical support contacting 6 warnings 4...
