ExtremeWireless™ 802.11ax Wi-Fi 6E

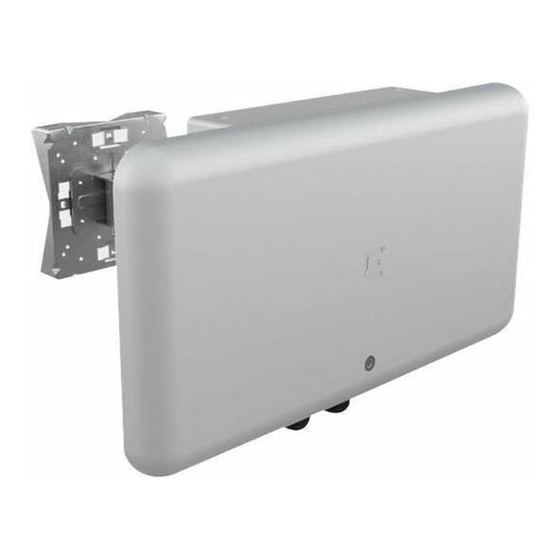

Outdoor AP5050D Access Point
Installation Guide
9037683-00 Rev AA
December 2022

Advertisement

Table of Contents
loading

Related Manuals for Extreme Networks ExtremeWireless AP5050D

Summary of Contents for Extreme Networks ExtremeWireless AP5050D

  • Page 1 ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point Installation Guide 9037683-00 Rev AA December 2022...
  • Page 2 Copyright © 2022 Extreme Networks, Inc. All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.

  • Page 3: Table Of Contents

    Table of Contents Preface................................. 5 Text Conventions................................5 Documentation and Training..........................6 Help and Support................................. 7 Subscribe to Product Announcements.....................7 Send Feedback................................7 AP5050D Overview............................9 AP5050D Features..............................9 Power Profile.................................. 11 Micro USB Console Port Information......................... 11 Supported Accessories............................12 AP5050D Status LED Activity Description....................12 IQ Engine Status LED Activity........................
  • Page 4 United Kingdom (UK) and European Union (EU) Radiation Warning Statement..... 53 Extreme Networks UK Address.......................... 53 Extreme Networks EU Importer Address...................... 54 European Waste Electrical and Electronic Equipment (WEEE) Notice......... 54 Declaration of Conformity in Languages of the European Community.........54 Index................................58...

  • Page 5: Preface

    Preface Read the following topics to learn about: • The meanings of text formats used in this document. • Where you can find additional information and help. • How to reach us with questions and comments. Text Conventions Unless otherwise noted, information in this document applies to all supported environments for the products in question.

  • Page 6: Documentation And Training

    Extreme Optics Compatibility Other resources such as white papers, data sheets, and case studies Extreme Networks offers product training courses, both online and in person, as well as specialized certifications. For details, visit www.extremenetworks.com/education/. ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point...

  • Page 7: Help And Support

    The Hub A forum for Extreme Networks customers to connect with one another, answer questions, and share ideas and feedback. This community is monitored by Extreme Networks employees, but is not intended to replace specific guidance from GTAC. Call GTAC For immediate support: (800) 998 2408 (toll-free in U.S.
  • Page 8 Send Feedback Preface • Improvements that would help you find relevant information. • Broken links or usability issues. To send feedback, do either of the following: • Access the feedback form at https://www.extremenetworks.com/documentation-feedback/. • Email us at documentation@extremenetworks.com. Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as well as your suggestions for improvement.

  • Page 9: Ap5050D Overview

    AP5050D Overview AP5050D Features on page 9 Power Profile on page 11 Micro USB Console Port Information on page 11 Supported Accessories on page 12 AP5050D Status LED Activity Description on page 12 AP5050D Purchase Order Information on page 13 The AP5050D access point is a cloud-ready, stadium-optimized Wi-Fi 6E outdoor access point.
  • Page 10 AP5050D Features AP5050D Overview For LED activity description, see AP5050D Status LED Activity Description on page 12. • 3 mm diameter safety hanger provision • Power: PoE 802.3at and 802.3bt: PSE enabled with 4x4x4 • For complete power profile information, refer to the AP5050U power profile.

  • Page 11: Power Profile

    AP5050D Overview Power Profile Power Profile The following table shows the power profile for the AP5050D. Use this information when you plan your deployment. Table 5: AP5050D Power Profile AT profile BT profile 2.4G RF 18dBm, 4×4 18dBm, 4×4 5G RF 18dBm, 4×4 18dBm, 4×4 6G RF...

  • Page 12: Supported Accessories

    Supported Accessories AP5050D Overview Supported Accessories The table below lists the accessories available for your access point. For additional information, see 802.11ax and Cloud Access Points Accessories. Note The EIO-03-SP ships with the AP5050D. Table 7: Available Accessories Accessory Description Comment ACC-CAT6-LAN-GSKT A black gasket.

  • Page 13: Extremecloud Iq Controller Status Led Activity

    AP5050D Overview ExtremeCloud IQ Controller Status LED Activity • Slow-blinking white: The device has a CAPWAP connection to ExtremeCloud IQ, but is operating on 802.3at power instead of 802.3bt power. • Solid amber: The device power is on and the access point is in boot up mode, or is running without a CAPWAP connection.
  • Page 14 KT-147407-02 Bracket Order Information AP5050D Overview • MBO-ART02 (20 degree increments +/-80 degree, 10 inch extension) with the WS-MBO-POLE01 (#30520) bracket Note You can attach the access point to a wall using the MBO-ART02 bracket. However, if you are using the MBO-ART02 bracket to attach the access point to a pole, you must use the WS-MBO-POLE01 bracket along with the MBO-ART02 bracket.

  • Page 15: Kt-150173-01 Extension Arm Order Information

    AP5050D Overview KT-150173-01 Extension Arm Order Information KT-150173-01 Extension Arm Order Information The contents of the KT-150173-01 extension arm are described in the following table. Table 10: KT-150173-01 Extension Arm Purchase Information Part number Box contents KT-150173-01 One KT-150173-01 12 in. extension arm Two hex-head M12 stainless-steel screws Two hex M12 stainless-steel nuts One URL card...

  • Page 16: Install The Access Point

    2. Visually inspect the access point and any other bracket and optional accessories you have ordered for physical damage. If there is any damage, contact Extreme Networks Support. 3. Review the safety guidelines. 4. Be familiar with the information in the installation guide, in particular the installation do's and don'ts.

  • Page 17: Installation Do's And Don'ts

    Install the Access Point Installation Do's and Don'ts Installation Do's and Don'ts Learn about various do's and don'ts for each installation option before installing the access point. The following diagram shows the AP5050D gland body components. Be familiar with each component before you install the access point.

  • Page 18: Installation Don'ts

    Installation Don'ts Install the Access Point Table 13: Gland Body Features (continued) Callout Description Gland body hex Note: Do not loosen or unscrew the gland body hex. Console cap hex - retighten to 15 in-lbs. Installation Don'ts Keep the following items in mind as you install your access point. •...

  • Page 19: Access Point Bracket Usage And Mounting Options

    Install the Access Point Access Point Bracket Usage and Mounting Options User I/O: • Only the gland caps must be removed to install the ETH0 or ETH1 LAN RJ45 cable. Torque the gland caps between 8 in-lbs. to 10 in-lbs. •...

  • Page 20: Install The Access Point On A Wall

    Install the Access Point on a Wall Install the Access Point Table 14: AP5050D Mounting Bracket Usage (continued) Mounting bracket and Unistrut install Wall install Pole install Notes part number The unistrut mounting bracket is paired with the POLE01 bracket for pole installations.

  • Page 21: Install The Access Point On A Wall Or Flat Surface Using The Kt-147407-02 Bracket Parts

    Install the Access Point on a Wall or Flat Surface Using Install the Access Point the KT-147407-02 Bracket Parts • 1-axis tilt bracket. • KT-150173-01 extension arm. • Six M6 screws • Four M6 size hex-head screws • Screw-in anchors if the access point is being mounted on a wood wall or a concrete surface. Note The M6 hex-head screws and screw-in anchors must be provided by the installer.
  • Page 22 Install the Access Point on a Wall or Flat Surface Using the KT-147407-02 Bracket Parts Install the Access Point Figure 4: Flat Part of the KT-147407-02 Bracket ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point...
  • Page 23 Install the Access Point on a Wall or Flat Surface Using Install the Access Point the KT-147407-02 Bracket Parts Figure 5: 1-axis Tilt Bracket About This Task Use the following information when you install the access point on a wall or flat surface with the KT-147407-02 bracket.

  • Page 24: Install The Access Point Using Kt-147407-02 Bracket Parts And Kt-150173-01 Extension Arm

    Install the Access Point Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm Install the Access Point Install the Access Point Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm Before You Begin The hardware required for installation: • Flat part of the KT-147407-02 bracket •...

  • Page 25: Install The Access Point Using Kt-150173-01 Extension Arm

    Install the Access Point Using KT-150173-01 Extension Install the Access Point 3. Using the KT-150173-01 extension arm as a template, mark and drill four hole centers on a flat surface. The holes must be within the circular cuts in the end of the flange. 4.
  • Page 26 Install the Access Point Using KT-150173-01 Extension Install the Access Point Figure 7: KT-1501730-01 Extension Arm Attachment Holes Callout Description Extension arm attachment holes Procedure 1. Using the KT-150173-01 extension arm as a template, mark and drill four hole centers on a flat surface.

  • Page 27: Install The Access Point On A Wall Using Mbo-Art02 Articulating Mounting Bracket

    Install the Access Point on a Wall Using MBO-ART02 Install the Access Point Articulating Mounting Bracket Install the Access Point on a Wall Using MBO-ART02 Articulating Mounting Bracket Before You Begin Obtain the items listed in the following table. Table 15: Hardware Requirements for MBO-ART02 Articulating Mounting Bracket Wall Installation Quantity Item Access point...
  • Page 28 Install the Access Point on a Wall Using MBO-ART02 Articulating Mounting Bracket Install the Access Point About This Task Figure 8: MBO-ART02 Bracket Template for Attachment Holes The MBO-ART02 bracket is for outdoor use when you require a bracket with +/- 80-degree that can be adjusted in 20-degree increments.

  • Page 29: Install The Access Point On A Pole

    Install the Access Point Install the Access Point on a Pole Install the Access Point on a Pole Before You Begin The access point is used with the KT-147407-02 bracket parts and KT-150173-01 extension arm for pole installation. The access point is mounted on a pole by attaching: 1.
  • Page 30 Install the Access Point on a Unistrut Structure Using the MBO-ART03 Bracket Install the Access Point About This Task The MBO-ART03 bracket is a Unistrut mounting bracket with +/- 80-degree (in 10-degree increments) 2-axis tilt and variable 7 inches to 10 inches extension. The bracket comes installed with M6 pivot screws.

  • Page 31: Install The Access Point On A Pole Using Kt-147407-02 Bracket Parts

    Install the Access Point on a Pole Using KT-147407-02 Install the Access Point Bracket Parts Figure 9: MBO-ART03 bracket angular adjustments Install the Access Point on a Pole Using KT-147407-02 Bracket Parts Before You Begin The following hardware is required for pole installation using KT-147407-02 bracket parts: •...
  • Page 32 Install the Access Point on a Pole Using KT-147407-02 Bracket Parts Install the Access Point Figure 10: Pole part of the KT-147407-02 bracket About This Task Use the following information to install the Access Point on a pole with the KT-147407-02 Bracket. ExtremeWireless™...
  • Page 33 Install the Access Point on a Pole Using KT-147407-02 Install the Access Point Bracket Parts Procedure 1. Attach the KT-147407-02 flat part and 1-axis tilt part to the access point. For instructions on how to attach the bracket parts, see Install the Access Point Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm on page 24.

  • Page 34: Install The Access Point On A Pole Using Kt-147407-02 Bracket Parts And Kt-150173-01 Extension Arm

    Install the Access Point on a Pole Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm Install the Access Point 4. Insert the stainless-steel cabe clamp through the long slots on the pole bracket. 5. Position the cable clamps on the pole bracket around a pole and attach the pole bracket 6.
  • Page 35 Install the Access Point on a Pole Using KT-147407-02 Install the Access Point Bracket Parts and KT-150173-01 Extension Arm 4. Attach the KT-147407-02 pole part to the other end of the KT-150173-01 extension arm using two M12 screws and M12 hex-nuts. Figure 12: Attaching the KT-150173-01 extension arm to the 1-axis tilt part of the KT-147407-02 bracket 5.
  • Page 36 Install the Access Point on a Pole Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm Install the Access Point • Two 0.5 in. wide stainless-steel cable clamps • One access point About This Task The pole part of the KT-147407-02 bracket is attached to the access point for pole installation. To mount the access point to a pole using the KT-147407-02 pole bracket part: Procedure 1.

  • Page 37: Install The Access Point On A Pole Using Mbo-Art02 Articulating Mounting Bracket And Pole01 Bracket

    Install the Access Point on a Pole Using MBO-ART02 Install the Access Point Articulating Mounting Bracket and POLE01 Bracket Install the Access Point on a Pole Using MBO-ART02 Articulating Mounting Bracket and POLE01 Bracket About This Task Attach the access point to a pole using the WS-MBO-POLE01 bracket on MBO-ART02 articulating mounting bracket.
  • Page 38 Install the Access Point on a Pole Using MBO-ART02 Articulating Mounting Bracket and POLE01 Bracket Install the Access Point 2. Attach the WS-MBO-POLE01 bracket to the MBO-ART02 articulating mounting bracket using four M3 screws, nuts, and washers. ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point...

  • Page 39: Install The Plastic Service Panel On The Access Point

    Install the Access Point Install the Plastic Service Panel on the Access Point 3. Attach both the cable clamps to the WS-MBO-POLE01 bracket. Open the cable clamp by turning a flat bladed screwdriver counterclockwise. Then insert the non- clamp end into the pole bracket through the holes. 4.
  • Page 40 Install the Plastic Service Panel on the Access Point Install the Access Point The best practice is to use one part clear super glue and two parts epoxy to hold the service panel cover in place. This helps provide some resistance during pressure washing. Note When installing the access point flat against a surface in a location that uses ice melt, the best practice is to apply an anti-seize material to the screws before attaching them to the access...

  • Page 41: Secure The Access Point After Installation

    Install the Access Point Secure the Access Point after Installation 3. Place the service panel top over the service panel base and lock it into place using the captive screw. Figure 15: Plastic service panel top captive screw Callout Description Plastic service panel top captive screw 4.

  • Page 42: Power Or Pressure Washing Guidelines

    Power or Pressure Washing Guidelines Install the Access Point Power or Pressure Washing Guidelines Details about how to safely pressure wash the surface around the access point. Before You Begin Ensure that your pressure washing equipment fulfills the following specifications: •...

  • Page 43: Ground The Access Point

    Ground the Access Point Learn how to safely ground the access point. About This Task Ground the outdoor access point for outdoor installations. A ground terminal is provided for lightning protection.Ground connection is not required for under seat or indoor deployments. The ground connector on the access point is not a protective earth ground.

  • Page 44: Connect The Eth1 Or Eth0 Cable Through The Service Panel Base

    Connect the ETH1 or ETH0 Cable through the Service Panel Base The ETH1 or ETH0 cable can be connected through the front or the rear hole on the side of the service panel base About This Task The ETH1 or ETH0 cable is connected through the front or the rear holes on the sides of the service panel base.
  • Page 45 Connect the ETH1 or ETH0 Cable through the Service Panel Base Figure 18: Metal conduit covers Callout Description Blank conduit cover to cover the front hole on the side of the service panel base ¾ in. conduit cover ½ in. conduit cover Procedure 1.
  • Page 46 Connect the ETH1 or ETH0 Cable through the Service Panel Base 9. Fold and arrange the ETH0 cable into the gap of the metal sloping bracket and the service panel base. The ETH0 cable must not be bent sharply and must have 1 in. bend radius. ExtremeWireless™...

  • Page 47: Connect The Eth1 Or Eth0 Cable Through The Metal Sloping Bracket

    Connect the ETH1 or ETH0 Cable through the Metal Sloping Bracket Learn how to connect the ETH1 or ETH0 cable through the large conduit hole on the metal sloping bracket. About This Task The following hardware is required to attach the ETH1 or ETH0 cable through the large conduit hole on the metal sloping bracket: •...
  • Page 48 Connect the ETH1 or ETH0 Cable through the Metal Sloping Bracket Figure 19: Metal sloping bracket with large conduit hole Callout Description Large conduit hole on the metal sloping bracket Procedure 1. Attach the metal sloping bracket to the concrete floor using two anchors, nuts, and washers. 2.
  • Page 49 Connect the ETH1 or ETH0 Cable through the Metal Sloping Bracket 6. Torque the gland cap to 12-in lbs. 7. Fold and arrange the ETH0 cable into the gap of the metal sloping bracket and the service panel base. ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point...

  • Page 50: Regulatory And Compliance Information

    United Kingdom (UK) and European Union (EU) Radiation Warning Statement on page 53 Extreme Networks UK Address on page 53 Extreme Networks EU Importer Address on page 54 European Waste Electrical and Electronic Equipment (WEEE) Notice on page 54 Declaration of Conformity in Languages of the European Community...

  • Page 51: Instructions D'installation Professionnelle

    Regulatory and Compliance Information Instructions d'installation professionnelle Instructions d'installation professionnelle Installation Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant. L'installation et les reglages ne doivent pas etre modifies par l'utilisateur final.

  • Page 52: Industry Canada Notice

    Industry Canada Notice Regulatory and Compliance Information This device meets all the other requirements specified in Part 15C, Section 247 and Section 15.407 of the FCC Rules. Warning FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device has been tested and meets applicable limits for Radio Frequency (RF) exposure.

  • Page 53: United Kingdom (Uk) And European Union (Eu) Radiation Warning Statement

    This equipment complies with EU/UK radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 21 cm between the radiator and your body. Extreme Networks UK Address Extreme Networks, UK Ltd. 250 Longwater Avenue Green Park...

  • Page 54: Extreme Networks Eu Importer Address

    Extreme Networks EU Importer Address Regulatory and Compliance Information 1st Floor Reading, UK Extreme Networks EU Importer Address Extreme Networks, Ireland Ops Ltd. Rineanna House Shannon Industrial Estate Shannon, V14CA36 Ireland European Waste Electrical and Electronic Equipment (WEEE) Notice In accordance with Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE): 1.
  • Page 55 Declaration of Conformity in Languages of the Regulatory and Compliance Information European Community English Hereby, Extreme Networks declares that the radio equipment type (AP5050D) is in compliance with Radio Equipment Regulations 2017 and Directive 2014/53/EU. For full text of the EU Declaration of Conformity, contact Extreme Regulatory Compliance at compliancerequest@extremenetworks.com...
  • Page 56 συμμόρφωσης ΕΕ, παρακαλούμε επικοινωνήστε με την ακραία κανονιστική συμμόρφωση στο compliancerequest@extremenetworks.com Icelandic Extreme Networks lysir her med yfir að thessi bunadur, Radio LAN device (AP5050D), uppfyllir allar grunnkrofur, sem gerdar eru i R&TTE tilskipun Κανονισμοί Ραδιοεξοπλισμού 2017 και ESB nr 2014/53/EU. Fyrir fullan texta í...
  • Page 57 Declaration of Conformity in Languages of the Regulatory and Compliance Information European Community Portuguese Extreme Networks declara que este Radio LAN device (AP5050D) está conforme com os requisitos essenciais e outras disposições da Regulamentos de Equipamentos de Rádio 2017 e Directiva 2014/53/EU. Para o texto integral da declaração de conformidade da UE,...

  • Page 58: Index

    Index installation process (continued) how-to-install the access point 16 access point features 9 purchase order information 16 access point LED status 12, 13 safety guidelines 16 access point overview 9 announcements 7 AP5050D access point overview 9 AP5050D features 9 KT-150173-01 extension arm installation 25 AP5050D supported accessories 12 LED activity 12, 13 connect the ETH1 or ETH0 cable LED status activity 12, 13 ETH0 cable 44...
  • Page 59 Index radiation exposure statement 51 safety guidelines 50 secure the access point safety cable installation 41 service panels installation 39 support, see technical support technical support contacting 7 UK address 53 UK radiation warning 53 wall install ART02 articulating mounting bracket install 27 wall installation wall install using KT-147407-02 and KT-150173-01 extension arm 24 Wall installation wall installation using KT-147407-02 bracket 21...
