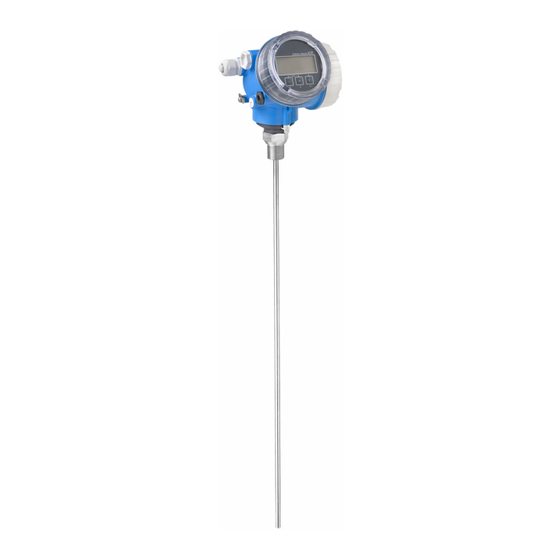

Endress+Hauser Levelflex FMP50 Operating Instructions Manual

Profibus pa guided wave radar
Hide thumbs Also See for Levelflex FMP50:
Table of Contents

Advertisement

Quick Links

BA01005F/00/EN/18.22-00
71568014
2022-04-12
01.01.zz (Device software)
Products
Operating Instructions
Levelflex FMP50
PROFIBUS PA
Guided wave radar

Solutions
Services

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Levelflex FMP50

  • Page 1 Products Solutions Services BA01005F/00/EN/18.22-00 71568014 2022-04-12 01.01.zz (Device software) Operating Instructions Levelflex FMP50 PROFIBUS PA Guided wave radar...
  • Page 2 Levelflex FMP50 PROFIBUS PA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3: Table Of Contents

    Local operation ....56 3.1.1 Levelflex FMP50 ....16 8.1.2 Operation with remote display and 3.1.2...
  • Page 4 Table of contents Levelflex FMP50 PROFIBUS PA 15.1.7 Bluetooth module for HART devices Commissioning via wizard ..76 15.2 Communication-specific accessories ..107 15.3 Service-specific accessories ....107 Commissioning via operating 15.4 System components .
  • Page 5: Important Document Information

    Levelflex FMP50 PROFIBUS PA Important document information Important document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
  • Page 6: Symbols For Certain Types Of Information

    Important document information Levelflex FMP50 PROFIBUS PA Symbol Meaning Cross-head screwdriver A0011219 Allen key A0011221 Hexagon wrench A0011222 1.2.4 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted. Preferred Procedures, processes or actions that are preferred.
  • Page 7: Symbols At The Device

    Levelflex FMP50 PROFIBUS PA Important document information 1.2.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables.
  • Page 8: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Endress+Hauser...
  • Page 9: Terms And Abbreviations

    Time of Flight FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...
  • Page 10: Registered Trademarks

    Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
  • Page 11: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.
  • Page 12: Workplace Safety

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.
  • Page 13: Safety Instructions (Xa)

    Levelflex FMP50 PROFIBUS PA Basic safety instructions Safety Instructions (XA) Depending on the approval, the following Safety Instructions (XA) are supplied with the device. They are an integral part of the Operating Instructions. Feature 010 Approval Available for Feature 020: "Power Supply; Output"...
  • Page 14 Basic safety instructions Levelflex FMP50 PROFIBUS PA Feature 010 Approval Available for Feature 020: "Power Supply; Output" NEPSI Ex ic IIC T6 Gc FMP50 XA00635F XA00635F XA00635F XA00641F XA00635F NEPSI Ex ia IIC T6 Ga/Gb, Ex iaD 20/21 T85…90°C FMP50 XA00638F XA00638F XA00638F XA00644F XA00638F NEPSI Ex d[ia] IIC T6 Ga/Gb, DIP A20/21 T85…90°C...
  • Page 15: Ex-Marking In Case Of Connected Fhx50 Remote Display

    Levelflex FMP50 PROFIBUS PA Basic safety instructions 2.6.1 Ex-marking in case of connected FHX50 remote display If the device is prepared for the remote display FHX50 (product structure: feature 030: Display, Operation", option L or M), the Ex marking of some certificates changes according to the following table Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex-marking...
  • Page 16: Product Description

    Product description Levelflex FMP50 PROFIBUS PA Product description Product design 3.1.1 Levelflex FMP50 A0013771  1 Design of the Levelflex Electronics housing Process connection (Thread) Rope probe End-of-probe weight Rod probe Endress+Hauser...
  • Page 17: Electronics Housing

    Levelflex FMP50 PROFIBUS PA Product description 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)
  • Page 18: Incoming Acceptance And Product

    • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. Endress+Hauser...
  • Page 19: Nameplate

    Levelflex FMP50 PROFIBUS PA Incoming acceptance and product identification 4.2.1 Nameplate 92 (3.62) Order code: Ser. no.: Ext. ord. cd.: MWP: LN = Lref = Mat.: DeviceID: Dev.Rev.: if modification see sep. label Date: A0010725  3 Nameplate of the Levelflex; Dimensions: mm (in)
  • Page 20: Storage, Transport

    Storage, Transport Levelflex FMP50 PROFIBUS PA Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.
  • Page 21: Mounting

    Levelflex FMP50 PROFIBUS PA Mounting Mounting Mounting requirements 6.1.1 Suitable mounting position A0012606  4 Mounting requirements for Levelflex Mounting distances • Distance (A) between wall and rod or rope probe: • for smooth metallic walls: > 50 mm (2 in) •...
  • Page 22 Mounting Levelflex FMP50 PROFIBUS PA Additional conditions • When mounting in the open, a weather protection cover (1) may be installed to protect the device against extreme weather conditions. • In metallic vessels: Preferably do not mount the probe in the center of the vessel (2), as this would lead to increased interference echoes.
  • Page 23: Applications With Restricted Mounting Space

    Levelflex FMP50 PROFIBUS PA Mounting 6.1.2 Applications with restricted mounting space Mounting with remote sensor The device version with a remote sensor is suited for applications with restricted mounting space. In this case the electronics housing is mounted at a separate position from which it is easier accessible.
  • Page 24: Notes On The Mechanical Load Of The Probe

    Mounting Levelflex FMP50 PROFIBUS PA 6.1.3 Notes on the mechanical load of the probe Tensile load limit of rope probes Sensor Feature 060 Probe Tensile load limit [kN] FMP50 LA, LB Rope 4mm (1/6") 316 Bending strength of rod probes...
  • Page 25 Levelflex FMP50 PROFIBUS PA Mounting Bending torque [M] on rod probes, diameter 8mm (1/3”) 20.0 18.0 16.0 14.0 12.0 10.0 v=0.5m/s v=0.7m/s v=1.0m/s Probe length [ ] in meters A0014182-EN Endress+Hauser...
  • Page 26: Notes On The Process Connection

    Mounting Levelflex FMP50 PROFIBUS PA 6.1.4 Notes on the process connection Probes are mounted to the process connection with threaded connections or flanges. If during this installation there is the danger that the probe end moves so much that it touches the tank floor or cone at times, the probe must, if necessary, be shortened and fixed down →...
  • Page 27 Levelflex FMP50 PROFIBUS PA Mounting Nozzle mounting ø 150 (6) £ A0015122 Length of the center rod or the rigid part of the rope probe • Permissible nozzle diameter: ≤ 150 mm (6 in). For larger diameters the near range measuring capability may be reduced.
  • Page 28 Mounting Levelflex FMP50 PROFIBUS PA Installation in nozzles ≥ DN300 If installation in ≥ 300mm/12" nozzles is unavoidable, installation must be carried out in accordance with the following sketch. A0014199 Lower edge of the nozzle Approx. flush with the lower edge of the nozzle (± 50 mm/2") Plate Pipe ...
  • Page 29: Securing The Probe

    Levelflex FMP50 PROFIBUS PA Mounting 6.1.5 Securing the probe Securing rope probes A0012609 Sag of the rope: ≥ 1 cm per 1m of the probe length (0.12 inch per 1 ft of the probe length) Reliably grounded end of probe...
  • Page 30 Mounting Levelflex FMP50 PROFIBUS PA Securing rod probes • For WHG approvals: For probe lengths ≥ 3 m (10 ft) a support is required. • In general, rod probes must be supported if there is a horizontal flow (e.g. from an agitator) or in the case of strong vibrations.
  • Page 31: Special Mounting Conditions

    Levelflex FMP50 PROFIBUS PA Mounting 6.1.6 Special mounting conditions Bypasses and stilling wells In bypass and stilling well applications it is recommended to use a centering disks or stars. A0014129 Mounting in a stilling well Mounting in a bypass Minimum distance between end of probe and lower edge of the bypass; see table below...
  • Page 32 With heat insulated tanks the bypass should also be insulated in order to prevent condensate formation. For information on bypass solutions from Endress+Hauser please contact your Endress+Hauser sales representative. Endress+Hauser...
  • Page 33 Levelflex FMP50 PROFIBUS PA Mounting Underground tanks A0014142 Use FMP51 with a coax probe for nozzles with large diameters in order to avoid reflections at the nozzle wall. Endress+Hauser...
  • Page 34 Mounting Levelflex FMP50 PROFIBUS PA Installation at an angle A0014145 • For mechanical reasons, the probe should be installed as vertically as possible. • With inclined installations the probe length has to be adjusted in dependence to the installation angle.
  • Page 35 Levelflex FMP50 PROFIBUS PA Mounting Non-metallic vessels A0012527 Non-metallic vessel Metal sheet or metal flange To ensure reliable measurements in non-metallic vessels mount a metal sheet with a diameter of at least 200 mm (8 in) to the probe at the process connection. Its orientation must be perpendicular to the probe.
  • Page 36 Mounting Levelflex FMP50 PROFIBUS PA Plastic or glass tanks: Mounting the probe externally at the wall A0014150 Plastic or glass tank Metall sheet with threaded sleeve No free space between tank wall and probe! Requirements • The dielectric constant of the medium must be at least DC > 7.
  • Page 37 Levelflex FMP50 PROFIBUS PA Mounting Step Parameter Action Expert → Sensor → Gas phase compensation → GPC Select the Const. GPC factor option. mode Expert → Sensor → Gas phase compensation → Const. Enter quotient: "(Actual probe length)/(Measured GPC factor probe length)".
  • Page 38 Mounting Levelflex FMP50 PROFIBUS PA Vessels with heat insulation If process temperatures are high, the device must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection. The insulation may not exceed beyond the points labeled "MAX" in the drawings.
  • Page 39: Mounting The Device

    Levelflex FMP50 PROFIBUS PA Mounting Mounting the device 6.2.1 Required mounting tools • For mounting thread 3/4": Hexagonal wrench 36 mm • To shorten rod or coax probes: Saw • To shorten rope probes: • Allen key AF 3 mm (for 4mm ropes) or AF 4 mm (for 6 mm ropes) •...
  • Page 40: Mounting The Device

    Mounting Levelflex FMP50 PROFIBUS PA 5. Saw off the rope at a right angle or cut it off with a bolt cutter. 6. Insert the rope completely into the weight. 7. Screw the set screws into place. Due to the clamping coating of the setscrews application of a screw locking fluid is not necessary.
  • Page 41: Mounting The "Sensor Remote" Version

    Levelflex FMP50 PROFIBUS PA Mounting Devices with mounting thread are screwed into a welding boss or a flange and are usually also secured with these. • Tighten with the hexagonal nut only: • Thread 3/4": Hexagonal wrench 36 mm • Thread 1-1/2": Hexagonal wrench 55 mm •...
  • Page 42 Mounting Levelflex FMP50 PROFIBUS PA CAUTION The plugs of the connection cable may be damaged by mechanical stress. ‣ Mount the probe and the electronics housing tightly before connecting the cable. ‣ Lay the cable such that it is not exposed to mechanical stress. Minimum bending radius: 100 mm (4").
  • Page 43: Turning The Transmitter Housing

    Levelflex FMP50 PROFIBUS PA Mounting 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) = 100 (4) = 100 (4) 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) A0014794  8 Connecting the cable. There are the following possibilities:...
  • Page 44: Turning The Display

    Mounting Levelflex FMP50 PROFIBUS PA 6.2.6 Turning the display Opening cover 3 mm A0021430 1. Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
  • Page 45 Levelflex FMP50 PROFIBUS PA Mounting 1. Screw back firmly electronics compartment cover. 2. Turning securing clamp 90 ° clockwise and tighten the clamp with 2.5 Nm using the Allen key (3 mm). Endress+Hauser...
  • Page 46: Post-Installation Check

    Mounting Levelflex FMP50 PROFIBUS PA Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...
  • Page 47: Electrical Connection

    Levelflex FMP50 PROFIBUS PA Electrical connection Electrical connection Connection conditions 7.1.1 Terminal assignment Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  9 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4...
  • Page 48 Electrical connection Levelflex FMP50 PROFIBUS PA Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  10 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...
  • Page 49: Cable Specification

    Levelflex FMP50 PROFIBUS PA Electrical connection Connection examples for the switch output A0015909  12 Connection of a relay A0015910  13 Connection of a digital input Suitable relays (examples): Pull-up resistor • Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting...
  • Page 50: Device Plug Connectors

    Electrical connection Levelflex FMP50 PROFIBUS PA 7.1.3 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal +...
  • Page 51: Power Supply

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...
  • Page 52: Connecting The Measuring Device

    Electrical connection Levelflex FMP50 PROFIBUS PA Connecting the measuring device WARNING Risk of explosion! ‣ Observe applicable national standards. ‣ Comply with the specifications in the Safety Instructions (XA). ‣ Use specified cable glands only. ‣ Check to ensure that the power supply matches the information on the nameplate.
  • Page 53: Connecting

    Levelflex FMP50 PROFIBUS PA Electrical connection 7.2.2 Connecting A0036418  14 Dimensions: mm (in) 1. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. 2. Remove the cable sheath.
  • Page 54: Closing Connection Compartment Cover

    Electrical connection Levelflex FMP50 PROFIBUS PA ≤ 3 (0.12) A0013661  15 Dimensions: mm (in) To remove cables from the terminal: 1. Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes 2. while simultaneously pulling the cable end out of the terminal.
  • Page 55 Levelflex FMP50 PROFIBUS PA Electrical connection  If required: Has protective ground connection been established ? If supply voltage is present, is the device ready for operation and do values appear on the display  module?  Are all housing covers installed and securely tightened? ...
  • Page 56: Operation Options

    Operation options Levelflex FMP50 PROFIBUS PA Operation options Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in...
  • Page 57: Operation With Remote Display And Operating Module Fhx50

    Levelflex FMP50 PROFIBUS PA Operation options 8.1.2 Operation with remote display and operating module FHX50 A0036314  16 FHX50 operating options Display and operating module SD03, optical keys; can be operated through the glass of the cover Display and operating module SD02, push buttons; cover must be removed 8.1.3...
  • Page 58 Operation options Levelflex FMP50 PROFIBUS PA DeviceCare/FieldCare via service interface (CDI) A0032466  18 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...
  • Page 59: Structure And Function Of The Operating Menu

    Levelflex FMP50 PROFIBUS PA Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the on-site display Commissioning Launches the interactive wizard for guided commissioning.
  • Page 60 Operation options Levelflex FMP50 PROFIBUS PA Menu Submenu / Meaning parameter Communication Contains all parameters needed to configure the digital communication interface. Diagnostics Contains all parameters needed to detect and analyze operational errors. If operating via operating tools (e.g. FieldCare), the "Language" parameter is located under "Setup → ...
  • Page 61: User Roles And Related Access Authorization

    Levelflex FMP50 PROFIBUS PA Operation options 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device configuration via the local display from unauthorized access →  61.
  • Page 62 Operation options Levelflex FMP50 PROFIBUS PA Disabling write protection via access code If the -symbol appears on the local display in front of a parameter, the parameter is write-protected by a device-specific access code and its value cannot be changed at the moment using the local display →...
  • Page 63 Levelflex FMP50 PROFIBUS PA Operation options XXXXXXXXXXXXX 3 mm A0026157 1. Loosen the securing clamp. 2. Unscrew the electronics compartment cover. 3. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment.
  • Page 64 Operation options Levelflex FMP50 PROFIBUS PA 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables hardware write protection.
  • Page 65 Levelflex FMP50 PROFIBUS PA Operation options Enabling and disabling the keypad lock The keypad lock makes it possible to block access to the entire operating menu via local operation. As a result, it is no longer possible to navigate through the operating menu or change the values of individual parameters.
  • Page 66: Display And Operating Module

    Operation options Levelflex FMP50 PROFIBUS PA Display and operating module 8.3.1 Display appearance User ABC_ DEFG HIJK PQRS TUVW LMNO A0012635  19 Appearance of the display and operation module for on-site operation Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active)
  • Page 67 Levelflex FMP50 PROFIBUS PA Operation options Display symbols for the submenus Symbol Meaning Display/operation Is displayed: • in the main menu next to the selection "Display/operation" A0018367 • in the header, if you are in the "Display/operation" menu Setup Is displayed: •...
  • Page 68 Operation options Levelflex FMP50 PROFIBUS PA Measured value symbols Symbol Meaning Measured values Level A0032892 Distance A0032893 Current output A0032908 Measured current A0032894 Terminal voltage A0032895 Temperature of the electronics or the sensor A0032896 Measuring channels Measuring channel 1 A0032897...
  • Page 69: Operating Elements

    Levelflex FMP50 PROFIBUS PA Operation options 8.3.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0018330 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).
  • Page 70: Entering Numbers And Text

    Operation options Levelflex FMP50 PROFIBUS PA 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask The following input symbols are available in the input mask of the numeric and text editor:...
  • Page 71 Levelflex FMP50 PROFIBUS PA Operation options Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes. A0013986 Clears all entered characters. A0014040 Correction symbols under Symbol Meaning Clears all entered characters.
  • Page 72: Opening The Context Menu

    Operation options Levelflex FMP50 PROFIBUS PA 8.3.4 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Env.curve • Keylock on Opening and closing the context menu The user is in the operational display.
  • Page 73: Envelope Curve On The Display And Operating Module

    Levelflex FMP50 PROFIBUS PA Operation options 8.3.5 Envelope curve on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be displayed:...
  • Page 74: Integration Into A Profibus

    Integration into a PROFIBUS network Levelflex FMP50 PROFIBUS PA Integration into a PROFIBUS network Overview of the device database files (GSD) Manufacturer ID 17 (0x11) Ident number 0x1558 Profile version 3.02 GSD file Information and files under: • www.endress.com GSD file version •...
  • Page 75 Levelflex FMP50 PROFIBUS PA Integration into a PROFIBUS network A0015903  22 Example of software addressing; switch 8 is in position "ON"; the address is defined in the operating menu (Setup → Device address) Endress+Hauser...
  • Page 76: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...
  • Page 77: Commissioning Via Operating

    Levelflex FMP50 PROFIBUS PA Commissioning via operating menu Commissioning via operating menu 11.1 Installation and function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check" →  46 •...
  • Page 78: Configuration Of A Level Measurement

    Commissioning via operating menu Levelflex FMP50 PROFIBUS PA 11.3 Configuration of a level measurement 20 mA 100% 4 mA A0011360  24 Configuration parameters for level measurements in liquids Length of probe Reference point of the measurement Distance Level Empty calibration (= Zero point)
  • Page 79 Levelflex FMP50 PROFIBUS PA Commissioning via operating menu 11. Navigate to: Setup → Signal quality  Displays the signal quality of the level echo. 12. For operation via local display: Navigate to: Setup → Mapping → Confirm distance  Compare the displayed distance to the real distance in order to start the recording of the mapping curve if required.
  • Page 80: Recording The Reference Curve

    Commissioning via operating menu Levelflex FMP50 PROFIBUS PA 11.4 Recording the reference curve After the configuration of the measurement it is recommended to record the current envelope curve as a reference curve. The reference curve can be used later on in the process for diagnostic purposes.
  • Page 81: Configuration Of The On-Site Display

    Levelflex FMP50 PROFIBUS PA Commissioning via operating menu 11.5 Configuration of the on-site display 11.5.1 Factory settings of the on-site display for level measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max.
  • Page 82: Configuration Management

    Commissioning via operating menu Levelflex FMP50 PROFIBUS PA 11.6 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and its options.
  • Page 83: Protection Of The Settings Against Unauthorized Changes

    Levelflex FMP50 PROFIBUS PA Commissioning via operating menu 11.7 Protection of the settings against unauthorized changes There are two ways to protect the settings against unauthorized changes: • Via parameter settings (software locking) →  61 • Via locking switch (hardware locking) →  62...
  • Page 84: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting 12.1 General trouble shooting 12.1.1 General errors Error Possible cause Remedial action Device does not respond. Supply voltage not connected. Connect the correct voltage. The cables do not contact the Ensure electrical contact between the terminals properly.
  • Page 85: Parametrization Errors

    Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting 12.1.2 Parametrization errors Parametrization errors for level measurements Error Possible cause Remedial action Measured value wrong If measured distance(Setup • Check and adjust the Empty → Distance) matches the real calibration parameter (→  124) if distance: necessary.
  • Page 86: Diagnostic Information On Local Display

    Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display. Measured value display in alarm condition...
  • Page 87 Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting Diagnostics event and event text The fault can be identified using the diagnostics event. The event text helps you by providing information about the fault. In addition, the corresponding symbol is displayed before the diagnostics event.
  • Page 88: Calling Up Remedial Measures

    Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA 12.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
  • Page 89: Diagnostic Event In The Operating Tool

    Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting 12.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...
  • Page 90: Diagnostic List

    Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA 3. Click "Save as ..." and save a PDF of the protocol.  The protocol contains the diagnostic messages and remedy information. C: Via the "Eventlist / Extended HistoROM" function Select the "Eventlist / Extended HistoROM" function.
  • Page 91: List Of Diagnostic Events

    Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting 12.5 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Broken probe detected 1. Check map Alarm 2. Check sensor...
  • Page 92: Event Logbook

    Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Linearization Check linearization table Alarm Configuration 1. Restart device Alarm incompatible 2. Contact service Dataset 1. Check data set file Warning 2.
  • Page 93: Filtering The Event Logbook

    Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting Navigation path Diagnostics → Event logbook → Event list A maximum of 100 event messages can be displayed in chronological order. Die Ereignishistorie umfasst Einträge zu: • Diagnostic events • Information events In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: •...
  • Page 94 Diagnostics and troubleshooting Levelflex FMP50 PROFIBUS PA Info number Info name I1185 Display backup done I1186 Restore via display done I1187 Settings downloaded with display I1188 Display data cleared I1189 Backup compared I1256 Display: access status changed I1264 Safety sequence aborted...
  • Page 95: Firmware History

    Levelflex FMP50 PROFIBUS PA Diagnostics and troubleshooting 12.7 Firmware history Date Firmware Modifications Documentation (FMP50, PROFIBUS) version Operating Instructions Description of Parameters Technical Information 07.2011 01.00.zz Original software BA01005F/00/EN/10.10 GP01001F/00/EN/10.10 TI01000F/00/EN/13.11 02.2015 01.01.zz • Support of SD03 BA01005F/00/EN/14.14 GP01001F/00/EN/13.14 TI01000F/00/EN/17.14 •...
  • Page 96: Maintenance

    Maintenance Levelflex FMP50 PROFIBUS PA Maintenance The measuring device requires no special maintenance. 13.1 Exterior cleaning When exterior-cleaning the device, always use cleaning agents that do not attack the surface of the hosuing and the seals. Endress+Hauser...
  • Page 97: Repairs

    14.1.1 Repair concept The Endress+Hauser repair concept assumes that the devices have a modular design and that repairs can be done by the Endress+Hauser service or specially trained customers. Spare parts are contained in suitable kits. They contain the related replacement instructions.
  • Page 98: Spare Parts

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.
  • Page 99: Accessories

    Levelflex FMP50 PROFIBUS PA Accessories Accessories 15.1 Device-specific accessories 15.1.1 Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  28 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 100: Mounting Bracket For The Electronics Housing

    Accessories Levelflex FMP50 PROFIBUS PA 15.1.2 Mounting bracket for the electronics housing Accessory Description Mounting bracket for the electronics housing ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  29 Mounting bracket for the electronics housing; Dimensions: mm (in)
  • Page 101: Mounting Kit, Isolated

    Levelflex FMP50 PROFIBUS PA Accessories 15.1.3 Mounting kit, isolated Accessory Description Mounting kit, isolated can be used for FMP50 A0013586  30 Scope of supply of the mounting kit: Insulating sleeve Eye-bolt For reliably insulated fixing of the probe. Maximum process temperature: 150 °C (300 °F) For rope probes 4 mm (¹⁄₆...
  • Page 102: Centering Star

    Accessories Levelflex FMP50 PROFIBUS PA 15.1.4 Centering star Accessories Description Centering star PFA •  16.4 mm (0.65 in) •  37 mm (1.46 in) suitable for FMP50 A0014577 For probe 8 mm (0.3 in) For probes 12 mm (0.47 in) and 16 mm (0.63 in) The centering star is suitable for probes with a rod diameter of 8 mm (0.3 in),...
  • Page 103 Levelflex FMP50 PROFIBUS PA Accessories Accessories Description Centering star PEEK, ⌀ 48 to 95 mm (1.9 to 3.7 in) Ø4 (0.16) suitable for A0035182 The centering star is suitable for probes with a rope diameter of 4 mm (¹⁄₆ in) (including coated rope probes).
  • Page 104: Remote Display Fhx50

    Accessories Levelflex FMP50 PROFIBUS PA 15.1.5 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: •...
  • Page 105: Overvoltage Protection

    Levelflex FMP50 PROFIBUS PA Accessories 15.1.6 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...
  • Page 106: Bluetooth Module For Hart Devices

    Accessories Levelflex FMP50 PROFIBUS PA 15.1.7 Bluetooth module for HART devices Accessory Description Bluetooth module A0036493 • Quick and easy commissioning via SmartBlue (app) • No additional tools or adapters required • Signal curve via SmartBlue (app) • Encrypted single point-to-point data transmission (tested by Fraunhofer institue) and password protected communication via Bluetooth®...
  • Page 107: Communication-Specific Accessories

    Accessories 15.2 Communication-specific accessories Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C 15.3 Service-specific accessories...
  • Page 108: Operating Menu

    Operating menu Levelflex FMP50 PROFIBUS PA Operating menu 16.1 Overview of the operating menu (display module) Navigation  Operating menu Language  Setup →  122 Device tag →  122 Device address →  122 Distance unit →  122 →...
  • Page 109 Levelflex FMP50 PROFIBUS PA Operating menu PV filter time →  130 →  131 Fail safe type Fail safe value →  131 ‣ Advanced setup →  132 Locking status →  132 Access status display →  133 Enter access code →...
  • Page 110 Operating menu Levelflex FMP50 PROFIBUS PA ‣ Edit table Level Customer value Activate table →  148 ‣ Safety settings →  149 Output echo lost →  149 →  149 Value echo lost Ramp at echo lost →  150 Blocking distance →...
  • Page 111 Levelflex FMP50 PROFIBUS PA Operating menu Switch-off value →  160 →  161 Switch-off delay Failure mode →  161 Switch status →  161 Invert output signal →  161 ‣ Display →  163 Language →  163 Format display →...
  • Page 112 Operating menu Levelflex FMP50 PROFIBUS PA Configuration management →  169 Comparison result →  170 ‣ →  172 Administration ‣ Define access code →  174 Define access code →  174 Confirm access code →  174 →...
  • Page 113 Levelflex FMP50 PROFIBUS PA Operating menu Status PROFIBUS Master Config →  180 →  180 PROFIBUS ident number ‣ Measured values →  181 Distance →  125 Level linearized →  144 Terminal voltage 1 →  182 Switch status →...
  • Page 114 Operating menu Levelflex FMP50 PROFIBUS PA Diagnostic event category Simulation diagnostic event →  191 ‣ →  192 Device check Start device check →  192 Result device check →  192 Last check time →  192 →  193...
  • Page 115: Tool)

    Levelflex FMP50 PROFIBUS PA Operating menu 16.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  122 →  122 Device tag Device address →  122 Distance unit →  122 Tank type →...
  • Page 116 Operating menu Levelflex FMP50 PROFIBUS PA Fail safe type →  131 Fail safe value →  131 ‣ →  132 Advanced setup Locking status →  132 Access status tooling →  132 Enter access code →  133 ‣...
  • Page 117 Levelflex FMP50 PROFIBUS PA Operating menu Level →  147 →  148 Customer value Activate table →  148 ‣ Safety settings →  149 Output echo lost →  149 Value echo lost →  149 Ramp at echo lost →...
  • Page 118 Operating menu Levelflex FMP50 PROFIBUS PA Failure mode →  161 Switch status →  161 →  161 Invert output signal ‣ Display →  163 Language →  163 Format display →  163 →  165 Value 1 to 4 display Decimal places 1 to 4 →...
  • Page 119 Levelflex FMP50 PROFIBUS PA Operating menu Backup state →  170 →  170 Comparison result ‣ Administration →  172 Define access code Device reset →  172  Diagnostics →  175 Actual diagnostics →  175 Timestamp →...
  • Page 120 Operating menu Levelflex FMP50 PROFIBUS PA ‣ Measured values →  181 Distance →  125 →  144 Level linearized Terminal voltage 1 →  182 Switch status →  161 ‣ Analog inputs ‣ →  183 Analog input 1 to 6 Channel →...
  • Page 121 Levelflex FMP50 PROFIBUS PA Operating menu Last check time →  192 →  193 Level signal Launch signal →  193 ‣ Heartbeat →  194 Endress+Hauser...
  • Page 122: Setup" Menu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.3 "Setup" menu • : Marks the navigation path to the parameter via the display and operating module. • : Marks the navigation path to the parameter via an operating tool (e.g. FieldCare). •...
  • Page 123: Tube Diameter

    Levelflex FMP50 PROFIBUS PA Operating menu Selection • Metallic • Bypass / pipe • Non metallic • Mounted outside • Coaxial Factory setting Depending on the probe Additional information • Depending on the probe some of the options mentioned above may not be available or there may be additional options.
  • Page 124: Empty Calibration

    Operating menu Levelflex FMP50 PROFIBUS PA Empty calibration  Navigation  Setup → Empty calibr. Description Distance process connection to min. level. User entry Depending on the probe Factory setting Depending on the probe Additional information A0013178  31 Empty calibration (E) for level measurements in liquids Full calibration ...
  • Page 125: Level

    Levelflex FMP50 PROFIBUS PA Operating menu Additional information 100% A0013186  32 Full calibration (F) for level measurements in liquids Level Navigation  Setup → Level Description Displays measured level L (before linearization). Additional information A0013194  33 Level in case of liquid measurements The unit is defined in the Level unit parameter (→...
  • Page 126: Signal Quality

    Operating menu Levelflex FMP50 PROFIBUS PA Additional information A0013198  34 Distance for liquid measurements The unit is defined in the Distance unit parameter (→  122). Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo.
  • Page 127 Levelflex FMP50 PROFIBUS PA Operating menu Confirm distance  Navigation  Setup → Confirm distance Description Specify, whether the measured distance matches the real distance. Depending on the selection the device automatically sets the range of mapping. Selection • Manual map •...
  • Page 128 Operating menu Levelflex FMP50 PROFIBUS PA Present mapping Navigation  Setup → Present mapping Description Indicates up to which distance a mapping has already been recorded. Mapping end point  Navigation  Setup → Map. end point Prerequisite Confirm distance (→  127) = Manual map or Distance too small Description Specify new end of the mapping.
  • Page 129: Mapping" Wizard

    Levelflex FMP50 PROFIBUS PA Operating menu 16.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  122).
  • Page 130: Analog Input 1 To 6" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.3.2 "Analog input 1 to 6" submenu There is an Analog input submenu for each AI block of the device. The AI block is used to configure the measured value transmission to the bus.
  • Page 131: Fail Safe Type

    Levelflex FMP50 PROFIBUS PA Operating menu Additional information This parameter defines the damping constant τ (in seconds) for the output of the Analog Input Block. Fail safe type  Navigation  Expert → Analog inputs → Analog input 1 to 6 → Fail safe type...
  • Page 132: Advanced Setup" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.3.3 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.
  • Page 133: Access Status Display

    • If no key is pressed for 10 min, or the user switches from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...
  • Page 134: Level

    Operating menu Levelflex FMP50 PROFIBUS PA "Level" submenu Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium. User interface • Liquid • Solid...
  • Page 135: Process Property

    • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) For EOP level evaluation = Fix DC, the exact dielectric constant has to be entered into the DC value parameter. Therefore, the Medium property parameter is not available in this case.
  • Page 136: Advanced Process Conditions

    Operating menu Levelflex FMP50 PROFIBUS PA For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard < 10 m (33 ft) /h Medium <...
  • Page 137: Level Unit

    Levelflex FMP50 PROFIBUS PA Operating menu Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm Additional information The level unit may differ from the distance unit defined in the Distance unit parameter (→...
  • Page 138: Level Correction

    Operating menu Levelflex FMP50 PROFIBUS PA A0013219  35 Blocking distance (UB) for liquid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Additional information The value specified in this parameter is added to the measured level (before linearization).
  • Page 139 Levelflex FMP50 PROFIBUS PA Operating menu "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1 L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  36 Linearization: Transformation of the level and (if relevant) the interface height into a volume or weight;...
  • Page 140: Linearization

    Operating menu Levelflex FMP50 PROFIBUS PA Structure of the submenu on the display module Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Maximum value Diameter Intermediate height Table mode ‣ Edit table...
  • Page 141 Levelflex FMP50 PROFIBUS PA Operating menu Structure of the submenu in an operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Level linearized Maximum value Diameter Intermediate height...
  • Page 142: Linearization Type

    Operating menu Levelflex FMP50 PROFIBUS PA Description of parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None • Linear •...
  • Page 143: Unit After Linearization

    Levelflex FMP50 PROFIBUS PA Operating menu Meaning of the options • None The level is transmitted in the level unit without linearization. • Linear The output value (volume/weight) is directly proportional to the level L. This is valid, for example, for vertical cylinders. The following additional parameters have to be specified: •...
  • Page 144: Free Text

    Operating menu Levelflex FMP50 PROFIBUS PA Selection SI units US units Imperial units • STon • lb impGal • t • UsGal • kg • ft³ • cm³ • dm³ • m³ • hl • l • % Custom-specific units...
  • Page 145: Maximum Value

    Levelflex FMP50 PROFIBUS PA Operating menu Maximum value  Navigation  Setup → Advanced setup → Linearization → Maximum value Prerequisite Linearization type (→  142) has one of the following values: • Linear • Pyramid bottom • Conical bottom •...
  • Page 146 Operating menu Levelflex FMP50 PROFIBUS PA The unit is defined in the Distance unit parameter (→  122). Table mode  Navigation  Setup → Advanced setup → Linearization → Table mode Prerequisite Linearization type (→  142) = Table Description Select editing mode of the linearization table.
  • Page 147: Level

    Levelflex FMP50 PROFIBUS PA Operating menu How to enter the table • Via FieldCare The table points can be entered via the Table number (→  147), Level (→  147) and Customer value (→  148) parameters. As an alternative, the graphic table editor may be used: Device Operation →...
  • Page 148: Customer Value

    Operating menu Levelflex FMP50 PROFIBUS PA Customer value  Navigation  Setup → Advanced setup → Linearization → Customer value Prerequisite Linearization type (→  142) = Table Description Enter linearized value for the table point. User entry Signed floating-point number Activate table ...
  • Page 149: Safety Settings

    Levelflex FMP50 PROFIBUS PA Operating menu "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Output signal in case of a lost echo.
  • Page 150: Ramp At Echo Lost

    Operating menu Levelflex FMP50 PROFIBUS PA Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  149) = Ramp at echo lost Description Slope of the ramp in the case of a lost echo...
  • Page 151 Levelflex FMP50 PROFIBUS PA Operating menu due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...
  • Page 152: Whg Confirmation

    Operating menu Levelflex FMP50 PROFIBUS PA "WHG confirmation" wizard The WHG confirmation wizard is only available for devices with WHG approval (Feature 590: "Additional Approval", option LC: "WHG overfill prevention" ) which are currently not in the WHG-locked state. The WHG confirmation wizard is used to lock the device according to WHG. For details refer to the "Functional Safety Manual"...
  • Page 153: Deactivate Whg

    Levelflex FMP50 PROFIBUS PA Operating menu "Deactivate WHG" wizard The Deactivate WHG wizard (→  153) is only visible if the device is WHG-locked. For details refer to the "Functional Safety Manual" of the respective device. Navigation  Setup → Advanced setup → Deactivate WHG Reset write protection ...
  • Page 154: Probe Settings

    Operating menu Levelflex FMP50 PROFIBUS PA "Probe settings" submenu The Probe settings submenu helps to ensure that the end of probe signal within the envelope curve is correctly assigned by the evaluation algorithm. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium).
  • Page 155: Confirm Probe Length

    Levelflex FMP50 PROFIBUS PA Operating menu Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm length Description Select, whether the value displayed in the Present probe length parameter →  154 matches the actual length of the probe. Based on this input, the device performs a probe length correction.
  • Page 156 Operating menu Levelflex FMP50 PROFIBUS PA "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the probe length correction are located directly in the Probe settings submenu (→  154).
  • Page 157: Switch Output Function

    Levelflex FMP50 PROFIBUS PA Operating menu "Switch output" submenu The Switch output submenu (→  157) is only visible for devices with switch output. Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Select function for switch output.
  • Page 158: Assign Limit

    Operating menu Levelflex FMP50 PROFIBUS PA Selection • Off • Digital output AD 1 • Digital output AD 2 • Digital output 1 • Digital output 2 • Digital output 3 • Digital output 4 Additional information The Digital output AD 1 and Digital output AD 2 options refer to the Advanced Diagnostic Blocks.
  • Page 159: Switch-On Value

    Levelflex FMP50 PROFIBUS PA Operating menu Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  157) = Limit Description Enter measured value for the switch-on point. User entry...
  • Page 160: Switch-On Delay

    Operating menu Levelflex FMP50 PROFIBUS PA A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  157) = Limit •...
  • Page 161: Switch-Off Delay

    Levelflex FMP50 PROFIBUS PA Operating menu Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  157) = Limit • Assign limit (→  158) ≠ Off Description Define delay for the switch-off of status output.
  • Page 162 Operating menu Levelflex FMP50 PROFIBUS PA Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above. Endress+Hauser...
  • Page 163: Display

    Levelflex FMP50 PROFIBUS PA Operating menu "Display" submenu The Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
  • Page 164 Operating menu Levelflex FMP50 PROFIBUS PA Additional information 4841.000 Â A0019963  39 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  40 "Format display" = "1 bargraph + 1 value" Â 93.5 Â 159.0 A0019965 ...
  • Page 165: Value 1 To 4 Display

    Levelflex FMP50 PROFIBUS PA Operating menu Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • Level linearized •...
  • Page 166: Display Damping

    Operating menu Levelflex FMP50 PROFIBUS PA User entry 1 to 10 s Additional information This parameter is only relevant if the number of selected measuring values exceeds the number of values the selected display format can display simultaneously. Display damping ...
  • Page 167: Separator

    Levelflex FMP50 PROFIBUS PA Operating menu Additional information The number of characters which can be displayed depends on the characters used. Separator  Navigation  Setup → Advanced setup → Display → Separator Description Select decimal separator for displaying numerical values.
  • Page 168: Backlight

    Operating menu Levelflex FMP50 PROFIBUS PA Backlight Navigation  Setup → Advanced setup → Display → Backlight Prerequisite The device has the SD03 local display (with optical keys). Description Switch the local display backlight on and off. Selection • Disable •...
  • Page 169: Configuration Backup Display

    Levelflex FMP50 PROFIBUS PA Operating menu "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).
  • Page 170 Operating menu Levelflex FMP50 PROFIBUS PA Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
  • Page 171 Levelflex FMP50 PROFIBUS PA Operating menu Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.
  • Page 172 Enter access code parameter (→  133). Please contact your Endress+Hauser Sales Center if you lose your access code. For display operation: The new access code is only valid after it has been confirmed in the Confirm access code parameter (→...
  • Page 173 Levelflex FMP50 PROFIBUS PA Operating menu • Of customer settings All customer parameters are reset to their factory setting. Service parameters, however, remain unchanged. • To transducer defaults Every measurment-related parameter is reset to its factory setting. Service parameters and communication-related parameters, however, remain unchanged.
  • Page 174 Operating menu Levelflex FMP50 PROFIBUS PA "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.
  • Page 175: Diagnostics" Menu

    Levelflex FMP50 PROFIBUS PA Operating menu 16.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...
  • Page 176 Operating menu Levelflex FMP50 PROFIBUS PA Timestamp Navigation  Diagnostics → Timestamp Operating time from restart Navigation  Diagnostics → Time fr. restart Description Displays the time the device has been in operation since the last device restart. Operating time Navigation ...
  • Page 177: Diagnostic List" Submenu

    Levelflex FMP50 PROFIBUS PA Operating menu 16.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 Description Display the current diagnostics messages with the highest to fifth-highest priority.
  • Page 178: Event Logbook" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".
  • Page 179: Device Information" Submenu

    Shows the serial number of the measuring device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.
  • Page 180 Operating menu Levelflex FMP50 PROFIBUS PA Order code  Navigation  Diagnostics → Device info → Order code Description Shows the device order code. User interface Character string comprising numbers, letters and special characters Additional information The order code is generated from the extended roder code, which defines all device features of the product structure.
  • Page 181: Measured Values" Submenu

    Levelflex FMP50 PROFIBUS PA Operating menu 16.4.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
  • Page 182: Terminal Voltage 1

    Operating menu Levelflex FMP50 PROFIBUS PA Terminal voltage 1 Navigation  Diagnostics → Measured val. → Terminal volt. 1 Switch status Navigation  Diagnostics → Measured val. → Switch status Description Shows the current switch output status. Endress+Hauser...
  • Page 183: Analog Input 1 To 6" Submenu

    Levelflex FMP50 PROFIBUS PA Operating menu 16.4.5 "Analog input 1 to 6" submenu There is an Analog input submenu for each Analog Input Block of the device. Only the most important parameters of the respective block are available at this position of the operating menu.
  • Page 184: Out Status

    Operating menu Levelflex FMP50 PROFIBUS PA Additional information • For Mode block actual = Man: Enter the output value of the Analog Input Block. • Else: Displays the output value of the Analog Input Block. Out status Navigation  Diagnostics → Analog inputs → Analog input 1 to 6 → Out status...
  • Page 185: Data Logging" Submenu

    Levelflex FMP50 PROFIBUS PA Operating menu 16.4.6 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Selection • Off • Level linearized •...
  • Page 186: Clear Logging Data

    Operating menu Levelflex FMP50 PROFIBUS PA Additional information This parameter defines the interval between the individual data points in the data log, and thus the maximum loggable process time T • If 1 logging channel is used: T = 1000 ⋅ t •...
  • Page 187 Levelflex FMP50 PROFIBUS PA Operating menu "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...
  • Page 188: Simulation" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.4.7 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...
  • Page 189: Simulation

    Levelflex FMP50 PROFIBUS PA Operating menu Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  190 Value process variable →  190 Switch output simulation →  190 Switch status →  191 Simulation device alarm →...
  • Page 190: Assign Measurement Variable

    Operating menu Levelflex FMP50 PROFIBUS PA Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Selection • Off • Level • Interface • Level linearized •...
  • Page 191: Switch Status

    Levelflex FMP50 PROFIBUS PA Operating menu Switch status  Navigation  Expert → Diagnostics → Simulation → Switch status Prerequisite Switch output simulation (→  190) = On Description Select the status of the status output for the simulation. Selection •...
  • Page 192: Device Check" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.4.8 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No • Yes Additional information In the case of a lost echo a device check can not be performed.
  • Page 193 Levelflex FMP50 PROFIBUS PA Operating menu Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...
  • Page 194: Heartbeat" Submenu

    Operating menu Levelflex FMP50 PROFIBUS PA 16.4.9 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation  Diagnostics → Heartbeat...
