Page 1

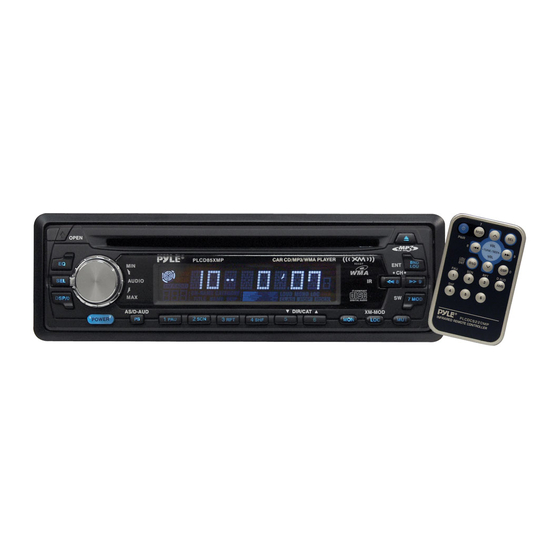

PLCD85XMP OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Car CD/MP3/WMA Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Auxiliary Input Function • Remote Control www.pyleaudio.com...
CONTENTS Installation ...3 Take out screw before installation...3 DIN Front-Mount (Method A) ...3 Installing the unit ...3 Removing the unit ...4 DIN Rear-Mount (Method B) ...5 Using the detachable front panel ...6 Wiring Connection ...7 Operation ...8 Location of keys...8 Switching on/off the unit ...9 Faceplate release ...9 Sound adjustment...9...
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
INSTALLATION Sleeve L Key Outer Trim Ring Front Panel R Key 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective.
INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.
USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button (OPEN) on the front panel and pull off the front panel. Release Button 2. Keep front panel into the case. Protective Case Front Panel INSTALLING THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel is properly installed.
WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (ACC+) FUSE MEMORY YELLOW BACK-UP (B+) BLACK GROUND (B–) POWER BLUE ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN (BLACK) AUX IN CABLE (GREEN) SUBWOOFER CABLE (GREY) RCA CABLE GREY GREY/BLACK VIOLET...
OPERATION SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except OPEN button (7) and (4)). When system is on, press POWER button (9) to turn off the unit. FACEPLATE RELEASE Press OPEN button (7) to detach the removable faceplate.
OPERATION • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOU button (13) shortly to select the desired band. The reception band will change in the following order: • SELECTING STATION Press button (17) or shortly to activate automatic seek function.
OPERATION MP3 OPERATION • SWITCHING TO CD (MP3) MODE If there is no MP3 disc inserted in the driver: Gently insert the MP3 disc with the printed side uppermost into the disc slot (5) until you feel some resistance. The MP3 disc is drawn into the driver automatically.
OPERATION on if the name is directory). Display will list all available directories and songs. Select the desired directory/songs by using MANU/SKIP UP/DOWN buttons and BND/LOU (ENT) button to confirm. If the selected title is a song, it starts to play. If the selected title is a directory name, display will show (‘...
OPERATION Standard Bit Rate (kbps) MPEG1 Audio 320,256,224, LAYER3 192,160,128, (48kHz/ 112,96,80,64, 44.1kHz/ 56,48,40,32 32kHz) MPEG2 Audio 160,144,128, LSF LAYER3 112,96,80,64, (24kHz/ 56,48,40,32, 22.05kHz/ 24,16,8 16kHz) Windows Media Audio (32kHz) Windows Media Audio (44.1kHz) Windows 320,256,192, Media Audio 160,128,96, (44.1kHz) 80,64,48 Windows 192,160,128...
REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL DSP (0) BND (LOU/ENT) MOD (7) (8) = Tune/Skip Down Button; Select Channel Down in XM Mode TUNE/SEEK TUNE/SEEK (9) = Tune/Skip Up Button; Select Channel Up in XM Mode (Y, 10. AS/PS (D-AUD) 11.
SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
