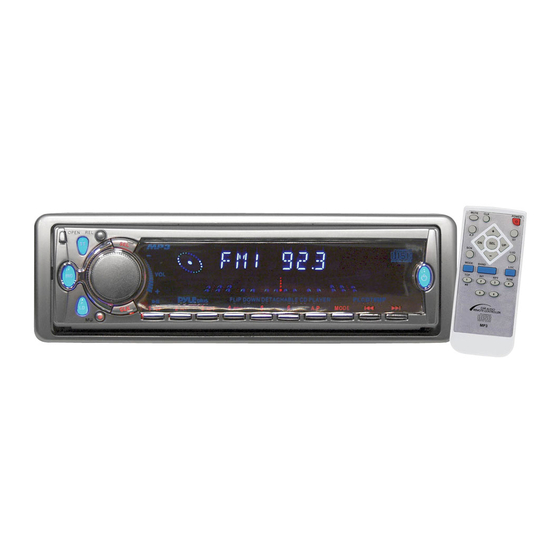

PLCD79MP INSTRUCTION MANUAL VFD DISPLAY CD/CD-R/CD RW/MP3 PLAYER AM/FM-STEREO DIGITAL PLL TUNING RADIO AND INFRARED REMOTE CONTROLLER www.pyleaudio.com...
DEAR CUSTOMER: Thank you for your purchase of our audio-visual product. Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers.
SPECIFICATION GENERAL Supply Voltage DC 13.8V. Negative Ground Current Consumption Max.10A Power Output 25W X 4. Unit Dimensions 178[W] X 165[D] X 50[H] mm. FM SECTION Frequency range 87.5MHz -107.9MHz Effective sensitivity 3uV. I.F Frequency 10.7MHz. AM SECTION Frequency range 530KHz - 1710KHz Effective sensitivity 40dB.
In DSP mode you can select the equalizer settings POP M, JAZZ M, CLASS M and FLAT M, and DSP OFF by rotating the VOL +/- knob. BEEP ON/OFF You can select two types of confirmation beep by rotating the VOL +/- knob.
PRECAUTION OF DISC PLAY: Cleaning the CD: Before playing a CD, wipe it off with a clean, dust-free cleaning cloth. Wipe the disc in the direction of the arrow. Always insert the CD with the label side facing upwards. If the CD is inserted with the printed side facing downwards, the device may be damaged.
Press the SEL button and hold for 1 second. The selected folder is played starting with the first song. Then press the SEL button briefly and you can select a track in the folder by r otating the VOL +/- knob Complete entry of the titles by pressing the SEL button for 1 second.
WIRING DIAGRAM VFD TRANSFORMER FUSE 10A YELLOW AUX LINE IN CONSTANT B+ BLACK(GND) FUSE 0.5A ACC RED (B+) RCA OUTPUT LINE FUSE 0.5A BLUE AUTO ANT WHITE FRONT WHITE/BLACK GREY/BLACK LEFT LOUDSPEAKER GREEN REAR GREEN/BLACK VIOLET/BLACK Note: 1.Make sure use a speaker with 4 ohm load impedance. 2.Do not make the auto antenna wire and ground touch each other.
Page 8
OPERATION OF REMOTE CONTROL: Note: Before use this remote control, please make sure turn on the device by pressing the power button on the front control panel. 1. Power On/Off. 2. Mute Button Loudness Button 4. Level/MENU UP Button 5. SEL/MENU Button 6.
