Page 1

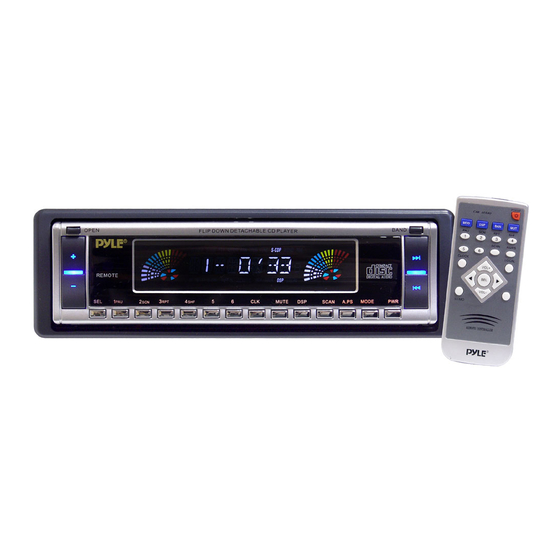

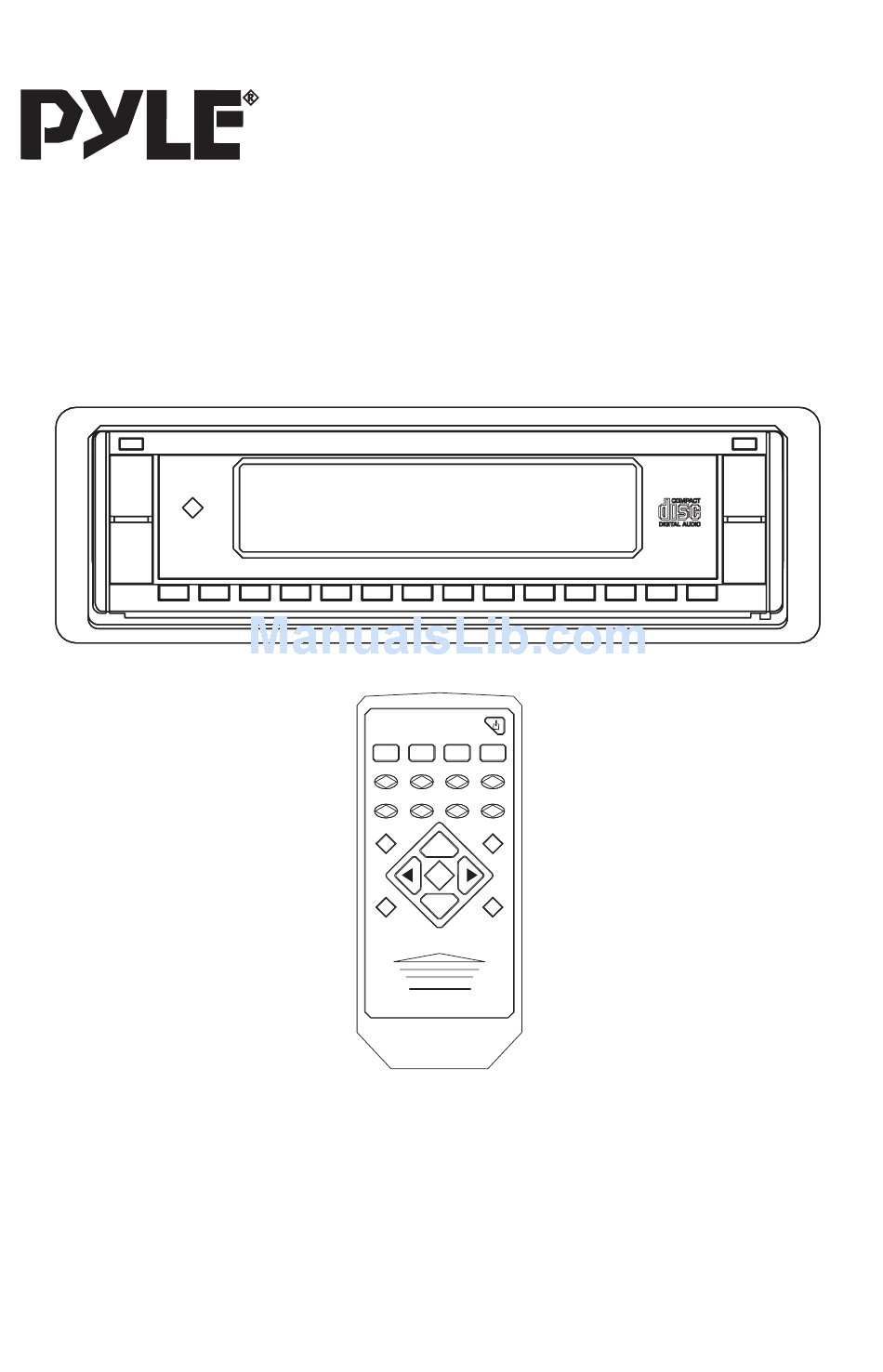

INSTRUCTION MANUAL INSTRUCTION MANUAL ANTI-THEFT FLIP DOWN DETACHABLE PANEL AUTO-LOADING COMPACT DISC PLAYER AM/FM-MPX DIGITAL PLL TUNING RADIO WITH INFRARED REMOTE CONTROLLER CAR AUDIO REMOTE CONTROLLER www.pyleaudio.com PLCD35...
CUSTOMER NOTICE For CD/RW+RDS+MP3 model with optional SUBWOOFER function OPEN REMOTE 1 PAU For CD/RW+MP3 model with optional SUBWOOFER function OPEN REMOTE 1 PAU For CD/RW+RDS model with optional SUBWOOFER function OPEN REMOTE 1 PAU FLIP DOWN DETACHABLE CD/RW Mp3 PLAYER 3 RPT 0/CLK 11 12 13 14 15 16 17...
BASIC OPERATION For CD model with optional SUBWOOFER function For CD model with optional SUBWOOFER function OPEN OPEN REMOTE REMOTE 1 PAU 1 PAU CDC CONNECTOR OR AUX CABLE FLIP DOWN DETACHABLE CD PLAYER FLIP DOWN DETACHABLE CD PLAYER 3 RPT 3 RPT RESET BAND...
Page 4
BASIC OPERATION 1. OPEN BUTTON Press it to flip down the front panel then you can insert the cd disc into the cd compartment. 2.3.7 SEL (AUDIO MODE SELECT)/ +/- BUTTONS Press SEL button to change the mode in the sequence of (Volume) (Bass) A.
Page 5
BASIC OPERATION 14. CLOCK BUTTON Press it to display time on LCD for few seconds. Press it hold and then press button to adjust hour or minute. 15. AF BUTTON (for RDS model only) AF [ALTERNATIVE FREQUENCIES] When pressed short, AF switching mode is selected and the state of AF switching mode is displayed by AF segment in display.
Page 6
BASIC OPERATION 17. PTY(PROGRAM TYPE) BUTTON This key is operated as follows: PTY MUSIC group- - PTY SPEECH group- - PTY OFF While selecting PTY TYPE, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.
ELECTRIC CONNECTION FOR 4X7W or4X30W AUX cable (optional) RCA RED LCH WHITE CDC connector (optional) IGNITION SWITCH (B+) YELLOW MEMORY (B+) BLACK GROUND (B-) AUTO BLUE ANTENNA FRONT LchSPK WHITE/BLACK REAR LchSPK GREEN/BLACK FOR SUBWOOFER (4X7W or 4X30W) AUX cable (optional) RCA RED LCH WHITE CDC connector (optional)
INSTALLATION HEX NUT SPRING WASHER PLAIN WASHER TAPPING SCREW KEY PLATE DASH BOARD METAL MOUNTING STRAP CONSOLE SLIDE BRACKET HOUSING KEY PLATE PLASTIC TRIM OUT While installing the front panel, please mount the left side first, then push the right side. TAPPING SCREW (M1.7X4 KM BLACK) HEX BOLT...
Page 9
INSTALLATION CAUTION: Do not install the detachable panel before connecting the wire. 1. The unit is designed for negative terminal of the battery which is connected to the vehicle metal. Please confirm it before installation. 2. If the car interior is extremely hot, as after being parked in the sun, do not use the player until the car has been driven for a while to cool off the interior.
DISC NOTES DISC PLAY: Cleaning discs Before playing, clean the disc with a clean, lint-free. Flip the disc in the direction of the arrow. NOTE: Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit. Insert a disc with the label surface down.
SPECIFICATIONS GENERAL Power requirement...DC 12V Current consumption ...5A or 15A POWER OUTPUT ...4x7W or 4x30W FM SECTION For 3 Bands (Europe) Frequency range 87.5 to 108 MHz Usablesensitivity ...3uV I.F Frequency ...10.7MHz. AM SECTION For 3 Bands (Europe) Frequency range 522 to 1620 KHz LW SECTION For 3 Bands...
TROUBLE SHOOTING Before going through the check list, check wiring connection. Should any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of disc inside loaded or ejected.
