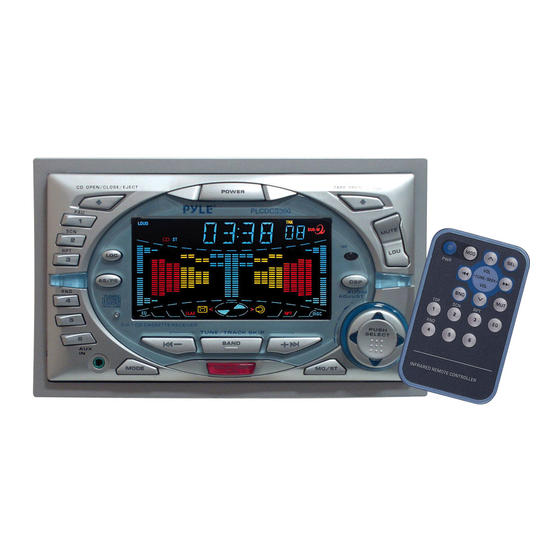

PLCDCS330MP
OWNER'S MANUAL
Mobile Audio System
• PLL Synthesizer Stereo Radio
• Car CD/MP3/WMA Player
• Cassette Player
• Automatic Memory Storing
• Preset Equalization
• Slide Down Undetachable Panel
• Auxiliary Input Function
• Remote Control
www.pyleaudio.com

Advertisement

Table of Contents
loading

Related Manuals for Pyle PLCDCS330MP

Summary of Contents for Pyle PLCDCS330MP

  • Page 1 PLCDCS330MP OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Car CD/MP3/WMA Player • Cassette Player • Automatic Memory Storing • Preset Equalization • Slide Down Undetachable Panel • Auxiliary Input Function • Remote Control www.pyleaudio.com...

  • Page 2: Table Of Contents

    CONTENTS Installation ...3 Wiring Connection ...4 Operation ...5 Location of keys...5 Switching on/off the unit ...6 Sound adjustment...6 Loudness ...6 Set the clock ...6 Mute ...6 Equalization...6 Liquid crystal display ...6 Remote sensor ...6 ESP function ...6 Auxliary Input ...6 Reset ...6 Radio operation ...7 Switching to radio mode ...7...

  • Page 3: Installation

    INSTALLATION Installation onto the car bracket using supplied screws (M5 x 6mm). The holes of the car bracket to use will differ depending on the car model. Screw (M5 x 6mm)

  • Page 4: Wiring Connection

    WIRING CONNECTION ANTENNA SOCKET FUSE IGNITION SWITCH (ACC+) YELLOW MEMORY BACK-UP (B+) BLACK GROUND (B–) POWER ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT BLUE WHITE GREEN SUBWOOFER CABLE (GREEN) (BLACK) Rch RED AUX IN Lch WHITE (GREY) Rch RED RCA CABLE...

  • Page 5: Operation

    OPERATION LOCATION OF KEYS 1 18...

  • Page 6: Switching On/Off The Unit

    OPERATION Note: In this product design, there has different sound accompanying with every button pressed and the sound is designed differently according to the customers. • SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except CD OPEN/CLOSE/EJ button (4) and TPAE OPEN/CLOSE button (24)).

  • Page 7: Radio Operation

    OPERATION RADIO OPERATION • SWITCHING TO RADIO MODE Press MODE button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOU (ENT) button (13) shortly to select the desired band.

  • Page 8: Program Button

    OPERATION • PROGRAM BUTTON These two buttons (25) perform the dual functions of changing the direction of tape playback and fast forward/rewind of the tape. - Change Tape Playback Direction Press both buttons together to play the other side of a tape. - Fast Forward/Rewind Press the button with the double arrows pointing the same direction...

  • Page 9: Mp3 Operation

    OPERATION MP3 OPERATION • SWITCHING TO CD (MP3) MODE If there is no MP3 disc inserted in the driver: Gently insert the MP3 disc with the printed side uppermost into the disc slot (5) until you feel some resistance. The MP3 disc is drawn into the driver automatically.

  • Page 10: As/Ps/D-Aud Button

    OPERATION confirm and start the play. - Repeat the above steps if the newly selected title is again a directory. Searching From Root Directory Press AS/PS (D-AUD) button for three times. The unit searches file or directory from root by TUNE/TRACK/SKIP UP/DOWN buttons.

  • Page 11: Wma Operation

    OPERATION WMA OPERATION The unit that can play the WMA disc and the operation is the same with MP3 operation described above. AUDIO DSP (MP3/WMA DECODER) The audio DSP converts MP3/WMA stream data from the CD-ROM decoder to PCM data. The following standards and bit rate are supported.

  • Page 12: Remote Control Handset

    REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL DSP (0) BND (LOU/ENT) MOD (7) (8) = Tune/Skip Down Button; Select Channel Down in XM Mode TUNE/SEEK TUNE/SEEK (9) = Tune/Skip Up Button; Select Channel Up in XM Mode (Y, 10. AS/PS (D-AUD) 11.

  • Page 13: Specification

    SPECIFICATIONS GENERAL Power Supply Voltage Chassis Dimensions Loading Impedance Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response CASSETTE PLAYER Tape Speed Fast Forward Time Frequency Response Channel Separation Crosstalk Wow and Flutter RADIO Frequency Coverage I.F.

  • Page 14: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot Presence of CD disc inside Remove the disc in the player, then be loaded or...

  • Page 15: Maintenance

    MAINTENANCE For System The following suggestions help you care for the product so that you can enjoy it for years. 1. Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. 2.

  • Page 16: Caution

    CAUTION 1. This unit is designed to operate on 12-volts DC, negative ground electrical system only. Do not attempt to install this unit in a vehicle having a positive ground system. 2. You should not touch the high-polished playback head with any metallic or magnetic tools.
