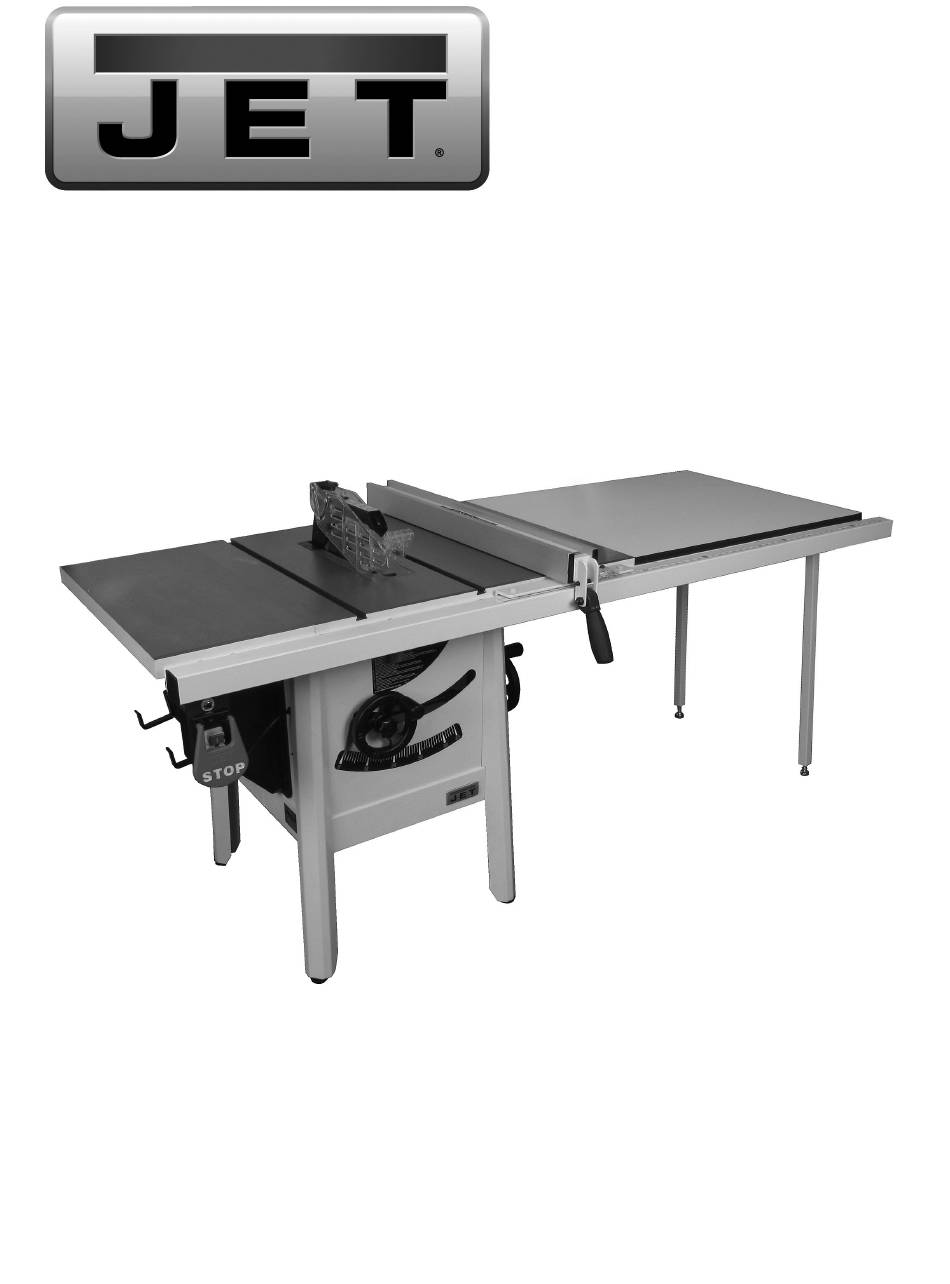

Operating Instructions and Parts Manual
™
ProShop II
10-inch Table Saw
Model JPS2-115, JPS2-230

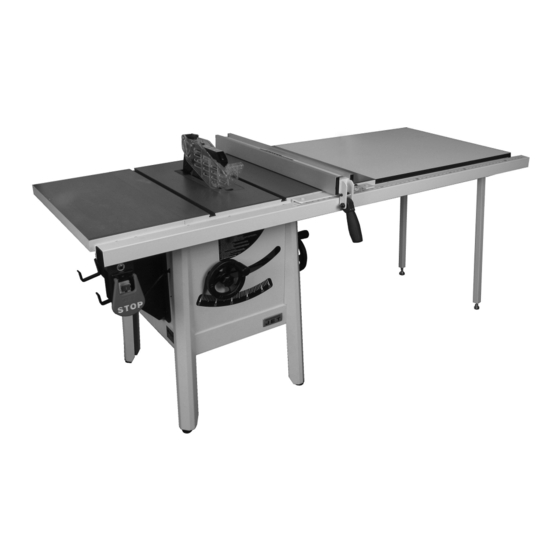

shown with cast wings, 52" rail set, and extension table
for serial no. 18061009 and higher
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-725000
Ph.: 800-274-6848
Edition 3 11/2018
www.jettools.com
Copyright © 2018 JET
Advertisement
Table of Contents
Related Manuals for Jet 725000
Summary of Contents for Jet 725000
- Page 1 10-inch Table Saw Model JPS2-115, JPS2-230 shown with cast wings, 52” rail set, and extension table for serial no. 18061009 and higher 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-725000 Ph.: 800-274-6848 Edition 3 11/2018 www.jettools.com Copyright © 2018 JET...
-
Page 2: Important Safety Instructions
Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under 1.0 IMPORTANT SAFETY the influence of drugs, alcohol or medication. A moment of inattention while operating power tools INSTRUCTIONS may result in serious personal injury. -
Page 3: Specific Safety Warnings For Table Saws
and alignment can make the riving knife ineffective Store idle power tools out of the reach of in reducing the likelihood of kickback. children and do not allow persons unfamiliar with the power tool or these instructions to For the riving knife and anti-kickback pawls to operate the power tool. - Page 4 resawing cuts. A featherboard helps to control the Never reach around or over a rotating saw workpiece in the event of a kickback. blade. Reaching for a workpiece may lead to accidental contact with the moving saw blade. Use extra caution when making a cut into blind ...
- Page 5 Do not use this table saw for other than its intended shape (diamond versus round) of arbor holes. use. If used for other purposes, JET disclaims any Saw blades that do not match the mounting real or implied warranty and holds itself harmless hardware of the saw will run off-center, causing loss from any injury that may result from that use.
-
Page 6: Table Of Contents
2.0 Table of contents Section Page 1.0 IMPORTANT SAFETY INSTRUCTIONS ....................2 1.1 General Safety Warnings ........................2 1.2 Specific Safety Warnings for Table Saws ..................3 2.0 Table of contents ............................ 6 3.0 About this manual ..........................7 ... -
Page 7: About This Manual
Additional knowledge can be obtained from experienced users, trade articles, or website forums. Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. - Page 8 – always use appropriate the kerf opening in the workpiece during a cutting devices to feed the workpiece through the saw operation. (JET table saws use the superior Riving blade during cutting operations.) Knife system instead.) Kerf: The resulting cut or gap made by a saw Standard Kerf: 1/8"...
-
Page 9: Specifications
5.0 Specifications Table 1 Model number JPS2-115 JPS2-230 Stock number – saw only 725000 725001 (see Table 2 below for kit configurations) Motor and Electricals Motor type Totally enclosed, fan cooled, induction Horsepower 1.75 HP Motor phase 1 PH Motor voltage... -
Page 10: Kit Configurations
= not applicable The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 11: Setup And Assembly
Read understand assembly instructions before attempting assembly. Failure to comply may cause serious injury. 6.0 Setup and assembly 6.1 Shipping contents See Figures 6-1 and 6-2. NOTE: Some parts may have come pre-assembled to the table saw. Table saw with on/off switch (not shown) Blade (preinstalled on saw) Table insert (preinstalled on saw) Arbor wrench (preinstalled on tool holder) -
Page 12: Tools Required For Assembly
6.2 Tools required for assembly Hex (Allen) wrenches: 4, 5, 6mm Open end wrenches: 10, 13mm Cross point (Phillips) screwdriver Straight edge Rubber mallet (or hammer with block of wood) Level Note: A ratchet wrench with sockets will speed assembly time. Additional tools may be needed for adjustments and/or assembly of fence and rails. -
Page 13: Handwheels
seam to ensure the transition feels smooth. As each area of wing becomes flush with table, tighten screw under that area. Continue until all screws are fully tightened. NOTE: Make sure front edge of wing remains flush with front edge of saw table. Repeat above steps for opposite extension wing. -
Page 14: Motor Cover
Note: Dryer vent hose is not acceptable for this See Figure 6-7. purpose. Install motor cover (J) with four pan head screws An extensive line of JET dust collectors is and washers (HP12/14). available; contact your dealer or visit our website for information. -
Page 15: Blade Guard
Pivot head and push it downward (Figure 6-11) until there is an audible click. Make sure you hear the click to verify that pawl assembly is secure. Figure 6-12 6.15 Blade installation/replacement Figure 6-10 When installing or changing blades, always disconnect saw from power source. -
Page 16: Low Profile Riving Knife
Figure 6-14 6.18 Miter gauge See Figure 6-15. Figure 6-13 6.16 Low profile riving knife A low profile riving knife is included with your saw. It mounts and adjusts in the same manner as the standard riving knife. The low profile riving knife sits just below top of blade and is used for making non-through cuts. -
Page 17: Electrical Connections
7.0 Electrical connections in B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a The JPS2-115 table saw is wired for 120-volt only. qualified electrician. The green-colored rigid ear, The JPS2-230 is wired for 230-volt only. -
Page 18: Extension Cords
7.3 Extension cords To tilt blade, turn lock handle (C) counterclockwise to loosen, turn handwheel (D) until desired angle is The use of extension cords is discouraged. Try to obtained, then tighten lock handle (C) clockwise. position machines within reach of the power source. -
Page 19: Riving Knife Alignment
Place a straight edge on table so it rests against blade and riving knife. See Figure 8-6. Rotate blade so that top of blade tooth touches straight edge. Figure 8-3 Tilt blade to 45° and verify setting in the same manner as above. -
Page 20: Belt Adjustment/Replacement
Use 3mm hex key to loosen two socket head until it touches the tip of blade, and lock the button screws (C, Figure 8-7). This will allow scale in position. See Figure 8-9. the clamp plate (D) to slide back and forth on Rotate marked tooth (A) so that it is slightly the fixed base. -
Page 21: Operations
Where possible, keep your face and body out of line with potential kickbacks including when To replace belt, loosen bolt (C) and shift motor starting or stopping the machine. upward to create sufficient slack in belt. Remove old belt from pulleys and install new one. Tension new belt and retighten bolt. -
Page 22: Rip Sawing
Bevel ripping cuts should always be made with the fence on the right side of saw blade so that the blade tilts away from the fence and minimizes the possibility of the work binding and the resulting kickback. 9.2 Rip sawing Ripping is where the workpiece is fed with the grain into the saw blade using the fence as a guide and a positioning device to ensure the desired width of... -
Page 23: Resawing
Figure 9-8 Figure 9-6 9.3 Resawing Resawing is a ripping operation in which thick boards are cut into thinner ones. Narrow boards up to 3" can be resawn in one pass. Wider boards up to 6" must be resawn in two passes. In resawing wider boards, adjust the blade height so as to overlap the two cuts by 1/2"... -
Page 24: Bevel And Miter Operations
Provide auxiliary support for any workpiece Have the blade extend only 1/8" above the top of extending beyond the table top with a tendency to the workpiece. Exposing the blade above this point sag and lift up off the table. can be hazardous. -
Page 25: Safety Devices
Never use a dado head in a tilted position. Never operate the saw without the blade guard, riving knife and anti-kickback pawls for operations where they can be used. 10.0 Safety devices Feather board The feather board (Figure 10-1) should be made of straight grain hardwood approximately 1"... -
Page 26: User-Maintenance
Always disconnect power to enhance the functionality of your table saw. the machine before performing maintenance. Contact your dealer to order, or call JET at the Failure to do this may result in serious phone number on the cover. personal injury. -
Page 27: Troubleshooting Jps2 Proshop Ii
Number of your machine available when you call will allow us to serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 28: Motor And Trunnion - Exploded View
14.1.1 Motor and Trunnion – Exploded View... -
Page 29: Motor And Trunnion - Parts List
14.1.2 Motor and Trunnion – Parts List Index No Part No Description Size 1 ....6291479 ....Key, Dbl Rd Hd ............5x5x30mm ....1 2 ....JPS10TSC-102 ..Motor Pulley ....................1 3 ....TS-2276081 ....Socket Set Screw ............ M6-1.0Px8 ....2 6 .... - Page 30 Index No Part No Description Size 59 ....TS-1504071 ....Socket Head Cap Screw ......... M8-1.25Px35 ....2 60 ....JPS10TSC-160 ..Hose ................ 2.5 ......... 1 61 ....JWP12-118 ....Key, Dbl Rd Hd ............4x4x8mm ...... 2 62 ....JPS10TSC-162 ..Plate ......................1 63 ....
- Page 31 Index No Part No Description Size 112 .... JPS10TSC-1112 ..Hose Clamp ............. 60-80mm ....... 1 113 .... JPS10TSC-1113A ..Dust Chute (s/n 18061009 and higher) ...... 1-1/2”to 4" ..... 1 114....JPS10TS-SHA ... Side Handwheel Assembly (#114-1, 93-1, 93-2, 93-4) ........1 114-1 ..
- Page 32 14.2.1 Table and Cabinet– Exploded View...
- Page 33 29 ....TS-152706 ....Hex Wrench ............. 5mm ......1 30 ....JPS10TSR-104 ..Open End Wrench ........... 11/13 mm ...... 1 31 ....JET-92 ...... JET Logo ..............92x38mm ...... 1 32 ....JPS10TSC-232 ..Angle Scale ....................1 33 ....
-
Page 34: Stand Assembly - Exploded View
14.3.1 Stand Assembly – Exploded View 14.3.2 Stand Assembly – Parts List Index No Part No Description Size 1 ....JPS10TSC-301 ..Leg ......................... 4 2 ....TS-1550041 ....Flat Washer ............. M6 ......... 8 3 ....TS-1482031 ....Socket Head Cap Screw ......... M6-1.0x16 ..... 8 4 .... -
Page 35: Switch Assembly - Exploded View
14.4.1 Switch Assembly – Exploded View 14.4.2 Switch Assembly – Parts List Index No Part No Description Size 1 ....JPS10TSC-401 ..Magnetic Switch Kit ..........120V ......1 ....JPS10TSC-401A ..Magnetic Switch Kit ..........230V ......1 2 ....JPS10TSC-402 ..Switch Box ..................... 1 3 .... -
Page 36: Blade Guard Assembly - Exploded View
14.5.1 Blade Guard Assembly – Exploded View... -
Page 37: Blade Guard Assembly - Parts List
14.5.2 Blade Guard Assembly – Parts List Index No Part No Description Size 1 ....JPS10TSC-501 ..Right Side Blade Guard ................. 1 2 ....JPS10TSC-502 ..Screw ......................4 3 ....JPS10TSC-503 ..Left Side Blade Guard ................... 1 4 .... -
Page 38: Miter Gauge Assembly - Exploded View
14.6.1 Miter Gauge Assembly – Exploded View 14.6.2 Miter Gauge Assembly – Parts List ....JPS10TSC-MG ..Miter Gauge Assembly (#1 thru 13) ............... 1 1 ....JPS10TS-327 .... Handle ......................1 2 ....TS-0680041 ....Flat Washer ............. 3/8” ........ 1 3 .... -
Page 39: Electrical Connections For Jps2
15.0 Electrical Connections for JPS2 230V 120V 230V 120V OVERLOAD PROTECTOR OVERLOAD PROTECTOR 9AMP 18AMP LINE LOAD LINE LOAD Magnetic Switch Magnetic Switch KJD17B-230V KJD17B-120V SJT 14AWG*3C SJT 14AWG*3C 230V 120V MOTOR MOTOR... -
Page 40: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. - Page 41 This page intentionally left blank.
- Page 42 This page intentionally left blank.
- Page 43 This page intentionally left blank.
- Page 44 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
