Summary of Contents for Planar PR2010
- Page 2 Planar Systems, In Corporate Headquarters 1195 NW Compton Drive Beaverton, OR 97006-1992 Planar Cu stomer Support Telephone: US: 1-866-PLANAR1 (866) 75 2-6271 Outside US: (503) 748-5799 E-mail: PlanarSupport@planar.com Online Technical Library : http://www.planar.com/support 24/7 Technical Support — i —...
- Page 3 User’s Manual Copyright This publication, including all photographs, illustrations and software, is protected under international copy- right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. ©...
- Page 4 Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
- Page 5 Unplug the power cord before cleaning. See Cleaning the Projector on page 37. Allow the lamp to cool for about one hour. Regulatory Warnings Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section on page 46. Symbol Explanations DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment.
- Page 6 Input source automatically detected. Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, reg- ister your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...
-
Page 7: Table Of Contents
® Projector – User’s Manual GETTING STARTED... 1 ... 1 ACKING HECKLIST ... 2 IEWS OF ROJECTOR ARTS Front-right View ... 2 Top view—On-screen Display (OSD) buttons and LEDs... 3 Rear view... 4 Bottom view... 5 ... 6 EMOTE ONTROL... - Page 8 Check the audio cable connection... 41 AVING THE ROJECTOR ERVICED SPECIFICATIONS ... 42 Input Connectors ... 42 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table... 42 ... 43 IMING ABLE ... 45 ROJECTOR IMENSIONS REGULATORY COMPLIANCE... 46 FCC W ...
-
Page 9: Getting Started
Packing Checklist Carefully unpack the projector and check that the following items are included: PR2010/ PR2020 DLP projector RGB cable Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. -

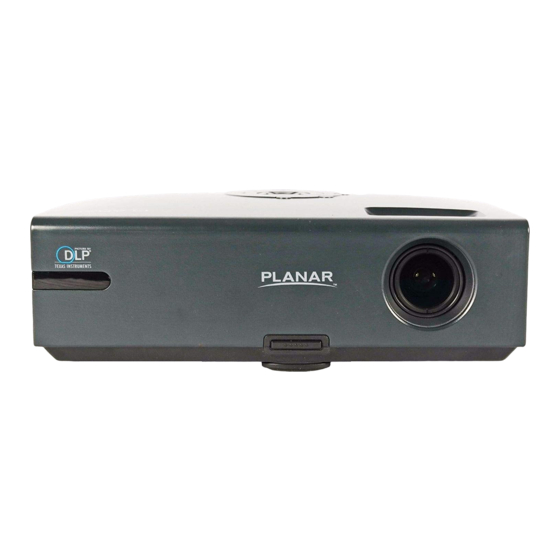

Page 10: Views Of Projector Parts
Lens Focus ring Function keys Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings. Description Receiver for IR signal from remote control Push to release height adjuster... -
Page 11: Top View-On-Screen Display (Osd) Buttons And Leds
▼ (Down cursor) / KEYSTONE MENU ◄ (Left cursor) / VOL Description Turns the projector On or Off Detects the input device Optimizes image size, position, and resolution Navigates and changes settings in the OSD Quick Menu – For Keystone Navigates and changes settings in the OSD Quick Menu –... -
Page 12: Rear View
® Projector – User’s Manual Rear view Item Label AC IN (USB) S-video Video Audio-in (Security Lock) Note: If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the S-VIDEO connector. S-VIDEO provides a better quality signal. -
Page 13: Bottom View
Height adjustor button Note: When installing, ensure that you use only UL Listed ceiling mounts. Description Contact your dealer for information on mounting the projector on a ceiling Rotate adjuster lever to adjust angle position. Remove when changing the lamp. -
Page 14: Remote Control Parts
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective sur- faces such as projector screens. - Page 15 Left cursor Menu Description Navigates and changes settings in the OSD Changes settings in the OSD Turns the projector On or Off Navigates and changes settings in the OSD Increase volume Decrease volume Mutes the built-in speaker Freeze/unfreezes the on-screen picture...
-
Page 16: Remote Control Operating Range
Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer. -
Page 17: Setup And Operation
Replace the cover. Caution: 1. Only use a 3V lithium battery (CR2025). 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the battery when not using the projector for prolonged periods. Setup and Operation – 9 –... -
Page 18: Connecting Input Devices
Projector – User’s Manual Connecting Input Devices A PC or notebook computer and video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. -
Page 19: Starting And Shutting Down The Projector
Starting and Shutting down the Projector Connect the power cord to the pro- jector. Connect the other end to a wall outlet. POWER and READY LEDs on the projector light. Turn on the connected devices. Ensure the READY LED displays a solid orange and not a flashing or- ange. - Page 20 POWER button. The pro- jector turns off. Caution: 1. Be sure to remove the lens cap before starting projector. 2. Do not unplug the power cord until the READY LED stops flashing–indicating the projector has cooled down. – 12 –...
-
Page 21: Setting An Access Password (Security Lock)
OSD on page 18 and Setting the OSD Language on page 19 for help on using OSD menus.) Important: Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password. - Page 22 ® Projector – User’s Manual You can use the cursor buttons ▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five. Press the cursor buttons in any order to set the password.
-
Page 23: Adjusting The Projector Level
Position the projector so that it is perpendicular to the screen. • Ensure the cables are in a safe location. You could trip over them. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B]. The height adjuster drops down [C]. -
Page 24: Adjusting The Zoom , Focus And Keystone
® Projector – User’s Manual Adjusting the Focus and Keystone Use the Image-focus control (on the projector only) to sharpen the projected image. Use the KEYSTONE buttons (on the projec- tor or the remote control) to correct im- age-trapezoid (wider top or bottom) effect. -
Page 25: Adjusting The Volume
Press the Left or Right Cursor buttons on the keypad to adjust Volume +/-. Press the MUTE button to turn off the volume (This feature is available only on the remote). ® Projector – User’s Manual – 17 –... -
Page 26: On-Screen Display (Osd) Menu Settings
The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the re- mote control and on the projector. -
Page 27: Setting The Osd Language
® Projector – User’s Manual Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I. 2. Press the cursor ▲▼ button until Language is highlighted. -
Page 28: Osd Menu Overview
® Projector – User’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. – 20 –... -
Page 29: Osd Sub-Menu Overview
® Projector – User’s Manual OSD Sub-Menu Overview – 21 –... -
Page 30: Image Menu
® Projector – User’s Manual Image Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change values for settings. -
Page 31: Advanced Feature
(Range: 6500 °K ~ 10500 °K) Press Color Manager Green-Blue-Cyan-Magenta-Yellow-White). See page 24 for more informa- tion on Description (Enter) / ► to enter the color manager menu. (Range: Red- Color Manager – 23 – ® Projector – User’s Manual... -
Page 32: Color Manager
® Projector – User’s Manual Color Manager (Enter) / ► to enter the Color Manager sub menu. Press Item Select to enter the Red Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain. Select to enter the Green Color Manager. -
Page 33: Computer Menu
Press the cursor ◄► button to adjust the A/D sampling clock. Frequency Press the cursor ◄► button to adjust the A/D sampling dot. Tracking Press Auto Image and position. Description (Enter) / ► to automatically adjustment for phase, tracking, size – 25 – ® Projector – User’s Manual... -
Page 34: Video/Audio Menu
® Projector – User’s Manual Video/Audio Menu Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu. -
Page 35: Audio
Press Enter / ► to enter the audio submenu. Item Press the ◄► buttons to adjust the audio volume. Volume (Range: 0~8) Press the ◄► buttons to turn on or off the speaker. Mute ® Projector – User’s Manual Description – 27 –... -
Page 36: Installationi Menu
® Projector – User’s Manual Installation I Menu Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Installa- tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press ◄►... -
Page 37: Installation Ii Menu
(Enter) / ► to enter the Advanced menu. See Advanced Feature on (Enter) / ► to reset all items to factory preset values. (Enter) / ► to enter the Status menu. See page 33 for more – 29 – ® Projector – User’s Manual... -
Page 38: Advanced Feature
® Projector – User’s Manual Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu. Press ▲▼ to move to the Advanced menu and then press Enter or ► . Press ▲▼ to move up and down in the Advanced menu. -
Page 39: Osd Menu Setting
(Enter) / ► to test the IR remote controller for diagnostic. (Enter) / ► to test the USB connection with connected PC. (Enter) / ► to test the button on keypad. (Enter) / ► to select different colors on screen. – 31 – ® Projector – User’s Manual... -
Page 40: Lamp Hour Reset
® Projector – User’s Manual Lamp Hour Reset Please refer to Resetting the Lamp on page 36 to reset the lamp hour counter. – 32 –... -
Page 41: Factory Reset
Lamp hour used information is displayed. Eco and Normal counters are sepa- Lamp Hours rated. (Enter) / ► to reset all the menu items to the factory default values (Enter) / ► to enter the Status sub menu. Description – 33 – ® Projector – User’s Manual... -
Page 42: Maintenance And Security
Disposal of this product must be carried out in accordance with the regulations of your local authority. Warning: Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn. Loosen the two captive screws on the lamp compartment cover. - Page 43 Note: The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws. ® Projector – User’s Manual – 35 –...
-
Page 44: Resetting The Lamp
® Projector – User’s Manual Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation II menu. -
Page 45: Cleaning The Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. -
Page 46: Using The Kensington® Lock
® Projector – User’s Manual Using the Kensington® Lock If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. -
Page 47: Troubleshooting
Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose con- nection. -
Page 48: Led Error Messages
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Ready LEDs are still blinking or the Over Temp LED is lit contact your service center. -
Page 49: Lamp Problems
Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. -
Page 50: Specifications
® Projector – User’s Manual Input Connectors Video Audio Security Projection Distance vs. Projection Size Projection Distance and Size Table PR2010/PR2020 Distance Diagonal Keystone Image Height Image Width A (Offset) USB (service only) Composite video (RCAx1) S-Video (Mini-DIN) Mini-jack Kensington slot 1.22... -
Page 51: Timing Mode Table
Timing Mode Table The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector. Signal Resolution NTSC — PAL/SECAM — 640 x 350* 640 x 400* 720 x 400* 640 x 480... - Page 52 ® Projector – User’s Manual Signal Resolution 640 x 480 832 x 624 Apple Mac 1024 x 768 1152 x 870 480i SDTV 576i 480p EDTV 576p 720p 720p HDTV 1080i 1080i O: Frequency supported —: Frequency not supported * : Displayable level The resolution of the panel is 800 x 600.
-
Page 53: Projector Dimensions
® Projector – User’s Manual Projector Dimensions – 45 –... -
Page 54: Regulatory Compliance
FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica- tions. - Page 55 Online Technical Library: http://www.planar.com/support 24/7 Technical Support © 2008 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice...
