Planar PR3010 User Manual

Planar pr3010: product manual
Hide thumbs Also See for PR3010:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual

Advertisement

Table of Contents
loading

Related Manuals for Planar PR3010

Summary of Contents for Planar PR3010

  • Page 2 User’s Manual Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. ©...
  • Page 3 Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
  • Page 4 Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG. Cleaning the Projector Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on page 36. Allow the lamp to cool for about one hour. Regulatory Warnings Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance”...
  • Page 5 Input source automatically detected Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, registeryour Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...

  • Page 6: Table Of Contents

    ROBLEMS SPECIFICATIONS... 41 Input/output connectors ... 41 V.S. P ROJECTION ISTANCE ROJECTION PR3020 and PR3010 Projection distance and size table ... 42 PR5020 Projection distance and size table... 43 ... 44 IMING ABLE Table of contents ... 9 ... 9 UTTONS ...
  • Page 7 Preface REGULATORY COMPLIANCE ... 46 FCC W ... 46 ARNING ... 46 ANADA ... 46 AFETY ERTIFICATIONS FCC C B, UL, C-UL, CE, CB, TUV-GS, CCC , ICES-003(C B) ... 46 LASS LASS EN 55022 W ... 46 ARNING — vi — –...

  • Page 9: Getting Started

    Packing Checklist Carefully unpack the projector and check that the following items are included: OWER CORD UDIO CABLE MINI JACK MINI JACK Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

  • Page 10: Views Of Projector Parts

    User’s Manual Views of Projector Parts Front-right View ABEL Focus Lens zoom Screws See “Top view—OSD buttons and LEDs” Front IR receiver Lens Lens cover ESCRIPTION Focuses the projected image Enlarges the projected image Holds lamp to projector Receiver for IR signal from remote control Slide lens cap before use.

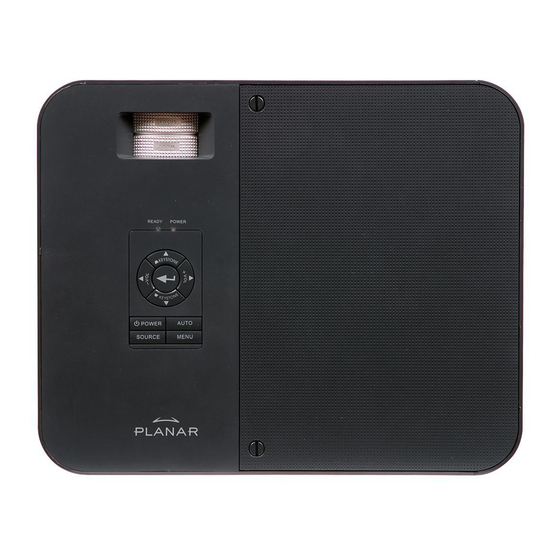

  • Page 11: Top View-On-Screen Display (Osd) Buttons And Leds

    Height-adjuster button Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings. Top view—On-screen Display (OSD) buttons and LEDs ABEL Keystone/ Corrects image-trapezoid (wider bottom) effect...
  • Page 12 Increases volume Navigates and changes settings in the OSD Optimizes image size, position, and resolution Navigates and changes settings in the OSD Opens and exits the OSD Detects the input device Turns the projector on or off – 4 –...

  • Page 13: Rear View

    Connect the audio cable (supplied) from an audio input device. Connect an audio cable(supplied) from the computer’s audio-out connector. Audio loop-thru Connect the USB cable (supplied) from a computer Installation control Connect the power cord (supplied) – 5 – DLP® Projector – User’s Manual PAGE...

  • Page 14: Bottom View

    Secure to permanent object with a Kensington® Lock system ESCRIPTION Contact your dealer for information on mounting the projector on a ceiling. Push to release height adjuster Adjuster drops down when adjuster button is pushed Adjust angle of the picture –...

  • Page 15: Remote Control Parts

    2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
  • Page 16 Laser Note: The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only. ESCRIPTION Page down when connected through USB to a PC...

  • Page 17: Remote Control Operating Range

    Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

  • Page 18: Setup And Operation

    (+/-) as shown here. Replace the cover. Caution: 1. Only use AAA alkaline batteries. 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the batteries when not using the projector for prolonged periods. ETUP AND – 10 – PERATION...

  • Page 19: Connecting Input Devices

    Connecting Input Devices A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector.
  • Page 20 User’s Manual Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections. – 12 –...

  • Page 21: Starting And Shutting Down The Projector

    Starting and Shutting down the Projector Slide the lens cover. Connect the power cord to the projector [A] Connect the other end to a wall outlet. Switch [B] from on (O) to off ( The POWER and READY LEDs on the projector turn on.
  • Page 22 Power button. The projector turns off. Turn off the main Power switch when the Ready LED stops flashing. Caution: Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled down. – 14 –...

  • Page 23: Setting An Access Password (Security Lock)

    OSD menus.) Important: Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password. Press the Menu button to open the OSD menu.

  • Page 24: Adjusting The Projector Level

    Position the projector so that it is perpendicular to the screen. • Be sure cables are not in the way or can cause the projector to be knocked over. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].

  • Page 25: Adjusting The Zoom, Focus And Keystone

    Adjusting the Volume Press the Volume +/- button on the remote control. The volume control appears on the display. Use the Volume +/- button to adjust the level. DLP® Projector – User’s Manual – 17 –...
  • Page 26 User’s Manual Press the Mute button to turn off the volume. (For remote only) – 18 –...

  • Page 27: On-Screen Display (Osd) Menu Settings

    The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

  • Page 28: Setting The Osd Language

    User’s Manual Setting the OSD Language You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.) 1. Press the Menu button. The Main menu appears.

  • Page 29: Setting The Osd Language

    DLP® Projector – User’s Manual Setting the OSD Language Use the following illustration to quickly find a setting or determine the range for a setting. – 21 –...

  • Page 30: Main Menu

    User’s Manual Main Menu Press the Menu button to open the OSD menu. Press the cursor menu. Press the cursor values for settings, and then press Enter or Brightness Press the cursor Contrast Press the cursor Sharpness Press the cursor Color Press the cursor Temperature...

  • Page 31: Main Menu Functions Available For Connected Source

    Main Menu Functions Available for Connected Source Function Brightness Contrast Sharpness Color Temp Color Saturation Color Tint Gamma Color Space Reset x = available to video source Component Video – 23 – DLP® Projector – User’s Manual Composite Video S-video...

  • Page 32: Setup Menu

    User’s Manual Setup Menu Press the Menu button to open the OSD menu. Press the cursor menu. Press the cursor values for settings, and then press Enter or Horizontal Press the cursor Position Vertical Press the cursor Position Keystone Press the cursor (Range: -50 –...

  • Page 33: Advance Feature

    Press to adjust the value of white peaking. (Range: 0 – 10) Logo Press to enable or disable if the logo displays when the projector Display starts, and when no source is detected. (Range: On – Off) Fan Speed Press the cursor Set Fan Speed to High in altitudes over 1500 meters (5000 feet).
  • Page 34 Reset Press Enter or Note: If Security Lock is enabled, you must enter the password every time the projector is turned on. However, if the projector is already turned on, Security Lock can be disabled without knowing the current password.

  • Page 35: User Color

    (Range:0-100) button to adjust the yellow color level. (Range: 0-100) button to adjust the white color level. (Range: 0-100) – 27 – DLP® Projector – User’s Manual to move to the User . Press EFAULT...

  • Page 36: Config Menu

    User’s Manual Config Menu Press the Menu button to open the Main menu. Press the cursor menu. Press the cursor values for settings, and then press Enter or Press the cursor Blank Screen screen. (Range: Black – Red – Green – Blue – White) Auto Source Press the cursor detection.

  • Page 37: Utility Menu

    Ceiling mount, front of screen Ceiling mount, rear of screen button to adjust the A/D sampling button to adjust the A/D sampling – 29 – DLP® Projector – User’s Manual button to move to the Utility to change EFAULT Auto...

  • Page 38: Utility Menu Functions Available For Connected Source

    User’s Manual Digital Zoom Digital operation for zoom and pan adjustment. Press Enter or Press to open the Pan menu. (You must zoom in before you can open the Pan menu.) Use the cursor buttons to pan the zoomed image. Press the Menu button to exit.

  • Page 39: Tool Menu

    Tool menu at the end or by pressing the Menu button. button to move up and down in the Tool menu. Press Enter or ESCRIPTION to select the desired language – 31 – DLP® Projector – User’s Manual button to move to the Tool EFAULT English...

  • Page 40: Status Menu

    User’s Manual Status Menu Press the Menu button to open the Main menu. Press the cursor menu. Press the cursor Video Displays the resolution and refresh rate for RGB/DVI mode. Information Displays the color standard for video mode. Active Source Displays the active source.

  • Page 41: Maintenance And Security

    2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life. Warning: Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn.
  • Page 42 User’s Manual Open the lamp compartment cover (B). Remove the two screws from the lamp module (C). Lift the module handle up (D). – 34 –...
  • Page 43 Pull firmly on the module handle to remove the lamp module Reverse steps 1 to 5 to install the new lamp module. DLP® Projector – User’s Manual – 35 –...

  • Page 44: Resetting The Lamp

    Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn.

  • Page 45: Cleaning The Lens

    To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners. Using the Kensington® Lock If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable.

  • Page 46: Troubleshooting

    Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection.

  • Page 47: Led Error Messages

    Problem: The image is wider at the top or bottom (trapezoid effect) 1. Position the projector so it is as perpendicular to the screen as possible. 2. Use the Keystone button on the remote control or projector to correct the problem. Problem: The image is reversed or upside down Check the Projection setting on the Utility menu of the OSD.

  • Page 48: Lamp Problems

    2. Ensure the power source is good by testing with another electrical device. 3. Restart the projector in the correct order and check that the Power LED is green. 4. If you have replaced the lamp recently, try resetting the lamp connections.

  • Page 49: Specifications

    Input/output connectors PR3010 Data in Data out Video Audio in Audio out Control Security PR3020 × RGB HD-15 RGB HD-15 composite video (RCAx1) S-video Stereo RCAx2 (L+R) Stereo Mini-jack Stereo Mini-jack × Kensington lock – 41 – PECIFICATIONS PR5020 ×...

  • Page 50: Projection Distance V.s. Projection Size

    User’s Manual Projection Distance V.S. Projection Size PR3020 and PR3010 Projection distance and size table Max. Screen Size Projection Diagonal Distance L 1.00 m 0.66 m 3.28 ' 26.04 '' 1.50 m 0.99 m 4.92 ' 39.06 '' 2.40 m 1.59 m...

  • Page 51: Pr5020 Projection Distance And Size Table

    114.83 '' 164.04 '' 5.56 m 4.17 m 5.95 m 218.72 '' 164.04 '' 234.35 '' – 43 – DLP® Projector – User’s Manual 126.42 '' 94.81 '' 4.59 m 3.44 m 180.60 '' 135.45 '' Max. Screen Size (Tele)

  • Page 52: Timing Mode Table

    Ο: Frequency supported The native resolution for the PR5020 and PR3020 is 1024 x 768. The native resolution for the PR3010 is 800 x 600. Resolution other than native mode may be displayed with uneven size of text or lines.

  • Page 53: Projector Dimensions

    DLP® Projector – User’s Manual Projector Dimensions 300 mm(11.8") – 45 –...

  • Page 54: Fcc W Arning

    FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 55 Tel: US/Canada 1-866-PLANAR-1 (1-866-752-6271 or 1-503-748-5953) Hours: M-F, 8am-8pm Eastern Time © 2006 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice...

This manual is also suitable for:

Pr3020Pr5020
