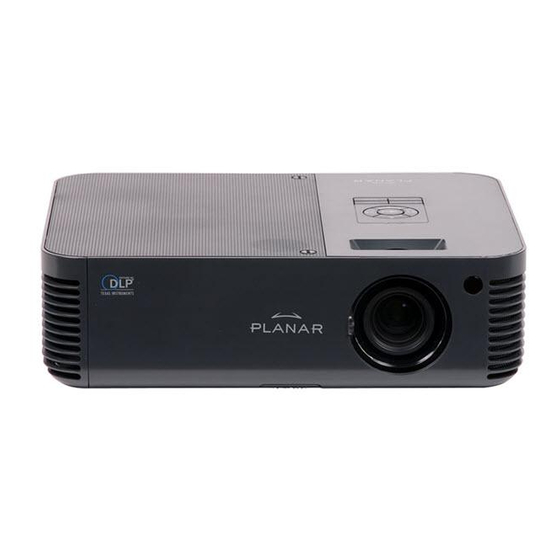

PR5020
Projector
HOW TO PROGRAM
BY RS232
www.planar.com

Advertisement

loading

Related Manuals for Planar PR5020

Summary of Contents for Planar PR5020

  • Page 1 PR5020 Projector HOW TO PROGRAM BY RS232 www.planar.com...
  • Page 2 ASCII ‘~’ 6-3 Control Sequence The projector may send a return code after it received a command. If the command isn’t received correctly, the projector will not send the return code 6-4 Operation Command The operation commands execute the basic operation setting of this projector.
  • Page 3 Input Select Wireless * Power On command will not work for 1 minute after the power off command triggered. 6-5 Remote Command The remote commands simulate the code send from IR remote handset. Button’s name UP arrow DOWN arrow LEFT arrow RIGHT arrow POWER EXIT...

  • Page 4: Set Data Range

    6-6. Set Value Command ITEM Brightness Contrast Color Tint Scaling Color Temperature Projection Mode ? : ASCII Data Data Range ITEM Brightness Contrast Color Tint Scaling Color Temperature Projection Mode Attention: Data range may be different for different models Example 1. Adjust Brightness value to 100 Send Command : ~sB100CR Example 2.
  • Page 5 6-7. Query Command ITEM Software Version Power State Input Select Lamp Hours Brightness Contrast Color (Video) Tint (Video) Scaling Color Temperature Projection Mode Response message ITEM Software Version Power State Input Select Lamp Hours Brightness Contrast Color (Video) Tint (Video) Scaling Color Temperature Projection Mode...
  • Page 6 6-8. Hyper Terminal setting guide 6-8-1 Connect the RS232 Cable between your computer and Projector。 6-8-2 Open HyperTerminal ， Window2000/XP HyperTerminal path： Start \ Programs \ Accessories \ Communications \ HyperTerminal。 6-8-3 Setting the HyperTerminal parameter： Step 1. Type the connection name .
  • Page 7 Rev. 00 Step2 . Choose the COM port for your RS232 Cable connected to. Step3. In Bits per second choose “ 9600 ” and in Flow control choose “ None ”。 Company Confidential Planar_______________________ Delta____________ 2006/08/10...
  • Page 8 Rev. 00 Step4. Click the File and choose Properties to setting Keyboard parameter。 Step5. In Setting page , choose Emulation type for your keyboard. Company Confidential Planar_______________________ Delta____________ 2006/08/10...
  • Page 9 Rev. 00 Step6. Click ASCII Setting icon to setup ASCII code parameter. Step7. Mark Send Line ends with line feeds and Echo typed characters locally and click OK bottom to complete setting. Company Confidential Planar_______________________ Delta____________ 2006/08/10...
