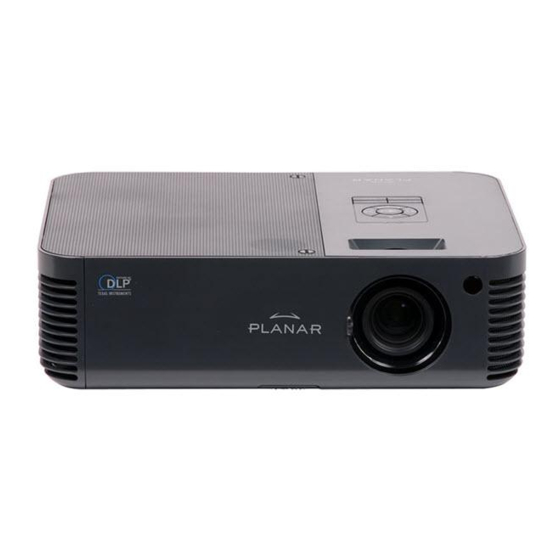

Summary of Contents for Planar Planar PR Line PR5022

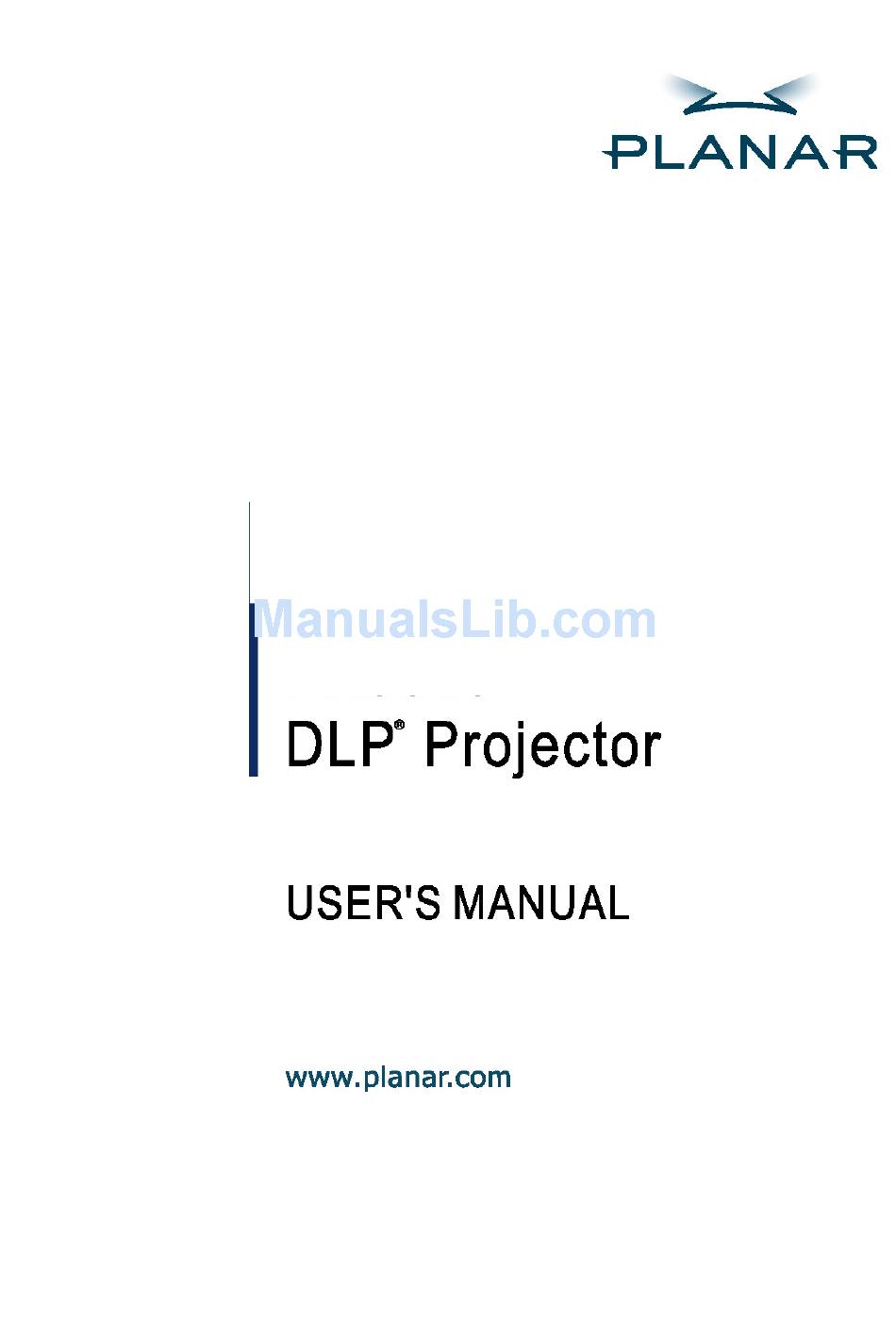

- Page 1 PR5022...
- Page 2 Planar Systems, Inc. Corporate Headquarters 1195 NW Compton Drive Beaverton, OR 97006-1992 Planar Customer Support Telephone: US: 1-866-PLANAR1 (866) 752-6271 Outside US: (503) 748-5799 E-mail: PlanarSupport@planar.com Online Technical Library: http://www.planar.com/support 24/7 Technical Support – i –...
- Page 3 User’s Manual Copyright This publication, including all photographs, illustrations and software, is protected under international copy- right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. ©...
- Page 4 Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
- Page 5 Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on page 37. Allow the lamp to cool for about one hour. Regulatory Warnings Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance” sec- tion on page 46. Symbol Explanations DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment.
- Page 6 Input source automatically detected Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, reg- ister your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...
-
Page 7: Table Of Contents
® Projector – User’s Manual GETTING STARTED... 1 ... 1 ACKING HECKLIST ... 2 IEWS OF ROJECTOR ARTS Front-right View ... 2 Top view—On-screen Display (OSD) buttons and LEDs... 3 Rear view... 5 Bottom view... 6 ... 7 EMOTE ONTROL... - Page 8 ... 44 IMING ABLE ... 45 ROJECTOR IMENSIONS REGULATORY COMPLIANCE... 46 FCC W ... 46 ARNING ... 46 ANADA ... 46 AFETY ERTIFICATIONS EN 55022 W ... 46 ARNING – vii – Preface...
-
Page 9: Getting Started
Packing Checklist Carefully unpack the projector and check that the following items are included: Power cord Audio cable (mini jack-to-mini jack) Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. Caution: Avoid using the projector in dusty environments. -
Page 10: Views Of Projector Parts
® Projector – User’s Manual Views of Projector Parts Front-right View Item Label Focus Lens zoom Screws See “Top view—OSD buttons and LEDs” Front IR receiver Lens Lens cover Description Focuses the projected image Enlarges the projected image Holds lamp to projector Receiver for IR signal from remote control Slide lens cap before use. -
Page 11: Top View-On-Screen Display (Osd) Buttons And Leds
Item Label Height-adjuster but- Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings. Top view—On-screen Display (OSD) buttons and LEDs Item Label Keystone/ Corrects image-trapezoid (wider bottom) effect... - Page 12 Navigates and changes settings in the OSD Optimizes image size, position, and resolution Navigates and changes settings in the OSD Opens and exits the OSD Detects the input device Turns the projector on or off – 4 – See page:...
-
Page 13: Rear View
Connect an audio cable(supplied) from the computer’s audio-out connector. Audio loop-thru Connect the USB cable (supplied) from a computer Installation control Connect the power cord (supplied) Secure to permanent object with a Kensington® Lock system – 5 – ® Projector – User’s Manual See page:... -
Page 14: Bottom View
Height adjuster but- Height adjuster Tilt adjuster Description Contact your dealer for information on mount- ing the projector on a ceiling. Push to release height adjuster Adjuster drops down when adjuster button is pushed Adjust angle of the picture – 6 –... -
Page 15: Remote Control Parts
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective sur- faces such as projector screens. -
Page 16: Remote Control Operating Range
Power Note: The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only. Description Adjusts volume Mutes the built-in speaker... -
Page 17: Projector And Remote Control Buttons
Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer. -
Page 18: Setup And Operation
Replace the cover. Caution: 1. Only use AAA batteries. (Alkaline is better) 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the batteries when not using the projector for prolonged periods. Setup and Operation – 10 –... -
Page 19: Connecting Input Devices
Connecting Input Devices A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector. - Page 20 Projector – User’s Manual Item Label RS-232 Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections. Description Connect the supplied USB cable (supplied) from a computer for USB mouse function and firmware upgrades.
-
Page 21: Starting And Shutting Down The Projector
Source button repeatedly to switch among devices. (DVD and HDTV are supported through the VGA connector.) To turn off the projector, press the Power button. The projector prepares for shut- down and a “Wait a moment please…” message appears. - Page 22 Power button. The projector turns off. Turn off the main Power switch when the Ready LED stops flashing. Caution: Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled down. – 14 –...
-
Page 23: Setting An Access Password (Security Lock)
OSD menus.) Important: Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password. Press the Menu button to open the OSD menu. - Page 24 ® Projector – User’s Manual Every time you start the projector, a password dialog box appears. Enter the password in the order you set it at step 6. (Press the Menu button to cancel if you enter the wrong password.)
-
Page 25: Adjusting The Projector Level
Position the projector so that it is perpendicular to the screen. • Be sure cables are not in the way or can cause the projector to be knocked over. To raise the level of the projector, lift the projector [A] and press the height- adjuster button [B]. -
Page 26: Adjusting The Zoom, Focus And Keystone
® Projector – User’s Manual Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the pro- jected image and screen size. Use the Image-focus control (on the projector only) to sharpen the projected image... - Page 27 ® Projector – User’s Manual Press the Mute button to turn off the volume. (For remote only) – 19 –...
-
Page 28: On-Screen Display (Osd) Menu Settings
The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the re- mote control and on the projector. -
Page 29: Setting The Osd Language
Setting the OSD Language You may want to reference the OSD on your projector while reading this section. Set the OSD lan- guage to your preference before continuing. (The default language is English.) 1. Press the Menu button. The Main menu appears. -
Page 30: Osd Menu Overview
® Projector – User’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. – 22 –... -
Page 31: Main Menu
(Range: button to adjust the video tint/hue. (Range: 0 – button to adjust the gamma correction of the Gamma – 23 – ® Projector – User’s Manual button to move to the Main to change Data source: Video source:... -
Page 32: Main Menu Functions Available For Connected Source
® Projector – User’s Manual Item Color Space Press the cursor (Range: Auto – RGB – YPbPr- YCbCr) Reset Resets all Main settings to default values Main Menu Functions Available for Connected Source Function Brightness Contrast Sharpness Color Temp Color Saturation... -
Page 33: Setup Menu
(Range: button to correct distortion of the projected im- button to toggle between the 4:3 standard format Component Video – 25 – ® Projector – User’s Manual button to move to the Setup to change Composite Video S-video Default —... -
Page 34: Advance Feature
® Projector – User’s Manual Function Reset x = available to video source Advance Feature Press the Menu button to open the OSD menu. Press move to the Advance Feature menu and then press Enter or the Advance Feature menu. Press confirm the new setting. - Page 35 Press Enter or Note: If Security Lock is enabled, you must enter the password every time the projector is turned on. How- ever, if the projector is already turned on, Security Lock can be disabled without knowing the current password.
-
Page 36: User Color
® Projector – User’s Manual User Color Press the Menu button to open the OSD menu. Press move to the Advance Feature menu and then press Enter or Color menu and then press Enter or to change values for settings, and then press Enter or... -
Page 37: Config Menu
OSD on screen. button to determine the timeout delay of the button to set menu screen translucency. – 29 – ® Projector – User’s Manual button to move to the Config to change Default Blue Center... -
Page 38: Utility Menu
® Projector – User’s Manual Utility Menu Press the Menu button to open the Main menu. Press the cursor menu. Press the cursor values for settings, and then press Enter or Item Video Type Press the cursor dard (Range: Auto – NTSC – PAL – SECAM) -
Page 39: Utility Menu Functions Available For Connected Source
Digital Zoom Reset x = available to video source Description . The Zoom menu appears. to zoom in; press to zoom out. Press Enter Component Video – 31 – ® Projector – User’s Manual Default — — Composite Video S-video... -
Page 40: Tool Menu
® Projector – User’s Manual Tool Menu Press the Menu button to open the Main menu. Press the cursor menu. Press the cursor firm the new setting. Item Language Press the cursor guage Remote control test Follow on-screen prompts to carry out the remote control test. You are returned to the Tool menu at the end or by pressing the Menu but- ton. -
Page 41: Status Menu
Projection Lamp” on page 34. button to move up and down in the Status menu. Description button to choose the lamp mode. – 33 – ® Projector – User’s Manual button to move to the Status Default These items are display only. -
Page 42: Maintenance And Security
2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life. Warning: Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn. - Page 43 Open the lamp com- partment cover (B). Remove the two screws from the lamp module (C). Lift the module handle up (D). ® Projector – User’s Manual – 35 –...
- Page 44 ® Projector – User’s Manual Pull firmly on the module handle to re- move the lamp module Reverse steps 1 to 5 to install the new lamp module. – 36 –...
-
Page 45: Resetting The Lamp
Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn. -
Page 46: Cleaning The Case
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners. Using the Kensington® Lock If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. -
Page 47: Troubleshooting
Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose con- nection. -
Page 48: Led Error Messages
Problem: The image is wider at the top or bottom (trapezoid effect) 1. Position the projector so it is as perpendicular to the screen as possible. 2. Use the Keystone button on the remote control or projector to correct the problem. Problem: The image is reversed or upside down Check the Projection setting on the Utility menu of the OSD. -
Page 49: Lamp Problems
2. Ensure the power source is good by testing with another electrical device. 3. Restart the projector in the correct order and check that the Power LED is green. 4. If you have replaced the lamp recently, try resetting the lamp connections. -
Page 50: Specifications
Input/output connectors Data in Data out Video Audio in Audio out Control Security Specifications DVI-D RGB HD-15 RGB HD-15 Composite video (RCAx1) S-video Stereo RCAx2 (L+R) Stereo Mini-jack Stereo Mini-jack RS-232 Kensington lock – 42 –... -
Page 51: Projection Distance V.s. Projection Size
3.11 m 2.33 m 122.48 '' 91.86 '' 3.89 m 2.92 m 153.11 '' 114.83 '' – 43 – ® Projector – User’s Manual Max. Screen Size (Tele) Width Height Diagonal 0.60 m 0.48 m 0.36 m 23.43 '' 18.75 '' 14.06 ''... -
Page 52: Timing Mode Table
6.94 m 32.80 ' 273.40 '' Shaded rows are equivalent measurement in feet and inches Timing Mode Table The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector. Signal Resolution NTSC... -
Page 53: P Rojector D Imensions
® Projector – User’s Manual The native resolution is 1024 x 768. Resolution other than native mode may be displayed with uneven size of text or lines. UXGA resolution with half-sampling Projector Dimensions 300 mm(11.8") – 45 –... -
Page 54: Regulatory Compliance
FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica- tions. - Page 55 Online Technical Library: http://www.planar.com/support 24/7 Technical Support © 2007 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice...
