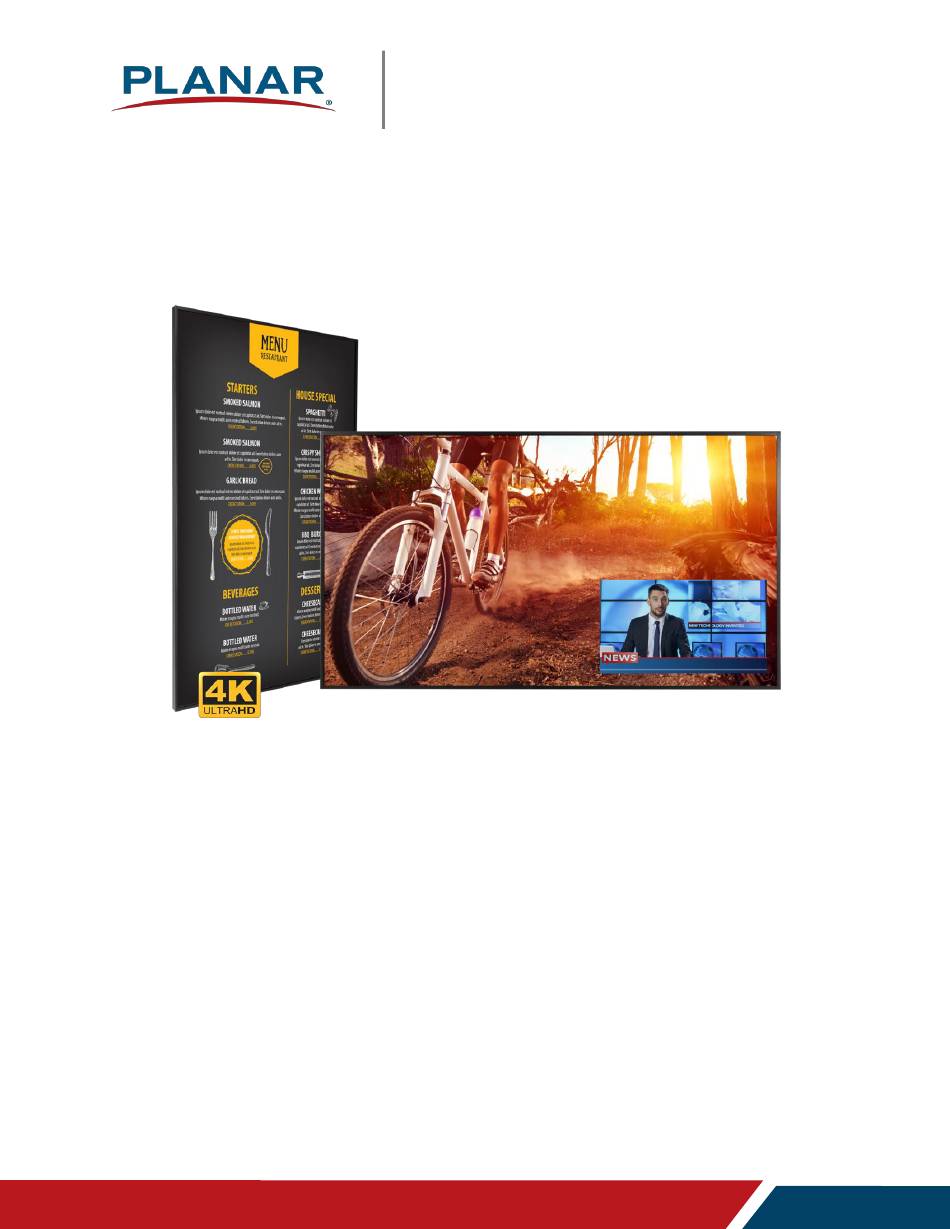

- Page 1 User Manual Planar UltraRes P Series RS232 URP49 | URP49-T URP55 | URP55-T URP65 | URP65-T URP75 | URP75-ERO-T URP85 | URP85-ERO-T URP98 | URP98-ERO-T Planar UltraRes P Series RS232 User Manual Page | 1 020-1408-02A...
- Page 2 When you purchase a Planar product, you get more than a display; you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support...
-
Page 3: Table Of Contents
Key ........................52 Timezone ......................54 Sending Serial Commands via USB (URP75 / URP85 / URP98) ........62 Installing the Planar UltraRes P Series USB drivers .........62 Using the Planar UltraRes P Series USB Connection ........68 Sending RS232 Commands Via Ethernet ................69 Sending RS232 Commands Via SSH (URP49 / URP55 / URP65) ....71... -
Page 4: Rs232 Communication
RS232 Communication ® RS232 control is not necessary for operation, but is a convenient way to control Planar UltraRes P™ Series displays from a computer at a distance. Most things you can do with the remote, you can do with RS232 commands. Plus, you can send inquiries to the displays and find out the current settings and values. -
Page 5: Connecting The Rs232 Cable
Connecting the RS232 Cable The Female DB9 connector is wired as a Straight Through serial connection. URP49 / URP55 / URP65 URP75 / URP85 / URP98 Pin # Signal Planar UltraRes P Series RS232 User Manual Page | 5 020-1408-02A... -
Page 6: Rs232 Command Protocol
• Note that enumerated and integer values can be written either in decimal or hexadecimal. For example, a decimal value of ‘50’ can be written in hexadecimal as ‘0x32’. Planar UltraRes P Series RS232 User Manual Page | 6 020-1408-02A... -
Page 7: Protocol Encoding
Example command with multiple modifiers, multiple operators and different separators between the modifiers and operators (sets Red Gain to 104, Green Gain to 105 and Blue Gain to 106, on Zone 1) Planar UltraRes P Series RS232 User Manual Page | 7 020-1408-02A... - Page 8 Name containing “ and \ and \\” and \\” power.on.delay = .1 POWER.ON.DELAY:0.1 Example of a fixed point operand. Sets the Power On Delay to 0.1 seconds. Planar UltraRes P Series RS232 User Manual Page | 8 020-1408-02A...
-
Page 9: Rs232 Codes
ASPECT=AUTO • ‘!’ in the Operators column indicates that the command accepts the execute operator, which uses no operator symbol. The ‘!’ symbol is not included in the command. Planar UltraRes P Series RS232 User Manual Page | 9 020-1408-02A... - Page 10 7 = CYAN.Y 8 = MAGENTA.X 9 = MAGENTA.Y 10 = YELLOW.X 11 = YELLOW.Y 12 = WHITE.X 13 = WHITE.Y [None = Set all 14 values at once] Planar UltraRes P Series RS232 User Manual Page | 10 020-1408-02A...
- Page 11 Allow Pop OSD.ALLOW. 1300 =?+- 0 = NO OSD.ALLOW.POPUP=YES See Main -> Advanced POPUP 1 = YES OSD.ALLOW.POPUP:YES Settings -> Menus and Messages Messages -> Allow Pop Up Messages. Planar UltraRes P Series RS232 User Manual Page | 11 020-1408-02A...
- Page 12 URP55 / URP65. Audio AUDIO.ZONE 1007 =?+- Zone AUDIO.ZONE=ZONE.1 See Main -> Audio -> Select 0 = ZONE.1 AUDIO.ZONE:ZONE.1 Audio Select. 1 = ZONE.2 2 = ZONE.3 3 = ZONE.4 Planar UltraRes P Series RS232 User Manual Page | 12 020-1408-02A...
- Page 13 SOURCE.SCAN=ON See Main -> Inputs and Sources 1 = ON SOURCE.SCAN:ON Views -> Auto Scan 2 = FAILOVER Sources. FAILOVER is available only on URP49 / URP55 / URP65. Planar UltraRes P Series RS232 User Manual Page | 13 020-1408-02A...
- Page 14 3 = ZONE.4 [For the current zone] only on URP75 / URP85 / 253 = ALL.INPUT BRIGHTNESS=55 URP98. 254 = ALL BRIGHTNESS:55 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Planar UltraRes P Series RS232 User Manual Page | 14 020-1408-02A...
- Page 15 3 = ZONE.4 [For the current zone] only on URP75 / URP85. 253 = ALL.INPUT COLOR=55 254 = ALL COLOR:55 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Planar UltraRes P Series RS232 User Manual Page | 15 020-1408-02A...
- Page 16 1 = ZONE.2 2 = RGB SETTING)=REC709 See Main -> Image Adjust 2 = ZONE.3 3 = RGB.VIDEO COLORSPACE(ZONE.1 -> Color Space. 3 = ZONE.4 4 = AUTO SETTING):REC709 Planar UltraRes P Series RS232 User Manual Page | 16 020-1408-02A...
- Page 17 6500K only on URP75 / URP85 / 253 = ALL.INPUT 5 = NATIVE URP98. 254 = ALL [For the current zone] 254 = ALL.ZONE COLOR.TEMPERATURE=NATIVE 255 = CURRENT COLOR.TEMPERATURE=NATIVE Planar UltraRes P Series RS232 User Manual Page | 17 020-1408-02A...
- Page 18 [None = CURRENT] Current CURRENT. =?+- Zone CURRENT.ZONE=ZONE.1 See Main -> Image Adjust Zone ZONE 0 = ZONE.1 CURRENT.ZONE:ZONE.1 -> Current Zone. 1 = ZONE.2 2 = ZONE.3 3 = ZONE.4 Planar UltraRes P Series RS232 User Manual Page | 18 020-1408-02A...
- Page 19 22 = T.B.1 23 = T.B.2 24 = T.B.3 25 = T.M.1 26 = T.M.2 27 = T.M.3 28 = Q.1 29 = Q.2 30 = Q.3 31 = Q.4 Planar UltraRes P Series RS232 User Manual Page | 19 020-1408-02A...
- Page 20 Remote Monitoring Software pages. Display DISPLAY. 1408 =?+- 0 = OFF DISPLAY.POWER=ON See the IR remote control Power POWER 1 = ON DISPLAY.POWER:ON keys ON and OFF. Planar UltraRes P Series RS232 User Manual Page | 20 020-1408-02A...
- Page 21 [None = Current (for value] Settings -> Network -> reads only] NETWORK.DNS1? DNS Server. [None = STATIC (for NETWORK.DNS1:"172.16.0.140" writes only] [Write the DNS server 1 for static IP] NETWORK.DNS1(STATIC)="8.8.8.8 " NETWORK.DNS1(STATIC):"8.8.8.8" Planar UltraRes P Series RS232 User Manual Page | 21 020-1408-02A...
- Page 22 8 = HSYNC Mod 1 DP.2 is available 9 = VBLANK only on URP49 / URP55 / 10 = VFP URP65. 11 = VSYNC 12 = FACTORY 13 = TYPE Planar UltraRes P Series RS232 User Manual Page | 22 020-1408-02A...
- Page 23 Lists any faults that have occurred in the system. Entry #1 is the most recent. An empty string returned means that there are no more error log entries after that entry. Planar UltraRes P Series RS232 User Manual Page | 23 020-1408-02A...
- Page 24 START)@ACK URP98 Mod 1: Firmware 0 = AUTO 1 = VP.AP 2 = HDMI Mod 2: Type 0 = START 1 = PACKET 2 = FINISH 3 = URL Planar UltraRes P Series RS232 User Manual Page | 24 020-1408-02A...
- Page 25 Mod 2: Color Zone selection modifier is 0 = RED available only on URP75 / 1 = GREEN URP85 / URP98. 2 = BLUE 255 = ALL [None = ALL] Planar UltraRes P Series RS232 User Manual Page | 25 020-1408-02A...
- Page 26 Used to enable or disable URP65 CEC.ENABLE:DISABLE support for HDMI CEC 0 = OFF commands. 1 = ON URP75 / URP85 / URP98 0 = DISABLE 1 = ENABLE Planar UltraRes P Series RS232 User Manual Page | 26 020-1408-02A...
- Page 27 Operand #1: Unsigned following command: Integer\ HELP(FIRST)? DISABLE 0\ ENABLE 1\ Then enter the following command continuously until it returns NAK: HELP(NEXT)? FALSE TRUE " Planar UltraRes P Series RS232 User Manual Page | 27 020-1408-02A...
- Page 28 3 = HTOTAL 4 = VTOTAL 5 = VREFRESH 6 = HREFRESH 7 = INTERLACE 8 = VFIELDRATE 9 = VREFRESH.X. 10 = COLORDEPTH 11 = TMDS [None = ALL] Planar UltraRes P Series RS232 User Manual Page | 28 020-1408-02A...
- Page 29 Settings -> IR Remote ID Code. IR Remote IR.LOCK 1202 =? 0 = DISABLE IR.LOCK=ENABLE See Menu -> Advanced Lock 1 = ENABLE IR.LOCK:ENABLE Settings -> System Settings -> IR Remote Lock. Planar UltraRes P Series RS232 User Manual Page | 29 020-1408-02A...
- Page 30 3 = SPANISH See Main -> Advanced 4 = ITALIAN Settings -> Menus and 5 = CHINESE. Messages -> Language SIMPLIFIED 6 = CHINESE. TRADITIONAL 7 = PORTUGUESE 8 = JAPANESE Planar UltraRes P Series RS232 User Manual Page | 30 020-1408-02A...
- Page 31 Model MODEL.SERIES 2316 ? String MODEL.SERIES? Always returns "UltraRes Series MODEL.SERIES:"UltraRes P" P" for this product. Other products using this protocol will have a different response for this command. Planar UltraRes P Series RS232 User Manual Page | 31 020-1408-02A...
- Page 32 0 = ZONE.1 SOURCE.NEXT(ZONE.1) keys ZONE 1/2/3/4. 1 = ZONE.2 SOURCE.NEXT(ZONE.1)@ACK 2 = ZONE.3 3 = ZONE.4 [For the current zone] 254 = ALL SOURCE.NEXT 255 = CURRENT SOURCE.NEXT@ACK Planar UltraRes P Series RS232 User Manual Page | 32 020-1408-02A...
- Page 33 4 = SOURCE. URP98. SELECTED NETWORK. 1214 =? String NETWORK.NTPSERVER="pool.ntp. Selects the NTP server to Server NTPSERVER org" be used with the Use NETWORK.NTPSERVER:"pool.ntp. Network Time setting. org" Default = "0.pool.ntp.org". Planar UltraRes P Series RS232 User Manual Page | 33 020-1408-02A...
- Page 34 OSD.STATUS 1308 ? 0 = DISABLE OSD.STATUS? Indicates whether the Status 1 = ENABLE OSD.STATUS=ENABLE OSD (menu, message box or confirmation dialog) is currently being shown on the display. Planar UltraRes P Series RS232 User Manual Page | 34 020-1408-02A...
- Page 35 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Phase PHASE 5002 =?+- 0-100 PHASE=50 URP49 / URP55 / URP65 PHASE:50 only See Main -> Image Adjust -> Phase Planar UltraRes P Series RS232 User Manual Page | 35 020-1408-02A...
- Page 36 Power POWER.SAVE. 1405 =?+- 0 = Disable POWER.SAVE.MODE=Power.Down See Main -> Advanced Saving MODE 1 = Power.Down Settings -> Power -> Mode 2 = Wake.On.Signal POWER.SAVE.MODE=1 Power Saving Mode. Planar UltraRes P Series RS232 User Manual Page | 36 020-1408-02A...
- Page 37 URP49 / URP55 / 0 = NO PRESET.FULL(4)? Indicates whether data URP65 1 = YES PRESET.FULL(4)=YES has been saved in the 1-60 selected preset. URP75 / URP85 / URP98 Preset Number 1-1000 Planar UltraRes P Series RS232 User Manual Page | 37 020-1408-02A...
- Page 38 Preset Max PRESET.MAX 2007 ? Unsigned Integer PRESET.MAX? Displays the number of PRESET.MAX:34 the highest saved preset. Planar UltraRes P Series RS232 User Manual Page | 38 020-1408-02A...
- Page 39 100. On URP49 / URP55 / URP65, preset numbers must be from 1-60. Reboot SYSTEM. 2402 ! SYSTEM.REBOOT Forces the system to REBOOT SYSTEM.REBOOT@ACK restart. Planar UltraRes P Series RS232 User Manual Page | 39 020-1408-02A...
- Page 40 2314 ! Location SAVE.DIAGNOSTICS(USB) URP75 / URP85 / URP98 Diagnostics DIAGNOSTICS 0 = USB SAVE.DIAGNOSTICS(USB)@ACK only See Main -> Advanced Settings -> System Settings -> Save Diagnostics to USB. Planar UltraRes P Series RS232 User Manual Page | 40 020-1408-02A...
- Page 41 See Main -> Advanced Frequency FREQUENCY 1-20 1 = WEEKLY Daily] Settings -> Schedule -> 2 = WEEKDAYS SCHEDULE.FREQUENCY(3)= Set Event 1-20 -> 3 = WEEKENDS DAILY Frequency. SCHEDULE.FREQUENCY(3):DAILY Planar UltraRes P Series RS232 User Manual Page | 41 020-1408-02A...
- Page 42 0 = OFF SMART.LIGHT=LIGHT.SENSOR URP49 / URP55 / URP65 Control 1 = DCR SMART.LIGHT:LIGHT.SENSOR only 2 = LIGHT.SENSOR See Main -> Advanced Settings -> Panel Brightness -> Smart Light Control Planar UltraRes P Series RS232 User Manual Page | 42 020-1408-02A...
- Page 43 Password SMTP. "mypassword" Software -> Notifications PASSWORD NETWORK.SMTP.PASSWORD: -> Password. "mypassword" SMTP Port NETWORK. 1223 =? Unsigned Integer NETWORK.SMTP.PORT=465 See Remote Monitoring SMTP.PORT NETWORK.SMTP.PORT:465 Software -> Notifications -> Port. Planar UltraRes P Series RS232 User Manual Page | 43 020-1408-02A...
- Page 44 URP49 / URP55 / URP65. Splash SPLASH. 1305 =?+- 0 = DISABLE SPLASH.SCREEN=ENABLE See Main -> Advanced Screen SCREEN 1 = ENABLE SPLASH.SCREEN:ENABLE Settings -> Menus and Messages -> Allow Splash Screen. Planar UltraRes P Series RS232 User Manual Page | 44 020-1408-02A...
- Page 45 - FAULT: A system failure has occurred. Use the Error Log command to get more information. Operands FAULT and BACKLIGHT.OFF available only on URP75 / URP85 / URP98. Planar UltraRes P Series RS232 User Manual Page | 45 020-1408-02A...
- Page 46 See Main -> Advanced 1 = MONTH TIME(MONTH)=3 Settings -> Schedule -> 2 = DATE TIME(MONTH):3 Set Date and Time. 3 = HOUR 4 = MINUTE [None = ALL] Planar UltraRes P Series RS232 User Manual Page | 46 020-1408-02A...
- Page 47 [See separate table] TIMEZONE=UTCM0800.PACIFIC. See Main -> Advanced TIME.US.CANADA Settings -> Schedule -> TIMEZONE:UTCM0800.PACIFIC. Set Date and Time -> TIME.US.CANADA Time Zone. See table on page 54 for valid values. Planar UltraRes P Series RS232 User Manual Page | 47 020-1408-02A...
- Page 48 NETWORK.NTP 1209 =? 0 = OFF NETWORK.NTP=ON See Main -> Advanced Network 1 = ON NETWORK.NTP:ON Settings -> Schedule -> Time Set Date and Time -> Use Network Time. Planar UltraRes P Series RS232 User Manual Page | 48 020-1408-02A...
- Page 49 2 = HEIGHT WALL(WIDTH):4 3 = COLUMN See Main -> Advanced 4 = ROW Settings -> Tiling. 5 = FRAME. ENABLE 6 = FRAME. WIDTH 7 = FRAME. HEIGHT Planar UltraRes P Series RS232 User Manual Page | 49 020-1408-02A...
- Page 50 Command Code Modifiers Example Notes PASSWORD.SET=”123456” Web UI PASSWORD.SET 2405 =?+- String URP75 / URP85 / URP98 Password only Used to set the Admin password for the Web UI. Planar UltraRes P Series RS232 User Manual Page | 50 020-1408-02A...
-
Page 51: Current Zone Layout
Zone 1 T.M.2 Triple View Side-by-Side Zone 2 T.M.3 Triple View Side-by-Side Zone 3 Quad View Zone 1 Quad View Zone 2 Quad View Zone 3 Quad View Zone 4 Planar UltraRes P Series RS232 User Manual Page | 51 020-1408-02A... -
Page 52: Key
PRESETS Opens the Presets Menu PRESET1 PRESET 1 Applies Preset 1 PRESET2 PRESET 2 Applies Preset 2 PRESET3 PRESET 3 Applies Preset 3 PRESET4 PRESET 4 Applies Preset 4 Planar UltraRes P Series RS232 User Manual Page | 52 020-1408-02A... - Page 53 Opens the Image Information Menu ◄ ARROW.LEFT Not used ► ARROW.RIGHT Not used STAR.STAR Not used * URP75 / URP85 / URP98 only ** URP49 / URP55 / URP65 only Planar UltraRes P Series RS232 User Manual Page | 53 020-1408-02A...
-
Page 54: Timezone
(UTC-04:00) Atlantic Time (Canada) UTCM0400.MANAUS (UTC-04:00) Manaus UTCM0400.SANTIAGO (UTC-04:00) Santiago UTCM0330.NEWFOUNDLAND (UTC-03:30) Newfoundland UTCM0300.BRASILIA (UTC-03:00) Brasilia UTCM0300.BUENOS.AIRES (UTC-03:00) Buenos Aires UTCM0300.GREENLAND (UTC-03:00) Greenland UTCM0300.MONTEVIDEO (UTC-03:00) Montevideo UTCM0200.MID.ATLANTIC (UTC-02:00.MID) Atlantic UTCM0100.AZORES (UTC-01:00) Azores Planar UltraRes P Series RS232 User Manual Page | 54 020-1408-02A... - Page 55 (UTC+03:00) Moscow UTCP0300.KUWAIT (UTC+03:00) Kuwait UTCP0300.NAIROBI (UTC+03:00) Nairobi UTCP0330.TEHRAN (UTC+03:30) Tehran UTCP0400.BAKU (UTC+04:00) Baku UTCP0400.TBILISI (UTC+04:00) Tbilisi UTCP0400.YEREVAN (UTC+04:00) Yerevan UTCP0400.DUBAI (UTC+04:00) Dubai UTCP0430.KABUL (UTC+04:30) Kabul UTCP0500.ISLAMABAD.KARACHI (UTC+05:00) Islamabad, Karachi Planar UltraRes P Series RS232 User Manual Page | 55 020-1408-02A...
- Page 56 UTCP0930.ADELAIDE (UTC+09:30) Adelaide UTCP0930.DARWIN (UTC+09:30) Darwin UTCP1000.BRISBANE (UTC+10:00) Brisbane UTCP1000.HOBART (UTC+10:00) Hobart UTCP1000.SYDNEY.CANBERRA (UTC+10:00) Sydney, Canberra UTCP1000.VLADIVOSTOK (UTC+10:00) Vladivostok UTCP1000.GUAM (UTC+10:00) Guam UTCP1100.MAGADAN (UTC+11:00) Magadan UTCP1200.MARSHALL.ISLANDS (UTC+12:00) Marshall Islands Planar UltraRes P Series RS232 User Manual Page | 56 020-1408-02A...
- Page 57 (UTC-05:00) Bogota, Lima, Quito UTCM0500.CHETUMAL (UTC-05:00) Chetumal UTCM0500.EASTERN.TIME.US.CANADA (UTC-05:00) Eastern Time (US and Canada) UTCM0500.INDIANA.EAST (UTC-05:00) Indiana (East) UTCM0430.CARACAS (UTC-04:30) Caracas UTCM0400.ASUNCION (UTC-04:00) Asuncion UTCM0400.ATLANTIC.TIME.CANADA (UTC-04:00) Atlantic Time (Canada) Planar UltraRes P Series RS232 User Manual Page | 57 020-1408-02A...
- Page 58 UTCP0100.BELGRADE.BRATISLAVA.BUDAPEST. (UTC+01:00) Belgrade, Bratislava, Budapest, LJUBLJANA.PRAGUE Ljubljana, Prague UTCP0100.BRUSSELS.COPENHAGEN.MADRID. (UTC+01:00) Brussels, Copenhagen, Madrid, PARIS Paris UTCP0100.SARAJEVO.SKOPJE.WARSAW.ZAGREB (UTC+01:00) Sarajevo, Skopje, Warsaw, Zagreb UTCP0100.WEST.CENTRAL.AFRICA (UTC+01:00) West Central Africa UTCP0100.WINDHOEK (UTC+01:00) Windhoek Planar UltraRes P Series RS232 User Manual Page | 58 020-1408-02A...
- Page 59 (UTC+04:00) Abu Dhabi, Muscat UTCP0400.BAKU (UTC+04:00) Baku UTCP0400.IZHEVSK.SAMARA.RTZ.3 (UTC+04:00) Izhevsk, Samara (RTZ 3) UTCP0400.PORT.LOUIS (UTC+04:00) Port Louis UTCP0400.TBILISI (UTC+04:00) Tbilisi UTCP0400.YEREVAN (UTC+04:00) Yerevan UTCP0430.KABUL (UTC+04:30) Kabul UTCP0500.ASHGABAT.TASHKENT (UTC+05:00) Tashkent Planar UltraRes P Series RS232 User Manual Page | 59 020-1408-02A...
- Page 60 (UTC+09:00) Osaka, Sapporo, Tokyo UTCP0900.SEOUL (UTC+09:00) Seoul UTCP0900.YAKUTSK.RTZ.8 (UTC+09:00) Yakutsk (RTZ 8) UTCP0930.ADELAIDE (UTC+09:30) Adelaide UTCP0930.DARWIN (UTC+09:30) Darwin UTCP1000.BRISBANE (UTC+10:00) Brisbane UTCP1000.CANBERRA.MELBOURNE.SYDNEY (UTC+10:00) Canberra, Melbourne, Sydney UTCP1000.GUAM.PORT.MORESBY (UTC+10:00) Guam, Port Moresby Planar UltraRes P Series RS232 User Manual Page | 60 020-1408-02A...
- Page 61 (UTC+12:00) Anadyr, Petropavlovsk- KAMCHATSKY.RTZ.11 Kamchatsky (RTZ 11) UTCP1200.AUCKLAND.WELLINGTON (UTC+12:00) Auckland, Wellington UTCP1200.COORDINATED.UNIVERSAL.TIMEP12 (UTC+12:00) Coordinated Universal Time +12 UTCP1200.FIJI (UTC+12:00) Fiji UTCP1300.NUKU.ALOFA (UTC+13:00) Nuku'alofa UTCP1300.SAMOA (UTC+13:00) Samoa UTCP1400.KIRITIMATI.ISLAND (UTC+14:00) Kiritimati Island Planar UltraRes P Series RS232 User Manual Page | 61 020-1408-02A...
-
Page 62: Sending Serial Commands Via Usb (Urp75 / Urp85 / Urp98)
If you’re unsure whether your machine is 32-bit or 64-bit, try both installation programs. If the selected program is for a different architecture, the installer will inform you to use the other installation program. 1. When the Planar USB Driver Installer page opens, click “Next”. Planar UltraRes P Series RS232 User Manual Page | 62... - Page 63 2. The USB drivers will be automatically installed. 3. When the installation completes, click “Finish”. The USB driver installation process is now complete. Planar UltraRes P Series RS232 User Manual Page | 63 020-1408-02A...
- Page 64 USB drivers, which can be downloaded from www.planar.com/support. 1. Plug in the USB cable to your computer and to the Planar UltraRes P Series panel. 2. Windows will detect the new hardware and attempt to install the drivers on its own. If you do not see the “Installing device driver software”...
- Page 65 5. Open the Start menu and select “Control Panel”. 6. Select Hardware and Sound. In the following menu, under Devices and Printers, select “Device Manager”. Planar UltraRes P Series RS232 User Manual Page | 65 020-1408-02A...
- Page 66 7. In the Device Manager, there will be a “Planar UltraRes” item in the “Other Devices” section. Right-click on Planar UltraRes and select “Update Driver Software”. 8. Follow the steps defined in the Update Driver Software wizard as follows. a. On the initial screen, select “Browse my computer for driver software”.
- Page 67 Make sure the “Include subfolders” checkbox is checked. The USB drivers can be obtained from http://www.planar.com/support. Use the “Browse” button to locate the directory where the USB drivers are located. Click “Next”. c. The Update Driver Software wizard will search the directory for the proper USB drivers and install them.
-
Page 68: Using The Planar Ultrares P Series Usb Connection
When the installation completes, click “Close”. The USB driver installation process is now complete. Using the Planar UltraRes P Series USB Connection Once the USB drivers are installed, the PC will recognize the USB-B connection as a regular serial port. The USB-B connection will appear in the COM port list of each serial terminal program. -
Page 69: Sending Rs232 Commands Via Ethernet
Notice the following in the TCP example below using Tera Term: • The IP address is 10.15.0.75 • Port 57 is selected • Service is set to “Other” to indicate that TCP is being used without Telnet or SSH Planar UltraRes P Series RS232 User Manual Page | 69 020-1408-02A... - Page 70 “444953504C41592E504F5745523D310D” in the Send box is hex for “DISPLAY.POWER=1” Note: Most UDP terminal programs won’t automatically send the [CR] at the end of the command, so the hex command is used to do this manually. Planar UltraRes P Series RS232 User Manual Page | 70 020-1408-02A...
-
Page 71: Sending Rs232 Commands Via Ssh (Urp49 / Urp55 / Urp65)
Port 22 is selected • Service is set to “SSH” • SSH version is set to “SSH2” If you entered the credentials correctly, the terminal will notify you that SSH connection succeeded. Planar UltraRes P Series RS232 User Manual Page | 71 020-1408-02A... - Page 72 Planar UltraRes P Series RS232 User Manual Page | 72 020-1408-02A...
