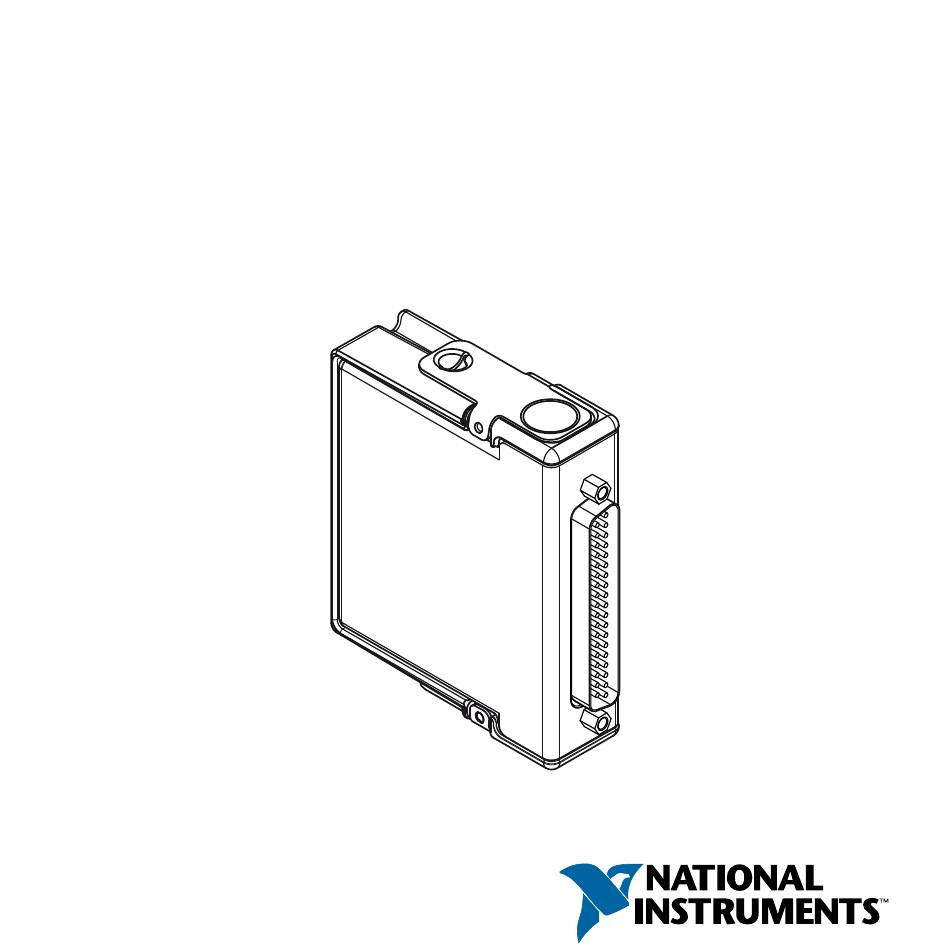

- Page 1 GETTING STARTED GUIDE NI 9262 1 MS/s/ch Simultaneous, ±10 V, 6-Channel C Series Voltage Output Module...
-
Page 2: Safety Guidelines
This document explains how to connect to the NI 9262. Before you begin, complete the software and Note hardware installation procedures in your chassis documentation. The guidelines in this document are specific to Note the NI 9262. The other components in the system might not meet the same safety ratings. -
Page 3: Safety Guidelines For Hazardous Voltages
Ensure that devices and circuits connected to Caution the module are properly insulated from human contact. When module terminals are hazardous Caution voltage LIVE (>42.4 V /60 V DC), you must ensure NI 9262 Getting Started Guide | © National Instruments | 3... - Page 4 MAINS voltage. MAINS is a hazardous live electrical supply system that powers equipment. This category is for measurements of voltages from specially protected secondary circuits. Such voltage measurements include signal levels, special 4 | ni.com | NI 9262 Getting Started Guide...
-
Page 5: Safety Guidelines For Hazardous Locations
Categories CAT II, CAT III, or CAT IV. Safety Guidelines for Hazardous Locations The NI 9262 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 Gc hazardous locations;... -
Page 6: Special Conditions For Hazardous Locations Use In Europe And Internationally
II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9262 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment. -
Page 7: Electromagnetic Compatibility Guidelines
(EMC) stated in the product specifications. These requirements and limits provide reasonable protection against harmful interference when the product is operated in the intended operational electromagnetic environment. NI 9262 Getting Started Guide | © National Instruments | 7... -
Page 8: Special Conditions For Marine Applications
Some products are Lloyd’s Register (LR) Type Approved for marine (shipboard) applications. To verify Lloyd’s Register certification for a product, visit ni.com/certification and search for the LR certificate, or look for the Lloyd’s Register mark on the product. 8 | ni.com | NI 9262 Getting Started Guide... -
Page 9: Preparing The Environment
EMC performance is attained. Preparing the Environment Ensure that the environment in which you are using the NI 9262 meets the following specifications. Operating temperature -40 °C to 70 °C... - Page 10 NI 9262 Pinout 10 | ni.com | NI 9262 Getting Started Guide...
-
Page 11: Analog Output Connections
Table 1. Signal Descriptions Signal Description Analog output signal connection Common reference connection No connection Analog Output Connections Load NI 9262 NI 9262 Getting Started Guide | © National Instruments | 11... -
Page 12: Overvoltage Protection
NI 9262 Connection Guidelines Make sure that devices you connect to the NI 9262 are compatible with the module specifications. Overvoltage Protection The NI 9262 provides overvoltage protection for each channel. Refer to the device datasheet on ni.com/manuals Note for more information about overvoltage protection. -
Page 13: Where To Go Next
NI 9262 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services ni.com/services & Resources ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software NI 9262 Getting Started Guide | © National Instruments | 13... -
Page 14: Worldwide Support And Services
(EMC) and product safety. You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. 14 | ni.com | NI 9262 Getting Started Guide... - Page 15 United States, visit the Worldwide Offices section of ni.com/niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI 9262 Getting Started Guide | © National Instruments | 15...
