GETTING STARTED GUIDE

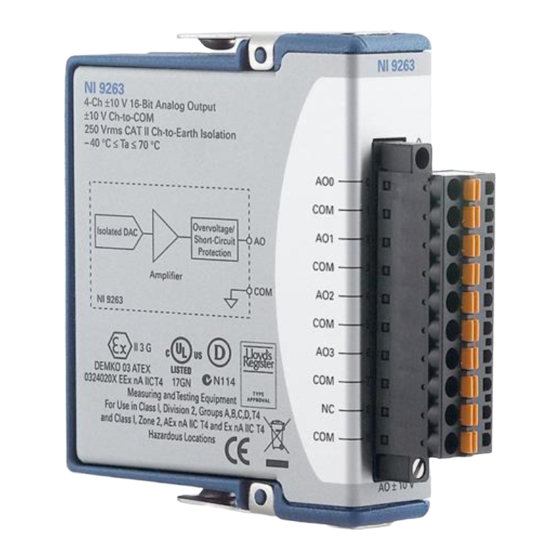

NI 9263
4 AO, ±10 V, 16 Bit, 100 kS/s/ch Simultaneous

Advertisement

Table of Contents
loading

Related Manuals for National Instruments 9263

Summary of Contents for National Instruments 9263

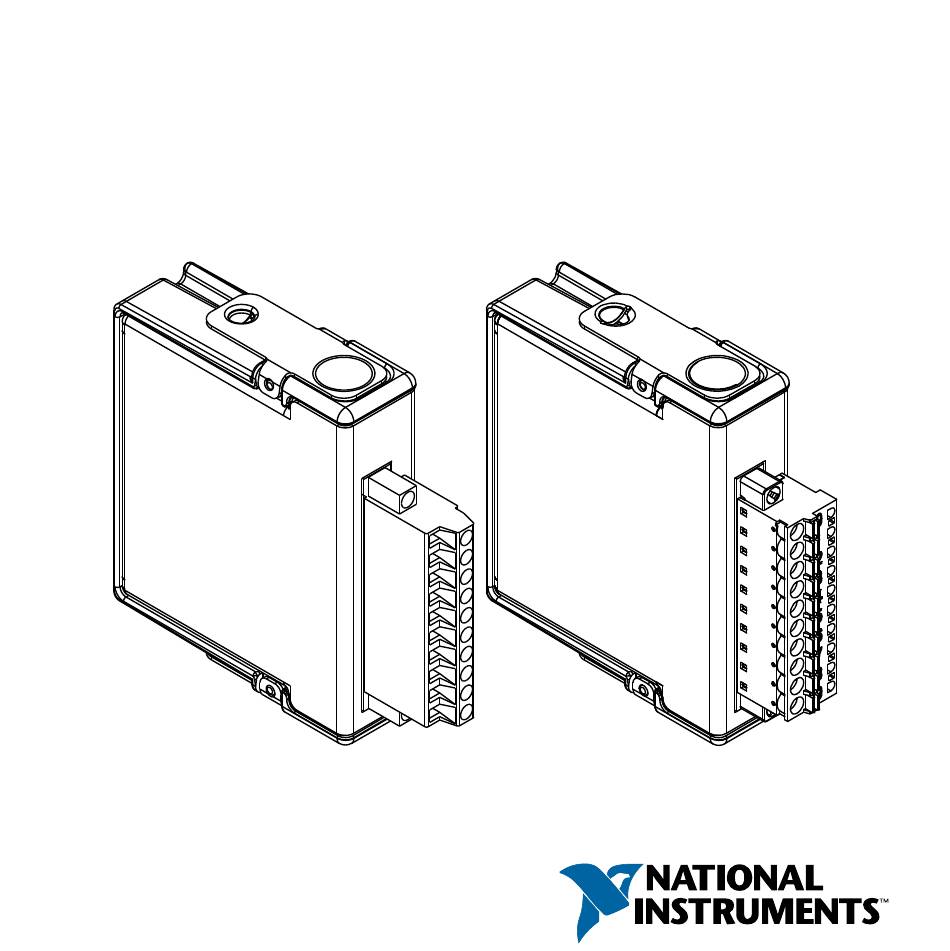

  • Page 1 GETTING STARTED GUIDE NI 9263 4 AO, ±10 V, 16 Bit, 100 kS/s/ch Simultaneous...

  • Page 2: Safety Guidelines

    This document explains how to connect to the NI 9263. In this document, the NI 9263 with screw terminal and the NI 9263 with spring terminal are referred to inclusively as the NI 9263. Before you begin, complete the software and...

  • Page 3: Safety Guidelines For Hazardous Voltages

    Ensure that devices and circuits connected to Caution the module are properly insulated from human contact. When module terminals are hazardous voltage Note LIVE (>42.4 Vpk/60 VDC), you must ensure that NI 9263 Getting Started Guide | © National Instruments | 3...

  • Page 4: Safety Voltages

    You must use the NI 9927 connector backshell kit with the NI 9263 with screw terminal and the NI 9981 connector backshell kit with the NI 9263 with spring terminal to ensure that the terminals are not accessible.
  • Page 5 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. NI 9263 Getting Started Guide | © National Instruments | 5...

  • Page 6: Safety Guidelines For Hazardous Locations

    IV. Safety Guidelines for Hazardous Locations The NI 9263 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only.
  • Page 7 Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9263 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.

  • Page 8: Electromagnetic Compatibility Guidelines

    To minimize interference with radio and television reception and prevent unacceptable performance degradation, install and use this product in strict accordance with the instructions in the product documentation. 8 | ni.com | NI 9263 Getting Started Guide...

  • Page 9: Special Conditions For Marine Applications

    In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9263 Getting Started Guide | © National Instruments | 9...

  • Page 10: Preparing The Environment

    Preparing the Environment Ensure that the environment in which you are using the NI 9263 meets the following specifications. Operating temperature -40 °C to 70 °C (IEC 60068-2-1, IEC 60068-2-2) Operating humidity 10% RH to 90% RH, (IEC 60068-2-78) noncondensing...
  • Page 11 NI 9263 Pinout NI 9263 Getting Started Guide | © National Instruments | 11...

  • Page 12: Connecting A Load

    Table 1. Signal Descriptions Signal Description Analog output signal connection Common reference connection to isolated ground No connection Connecting a Load You can connect a load to each channel of the NI 9263. 12 | ni.com | NI 9263 Getting Started Guide...

  • Page 13: High-Vibration Application Connections

    • Use ferrules to terminate wires to the detachable connector. • Use the NI 9927 backshell kit with the NI 9263 with screw terminal or the NI 9981 backshell kit with the NI 9263 with spring terminal. NI 9263 Getting Started Guide | © National Instruments | 13...

  • Page 14: Where To Go Next

    NI 9263 Datasheet NI 9263 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services ni.com/services & Resources ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software 14 | ni.com | NI 9263 Getting Started Guide...

  • Page 15: Worldwide Support And Services

    You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. NI 9263 Getting Started Guide | © National Instruments | 15...
  • Page 16 U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2004—2016 National Instruments. All rights reserved. 373781H-01 Mar16...
