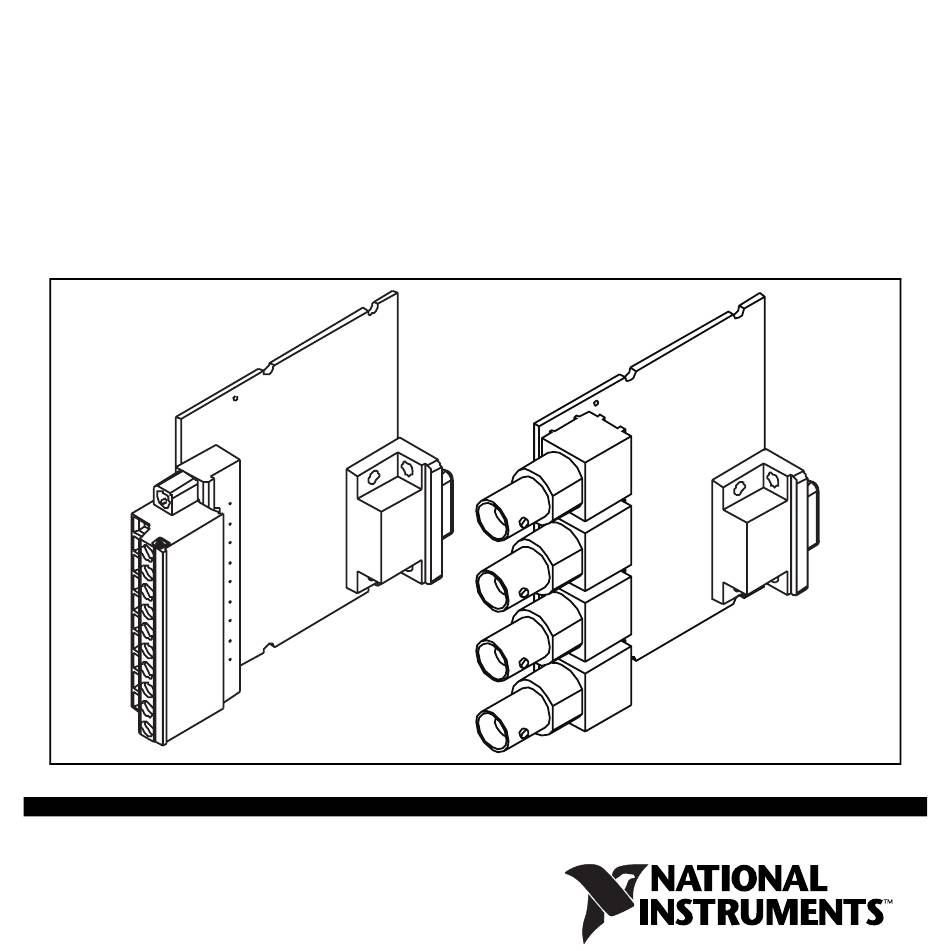

- Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9215E 4-Channel, ±10 V, 16-Bit Simultaneous Analog Input Module...
- Page 2 This document describes how to use the National Instruments 9215E and includes dimensions, terminal assignments, and specifications for the NI 9215E. In this document, the NI 9215E with screw terminal and NI 9215E with BNC are referred to inclusively as the NI 9215E. Visit...
- Page 3 NI 9215E Dimensions The following figure shows the dimensions of the NI 9215E. 73.4 in. (2.89 mm) 0.0 in. (0.00 mm) Figure 1. NI 9215E Dimensions in Millimeters (Inches) © National Instruments Corp. NI 9215E Operating Instructions and Specifications...
- Page 4 Connecting the NI 9215E The NI 9215E provides connections for four differential analog input channels. AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3– Figure 2. Terminal Assignments of the NI 9215E with Screw Terminal NI 9215E Operating Instructions and Specifications ni.com...
- Page 5 AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3– Figure 3. Connector Assignments of the NI 9215E with BNC © National Instruments Corp. NI 9215E Operating Instructions and Specifications...
- Page 6 The NI 9215E with BNC has four BNC connectors. Each channel of the NI 9215E has an AI+ terminal to which you can connect the positive voltage signal, and an AI– terminal or shield to which you can connect the negative voltage signal. The...
- Page 7 NI 9215E. Connect the positive voltage signal to AI+ and the negative voltage signal to AI–. To connect grounded differential signals to the NI 9215E with screw terminal, you must also connect the signal reference to the COM terminal, as shown in Figure 4.
- Page 8 Figure 5. If the voltage source is outside of the common-mode range, then the NI 9215E does not read data accurately. The NI 9215E with BNC has internal circuitry that keeps the voltage source within the common-mode range.
- Page 9 Connecting Single-Ended Voltage Signals to the NI 9215E To connect single-ended voltage signals to the NI 9215E with screw terminal, you must also connect the ground signal to the COM terminal to keep the common-mode voltage in the specified range, as shown in Figure 6. For more information about the...
- Page 10 NI 9215E Circuitry The NI 9215E channels share a common ground that is isolated from other modules in the system. The NI 9215E protects each channel from overvoltages. For more information about overvoltage protection, refer to the Specifications section. The incoming analog signal on each channel is buffered and conditioned by the instrumentation amplifier and is then sampled by a 16-bit ADC.
- Page 11 Overvoltage Protection Isolated Overvoltage AI– – Protection Instrumentation Amplifier NI 9215E with Screw Terminal Figure 7. Input Circuitry for One Channel on the NI 9215E with Screw Terminal © National Instruments Corp. 11 NI 9215E Operating Instructions and Specifications...
- Page 12 Overvoltage Protection Isolated Overvoltage – Protection Instrumentation 100 kΩ AI– Amplifier NI 9215E with BNC Figure 8. Input Circuitry for One Channel on the NI 9215E with BNC NI 9215E Operating Instructions and Specifications 12 ni.com...
-
Page 13: Sleep Mode
In sleep mode, the system consumes minimal power and may dissipate less heat than it does in normal mode. Refer to the Specifications section for more information about power consumption and thermal dissipation. © National Instruments Corp. 13 NI 9215E Operating Instructions and Specifications... -
Page 14: Specifications
Input Characteristics Number of channels......4 analog input channels ADC resolution......... 16 bits Type of ADC........Successive approximation register (SAR) Input range ........±10.0 V NI 9215E Operating Instructions and Specifications 14 ni.com... - Page 15 10.2 V ±10.2 V of of the average – common. inputs. * The minimum measurement voltage range is the largest voltage the NI 9215E is guaranteed to accurately measure. © National Instruments Corp. 15 NI 9215E Operating Instructions and Specifications...
- Page 16 Uncalibrated, max (–40 to 85 °C) 1.05% 0.82% Uncalibrated, typ (25 °C, ±5 °C) 0.6% 0.38% * Range equals 10.4 V Stability Gain drift ........10 ppm/ºC Offset drift ........60 μV/ºC NI 9215E Operating Instructions and Specifications 16 ni.com...
- Page 17 NI 9215E with BNC (Between any two AI– terminals) ....200 kΩ Input bias current ......10 nA Input noise RMS ........... 1.2 LSB Peak-to-peak....... 7 LSB Crosstalk ........... –80 dB © National Instruments Corp. 17 NI 9215E Operating Instructions and Specifications...
- Page 18 MTBF ..........1,167,174 hours at 25 °C; Bellcore Issue 2, Method 1, Case 3, Limited Part Stress Method Contact NI for Bellcore MTBF specifications Note at other temperatures or for MIL-HDBK-217F specifications. NI 9215E Operating Instructions and Specifications 18 ni.com...
-
Page 19: Power Requirements
Screw-terminal wiring ...... 12 to 24 AWG copper conductor wire with 10 mm (0.39 in.) of insulation stripped from the end © National Instruments Corp. 19 NI 9215E Operating Instructions and Specifications... - Page 20 (4.4 to 5.3 lb · in.) Ferrules ..........0.25 mm to 2.5 mm Weight NI 9215E with screw terminal..65 g (2.3 oz) NI 9215E with BNC....71 g (2.5 oz) Safety NI 9215E with Screw Terminal Safety Voltages Connect only voltages that are within the following limits.
- Page 21 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9215E with screw Caution terminal to signals or use for measurements within Measurement Categories III or IV.
- Page 22 Such voltage measurements include signal levels, special equipment, limited-energy parts of equipment, circuits powered by regulated low-voltage sources, and electronics. Do not connect the NI 9215E with BNC to Caution signals or use for measurements within Measurement Categories II, III, or IV.
-
Page 23: Online Product Certification
Certification column. Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications. -
Page 24: Environmental Management
Maximum altitude......2,000 m Pollution Degree (IEC 60664) ..2 Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. - Page 25 China RoHS compliance, go to ni.com/ environment/rohs_china Calibration You can obtain the calibration certificate and information about calibration services for the NI 9215E at ni.com/calibration Calibration interval ......1 year © National Instruments Corp. 25 NI 9215E Operating Instructions and Specifications...
-
Page 26: Where To Go For Support
Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 27 Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
