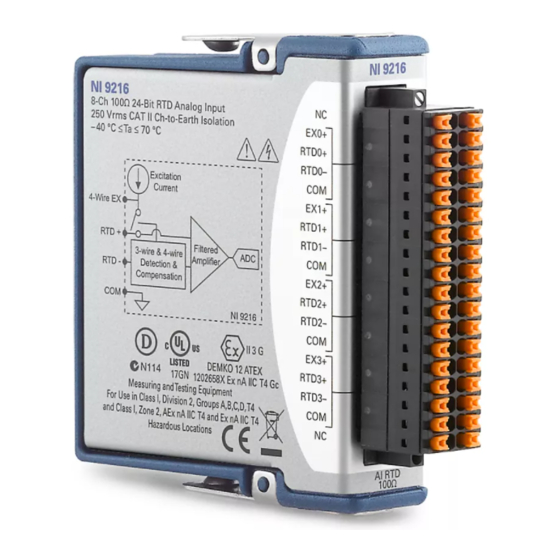

National Instruments 9216 Calibration Procedure

8-channel, 400 s/s aggregate, 0 om to 400 om/4000 om, pt100 rtd/pt1000 rtd c series temperature input module
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
CALIBRATION PROCEDURE
NI 9216/9226
8-Channel, 400 S/s Aggregate, 0 Ω to 400 Ω/4000 Ω,
PT100 RTD/PT1000 RTD C Series Temperature Input Module
This document contains the verification and adjustment procedures for the NI 9216 and NI 9226.
In this document, the NI 9216 and NI 9226 are inclusively referred to as NI 9216/9226. For more
information about calibration solutions, visit
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
Test Equipment......................................................................................................................... 3
Test Conditions......................................................................................................................... 3
Initial Setup............................................................................................................................... 3
Verification............................................................................................................................... 4
Accuracy Verification....................................................................................................... 4
Adjustments .............................................................................................................................. 6
Accuracy Adjustment ....................................................................................................... 6
EEPROM Update ..................................................................................................................... 7
Reverification ........................................................................................................................... 7
Accuracy Under Calibration Conditions .................................................................................. 7
Worldwide Support and Services ............................................................................................. 8

Software

Calibrating the NI 9216/9226 requires the installation of NI-DAQmx 14.5 or later on the
calibration system. You can download NI-DAQmx from
supports LabVIEW, LabWindows
Basic .NET, and Microsoft Visual C#. When you install NI-DAQmx you only need to install
support for the application software that you intend to use.
ni.com/calibration
™
/CVI
™
, ANSI C, Microsoft Visual C++, Microsoft Visual
.
ni.com/downloads
. NI-DAQmx

Advertisement

Table of Contents
loading

Related Manuals for National Instruments 9216

Summary of Contents for National Instruments 9216

  • Page 1: Table Of Contents

    PT100 RTD/PT1000 RTD C Series Temperature Input Module This document contains the verification and adjustment procedures for the NI 9216 and NI 9226. In this document, the NI 9216 and NI 9226 are inclusively referred to as NI 9216/9226. For more information about calibration solutions, visit ni.com/calibration...

  • Page 2: Documentation

    Documentation Consult the following documents for information about the NI 9216/9226, NI-DAQmx, and your application software. All documents are available on and help files install with the ni.com software. NI cDAQ-9174/9178 Quick Start Guide NI-DAQmx installation and hardware setup NI 9216 Getting Started Guide...

  • Page 3: Test Equipment

    • Keep relative humidity below 80%. • Allow a warm-up time of at least 10 minutes to ensure that the NI 9216/9226 measurement circuitry is at a stable operating temperature. Initial Setup Complete the following steps to set up the NI 9216/9226.

  • Page 4: Verification

    Complete the following procedure to determine the As-Found status of the NI 9216/9226. Set the calibrator to Standby mode (STBY). Connect the desired channel of the NI 9216/9226 to the calibrator as shown in Figure 1. Connect only one channel at a time.
  • Page 5 Note Set the calibrator to Operate mode (OPR). Acquire and average samples from one channel. Create and configure a 4-wire AI resistance task on the NI 9216/9226 according to Table 3. Configure the ADC Timing Mode to High Resolution. Table 3. NI 9216/9226 Voltage Configuration...

  • Page 6: Adjustments

    Complete the following procedure to adjust the accuracy performance of the NI 9216/9226. Set the calibrator to Standby mode (STBY). Connect the desired channel of the NI 9216/9226 to the calibrator as shown in Figure 1. Connect only one channel at a time.

  • Page 7: Eeprom Update

    EEPROM Update When an adjustment procedure is completed, the NI 9216/9226 internal calibration memory (EEPROM) is immediately updated. If you do not want to perform an adjustment, you can update the calibration date and onboard calibration temperature without making any adjustments by initializing an external calibration, setting the C Series calibration temperature, and closing the external calibration.

  • Page 8: Worldwide Support And Services

    NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
