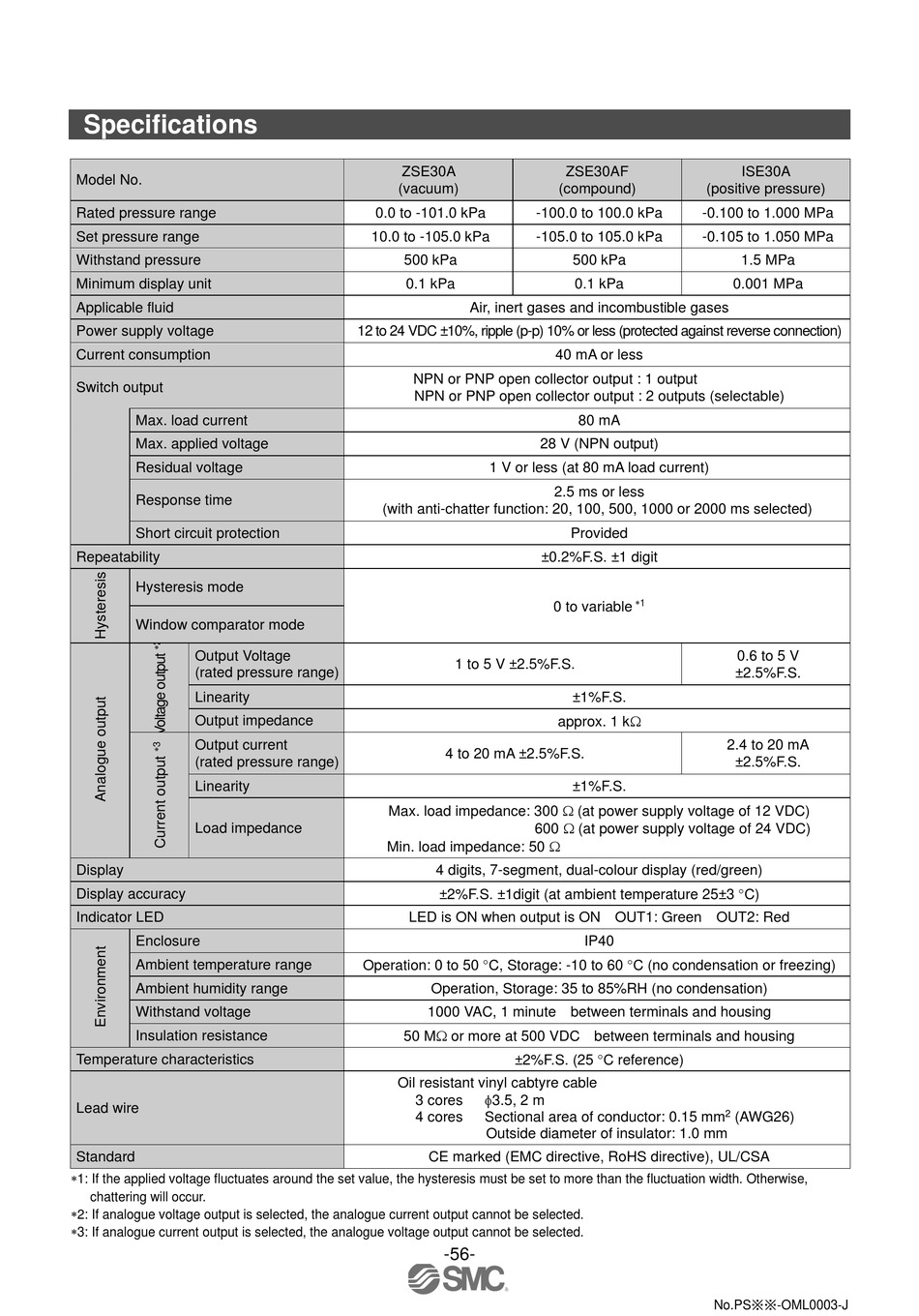

Specifications

Model No.
Rated pressure range
Set pressure range
Withstand pressure
Minimum display unit
Applicable fluid
Power supply voltage
Current consumption
Switch output
Max. load current
Max. applied voltage
Residual voltage
Response time
Short circuit protection
Repeatability
Hysteresis mode
Window comparator mode
Output Voltage
(rated pressure range)
Linearity
Output impedance
Output current
(rated pressure range)
Linearity
Load impedance
Display
Display accuracy
Indicator LED
Enclosure
Ambient temperature range
Ambient humidity range
Withstand voltage
Insulation resistance
Temperature characteristics
Lead wire
Standard
∗1: If the applied voltage fluctuates around the set value, the hysteresis must be set to more than the fluctuation width. Otherwise,
chattering will occur.
∗2: If analogue voltage output is selected, the analogue current output cannot be selected.
∗3: If analogue current output is selected, the analogue voltage output cannot be selected.
ZSE30A
(vacuum)
0.0 to -101.0 kPa
10.0 to -105.0 kPa
500 kPa
0.1 kPa
Air, inert gases and incombustible gases
12 to 24 VDC ±10%, ripple (p-p) 10% or less (protected against reverse connection)
NPN or PNP open collector output : 1 output
NPN or PNP open collector output : 2 outputs (selectable)
1 V or less (at 80 mA load current)
(with anti-chatter function: 20, 100, 500, 1000 or 2000 ms selected)
1 to 5 V ±2.5%F.S.
4 to 20 mA ±2.5%F.S.
Max. load impedance: 300 Ω (at power supply voltage of 12 VDC)
Min. load impedance: 50 Ω
4 digits, 7-segment, dual-colour display (red/green)
±2%F.S. ±1digit (at ambient temperature 25±3 °C)
LED is ON when output is ON OUT1: Green OUT2: Red
Operation: 0 to 50 °C, Storage: -10 to 60 °C (no condensation or freezing)
Operation, Storage: 35 to 85%RH (no condensation)
1000 VAC, 1 minute between terminals and housing
50 MΩ or more at 500 VDC between terminals and housing
±2%F.S. (25 °C reference)
Oil resistant vinyl cabtyre cable
φ3.5, 2 m
3 cores
4 cores Sectional area of conductor: 0.15 mm
Outside diameter of insulator: 1.0 mm
CE marked (EMC directive, RoHS directive), UL/CSA
-56-
ZSE30AF
(compound) (positive pressure)
-100.0 to 100.0 kPa -0.100 to 1.000 MPa
-105.0 to 105.0 kPa -0.105 to 1.050 MPa
500 kPa
0.1 kPa
40 mA or less
80 mA
28 V (NPN output)
2.5 ms or less
Provided
±0.2%F.S. ±1 digit
∗1
0 to variable
±1%F.S.
approx. 1 kΩ
±1%F.S.
600 Ω (at power supply voltage of 24 VDC)
IP40
ISE30A
1.5 MPa
0.001 MPa
0.6 to 5 V
±2.5%F.S.
2.4 to 20 mA
±2.5%F.S.
2
(AWG26)
