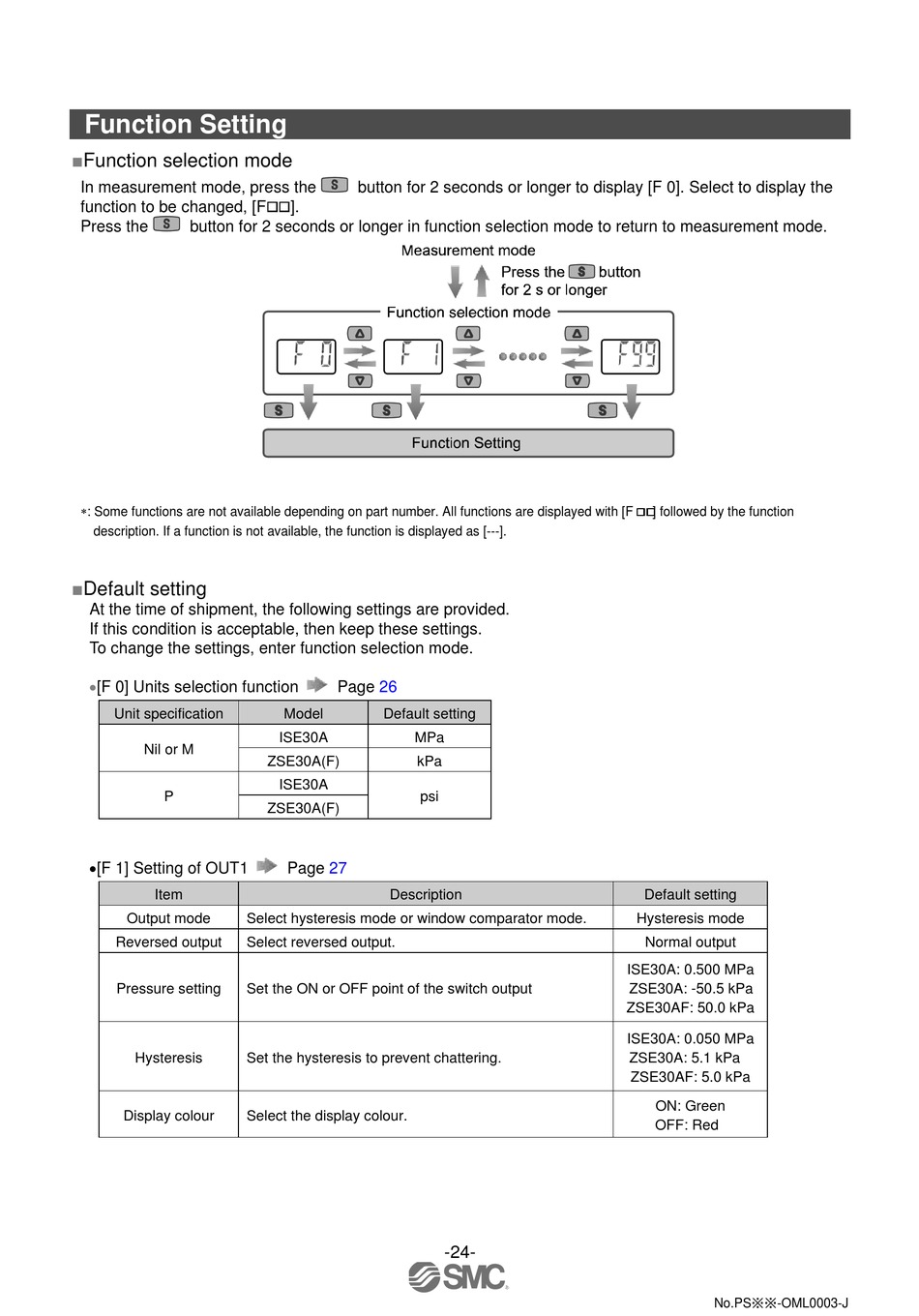

Function Setting

■Function selection mode

In measurement mode, press the
function to be changed, [F
Press the button for 2 seconds or longer in function selection mode to return to measurement mode.
∗: Some functions are not available depending on part number. All functions are displayed with [F
description. If a function is not available, the function is displayed as [---].

■Default setting

At the time of shipment, the following settings are provided.
If this condition is acceptable, then keep these settings.
To change the settings, enter function selection mode.
•[F 0] Units selection function
Unit specification
Nil or M
P
•[F 1] Setting of OUT1
Item
Output mode
Reversed output
Pressure setting
Hysteresis
Display colour
button for 2 seconds or longer to display [F 0]. Select to display the
].
Page 26
Model Default setting
ISE30A MPa
ZSE30A(F) kPa
ISE30A
psi
ZSE30A(F)
Page 27
Description
Select hysteresis mode or window comparator mode.
Select reversed output.
Set the ON or OFF point of the switch output
Set the hysteresis to prevent chattering.
Select the display colour.
-24-
] followed by the function
Default setting
Hysteresis mode
Normal output
ISE30A: 0.500 MPa
ZSE30A: -50.5 kPa
ZSE30AF: 50.0 kPa
ISE30A: 0.050 MPa
ZSE30A: 5.1 kPa
ZSE30AF: 5.0 kPa
ON: Green
OFF: Red
No.PS※※-OML0003-J
