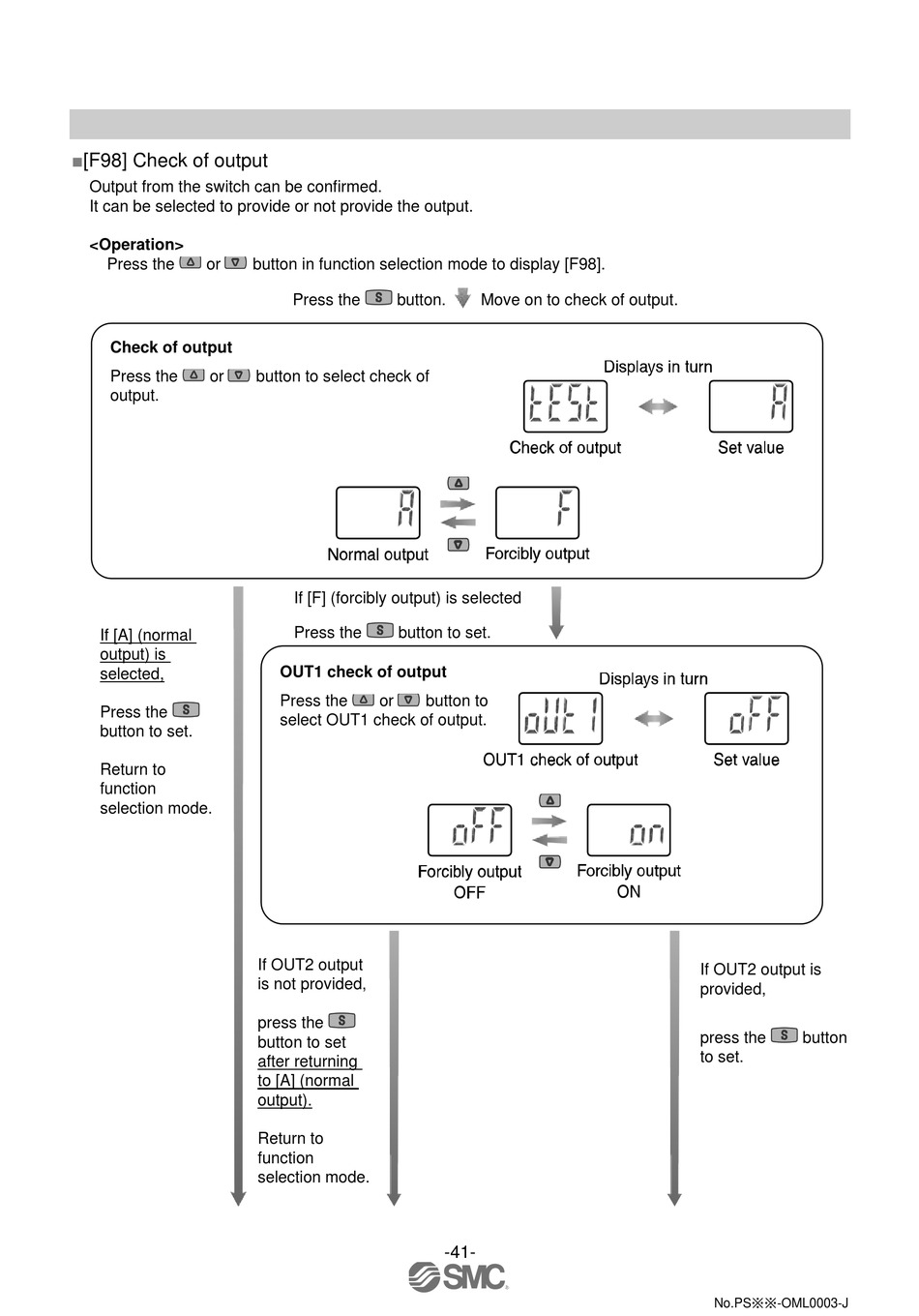

■[F98] Check of output
Output from the switch can be confirmed.
It can be selected to provide or not provide the output.
<Operation>
Press the or
Check of output
Press the or
output.
If [A] (normal
output) is
selected,
Press the
button to set.
Return to
function
selection mode.
button in function selection mode to display [F98].
Press the button.
button to select check of
If [F] (forcibly output) is selected
Press the button to set.
OUT1 check of output
Press the or button to
select OUT1 check of output.
If OUT2 output
is not provided,
press the
button to set
after returning
to [A] (normal
output).
Return to
function
selection mode.
Move on to check of output.
-41-
If OUT2 output is
provided,
press the button
to set.
