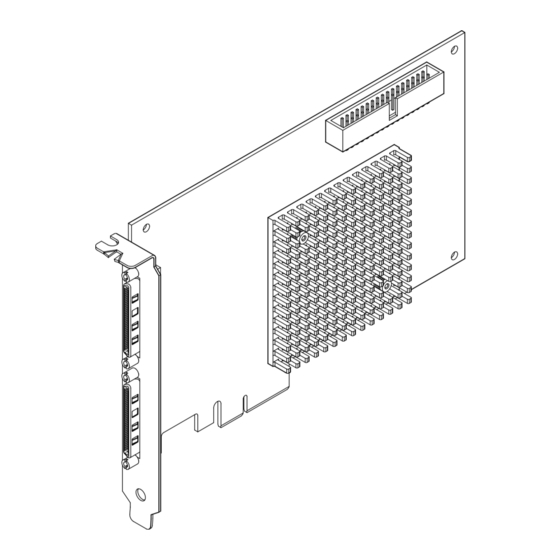

National Instruments NI R Series Getting Started Manual
Digital i/o module for pci express, 8 ai, 8 ao, 48 dio, 1 ms/s ai, 512 mb dram, kintex-7 160t fpga
Hide thumbs
Also See for NI R Series:
- Getting started manual (13 pages) ,
- User manual (10 pages) ,
- User manual (71 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for National Instruments NI R Series
Summary of Contents for National Instruments NI R Series
- Page 1 PCIe-7857...
-
Page 2: Safety Guidelines
GETTING STARTED GUIDE NI PCIe-7857 R Series Digital I/O Module for PCI Express, 8 AI, 8 AO, 48 DIO, 1 MS/s AI, 512 MB DRAM, Kintex-7 160T FPGA This document describes how to begin using the PCIe-7857. Safety Guidelines Observe all instructions and cautions in the user documentation. Using Caution the model in a manner not specified can damage the model and compromise the built-in safety protection. -
Page 3: Preparing The Environment
This product is intended for use in industrial locations. However, harmful interference may occur in some installations, when the product is connected to a peripheral device or test object, or if the product is used in residential or commercial areas. To minimize interference with radio and television reception and prevent unacceptable performance degradation, install and use this product in strict accordance with the instructions in the product documentation. -
Page 4: Unpacking The Kit
Before using the PCIe-7857, you must install the following application software and device drivers on the host computer. LabVIEW 2018 SP1 or later LabVIEW FPGA Module 2018 or later NI R Series Multifunction RIO Device Drivers January 2019 or later NI PCIe-7857 Getting Started Guide | © National Instruments | 3... - Page 5 Visit and enter the Info Code for minimum software support ni.com/info softwareversion information. Installing the PCIe-7857 Power off and unplug the computer. Access the computer system expansion slots. This step might require you to remove one or more access panels on the computer case. Locate a compatible slot and remove the corresponding slot cover on the computer back panel.
-
Page 6: Verifying Hardware Installation
Verifying Hardware Installation You can verify that the system recognizes the PCIe-7857 by using Measurement & Automation Explorer (MAX). Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by clicking the MAX desktop icon. Expand Devices and Interfaces. Verify that the device appears under Devices and Interfaces. - Page 7 Table 1. PCIe-7857 Signal Descriptions Signal Description Positive analog input signal connection Negative analog input signal connection AISENSE Reference connection for NRSE measurements AIGND Ground reference for the analog input signal Analog output signal connection AOGND Ground reference for the analog output signal Digital input/output signal connection DGND Ground reference for the digital signal...
-
Page 8: Where To Go Next
1 866 ASK MYNI (275 6964). For ni.com/support support outside the United States, visit the Worldwide Offices section of ni.com/niglobal access the branch office websites, which provide up-to-date contact information. NI PCIe-7857 Getting Started Guide | © National Instruments | 7... - Page 9 For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your patents.txt ni.com/patents software, the file on your media, or the National Instruments Patent Notice at . You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer ni.com/legal/export-compliance...
