Samsung SVR-1680C Quick Manual

Quick Guide To Using SVR-3200/1680C/1660C/1645
Prior to using the Product
This is a quick guide covering some of the
more frequently used features only. For
more accurate and detailed information
about the product, please refer to the User's
Manual.

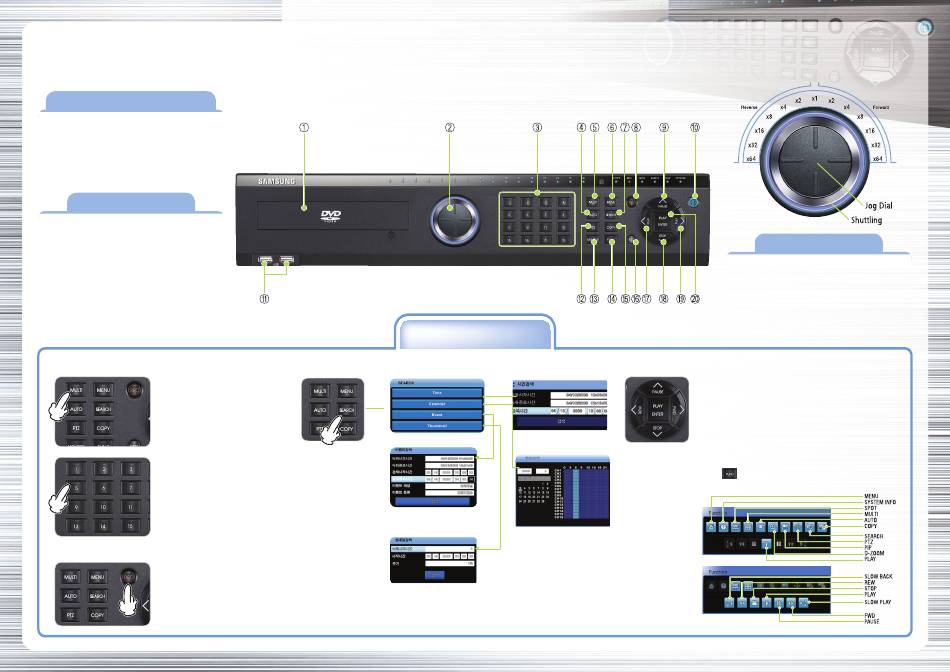

Buttons
① DVD ② Jog/Shuttle
③ Select Channel ④ Auto Sequence ⑤ Multi Screen
⑥ Menu ⑦ Search ⑧ Save
⑨ UP/PAUSE ⑩ Power ⑪ USB
⑫ PTZ ⑬ Monitor(SPOT)
⑭ Select Function ⑮ COPY  ESC
 LEFT/REW  DOWN/STOP  RIGHT/FWD
 ENTER/PLAY
1. Live Monitoring
Multi Screen
With each pressing of the Multi
Screen button, the screen splits
into 4, 9, 10 or 16 screens
respectively.
Single Screen
Press a channel button to see the
respective channel only on the
screen.
2. Recording
Press the REC button to start or
stop recording. REC lamp located
on the top of the REC button will
display recording status.
(Caution: the REC button function interacts
with the Scheduled Recording
settings.)
S A M S U N G D I G I T A L R E C O R D E R
Product Features
3. Search/Playback Recordings
▶
Select Search Mode
Search button
Event search: Enter Date/Time & Select Event
Thumbnail search:
Enter Channel/ Date/Time
1. Press the Search button 2. Select either the Time, canlender, Event or thumbnail search
3. Enter Date/Time or select an calender/date/time 4. Select the Search Button
samsungcctv
www.
Q U I C K G U I D E
4. Playback Buttons
▶
Time search: Enter Date/Time
5. Hot Function(Hot Key) Menu
▶
Press the Function button (
Function icons.
●
F unction Key on Live
Mode
Calendar search: Select Date/Time
●
F unction Key on Play
Mode
.com
using Jog/shuttle
Shuttling
Use it to control playback direction (forward/reverse) or
speed (X2, X4, X8, X16, X32, X64).
Jog Dial
Use it for frame-by-frame search of video recordings.
※ SVR-3200/1680/1660/1645
•
PAUSE: Pause playback
•
REW: Rewind playback & Rewind speed
(X1/2, X1, X2, X4, X8, X16, X32, X64)
•
PLAY: Start playback
•
FWD: Foward playback & Foward speed
(X1/2, X1, X2, X4, X8, X16, X32, X64)
• STOP: Stop playback
) or right-click the mouse to use Hot
