WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
 Copyright 2019, T.I.

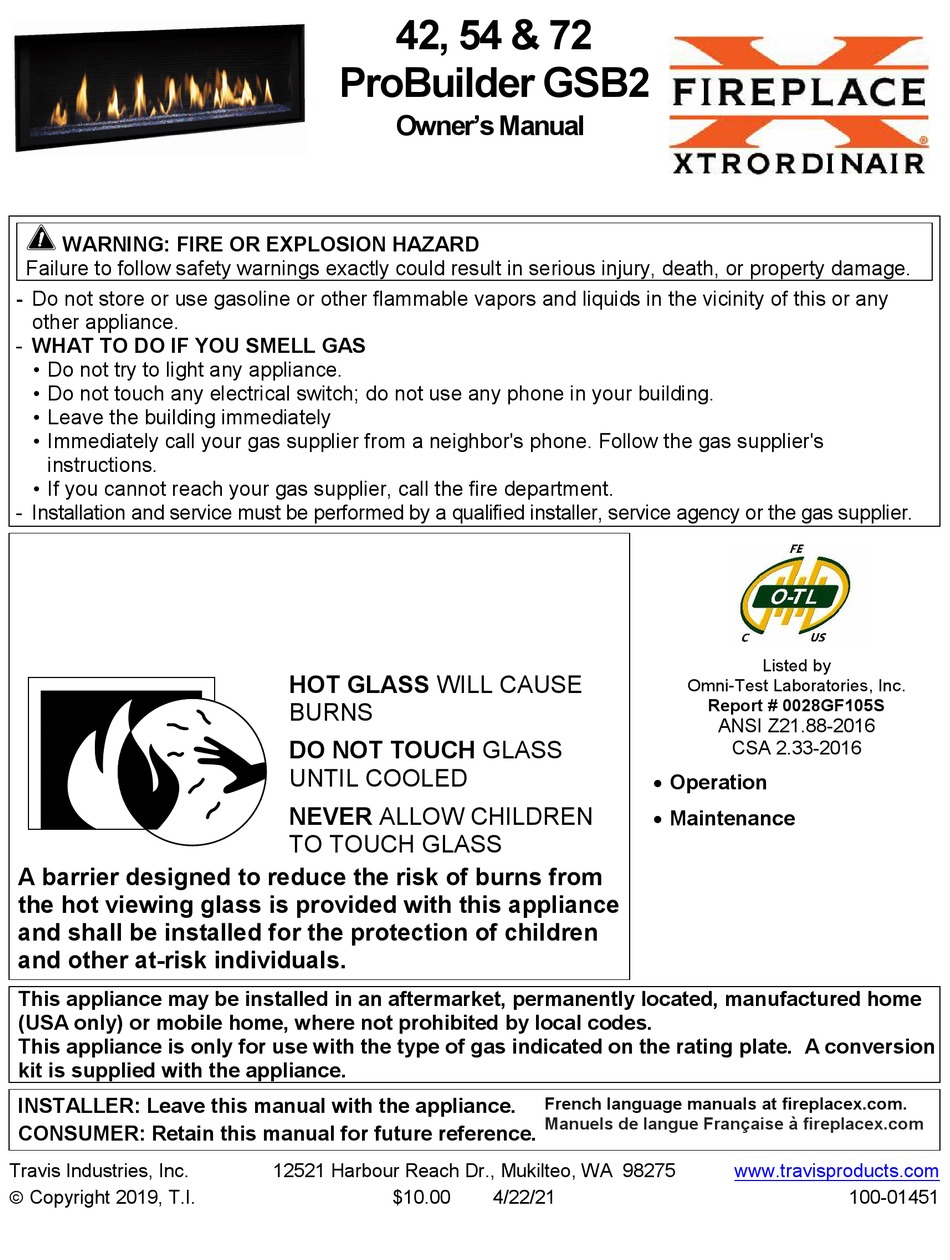

42, 54 & 72
ProBuilder GSB2
Owner's Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
 Operation
 Maintenance
French language manuals at fireplacex.com.
Manuels de langue Française à fireplacex.com
4/22/21
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GF105S
ANSI Z21.88-2016
CSA 2.33-2016
www.travisproducts.com
100-01451

Advertisement

Table of Contents
loading

Related Manuals for FireplaceXtrordinair 42 ProBuilder GSB2

Summary of Contents for FireplaceXtrordinair 42 ProBuilder GSB2

  • Page 1 42, 54 & 72 ProBuilder GSB2 Owner’s Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Introduction

    Save Your Bill of Sale. service. To receive full warranty coverage, you will Model: 42 ProBuilder GSB2 need to show evidence of the date you 54 ProBuilder GSB2 purchased your heater. 72 ProBuilder GSB2...

  • Page 3: Table Of Contents

    Introduction Table of Contents Introduction ........... 2 Normal Operating Odors ......10 Important Information ........2 Power Outages ..........10 Installation Warnings ........2 Glass Frame Removal and Installation ..11 Table of Contents .......... 3 Crushed Glass Installation ......14 Features ............
  • Page 4 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
  • Page 5 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.

  • Page 6: Before You Begin

    Operation Before You Begin  Read this entire manual before you use your new fireplace (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Location of Controls There is a door on the lower portion of the screen assembly to provide access to the manual controls on the fireplace.

  • Page 7: Starting The Fireplace For The First Time

    Operation Starting the Fireplace for the First Time  Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal.

  • Page 8: Adjusting The Blower Speed (Optional)

    Operation Adjusting the Blower Speed (Optional) The optional blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed.

  • Page 9: Pilot Fuel Conservation Timer

    Operation Pilot Fuel Conservation Timer 7 Day Pilot Shutoff Timer (applies to units in CPI mode only) This appliance may be equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes).

  • Page 10: Adjusting The Blower Speed (Optional)

    Operation Adjusting the Blower Speed (Optional) The optional blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See page 7 for details on adjusting the blower speed.

  • Page 11: Glass Frame Removal And Installation

    Maintenance Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
  • Page 12 Maintenance  Remove the glass frame following the directions below. Replacement Glass Frame Part # 42 ProBuilder 250-04491 54 ProBuilder 250-04689 72 ProBuilder 250-04654 © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...
  • Page 13 Maintenance The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 14: Crushed Glass Installation

    Maintenance Crushed Glass Installation Do not allow the crushed glass to block the air slots or to become too thick (maximum 1 layer deep on the burner). Failure to properly install glass may lead to sooting and improper burning. If converting to LP (propane), convert the appliance prior to placing the crushed glass. Install the crushed glass on the glass tray following the directions below.
  • Page 15 Maintenance Make sure the rear and end air channels are free of crushed glass. Use a screwdriver to clear this area. Make sure the glass is only 1 layer deep on the burner. Only one layer thick on burner Remove the pilot shield to uncover the pilot once you are finished placing the glass. ©...

  • Page 16: Maintaining Your Heater's Appearance

    Maintenance Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface.

  • Page 17: Yearly Service Procedure

    Maintenance Yearly Service Procedure WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician.  Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from obstruction to operate.

  • Page 18: Troubleshooting Table

    Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: A gas shut off valve is turned off Check all gas shut off valves Pilot Will Not Light The gas control knob isn't turned to "PILOT" See "Starting the Pilot Light" Step C The valve control knob isn't pushed in See "Starting the Pilot Light"...

  • Page 19: Replacement Parts List

    Maintenance Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. GLASS w/FRAME (42 ProBuilder) 250-04491 GLASS w/FRAME (54 ProBuilder)

  • Page 20: Wiring Diagram

    Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 21: Probuilder Safety Label

    Safety Label ProBuilder 42 Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 22: Probuilder Safety Label

    Safety Label ProBuilder 54 Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 23: Probuilder Safety Label

    Safety Label ProBuilder 72 Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 24: Conditions & Exclusions

    Limited 7 Year Warranty Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.
  • Page 25 Limited 7 Year Warranty © Travis Industries 4/22/21 - 1451 PB Lin GSB2 Operation...

  • Page 26: Index

    Index Index Adjusting the Blower Speed (Optional) ....8 Maintaining Your Heater's Appearance ... 16 Adjusting the Flame Height ........ 7 Normal Operating Odors ........10 Before You Begin ..........6 Pilot Fuel Conservation Timer ......9 Continuous Pilot / GreenSmart™ Pilot Switch ... 8 Power Outages ..........
