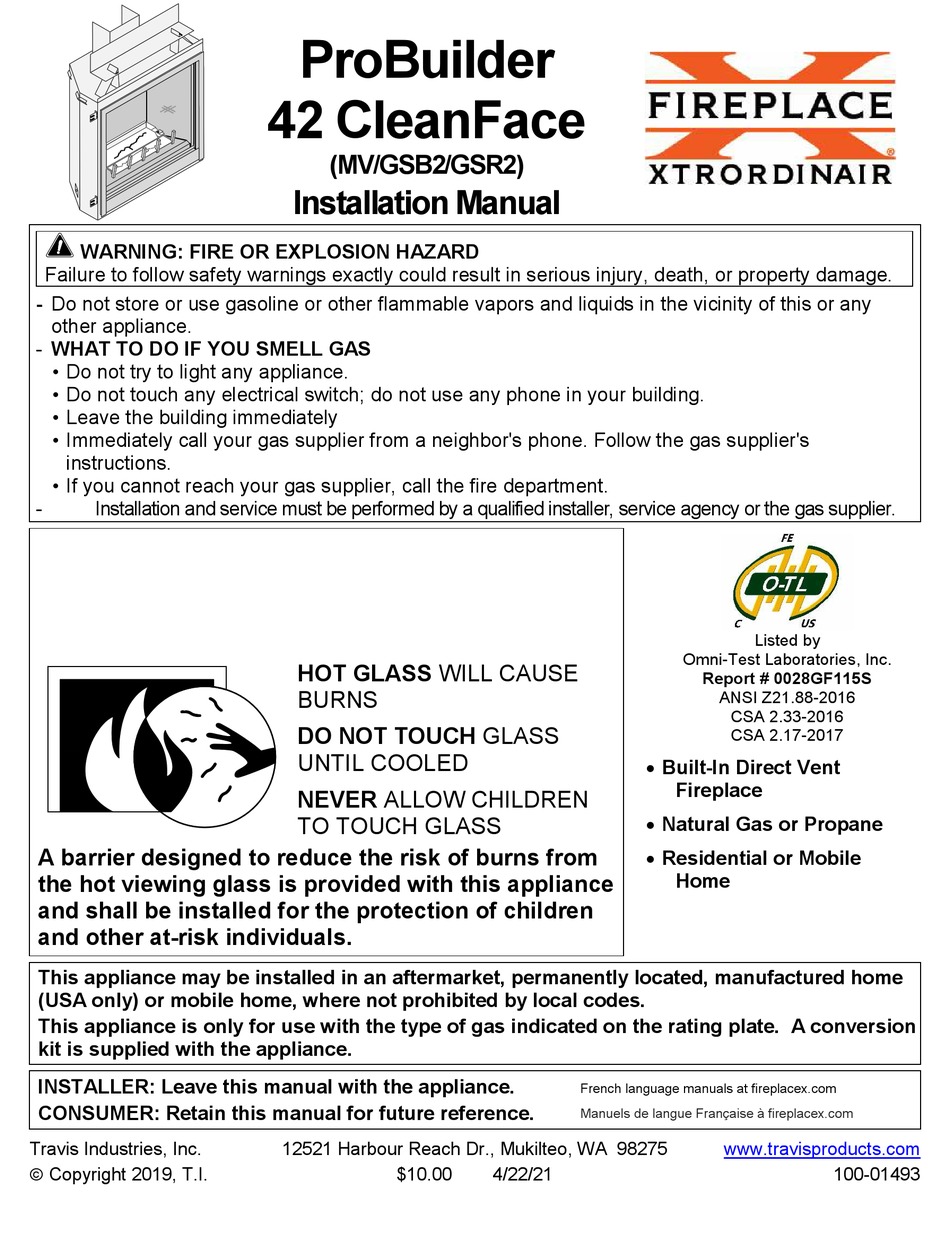

FireplaceXtrordinair ProBuilder 42 CleanFace Installation Manual
Hide thumbs
Also See for ProBuilder 42 CleanFace:
- Installation manual (84 pages) ,
- Installation (3 pages) ,
- Installation (2 pages)
Table of Contents
Advertisement
Quick Links
WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
Copyright 2019, T.I.
ProBuilder
42 CleanFace
(MV/GSB2/GSR2)
Installation Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Built-In Direct Vent
Natural Gas or Propane
Residential or Mobile
French language manuals at fireplacex.com
Manuels de langue Française à fireplacex.com
4/22/21
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GF115S
ANSI Z21.88-2016
CSA 2.33-2016
CSA 2.17-2017
Fireplace
Home
www.travisproducts.com
100-01493
Advertisement
Table of Contents
Related Manuals for FireplaceXtrordinair ProBuilder 42 CleanFace
Summary of Contents for FireplaceXtrordinair ProBuilder 42 CleanFace
- Page 1 ProBuilder 42 CleanFace (MV/GSB2/GSR2) Installation Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Overview
Introduction Overview This manual details the installation requirements for the 42 CF ProBuilder fireplace. For operating and maintenance instructions, refer to the 42 CF ProBuilder fireplace Owner's Manual. Massachusetts Approval This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and Gas Fitters National Fireplace Institute See NFI information to the right. -
Page 3: Table Of Contents
Table of Contents Vent Configuration: Horizontal Termination with Overview ..............2 Vertical Rise ..............29 Masonry Chimney Conversions ......30 Massachusetts Approval ......... 2 Class A Chimney Conversion ......... 31 National Fireplace Institute ........2 Termination Requirements ........32 Listing Details ............2 Hearth Requirements .......... - Page 4 Safety Precautions Safety Warnings Failure to follow all of the requirements may result in property damage, bodily injury, or even death. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns.
- Page 5 Safety Precautions Safety Warnings (continued) Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance. Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.
-
Page 6: Installation Options
Features and Specifications Installation Options Residential or Mobile Home Internal or External Chase Straight or Corner Placement Bedroom Approved Raised or Floor Placement Heating Specifications Natural Gas Propane Approximate Heating Capacity (in square feet)* Up to 1,750 Up to 1,750 42 CF ProBuilder... -
Page 7: Packing List
Optional Equipment (for qualified installers only) Packing List LP (Propane) Conversion Kit: Rear Burner Orifice (#C55), Front Burner Orifice (#58), Pilot Orifice (0.14 LP), LP Regulator Thimble (2-Piece Assembly) Pipe Shield Header Shield Lower Header Shield ... -
Page 8: Massachusetts Requirements
Installation (for qualified installers only) Massachusetts Requirements NOTE: The following requirements reference various Massachusetts and national codes not contained in this document. Requirements for the Commonwealth of Massachusetts For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 9: Fireplace Placement Requirements
Optional Equipment (for qualified installers only) Fireplace Placement Requirements Fireplace must be installed on a level surface capable of supporting the fireplace and vent Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet) ... -
Page 10: Minimum Framing Dimensions
Installation (for qualified installers only) Minimum Framing Dimensions Min. Framing - Without CoolSmart TV kit WARNING When using a CoolSmart TV kit, see section: “CoolSmart TV - Framing the Chase” on page 71. IDB1114 Max. Header Depth 3” (77mm) Min. Enclosure Height 68"... -
Page 11: Minimum Vent "Bump Out" Application
Optional Equipment (for qualified installers only) Minimum Vent “Bump Out” application PB42 CF LP & NG Installations 12” Vertical Vent Section (Min. Rise) Vent Approx. 58-1/2” (1486mm) Centerline FP Base to Approx. 72-1/2” (1842mm) Roof Eave © Travis Industries 4/22/21 - 1493 PB42 CF Install... -
Page 12: Nailing Brackets
Installation (for qualified installers only) Nailing Brackets The fireplace has nailing brackets on both sides. Secure the fireplace to the framing with the nailing brackets. NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-to-corner the fireplace should be square. -
Page 13: Standard Vs. Extended Position
Optional Equipment (for qualified installers only) Standard vs. Extended Position There are two positions that the standoff/heat shield assembly can be installed. The standoffs are shipped in the standard (forward) position. If the unit is installed in the standard position no modification is needed. ... -
Page 14: Header And Pipe Shield Installation
Installation (for qualified installers only) Header and Pipe Shield Installation The header and pipe shield must be installed as shown below. NOTE: The header and pipe shields may be installed after the fireplace is in place and vent attached (this allows for the fireplace to fit into the framing underneath the header and for the vent to be installed more easily). - Page 15 Optional Equipment (for qualified installers only) The (2) header standoffs are screwed down flat to front edge of the top of the fireplace. On each standoff, remove the screw that is closest to the center of the fireplace. Bend the legs at the perforations as shown below and attach the foot of the standoff to the top of the fireplace using the screw removed earlier in this step.
- Page 16 Installation (for qualified installers only) On the header shield, bend the two tabs downward approximately 90 degrees. Set the header shield onto the standoffs with the 90° bend facing the pipe shield. The tips of the standoffs will protrude through the heat shield.
-
Page 17: Corner Installations
Optional Equipment (for qualified installers only) Corner Installations A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply). 42 CF PB (a) Corner to Wall (minimum) 43-1/2” (1105mm) (b) Corner to Center of Flue (typical) 14-1/2”... -
Page 18: Televisions Placed Above The Fireplace
Installation (for qualified installers only) Televisions Placed Above the Fireplace The following section gives guidelines to place a television above the fireplace. IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE Most television manufacturers instruct the homeowner not to place the television above a heat source like this fireplace. Doing so may decrease the longevity of the television and negate the warranty. -
Page 19: Outdoor Fireplace Installations
Optional Equipment (for qualified installers only) Outdoor fireplace installations Travis Industries Inc. gas-fired fireplaces are suitable for installation into outdoor areas protected from direct water impingement. In addition to maintaining listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of installed appliances (see the illustration to the right). -
Page 20: Gas Line Requirements
Installation (for qualified installers only) Gas Line Requirements MASSACHUSETTS INSTALLATIONS - WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS: Flexible connector must not be longer than 36 inches. ... -
Page 21: Gas Line Location
Optional Equipment (for qualified installers only) Gas Line Location NOTE FOR RIGID PIPE: When using rigid pipe, you may wish to disconnect the shutoff valve from the fireplace and route the pipe through the fireplace wall. First, disconnect the gas line from the shutoff valve. Disconnect the shutoff valve from the cover plate (4 screws outside fireplace). -
Page 22: Electrical Connection
Installation (for qualified installers only) Electrical Connection The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes. Make sure the household breaker is shut off prior to working on any electrical lines. ... -
Page 23: Optional Wall Switch Or Thermostat Installation (Mv And Gsb2 Versions Only)
Optional Equipment (for qualified installers only) Optional Wall Switch or Thermostat Installation (MV and GSB2 Versions Only) Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch and wiring must be installed by a qualified installer. This fireplace includes an optional wall switch (with wire) to operate the fireplace burner without accessing the internal on/off switch. -
Page 24: Vent Requirements
Installation (for qualified installers only) Vent Requirements The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own separate vent system. -
Page 25: Vent Installation
Optional Equipment (for qualified installers only) Vent Installation Slide the vent sections together and turn 1/4 turn until the sections lock in place. Screws are not required to secure the vent. However, three screws may be used to secure vent sections together if desired. -
Page 26: Diffuser
Installation (for qualified installers only) Diffuser A diffuser is built into the appliance to adjust the flow rate of exhaust gases. Depending upon the vent configuration, you may be required to adjust the diffuser to the open position (see illustration below). The charts for vent configurations detail the correct diffuser position. -
Page 27: Vent Configurations
Optional Equipment (for qualified installers only) Vent Configurations Minimum Vent Configuration Use 5x8” Diameter Coaxial Vent NOTE: Use the included thimble assembly whenever passing through a wall. (use on front and back of wall penetration). See picture below. ... -
Page 28: Vent Configuration: Vertical Termination
Installation (for qualified installers only) Vent Configuration: Vertical Termination Use 4x6-5/8” Diameter Coaxial Vent. Connect a 8” to 6-5/8” reducer directly to the fireplace (sku 98900165). NOTE: The included thimble assembly is not required and may be discarded. ... -
Page 29: Vent Configuration: Horizontal Termination With Vertical Rise
Optional Equipment (for qualified installers only) Vent Configuration: Horizontal Termination with Vertical Rise Vent configurations 15’ or above (from the base of the fireplace) use 6-5/8” dia. vent. Connect a 8” to 6-5/8” reducer directly to the fireplace (98900165). NOTE: For this configuration, the included thimble assembly is not required and may be discarded. -
Page 30: Masonry Chimney Conversions
Installation (for qualified installers only) Masonry Chimney Conversions This appliance may utilize 6-5/8" diameter direct vent manufactured by Duravent (reducer may be required). The vent may be adapted to utilize an existing masonry fireplace using the Duravent Co-Linear Adapter (46DVA-GCL or TCL). The vent must be installed following all directions included with the vent and those listed below: ... -
Page 31: Class A Chimney Conversion
Optional Equipment (for qualified installers only) Class A Chimney Conversion Duravent provides a conversion kit for those wishing to use an existing class A chimney to vent this direct fireplace. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details. ... -
Page 32: Termination Requirements
Installation (for qualified installers only) Termination Requirements Venting terminals shall not be recessed into a wall or siding. Minimum 9" (229mm) clearance from any door or window Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony Minimum 1" (25mm) from outside corner walls NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier. -
Page 33: Hearth Requirements
Optional Equipment (for qualified installers only) Hearth Requirements A non-combustible hearth is not required. Any material (combustible or non-combustible) must not extend more than 1” above the base of the fireplace (see illustration below). WARNING: A non-combustible hearth is not required in front of the fireplace. However, if the fireplace is installed next to the floor, we recommend a hearth to protect the flooring surface from discoloration or other negative impacts from the heater. -
Page 34: Facing Requirements
Installation (for qualified installers only) Facing Requirements Non-combustible facing must extend from 1” above the base of the fireplace to the framing header (see illustration below for details). Non-combustible facing must extend the entire width of the unit to the framing opening on both sides (see illustration below for details). - Page 35 Optional Equipment (for qualified installers only) Standard vs. Extended Position The nailing brackets on the side of the fireplace may be placed in the standard or extended position to best suit the facing being used (the header shield is also moved). Most installations use the standard nailing bracket position.
- Page 36 Installation (for qualified installers only) Thick Facing Guide The thick facing guide is shipped pre-attached to the fireplace. - Thick Facing - If using thick facing, leave the guide in place (see “Thick Facing” on the following page). - Thin Facing - If using thin facing, you may remove the thick facing guide following the directions below (see “Thin Facing”...
- Page 37 Optional Equipment (for qualified installers only) Thick Facing (Facing Thicker than 1-1/2”) If using thick facing, make sure to leave the thick facing guide in place. Make sure to leave the screen assembly in the stock (fully in) position. You may leave the screen assembly in place while installing thick facing. You may wish to protect it with plastic (or other suitable material) to repel debris.
- Page 38 Installation (for qualified installers only) THICK FACING GUIDE SIZE Tile Stop Width Tile Stop Height PB42 CF 41-1/8” (1045mm) 37-5/8” (956mm) © Travis Industries 4/22/21 - 1493 PB42 CF Install...
- Page 39 Optional Equipment (for qualified installers only) Thin Facing (1/2” to 1-1/2”) When using thin facing you may remove the thick facing guide and tuck the facing underneath the screen assembly. The screen assembly mounts may be adjusted to position the screen assembly directly against the facing (see “Screen Assembly Mounts”...
-
Page 40: Mantel Requirements
Installation (for qualified installers only) Mantel Requirements Use the table below to determine the maximum mantel depth allowed. The mantel depth (measured from the non-combustible facing) must fall within the shaded portion of the table. Any material above the fireplace that protrudes more than 3/4” (19mm) from the non-combustible facing is considered a mantel and must meet the mantel requirements. -
Page 41: Use Of A Non-Combustible Mantel Below Listed Mantel Clearances
Optional Equipment (for qualified installers only) Use of a Non-Combustible Mantel Below Listed Mantel Clearances Each gas fireplace has a unique set of mantel requirements. If you wish to place a non-combustible mantel at a lesser height than specified in this manual, it will need to meet the following requirements: ... -
Page 42: Finalizing The Installation
Installation (for qualified installers only) Finalizing the Installation 1. Remove the glass (see page 48). NOTE: If using propane (LP) convert the appliance prior to installing the media. 2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. -
Page 43: Air Shutter Adjustment
Optional Equipment (for qualified installers only) 5. Start the main burner and verify the burner ignites correctly. 6. Leak test all gas joints. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. -
Page 44: Location Of Controls
Installation (for qualified installers only) Location of Controls There is a door on the lower portion of the screen assembly to provide access to the manual controls on the fireplace. The door is held closed by two magnets. Open the door by gently pulling outward on the upper portion of the lower trim. -
Page 45: Mv Units Only - Starting The Pilot
Optional Equipment (for qualified installers only) MV Units Only - Starting the Pilot Remove the glass frame before starting the pilot. The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF"... -
Page 46: Pilot Fuel Conservation Timer (Mv Units)
Installation (for qualified installers only) Pilot Fuel Conservation Timer (MV units) 7 Day Pilot Shutoff Timer (MV Units) This appliance is equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes). -
Page 47: Pilot Fuel Conservation Timer (Gsb & Gsr Units)
Optional Equipment (for qualified installers only) Pilot Fuel Conservation Timer (GSB & GSR units) 7 Day Pilot Shutoff Timer (applies to units in CPI mode only) This appliance may be equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes). -
Page 48: Glass Frame Removal And Installation
Installation (for qualified installers only) Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. - Page 49 Optional Equipment (for qualified installers only) 2. Remove the glass frame following the directions below. Replacement Glass Frame Part # 42 CF ProBuilder 250-04902 © Travis Industries 4/22/21 - 1493 PB42 CF Install...
-
Page 50: Barrier Screen Visual Deflector Adjustment
Installation (for qualified installers only) The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. Barrier Screen Visual Deflector Adjustment The barrier screen assembly has an adjustable visual deflector along the lower edge. -
Page 51: Shipping Retaining Nut Removal
Optional Equipment (for qualified installers only) Shipping Retaining Nut Removal (2) 3/8” nuts secure the rear burner to the fireplace for shipping purposes. Remove and discard the nuts (see below). Right Rear Corner Left Rear Corner of Rear Burner of Rear Burner Remove and discard nuts NOTE: Do not reinstall the shipping nuts. -
Page 52: Log Set Installation
Installation (for qualified installers only) Log Set Installation Installation Warnings NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance before installing the log set. If using firebacks, install them prior to installing the log set. ... - Page 53 Optional Equipment (for qualified installers only) Rear Log The back log has two pockets that insert over two tabs on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes. Left Log The left log has a channel (A) on the bottom that fits over a ridge on the burner and a notch (B) that contacts the grate.
- Page 54 Installation (for qualified installers only) Right Log The right log has a channel on the bottom that fits over a ridge on the burner. Push the log backwards as far as it will go. Right Front Twig The right front twig has a hole for a locating pin on the bottom and a notch to rest on the grate at one end. Place twig over the pin and adjust so the notch is in contact with the grate as shown below.
- Page 55 Optional Equipment (for qualified installers only) Right Rear Twig The right rear twig is shown below. It has a hole for a locating pin on the bottom. When in place, the front tip just barely rests on the right log as shown below. ©...
- Page 56 Installation (for qualified installers only) Center Log The center log has a hole for a locating pin on the bottom and a notch to rest on the grate at one end. © Travis Industries 4/22/21 - 1493 PB42 CF Install...
- Page 57 Optional Equipment (for qualified installers only) Ember Chunk Identification There are (2) ember chunks, that look very similar, included with this log set. It is important that they are on the correct side of the burner or they may cause flame impingement. Below is a picture that shows the ember chunks side by side to aid with identification.
-
Page 58: Ember Bed Glass And Ember Material
Installation (for qualified installers only) Ember bed Glass and Ember Material Installation (GSR2 ONLY) Ember bed Glass Installation The Ember-Glo™ lights come standard on the GSR2 units. There are an optional accessory for GSB2 or MV units. If the upgrade kit is not used in for the GSB2 or MV units, you may skip this section and proceed to Ember Installation. ... -
Page 59: Ember Material Installation (Gsr2 Only)
Optional Equipment (for qualified installers only) Ember Material Installation (GSR2 ONLY) Once the ember glass installation is complete, place a generous amount of ember material on the firebox floor on either side of the firebox. Completely cover any visible metal on the firebox floor. NOTE: Make sure no ember material is placed directly on the burner. -
Page 60: Lp Conversion Instructions
Installation (for qualified installers only) LP Conversion Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 61 Optional Equipment (for qualified installers only) Remove the 2 manifold covers and place them aside (replace after orifice installation). 3. Follow the directions below to replace the orifice. Slide the air shutters to provide access to the orifices. Remove and discard the gaskets on each burner orifice. Use a adjustable wrench to support the manifold while removing each orifice with a 1/2"...
- Page 62 Installation (for qualified installers only) 4. Install the LP pilot orifice following the instructions below. (a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).
- Page 63 Optional Equipment (for qualified installers only) 6. Remove the regulator from the front of the gas control valve. There is an knob extension on the regulator knob that will need to be moved to the new regulator. To remove the extension pull toward you. Replace with the propane regulator, using the new gasket and screws included with the regulator.
-
Page 64: Wall Mount Remote Thermostat Installation (Gsb2 And Mv Units Only)
Installation (for qualified installers only) Wall Mount Remote Thermostat installation (GSB2 and MV Units Only) Packing List GS Wall Remote (4) AA Batteries Receiver Assembly (3) AAA Batteries Switch Blank Installation If Using the Optional Blower, Install it First The optional blower should be installed before installing the remote. - Page 65 Optional Equipment (for qualified installers only) Remove the switch from the dashboard by depressing the tabs on the top and the bottom of the switch housing while pressing the back of the switch forward through the hole in the dashboard. Replace the switch with the included switch blank (see pictures below).
-
Page 66: Wiring Diagram - Mv Version
Installation (for qualified installers only) Wiring Diagram – MV Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Optional Blower Wiring © Travis Industries 4/22/21 - 1493 PB42 CF Install... -
Page 67: Wiring Diagram - Gsb2 Version
Optional Equipment (for qualified installers only) Wiring Diagram – GSB2 Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/22/21 - 1493 PB42 CF Install... -
Page 68: Wiring Diagram - Gsr2 Version
Installation (for qualified installers only) Wiring Diagram – GSR2 Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/22/21 - 1493 PB42 CF Install... -
Page 69: Coolsmart Tv - Installation Overview (Optional) - 98900779
Optional Equipment (for qualified installers only) CoolSmart TV – Installation Overview (Optional) - 98900779 The CoolSmart system is designed to redirect the convective heat of the fireplaces from the front of the unit, just above the glass, to a location higher on the wall. The use of this kit allows for reduced clearances to televisions and a recessed cavity above the fireplace. -
Page 70: Coolsmart Tv - Installation Requirements
Installation (for qualified installers only) CoolSmart TV - Installation Requirements Grill and Manifold Dimensions The grill may be installed over the facing to provide an aesthetic opening for the convection outlet. (2) 8-32 x 1-1/2” screws attach the trim to the upper manifold. This allows variable thickness of finish material. -
Page 71: Coolsmart Tv - Framing The Chase
Optional Equipment (for qualified installers only) CoolSmart TV - Framing the Chase © Travis Industries 4/22/21 - 1493 PB42 CF Install... -
Page 72: Coolsmart Tv - Fireplace Preparation
Installation (for qualified installers only) CoolSmart TV - Fireplace Preparation Remove the (4) knock-outs on the top of the fireplace and the (4) cover-plates located below the knockouts (see illustration below). Use snips or diagonal cutters to snip the tab on the knockouts. Press on the far side away from the tap to pop the edge of the knockout up. - Page 73 Optional Equipment (for qualified installers only) Under each knock out plate, you will find a cover plate held in place with (2) ¼” screws. Use a nut driver or drill with an extension to remove the (2) screws. Reach in and remove the cover plate. You may discard the plates.
-
Page 74: Using Oval Pipe To Get Past An Obstruction
Installation (for qualified installers only) Using oval pipe to get past an obstruction 5” Flex to CoolSmart If a situation arises that obstructs the 5” 7-3/4” Manifold CoolSmart flex vent runs (such as getting past a minimum sideways 5” round to 6” vent) you may transition the 5”... -
Page 75: Optional Firebacks
