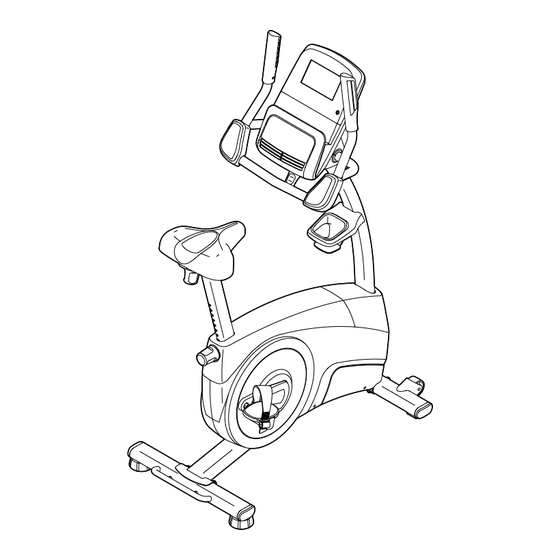

Model No. NTEVEX75017.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading

Summary of Contents for NordicTrack NTEVEX75017.0

  • Page 1 Model No. NTEVEX75017.0 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal CUSTOMER SERVICE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd.
  • Page 2: Table Of Contents

    NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH word mark and logos are registered trademarks of Bluetooth SIG, Inc.
  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK GX 4.4 PRO exercise bike. Cycling manual. To help us assist you, note the product model ® is one of the most effective exercises for increasing number and serial number before contacting us.
  • Page 5: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.
  • Page 6: Assembly

    ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tools: • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you finish all assembly steps.
  • Page 7 3. Set a sturdy piece of packing material under the front of the Frame (1). Attach the Front Stabilizer (2) to the Frame (1) with two M10 x 98mm Screws (53). Then, remove the packing material. 4. With the help of a second person, raise the Upright (4) to the vertical position.
  • Page 8 5. Attach the Accessory Tray (8) to the Upright (4) with an M6 x 50mm Screw (89). 6. Have a second person hold the Handlebar (5) near the Upright (4). See the inset drawing. Route the Upper Wire (87) through the Pivot Post (78) and the Pivot Bracket (71) as shown.
  • Page 9 7. While a second person holds the Console (13) near the Pivot Bracket (71), connect the wires on the Console to the Upper Wire (87) and the Pulse Wires (61). Insert the excess wire downward through the Pivot Bracket (71). Do not insert the excess wire into the Console (13);...
  • Page 10 9. Remove the Seat Knob (26) from the Seat Bracket (30) inside the Seat Carriage (24). Next, hold the Seat Carriage (24) on the Seat Post (6). Insert the Seat Knob (26) upward into the Seat Post, and tighten the Seat Knob into the Seat Bracket (30) inside the Seat Carriage.
  • Page 11 11. Identify the Right Pedal (21). Using an adjustable wrench, firmly tighten the Right Pedal (21) clockwise into the Right Crank Arm (19). Firmly tighten the Left Pedal (not shown) counterclockwise into the Left Crank Arm (not shown). IMPORTANT: You must turn the Left Pedal counterclockwise to attach it.
  • Page 12: How To Use The Exercise Bike

    HOW TO USE THE EXERCISE BIKE HOW TO PLUG IN THE POWER ADAPTER HOW TO ADJUST THE HEIGHT OF THE SEAT IMPORTANT: If the exercise bike has been exposed For effective exercise, the seat should be at the proper to cold temperatures, allow it to warm to room height.
  • Page 13 HOW TO ADJUST THE PEDAL STRAPS HOW TO LEVEL THE EXERCISE BIKE To tighten a pedal If the exercise bike strap (G), pull down- rocks slightly on ward on the end of your floor during the strap. To loosen use, turn one or a strap, press the both of the leveling tab (H) and pull...
  • Page 14 CONSOLE DIAGRAM FEATURES OF THE CONSOLE The advanced console offers an array of features designed to make your workouts more effective and enjoyable. When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button.
  • Page 15 HOW TO USE THE MANUAL MODE onboard workout is selected, this display will show either the approximate number of calories remain- 1. Turn on the console. ing to be burned or the approximate number of calories you have burned. Begin pedaling or press any button on the console to turn on the console.
  • Page 16 Average Watts (AVG)—This display will show your If there are approximate average power output in watts for the sheets of plas- Contacts workout. tic on the metal contacts on the Scan Mode and Priority handgrip heart Mode—The calories and watts rate monitor, displays will appear in an remove the plas-...
  • Page 17 HOW TO USE AN ONBOARD WORKOUT level and/or target speed is programmed for the next segment, the resistance level and/or target 1. Turn on the console. speed will appear in the display to alert you. The resistance of the pedals will then change. Begin pedaling or press any button on the console to turn on the console.
  • Page 18 HOW TO USE THE WATTS WORKOUT If your watts output is too far below or above the target watts setting, the resistance of the pedals 1. Turn on the console. will automatically increase or decrease to bring your watts output closer to the target watts setting. Begin pedaling or press any button on the console to turn on the console.
  • Page 19 HOW TO CONNECT YOUR TABLET TO THE 4. Record and track your workout information. CONSOLE Follow the instructions in the iFit Bluetooth Tablet The console supports BLUETOOTH connections to app to record and track your workout information. tablets via the iFit Bluetooth Tablet app and to compat- ible heart rate monitors.
  • Page 20 HOW TO USE THE SOUND SYSTEM HOW TO CHANGE CONSOLE SETTINGS To play music or audio books through the console 1. Select the settings mode. sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the To select the settings mode, press the Settings jack on the console and into a jack on your personal button.
  • Page 21: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE HOW TO ADJUST THE DRIVE BELT Regular maintenance is important for optimal If the pedals slip while you are pedaling, even while the performance and to reduce wear. Inspect and properly resistance is adjusted to the highest setting, the drive belt may need to be adjusted.
  • Page 22 HOW TO ADJUST THE REED SWITCH Locate the Reed Switch (57). Rotate the Left Crank Arm (20) until a Magnet (55) is aligned with the Reed If the console does not display correct feedback, the Switch. Next, loosen the M5 x 16mm Flat Head Screw reed switch should be adjusted.
  • Page 23: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 24 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 25: Part List

    PART LIST Model No. NTEVEX75017.0 R0517A Key No. Qty. Description Key No. Qty. Description Frame M6 x 20mm Screw Front Stabilizer Knob Nut Rear Stabilizer M8 x 76mm Bolt Upright M10 x 65mm Screw Handlebar #10 x 12mm Screw Seat Post...
  • Page 26: Exploded Drawing

    EXPLODED DRAWING A Model No. NTEVEX75017.0 R0517A...
  • Page 27 EXPLODED DRAWING B Model No. NTEVEX75017.0 R0517A...
  • Page 28: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
