WALL-MOUNTING THE TV

First you will need a wall mount. Consult the provided table below to find the
appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the weight of the TV.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface. Be sure the surface is
clear of debris that can scratch or damage the TV.
3. If attached, remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall by carefully following the instructions
that came with your mount. Use only with a UL-listed wall mount bracket rated
for the weight/load of your TV.
TIP: Installing a TV on a wall requires lifting. To prevent injury or
damage to the TV, ask someone to help you.
WARNING: Do not use the screws that are included inside the wall
mount holes to mount TV.
V435M-K04 V505M-K09
Screw Size M4
# of Screws (not included)
4
Hole Depth 10 mm
Hole Pattern 200 mm x 200 mm 200 mm x 200 mm
Weight w/o Stand 15.4 lb (7 kg) 18.81 lb (8.53 kg)

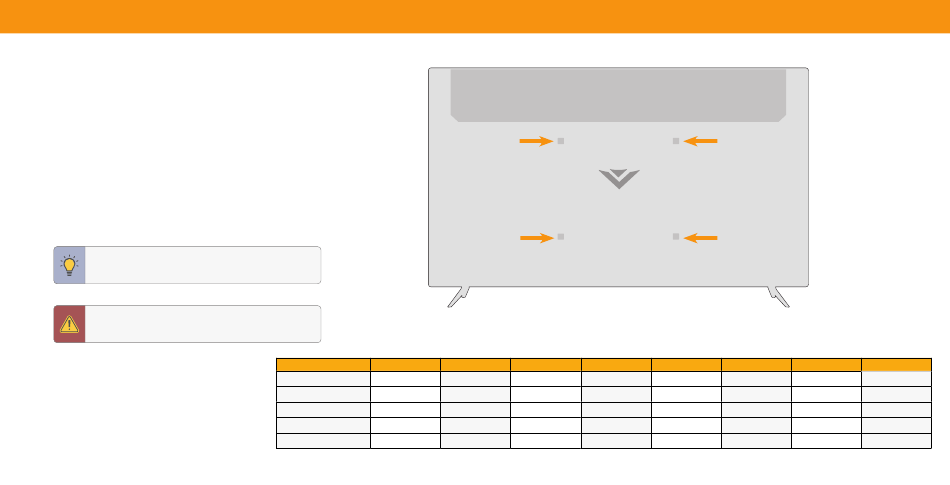

Note: The image shown here is for illustrative purposes only and may be subject to change . The actual screws
and their locations may vary, depending on the model . See the table of mounting specifications by model on
the following page .
V555M-K01 V585M-K01
M6 M6 M6
4 4 4
10 mm 14 mm 14 mm
300 mm x 200 mm 300 mm x 200 mm
28.53 lb (12.94 kg) 31.02 lb (14.07 kg)
V655M-K03 V655M-K04 V705M-K03
M6 M6 M6
4 4 4
12 mm 10 mm 12 mm
400 mm x 200 mm 400 mm x 200 mm 400 mm x 200 mm
40.2 lb (18.2 kg) 36.78 lb (16.68 kg) 51.6 lb (23.4 kg)
V755M-K03
M6
4
12 mm
400 mm x 200 mm
60.4 lb (27.4 kg)
