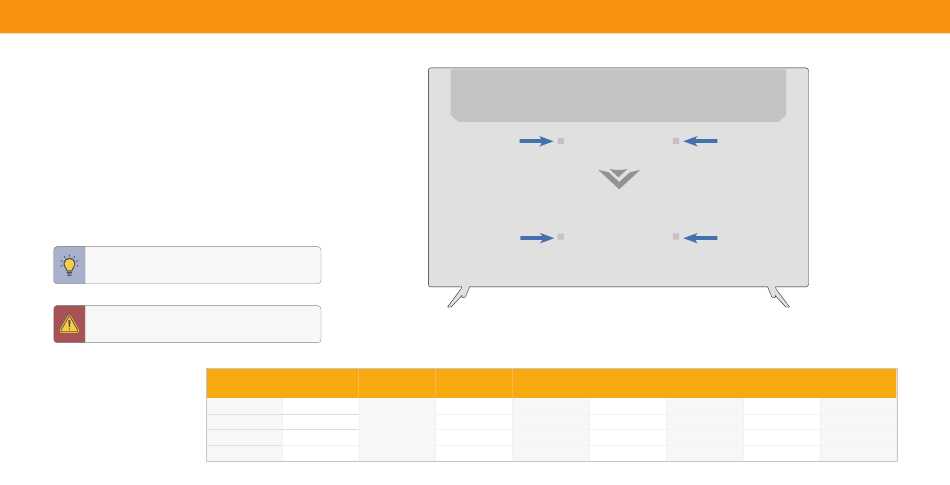

WALL-MOUNTING THE TV

First you will need a wall mount. Consult the provided table below to find the
appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the weight of the TV.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface. Be sure the surface is
clear of debris that can scratch or damage the TV.
3. If attached, remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall by carefully following the instructions
that came with your mount. Use only with a UL-listed wall mount bracket rated
for the weight/load of your TV.
TIP: Installing a TV on a wall requires lifting. To prevent injury or
damage to the TV, ask someone to help you.
WARNING: Do not use the screws that are included inside the wall
mount holes to mount TV.
Screw Size:
Hole Depth:
Hole Pattern:
Weight w/o Stand:
V405-H9, V505-H9,
V405-H19, V505-H19, V605-H3
V405-H69 V505-H69
M6 M6 M6
10 mm 9 mm 14 mm
200 x 200 mm 200 x 200 mm 400 x 200 mm
14.97 lb (6.79 kg) 21.54 lb (9.77 kg) 37.50 lb (17.0 kg)
Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number
of ports and their locations may vary, depending on the model.
V655-H4 V655-H9
M6 M6
10 mm 9 mm
400 x 200 mm 400 x 200 mm
42.58 lb (19.32 kg) 44.97 lb (20.40 kg)
V655-H19 V705-H3 V705-H13
M6 M6 M6
9 mm 14 mm 14 mm
400 x 200 mm 400 x 200 mm 400 x 200 mm
44.97 lb (20.40 kg) 52.69 lb (23.90 kg) 52.69 lb (23.90 kg)
