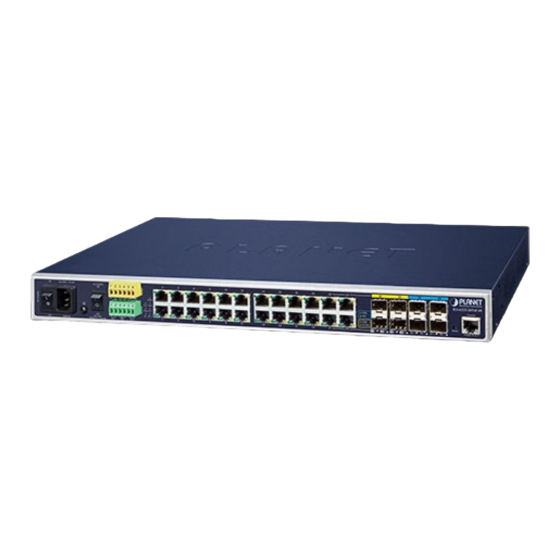

Planet IGS-6325 Series Quick Installation Manual
Industrial l3 rack-mount managed ethernet switch
Hide thumbs
Also See for IGS-6325 Series:
- Quick installation manual (16 pages) ,
- Quick installation manual (16 pages) ,
- Quick installation manual (20 pages)
Related Manuals for Planet IGS-6325 Series
Summary of Contents for Planet IGS-6325 Series
- Page 1 Industrial L3 Rack-mount Managed Ethernet Switch IGS-6325 Series Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Requirements ..................4 3. Wiring DC Power Inputs ................ 5 4. Terminal Setup ..................7 4.1 Logging into the Console ..............8 4.2 Configuring IP Address via Console ..........9 5. Starting Web Management ..............11 5.1 Logging in to the Industrial Managed Switch ........ -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial L3 Managed Ethernet Switch. “Industrial Managed Switch” is used as an alternative name in this Quick Installation Guide. Open the box of the Industrial Managed Switch and carefully unpack it. The box should contain the following items for each model:... -
Page 4: Requirements
2. Requirements The Industrial Managed Switch provides a remote login interface for management purposes. The following equipment is necessary for further management: z Workstations running Windows 7/8/10/11, MAC OS X 10.10 or later, Linux, UNIX, or other platforms are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. -
Page 5: Wiring Dc Power Inputs
3. Wiring DC Power Inputs The 6-contact terminal block connector on the panel of Industrial Managed Switch is used for two DC redundant power inputs. Please follow the steps below to insert the power wires. 1. Insert positive and negative DC power wires into contacts 1 and 2 for DC POWER 1, or 5 and 6 for DC POWER 2. - Page 6 2. Tighten the wire-clamp screws to prevent the wires from loosening. Power 1 Alarm Power 2 Figure 3-3: The screws of 6-contact terminal block connector The wire gauge of the terminal block should be between 12 and 24 AWG.
-
Page 7: Terminal Setup
4. Terminal Setup To configure the system, connect a serial cable from a COM port on your PC or notebook computer to the RJ45 serial port on the Industrial Managed Switch. PC / Workstation with Terminal Emulation Software Managed Switch RS232 to RJ45 Cable Serial Port RJ45 Console Port Figure 4-1: Console Connection for Industrial Managed Switch A terminal program is required to establish a software connection to the Industrial Managed Switch. -
Page 8: Logging Into The Console
4.1 Logging into the Console After connecting the terminal to the device, turn on the Industrial Managed Switch. The terminal will then display the message “running testing procedures”. Next, the message prompts the user to log in with their username and password. The factory default username and password are displayed on the login screen, as shown in Figure 4-3 (Tera Term is used as a representative.). -
Page 9: Configuring Ip Address Via Console
4.2 Configuring IP Address via Console The Industrial Managed Switch is shipped with a default IP address, shown below. IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check or modify the current IP address for the Switch, follow the procedures below (ICS-6325-20T4C4X is used to demonstrate how to use the commands): ... - Page 10 Figure 4-5: IP Address Configuration Screen 4. Repeat step 1 to check if the IP address is changed. 5. Enter the following command and press <Enter> to go back to “#” prompt. # exit Figure 4-6: Exit Command 6. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-7: Saving Current Configuration If the IP address is successfully configured, the Industrial Managed Switch will immediately apply the new setting. You can access the web interface of the Industrial Managed Switch using the new IP address.
-
Page 11: Starting Web Management
5. Starting Web Management The following steps explain how to start up the Web Management of the Industrial Managed Switch. Note that the Industrial Managed Switch is configured through an Ethernet connection. Please ensure that the manager PC is set to the same IP subnet address. For example, the default IP address of the Industrial Managed Switch is 192.168.0.100. To manage the switch from a manager PC, set the PC’s IP address to 192.168.0.x (where x is a number between 1 and 254, excluding 100). The default subnet mask is 255.255.255.0. -
Page 12: Logging In To The Industrial Managed Switch
5.1 Logging in to the Industrial Managed Switch 1. Use a modern web browser, such as Chrome or Firefox, and enter IP address http://192.168.0.100 (the factory default IP address or the one that you have just changed in console) to access the Web interface. 2. When the following dialog box appears, please enter the default user name and password “admin” (or the password you have changed via console). - Page 13 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Main Screen of Web Interface 4. The Switch Main Menu is displayed at the top of the web page, with func- tions shown on the left for configuring the Industrial Managed Switch. Figure 5-4: Switch Menu You can now use the web management interface to continue switch management, or manage the switch using the console interface. For more information, please refer to the user manual.
-
Page 14: Saving Configuration Via Web
If you are not familiar with Switch functions or related param- eters, press the “Help” icon at any time on the web page to get a description of the help options. 5.2 Saving Configuration via Web In the Industrial Managed Switch, the running configuration is stored in RAM (Random Access Memory). To keep the settings you changed after a reboot, save the running configuration from RAM to FLASH by clicking the Save Startup Config button. - Page 15 Figure 5-7: Main Menu & Corresponding Functions (continued) Figure 5-8: Main Menu & Corresponding Functions 2. Alternatively, you can click the “Save Configuration” button. Figure 5-9: Save Configuration Button 3. Click the “Save Configuration” button to save the running configuration. Figure 5-10: Save Configuration...
-
Page 16: Returning To Default Configuration
6. Returning to Default Configuration IP address has been changed or admin password has been forgotten – To reset the IP address to the default value of “192.168.0.100” or reset the login password to the default value, press the hardware-based reset button on the front panel for approximately 10 seconds. After the device reboots, you can log in to the management web interface within the same subnet of 192.168.0.x. -
Page 17: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team.
