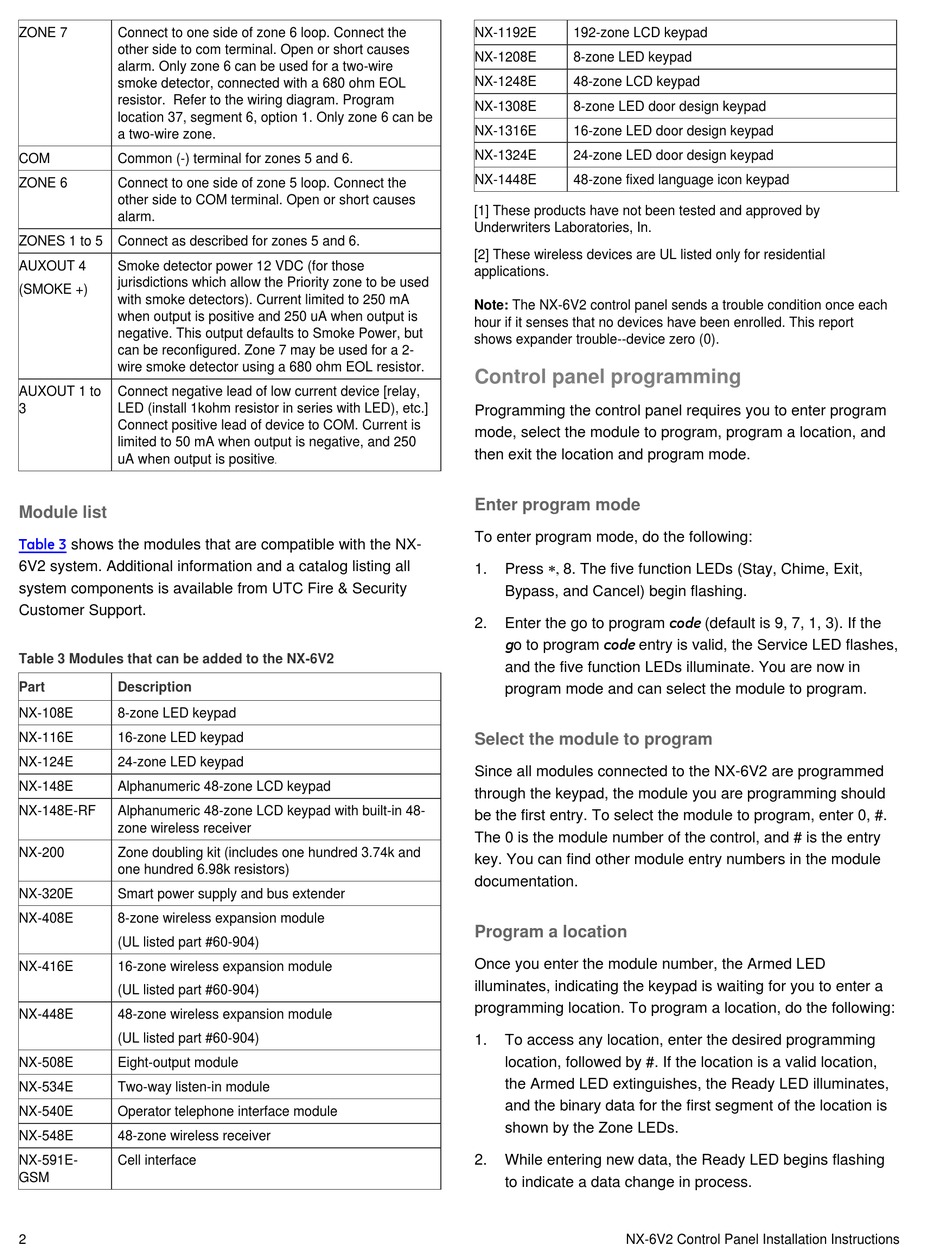

ZONE 7
Connect to one side of zone 6 loop. Connect the
other side to com terminal. Open or short causes
alarm. Only zone 6 can be used for a two-wire
smoke detector, connected with a 680 ohm EOL
resistor. Refer to the wiring diagram. Program
location 37, segment 6, option 1. Only zone 6 can be
a two-wire zone.
COM
Common (-) terminal for zones 5 and 6.
ZONE 6
Connect to one side of zone 5 loop. Connect the
other side to COM terminal. Open or short causes
alarm.
ZONES 1 to 5
Connect as described for zones 5 and 6.
AUXOUT 4
Smoke detector power 12 VDC (for those
jurisdictions which allow the Priority zone to be used
(SMOKE +)
with smoke detectors). Current limited to 250 mA
when output is positive and 250 uA when output is
negative. This output defaults to Smoke Power, but
can be reconfigured. Zone 7 may be used for a 2-
wire smoke detector using a 680 ohm EOL resistor.
AUXOUT 1 to
Connect negative lead of low current device [relay,
3
LED (install 1kohm resistor in series with LED), etc.]
Connect positive lead of device to COM. Current is
limited to 50 mA when output is negative, and 250
uA when output is positive
Module list
Table 3
shows the modules that are compatible with the NX-
6V2 system. Additional information and a catalog listing all
system components is available from UTC Fire & Security
Customer Support.
Table 3 Modules that can be added to the NX-6V2
Part
Description
NX-108E
8-zone LED keypad
NX-116E
16-zone LED keypad
NX-124E
24-zone LED keypad
NX-148E
Alphanumeric 48-zone LCD keypad
NX-148E-RF
Alphanumeric 48-zone LCD keypad with built-in 48-
zone wireless receiver
NX-200
Zone doubling kit (includes one hundred 3.74k and
one hundred 6.98k resistors)
NX-320E
Smart power supply and bus extender
NX-408E
8-zone wireless expansion module
(UL listed part #60-904)
NX-416E
16-zone wireless expansion module
(UL listed part #60-904)
NX-448E
48-zone wireless expansion module
(UL listed part #60-904)
NX-508E
Eight-output module
NX-534E
Two-way listen-in module
NX-540E
Operator telephone interface module
NX-548E
48-zone wireless receiver
NX-591E-
Cell interface
GSM
2
.
NX-1192E
192-zone LCD keypad
NX-1208E
8-zone LED keypad
NX-1248E
48-zone LCD keypad
NX-1308E
8-zone LED door design keypad
NX-1316E
16-zone LED door design keypad
NX-1324E
24-zone LED door design keypad
NX-1448E
48-zone fixed language icon keypad
[1] These products have not been tested and approved by
Underwriters Laboratories, In.
[2] These wireless devices are UL listed only for residential
applications.
Note: The NX-6V2 control panel sends a trouble condition once each
hour if it senses that no devices have been enrolled. This report
shows expander trouble--device zero (0).
Control panel programming
Programming the control panel requires you to enter program
mode, select the module to program, program a location, and
then exit the location and program mode.
Enter program mode
To enter program mode, do the following:
Press 8. The five function LEDs (Stay, Chime, Exit,
1.
Bypass, and Cancel) begin flashing.
Enter the go to program code (default is 9, 7, 1, 3). If the
2.
go to program code entry is valid, the Service LED flashes,
and the five function LEDs illuminate. You are now in
program mode and can select the module to program.
Select the module to program
Since all modules connected to the NX-6V2 are programmed
through the keypad, the module you are programming should
be the first entry. To select the module to program, enter 0, #.
The 0 is the module number of the control, and # is the entry
key. You can find other module entry numbers in the module
documentation.
Program a location
Once you enter the module number, the Armed LED
illuminates, indicating the keypad is waiting for you to enter a
programming location. To program a location, do the following:
1.
To access any location, enter the desired programming
location, followed by #. If the location is a valid location,
the Armed LED extinguishes, the Ready LED illuminates,
and the binary data for the first segment of the location is
shown by the Zone LEDs.
2.
While entering new data, the Ready LED begins flashing
to indicate a data change in process.
NX-6V2 Control Panel Installation Instructions
