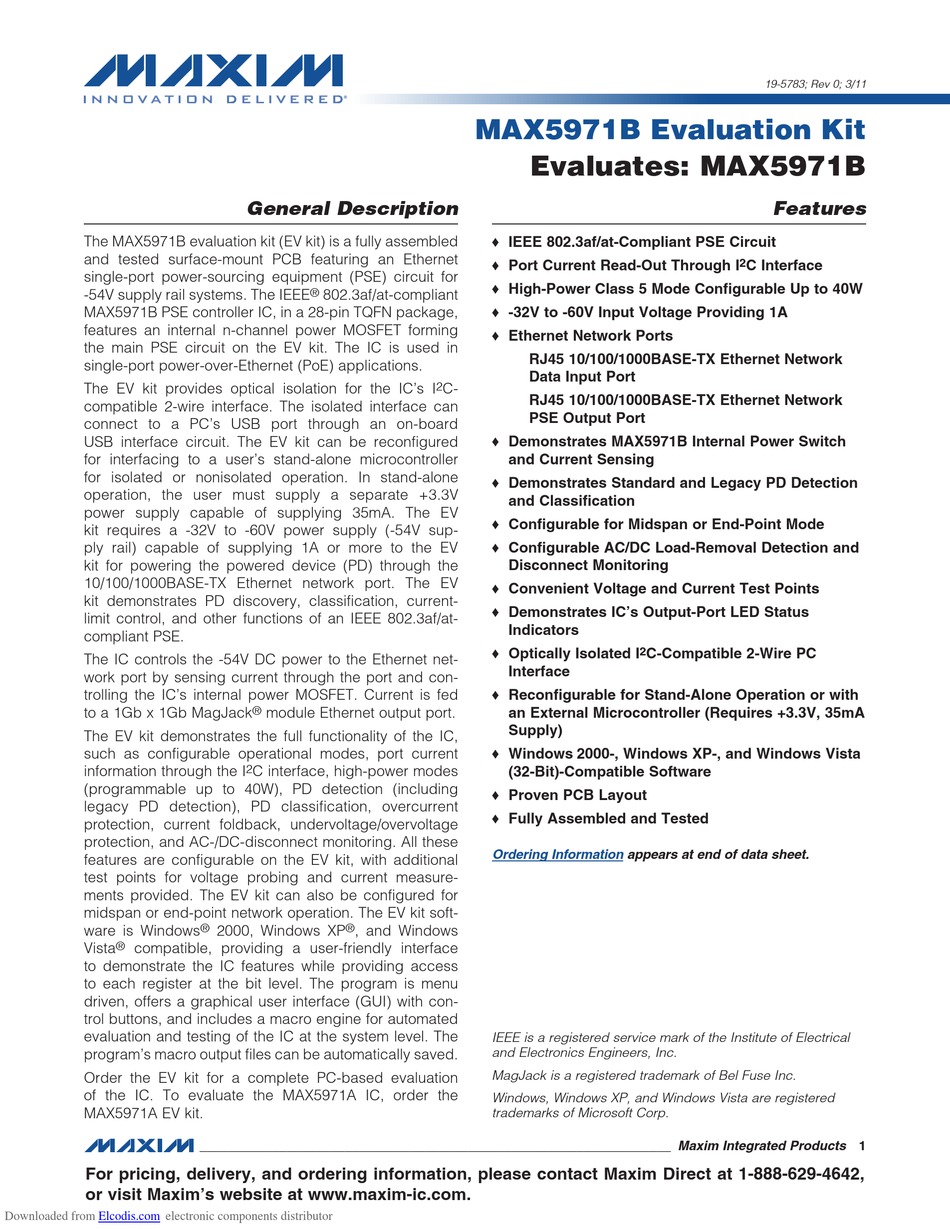

The MAX5971B evaluation kit (EV kit) is a fully assembled
and tested surface-mount PCB featuring an Ethernet
single-port power-sourcing equipment (PSE) circuit for
-54V supply rail systems. The IEEE
MAX5971B PSE controller IC, in a 28-pin TQFN package,
features an internal n-channel power MOSFET forming
the main PSE circuit on the EV kit. The IC is used in
single-port power-over-Ethernet (PoE) applications.
The EV kit provides optical isolation for the IC's I
compatible 2-wire interface. The isolated interface can
connect to a PC's USB port through an on-board
USB interface circuit. The EV kit can be reconfigured
for interfacing to a user's stand-alone microcontroller
for isolated or nonisolated operation. In stand-alone
operation, the user must supply a separate +3.3V
power supply capable of supplying 35mA. The EV
kit requires a -32V to -60V power supply (-54V sup-
ply rail) capable of supplying 1A or more to the EV
kit for powering the powered device (PD) through the
10/100/1000BASE-TX Ethernet network port. The EV
kit demonstrates PD discovery, classification, current-
limit control, and other functions of an IEEE 802.3af/at-
compliant PSE.
The IC controls the -54V DC power to the Ethernet net-
work port by sensing current through the port and con-
trolling the IC's internal power MOSFET. Current is fed
to a 1Gb x 1Gb MagJack
The EV kit demonstrates the full functionality of the IC,
such as configurable operational modes, port current
information through the I
(programmable up to 40W), PD detection (including
legacy PD detection), PD classification, overcurrent
protection, current foldback, undervoltage/overvoltage
protection, and AC-/DC-disconnect monitoring. All these
features are configurable on the EV kit, with additional
test points for voltage probing and current measure-
ments provided. The EV kit can also be configured for
midspan or end-point network operation. The EV kit soft-
ware is Windows
Vista
compatible, providing a user-friendly interface
M
to demonstrate the IC features while providing access
to each register at the bit level. The program is menu
driven, offers a graphical user interface (GUI) with con-
trol buttons, and includes a macro engine for automated
evaluation and testing of the IC at the system level. The
program's macro output files can be automatically saved.
Order the EV kit for a complete PC-based evaluation
of the IC. To evaluate the MAX5971A IC, order the
MAX5971A EV kit.
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim's website at www.maxim-ic.com.
Downloaded from
Elcodis.com
electronic components distributor
General Description
802.3af/at-compliant
M
module Ethernet output port.
M
2
C interface, high-power modes
2000, Windows XP
, and Windows
M
M
_________________________________________________________________ Maxim Integrated Products 1
MAX5971B Evaluation Kit
Evaluates: MAX5971B
IEEE 802.3af/at-Compliant PSE Circuit
S
Port Current Read-Out Through I
S
High-Power Class 5 Mode Configurable Up to 40W
S
-32V to -60V Input Voltage Providing 1A
S
Ethernet Network Ports
S
RJ45 10/100/1000BASE-TX Ethernet Network
Data Input Port
2
C-
RJ45 10/100/1000BASE-TX Ethernet Network
PSE Output Port
Demonstrates MAX5971B Internal Power Switch
S
and Current Sensing
Demonstrates Standard and Legacy PD Detection
S
and Classification
Configurable for Midspan or End-Point Mode
S
Configurable AC/DC Load-Removal Detection and
S
Disconnect Monitoring
Convenient Voltage and Current Test Points
S
Demonstrates IC's Output-Port LED Status
S
Indicators
Optically Isolated I
S
Interface
Reconfigurable for Stand-Alone Operation or with
S
an External Microcontroller (Requires +3.3V, 35mA
Supply)
Windows 2000-, Windows XP-, and Windows Vista
S
(32-Bit)-Compatible Software
Proven PCB Layout
S
Fully Assembled and Tested
S
Ordering Information
IEEE is a registered service mark of the Institute of Electrical
and Electronics Engineers, Inc.
MagJack is a registered trademark of Bel Fuse Inc.
Windows, Windows XP, and Windows Vista are registered
trademarks of Microsoft Corp.
19-5783; Rev 0; 3/11
Features
2
C Interface
2
C-Compatible 2-Wire PC
appears at end of data sheet.

Advertisement

Table of Contents
loading

Summary of Contents for Maxim MAX5971B

  • Page 1 Windows, Windows XP, and Windows Vista are registered MAX5971A EV kit. trademarks of Microsoft Corp. _________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com. Downloaded from Elcodis.com...
  • Page 2: Component List

    1FF Q10%, 10V X5R ceramic (8-8) capacitor (0603) C214 Murata GRM188R61A105K or RJ45 1x1Gb MagJack, 1000 TDK C1608X5R1A105K Base-T, 1 x 1 port, voice-over-IP magnetics (700mA DC) Bel Fuse Inc. 0826-1X1T-GH-F _________________________________________________________________ Maxim Integrated Products 2 Downloaded from Elcodis.com electronic components distributor...
  • Page 3 TP11, TP13 Miniature PC test points, black — Shunts ( JU1–JU7) Single-port PSE controller (28 TQFN-EP) PCB: MAX5971B EVALUATION — Maxim MAX5971BETI+ TinyLogic is a registered trademark of Fairchild Semiconductor. _________________________________________________________________ Maxim Integrated Products 3 Downloaded from Elcodis.com electronic components distributor...
  • Page 4: Quick Start

    800-348-2496 www.t-yuden.com TDK Corp. 847-803-6100 www.component.tdk.com Vishay 402-563-6866 www.vishay.com Note: Indicate that you are using the MAX5971B when contacting these component suppliers. MAX5971B EV Kit Files FILE DESCRIPTION INSTALL.EXE Installs the EV kit files on your computer MAX5971B.EXE Application program FTD2XX.INF...
  • Page 5: Software Startup

    Windows may show a warning Status, and BitMap Controls. Most of the main window’s message indicating that the device driver Maxim available functions and a few more can be evaluated uses does not contain a digital signature. This is by using the pulldown menu.
  • Page 6: Configuration Tab

    MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 1. MAX5971B EV Kit Software (Events and Status Tab) operating status during detection, classification, and cur- To view a specific port event or status after updating, rent usage by the connected PD. select the Events and Status tab. The port’s operating...
  • Page 7 MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 2. MAX5971B EV Kit Software (Configuration Tab) BitMap Controls Tab Autoread and Run-Macro State Controls When the Auto Read checkbox is checked, the program The BitMap Controls tab (Figure 3) provides a bit-level continuously updates the main window registers and is oper- method of configuring the EV kit as a single-port PSE.
  • Page 8 MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 3. MAX5971B EV Kit Software (BitMap Controls Tab) If the Auto Read checkbox is unchecked, the program’s the other half using the splitter bar above the Script main window displays register data from the last read.
  • Page 9 File | Save Macro menu item. The macro file must have Problem: Software reports MAX5971B IC not found, an smb file extension name. exiting program. To edit a previously saved macro, open the macro using • Are the OPTO_SCL and OPTO_SDA signals pulled up...
  • Page 10 Note that the 10/100/1000BASE-TX magnetic output module RJ45 jack (J2) is rated for up to 700mA of using the software’s high-level Configuration window. ________________________________________________________________ Maxim Integrated Products 10 Downloaded from Elcodis.com electronic components distributor...
  • Page 11: Jumper Selection

    PD connected to the PSE Ethernet output are included for the PSE GND and RTN output power port. Refer to the MAX5971B IC data sheet for more infor- sources for this method of evaluation. Since the GND mation on all classification modes available.
  • Page 12 Not installed Installed Class 5 Installed Installed *Default position. Refer to the MAX5971B IC data sheet for more information on Class 0–Class 4 overcurrent and current-limit information. Table 2. PWMEN Functions (JU3) Table 3. Green LED Status (J2) GREEN LED...
  • Page 13 +3.3V source as follows: Table 7 lists the jumper options for the oscillator and AC/ • Cut open the shorting traces on resistors R31 and R32 DC configurations. Refer to the MAX5971B IC data sheet pads. for more information. • Connect the external +3.3V ground terminal to the Reset/Shutdown and Automatic Modes VEE PCB pad or VEE test point (TP13 or TP11).
  • Page 14: Slave Address

    TP11 or TP13: VEE connects to the microcontroller power-supply ground. *Default set by PCB trace. **See the External +3.3V Operation section for configuring the EV kit in nonisolated mode. ________________________________________________________________ Maxim Integrated Products 14 Downloaded from Elcodis.com electronic components distributor...
  • Page 15 MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 5a. MAX5971B EV Kit Schematic—Controller Circuit (Sheet 1 of 3) ________________________________________________________________ Maxim Integrated Products 15 Downloaded from Elcodis.com electronic components distributor...
  • Page 16 MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 5b. MAX5971B EV Kit Schematic—LDO and Optical Coupler Circuit (Sheet 2 of 3) ________________________________________________________________ Maxim Integrated Products 16 Downloaded from Elcodis.com electronic components distributor...
  • Page 17 MAX5971B Evaluation Kit Evaluates: MAX5971B Figure 5c. MAX5971B EV Kit Schematic—USB Interface Circuit (Sheet 3 of 3) ________________________________________________________________ Maxim Integrated Products 17 Downloaded from Elcodis.com electronic components distributor...
  • Page 18 MAX5971B Evaluation Kit Evaluates: MAX5971B 1.0” Figure 6. MAX5971B EV Kit Component Placement Guide—Component Side ________________________________________________________________ Maxim Integrated Products 18 Downloaded from Elcodis.com electronic components distributor...
  • Page 19 MAX5971B Evaluation Kit Evaluates: MAX5971B 1.0” Figure 7. MAX5971B EV Kit PCB Layout—Component Side ________________________________________________________________ Maxim Integrated Products 19 Downloaded from Elcodis.com electronic components distributor...
  • Page 20 MAX5971B Evaluation Kit Evaluates: MAX5971B 1.0” Figure 8. MAX5971B EV Kit PCB Layout—Solder Side ________________________________________________________________ Maxim Integrated Products 20 Downloaded from Elcodis.com electronic components distributor...
  • Page 21: Ordering Information

    MAX5971B Evaluation Kit Evaluates: MAX5971B Ordering Information PART TYPE MAX5971BEVKIT# EV KIT #Denotes RoHS compliant. ________________________________________________________________ Maxim Integrated Products 21 Downloaded from Elcodis.com electronic components distributor...
  • Page 22: Revision History

    — Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
