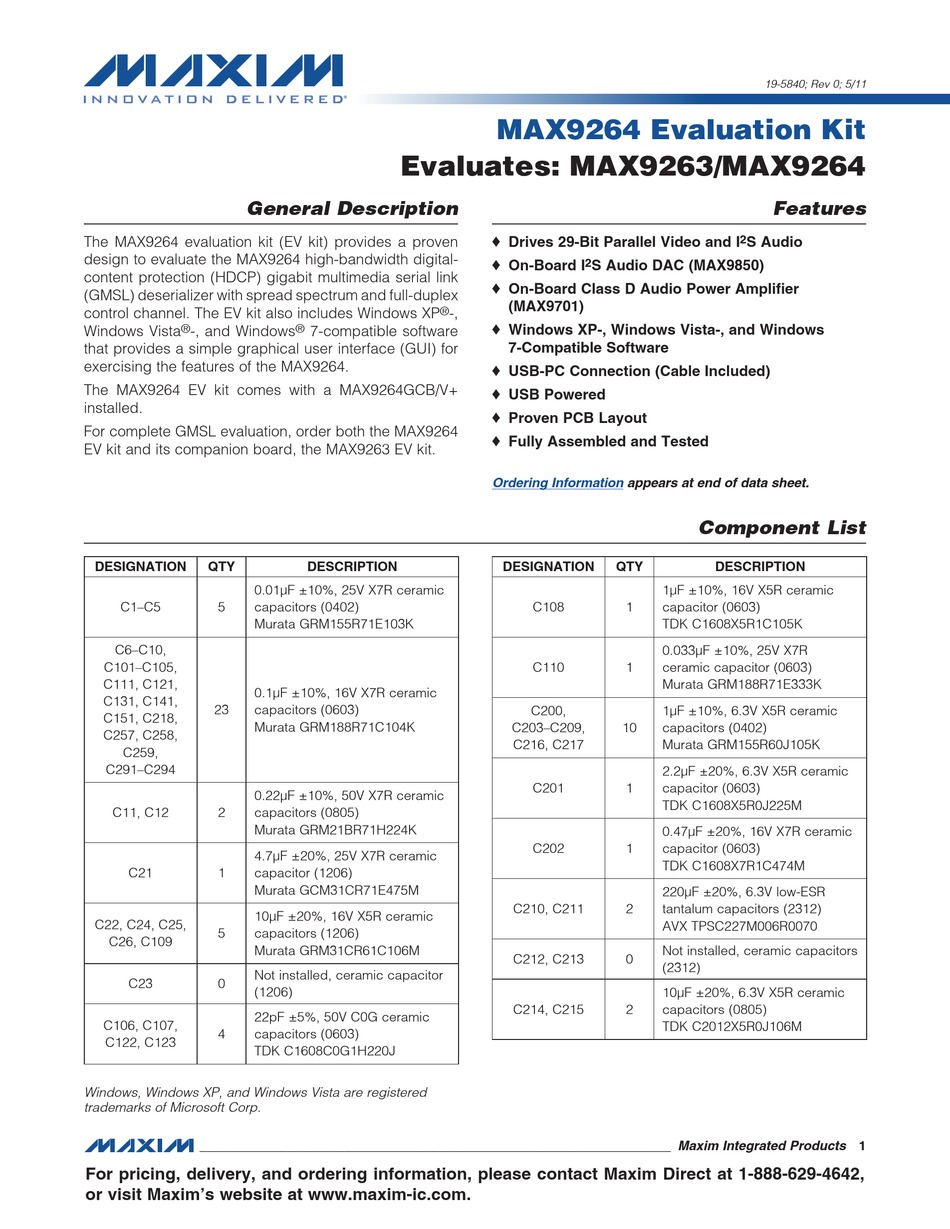

General Description
The MAX9264 evaluation kit (EV kit) provides a proven
design to evaluate the MAX9264 high-bandwidth digital-
content protection (HDCP) gigabit multimedia serial link
(GMSL) deserializer with spread spectrum and full-duplex
control channel. The EV kit also includes Windows XP
Windows Vista -, and Windows
M
that provides a simple graphical user interface (GUI) for
exercising the features of the MAX9264.
The MAX9264 EV kit comes with a MAX9264GCB/V+
installed.
For complete GMSL evaluation, order both the MAX9264
EV kit and its companion board, the MAX9263 EV kit.
DESIGNATION QTY
0.01FF Q10%, 25V X7R ceramic
C1–C5 5 capacitors (0402)
Murata GRM155R71E103K
C6–C10,
C101–C105,
C111, C121,
0.1FF Q10%, 16V X7R ceramic
C131, C141,
23 capacitors (0603)
C151, C218,
Murata GRM188R71C104K
C257, C258,
C259,
C291–C294
0.22FF Q10%, 50V X7R ceramic
C11, C12 2 capacitors (0805)
Murata GRM21BR71H224K
4.7FF Q20%, 25V X7R ceramic
C21 1 capacitor (1206)
Murata GCM31CR71E475M
10FF Q20%, 16V X5R ceramic
C22, C24, C25,
5 capacitors (1206)
C26, C109
Murata GRM31CR61C106M
Not installed, ceramic capacitor
C23 0
(1206)
22pF Q5%, 50V C0G ceramic
C106, C107,
4 capacitors (0603)
C122, C123
TDK C1608C0G1H220J
Windows, Windows XP, and Windows Vista are registered
trademarks of Microsoft Corp.
_________________________________________________________________ Maxim Integrated Products 1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim's website at www.maxim-ic.com.
Evaluates: MAX9263/MAX9264
-,
M
7-compatible software
M
DESCRIPTION
MAX9264 Evaluation Kit
S Drives 29-Bit Parallel Video and I
S On-Board I 2 S Audio DAC (MAX9850)
S On-Board Class D Audio Power Amplifier
(MAX9701)
S Windows XP-, Windows Vista-, and Windows
7-Compatible Software
S USB-PC Connection (Cable Included)
S USB Powered
S Proven PCB Layout
S Fully Assembled and Tested
Ordering Information appears at end of data sheet.
DESIGNATION QTY
1FF Q10%, 16V X5R ceramic
C108 1 capacitor (0603)
TDK C1608X5R1C105K
0.033FF Q10%, 25V X7R
C110 1 ceramic capacitor (0603)
Murata GRM188R71E333K
C200, 1FF Q10%, 6.3V X5R ceramic
C203–C209, 10 capacitors (0402)
C216, C217 Murata GRM155R60J105K
2.2FF Q20%, 6.3V X5R ceramic
C201 1 capacitor (0603)
TDK C1608X5R0J225M
0.47FF Q20%, 16V X7R ceramic
C202 1 capacitor (0603)
TDK C1608X7R1C474M
220FF Q20%, 6.3V low-ESR
C210, C211 2
tantalum capacitors (2312)
AVX TPSC227M006R0070
Not installed, ceramic capacitors
C212, C213 0
(2312)
10FF Q20%, 6.3V X5R ceramic
C214, C215 2 capacitors (0805)
TDK C2012X5R0J106M
19-5840; Rev 0; 5/11
Features
2 S Audio
Component List
DESCRIPTION
