Kidde P4010ACSCO-WF-CA User Manual

Kidde P4010ACSCO-WF-CA User Manual

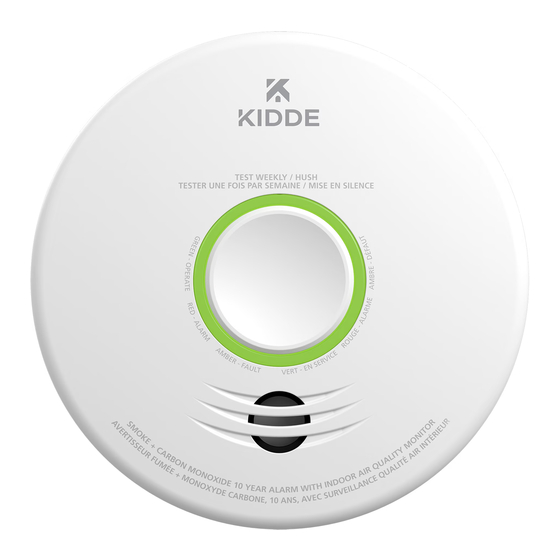

Smoke + carbon monoxide alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kidde Smoke + Carbon Monoxide Alarm
User Guide
Combination Photoelectric Smoke
& Carbon Monoxide Alarm
with Voice, Hardwire Interconnect,
and Wi-Fi Compatibility
Model P4010ACSCO-WF-CA
wi-Fi CoMPATiBiliTY:
This model requires a home Wi-Fi router
and internet to connect to a mobile device.
( Requires 802.11b/g/n (2.4GHz) Wi-Fi )
noTe: wi-Fi features do not function without AC power.
P/N: 2592-7203-02-EN Rev.C
Kidde wi-Fi AlArM
120V HArdwire
10-YeAr BATTerY BACKUP
(AC Power reqUired)
HArdwire inTerConneCT
wi-Fi CoMPATiBle
VoiCe AlArM
1

Advertisement

Table of Contents
loading

Related Manuals for Kidde P4010ACSCO-WF-CA

Summary of Contents for Kidde P4010ACSCO-WF-CA

  • Page 1 Kidde Smoke + Carbon Monoxide Alarm User Guide Combination Photoelectric Smoke & Carbon Monoxide Alarm with Voice, Hardwire Interconnect, and Wi-Fi Compatibility Model P4010ACSCO-WF-CA wi-Fi CoMPATiBiliTY: This model requires a home Wi-Fi router and internet to connect to a mobile device.
  • Page 2 For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Smoke + Carbon Monoxide Alarm.”...

  • Page 3: Table Of Contents

    . 11 8. Locations To Avoid . . 14 9. Wiring Instructions and Mounting Bracket Installation . 15 10 Kidde App Instructions . . 19 11. Installation, Activation, and Wi-Fi Enrollment . . 20 11.1 Setting Up Wi-Fi Enrollment .

  • Page 4: Smoke Alarm: What To Do When The Alarm Sounds

    1. Smoke Alarm: What To Do When the Alarm Sounds The smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with the alarm pattern. The smoke alarm takes precedence when both smoke and carbon monoxide are present.

  • Page 5: Carbon Monoxide Alarm: What To Do When The Alarm Sounds

    2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every 5 seconds. The red LED blinks in time with the alarm pattern. On DC power only, after 4 mins, the alarm pattern and voice will only occur every 60 sec.

  • Page 6: Other Alarm Visual And Audible Indicators

    3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: Normal (standby) AC power: Green LED on continuously during light conditions, or blink every 60 sec during dark conditions. DC power: Green LED blink approx every 60 sec. Test (button press when no •...

  • Page 7: Troubleshooting Guide

    If you are experiencing a problem with your alarm, or a fault, and are unsure of the next action, please contact product support at 1-877-542-5471 before discharging the battery. You may also write us at: Kidde Canada Inc., P.O. Box 40, Apsley, ON K0L 1A0.

  • Page 8: Introduction, Product Features & Specifications

    5. Introduction, Product Features and Specifications introduction This alarm detects products of combustion using photoelectric technology and carbon monoxide using an electrochem- ical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was activated, this unit will automatically alert you that it is time to replace the unit.

  • Page 9: Limitations Of Smoke And Carbon Monoxide Alarms

    6. Limitations of Smoke and Carbon Monoxide Alarms wArninG: PleASe reAd CAreFUllY And THoroUGHlY • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •...
  • Page 10 wArninG: PleASe reAd CAreFUllY And THoroUGHlY • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. CAUTion: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present in other areas.

  • Page 11: Recommended Locations For Smoke And Carbon Monoxide Alarms

    7. Recommended Locations For Smoke And Carbon Monoxide Alarms 10 cm (4in) CEILING • Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest from the MINIMUM exit. If more than one sleeping area exists, locate additional alarms in each sleeping area. DEAD AIR •...
  • Page 12 CAN/ULC-S553 and NFPA 72 state: “Smoke alarms in rooms with ceiling slopes greater than 0.3 m in 2.4 m (1 ft in 8 ft) horizontally shall be located on the high side of the room.” (See Figures 7-C) SINGLE FLOOR PLAN SINGLE FLOOR PLAN NOT IN DINING...
  • Page 13 • For mobile home installation, select locations carefully to avoid thermal barriers that may form at the ceiling. For more details, see MOBILE HOME INSTALLATION section. • When mounting an alarm on the ceiling, locate it at a minimum of 10 cm (4”) from the side wall (Figure 7-A). •...

  • Page 14: Locations To Avoid

    8. Locations to Avoid (See Figures 7-A, 7-B, & 7-C for recommended locations) • In the garage. Products of combustion are present when you start your automobile. • Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have an alarm silence feature or be a photoelectric type.

  • Page 15: Wiring Instructions And Mounting Bracket Installation

    For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Smoke + Carbon Monoxide Alarm.”...
  • Page 16 • A maximum of 24 Kidde Safety devices may be interconnected in a multiple station arrangement. The intercon- nect system should not exceed the NFPA interconnect limit of 12 smoke alarms and/or 18 alarms total (smoke, CO, Smoke/ CO Combination, heat, etc.). With 18 alarms interconnected, it is still possible to interconnect up to a total of 6 remote signaling devices and / or relay modules.
  • Page 17 Kidde App, do not connect your Wi-Fi unit to the AC quick connect harness or mounting bracket yet. See Remove Section 10 for instructions on downloading the Kidde App. If you are not using the Wi-Fi function, then proceed with the following Install three steps.
  • Page 18 ONLY transmit smoke and CO alarm signals from these alarms to your mobile device (after the wi-Fi alarm is registered with the Kidde app). Other status notifications from non Wi-Fi alarms, such as low battery, end of unit life, or a fault condition, will NOT be transmitted to your mobile device through the Wi-Fi alarm.
  • Page 19 For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Smoke + Carbon Monoxide Alarm.”...

  • Page 20: Installation, Activation, And Wi-Fi Enrollment

    For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Smoke + Carbon Monoxide Alarm.”...

  • Page 21: Adding Another Device To An Existing Wi-Fi Alarm Network

    B. Open the Kidde App and follow instructions on the App to finish Wi-Fi enrollment. noTe: If no further steps are taken within 15 minutes of initial power up, a voice prompt, “Not Connect- ed” will be heard once, and the Wi-Fi function will turn off. The unit will then perform as a standard hardwired alarm.

  • Page 22: Resetting A Device's Wireless Settings

    Your WiFi alarm is compatible with Amazon Alexa and Google Assistant. Follow instructions in the Kidde app help section to link your WiFi alarm to Amazon Alexa and/or Google Assistant.* * AMAZON and ALEXA are trademarks of Amazon Technologies, Inc. or its affiliates.

  • Page 23: Operation And Testing

    12. Operation and Testing operation The alarm is operating once it is activated and testing is Co AlArM SenSor reSPonSe TiMeS complete. When products of combustion (smoke or CO) are At 70 PPM, the unit must alarm within 60-240 minutes. sensed, the unit sounds a loud alarm with voice messages.

  • Page 24: Recognizing Nuisance Alarms

    Ambient light Sensing In low light ambient conditions, the green LED ring fades to off, and then PoSSiBle CHirPinG reASonS End of Unit Life: will be suppressed at night blinks approx every 60 seconds. Network Error: will be suppressed at night This unit samples the ambient light conditions of the alarm’s location and, Low battery: will be suppressed at night if possible, determines a Night / Day cycle.

  • Page 25: Battery Backup

    Carbon Monoxide (Co) nuisance RESET: Pushing the button during CO alarm allows the unit to reset calculations and double check for the presence of CO. If the unit re-alarms within 6 minutes, it is sensing high levels of CO which can quickly become a dangerous situa- tion.

  • Page 26: Permanently Disable Alarm / Discharge Battery

    15. Permanently Disable Alarm / Discharge Battery wArninG: FAilUre To diSCHArGe AlArM BATTerY AS inSTrUCTed Prior To diSPoSAl MAY CreATe PoTenTiAl For liTHiUM BATTerY relATed Fire or HAzArd. wArninG: diSCHArGinG THe AlArM BATTerY iS PerMAnenT • Once the alarm battery has been discharged, it cannot be reactivated! •...

  • Page 27: General Carbon Monoxide (Co) Information

    16. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Possible Sources of Co Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles running in attached garages can also produce dangerous levels of CO.
  • Page 28 HVAC contractors will perform CO inspections. Some contractors may charge for this service. It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.

  • Page 29: Cleaning Your Alarm

    17. Cleaning Your Alarm Your Alarm Should be Cleaned at least once a Year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blow- ing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth.

  • Page 30: Good Safety Habits

    18. Good Safety Habits develop and Practice a Plan of escape Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the resi- dence.
  • Page 31 Smoke detection – Are More Alarms desirable? Per CAN/ULC-S553 and NFPA 72: Where required by other governing laws, codes, or standards for The required number of smoke alarms might not a specific type of occupancy, approved single and provide reliable early warning protection for those multiple-station smoke alarms shall be installed as follows: areas separated by a door from the areas protected by...

  • Page 32: Service And Warranty

    Kidde warrants that the enclosed alarm will be free from defects in material and workmanship or design under normal use and service for a period of ten years from the date of purchase. The obligation of Kidde under this warranty is...
  • Page 33 For More inForMATion Call Kidde Product Support line at 1-877-542-5471 or contact us at www.kiddecanada.com Kidde Canada Inc. P.O. Box 40, Apsley, ON K0L 1A0 Kidde’s General Privacy Notice can be found at: https://www.corporate.carrier.com/legal/privacy-notice/ A Carrier Company ©2022 Carrier. All Rights Reserved.
